Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.7:1, ~2.3:1, ~2.8:1
Efficiency (%) ~55, ~48.1, ~38.4
Peak Gain (dBi) ~4.1, ~2.9, ~0.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Dipole Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
4.1 dBi 4G LTE Peak Gain
N-Male connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Easy Installation with Optimal Antenna Performance

The Cellular, 4G LTE, 3G and 2G Dipole Connector Mount Antenna (2J2124-C315N) is a wideband antenna solution for mobile voice and data applications that operate within 698 MHz to 2700 MHz cellular frequencies. This antenna provides consistent and stable connectivity with high data throughput to access points, routers, small base stations, repeaters, boosters, and other LPWA IoT devices with cellular needs.


Suggested applications include:

  • Wireless broadband communication
  • Mobile devices
  • Data terminals
  • Smart devices
  • First responders and public safety communications
  • Mobile HD TV
  • Smart metering and sensors
  • Commercial, industrial, or home automation
  • Base stations and routers

Designed for cellular mobile devices that operate within 4G LTE, 3G and 2G standards, this antenna maintains a stable LTE peak gain of ~4.1 dBi and maximum efficiency of ~55% (above the industry standard). This antenna is ideal for mission critical communications in public safety industries as well as major carrier approvals and certification processes around the globe.


Installation / Environmental

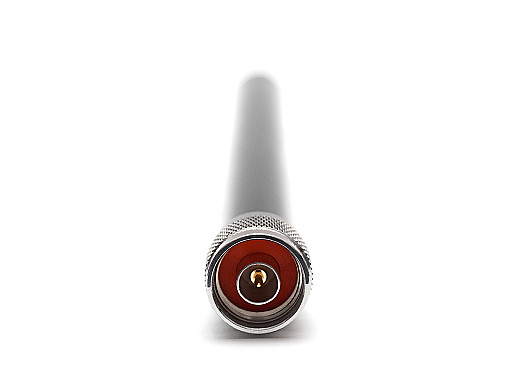

2J2124-C315N has a slim pole design that measures 232 x Ø 20 (Ø 16) mm in size and is protected with an ASA housing offering excellent durability in temperatures ranging from -40C (-40F) to +85C (+185F).  Easy installation is possible with a simple twist N-Male connector without the need for grounding or free space.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
