Antenna and electrical specifications

connection 1

GPS/GLONASS/BeiDou/IRNSS/L1L2L5

Technologies GPS/Glonass/Beidou/QZSS/Galileo/IRNSS/SBAS/L1L2L5
Bandwidth (MHz) 1176, 1227, 1561-1606
Bands L5, L2, L1
Frequency 1176.45, 1227.6, 1561.098, 1575.42, 1602.00
Standards GPS(L5), BeiDou(B2a , QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), QZSS(L2C) / GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB) ~-11.3, ~-11.1, ~-16.4
VSWR ~2.1:1, ~1.8:1, ~1.4:1
Passive Peak Gain (dBi) ~4.2, ~3.2, ~1.9
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Axial Ratio (dB) 3dB max
Polarisation RHCP
Voltage (V) 1.5 - 6
Active Gain (dB) 28 @ 3 V
Noise Figure (dB) 1.6 @ 3V
Current Consumption (mA) 16 @ 3V
Power Consumption (mW) 48 @ 3V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) ~40
ESD Protection (kV) 2

Key Features

Active GNSS Antenna
Internal Antenna
L1/L2/L5 Multi-Band-Constellation
High Precision Navigation
Ground Plane Independent
28 dB GNSS Active Gain
Pre-Filter GNSS
Voltage Range 1.5 - 6.0 V
Low Noise Figure
Low Power Consumption
Customizable Cable and Connector

Applications

Antenna Description

Most Compact Design, Superior Precision High-Performance Multi-Band GNSS Antenna for New Global Navigation Technologies

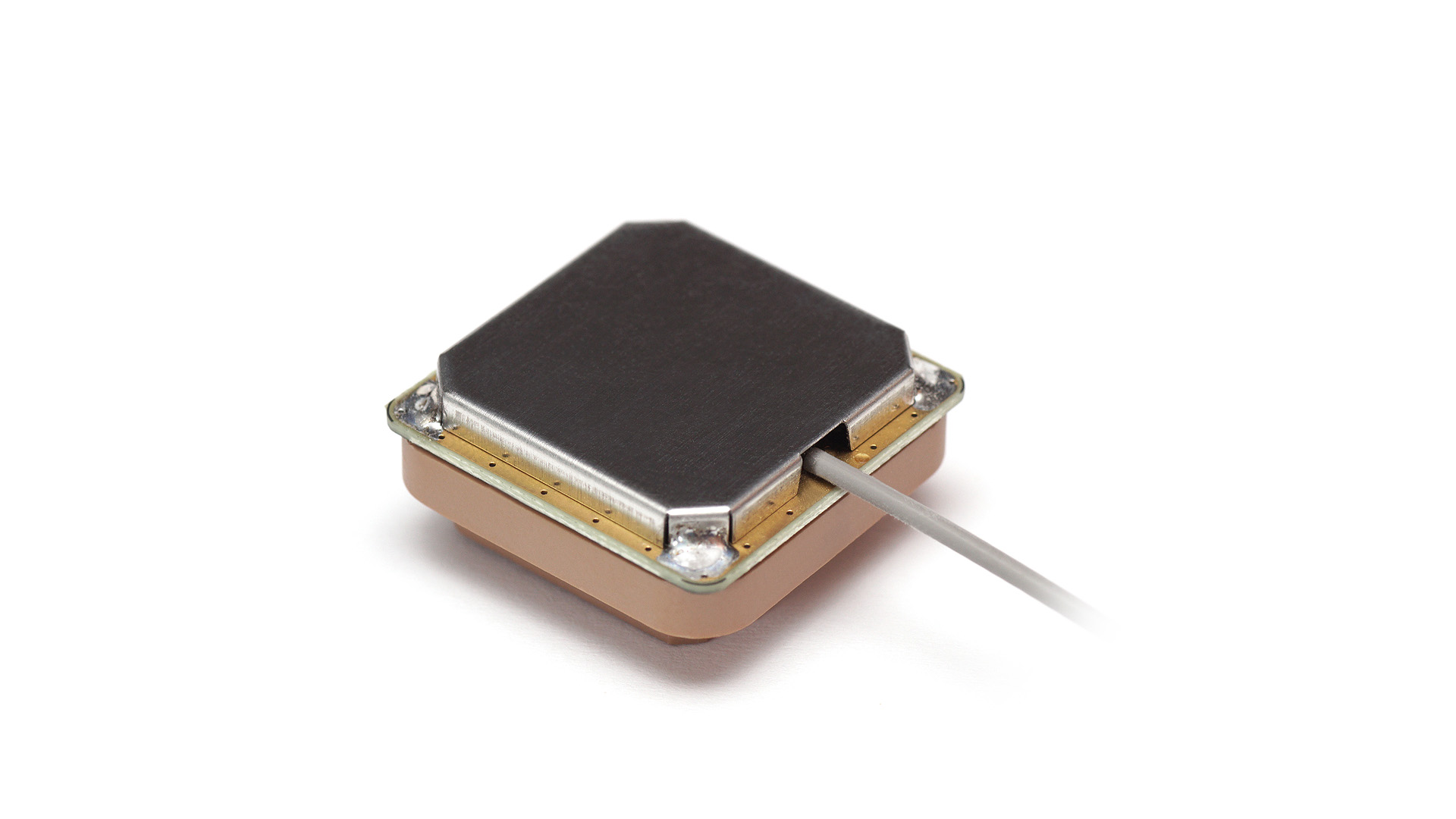

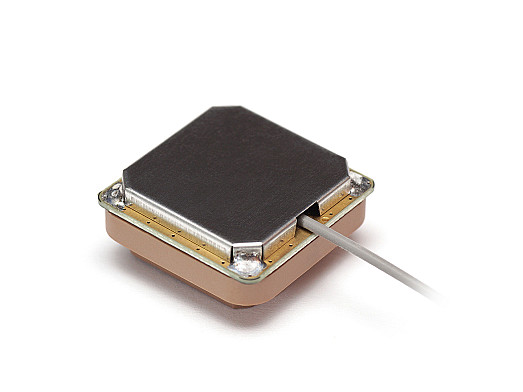

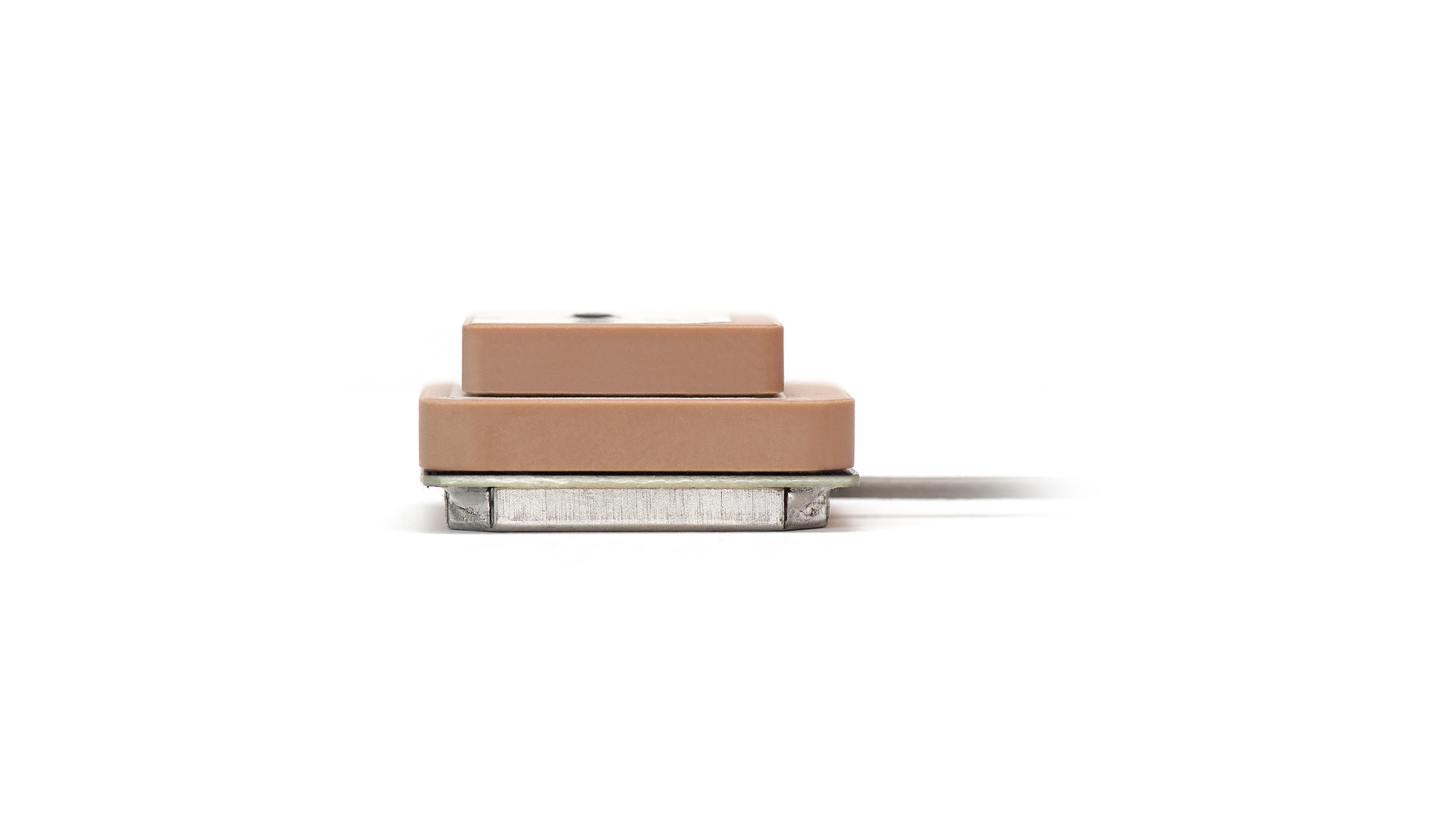

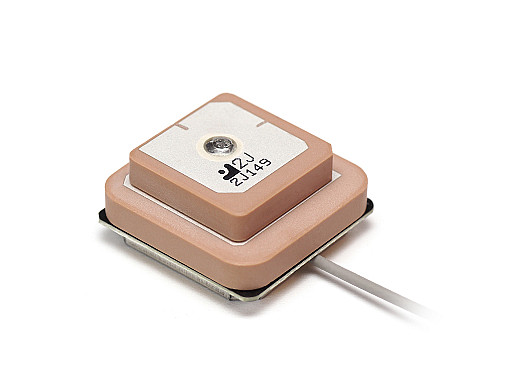

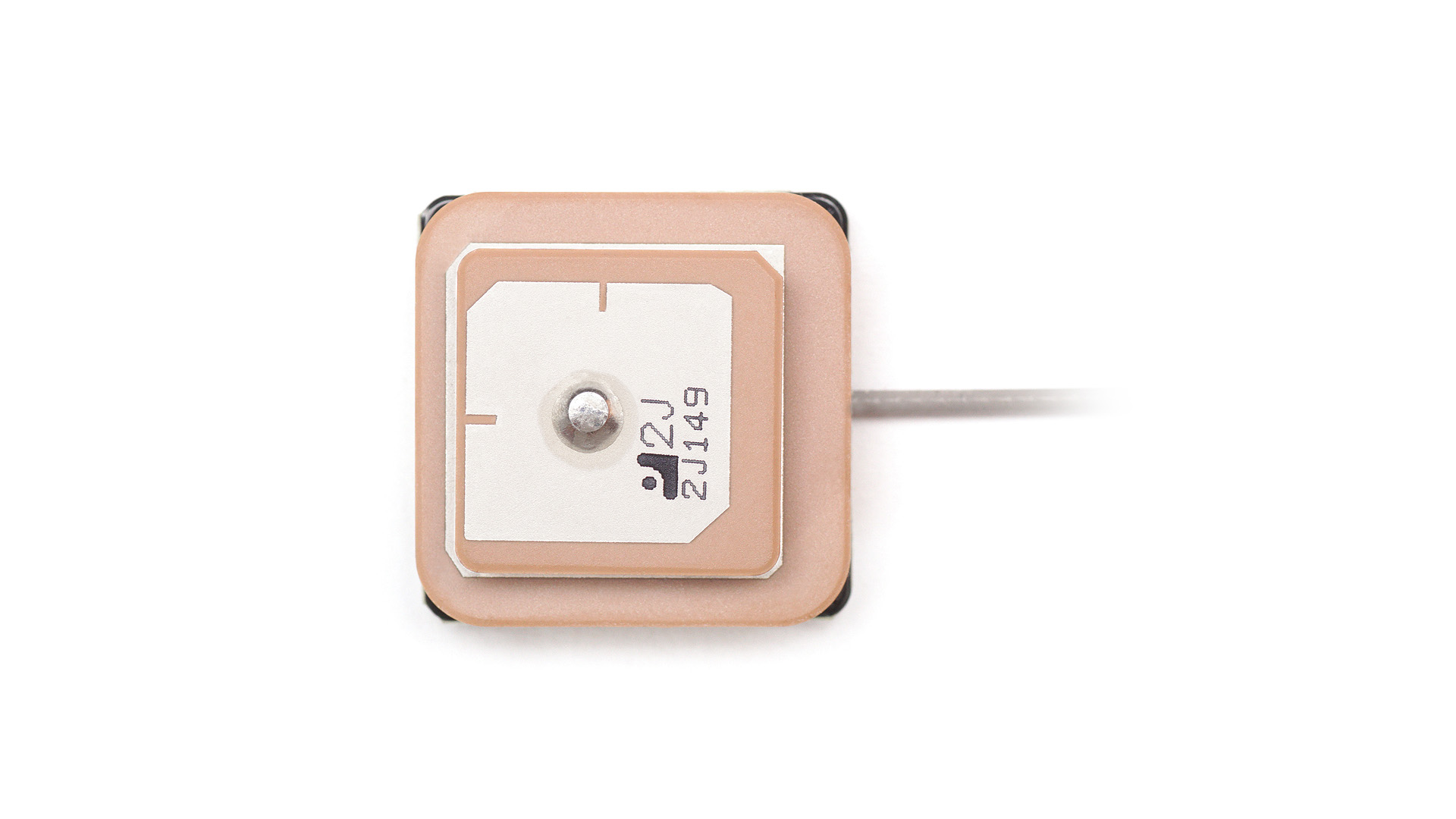

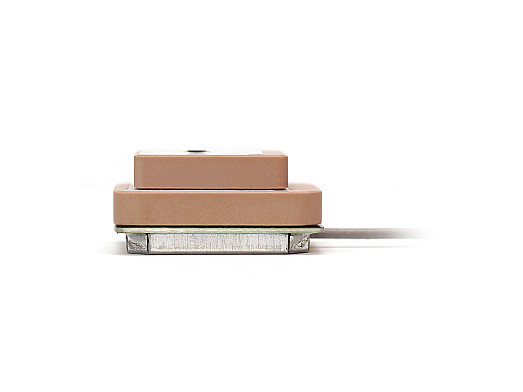

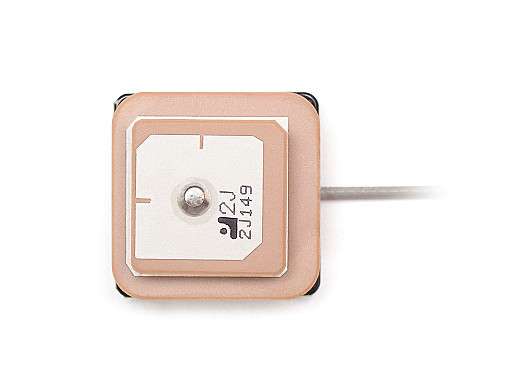

The multi-GNSS GPS L1/L2/L5 stacked ceramic patch antenna measures only 25x25x12 mm and is the most compact on the market. Designed for high precision and autonomous multi-frequency applications in mind, this antenna provides reliability, greater bandwidth, and high gain thanks to the integration of L1, L2, L5 bands. 2JM3201C5F offers concurrent reception on GNSS that cater to GPS, GLONASS, Galileo, IRNSS, and SBAS navigational technologies. The L5 band is the most advanced GNSS signal on the market and gives military-grade GPS accuracy to users worldwide while enabling the usage of dead reckoning process.  By combining Precise Point Positioning (PPP) of L1, L2 and L5  with the Indian Regional Navigation Satellite System (IRNSS), this antenna is the #1 choice for GIS surveying where high precision operations are needed.



 Typical applications include:

  • Aviation Safety
  • Safety-Critical Systems & Transportation
  • Autonomous Vehicles
  • Agriculture
  • Navigation

This antenna works on single feed technology. With low power consumption and a wide voltage range, 2JM3201C5F is a perfect choice for multiple applications. It has high efficiency within 1561-1606 MHz (L1), 1227 MHz (L2), and 1176 MHz (L5) frequencies with a 28dB GNSS active gain. It gives strong anti-interference performance due to low noise figures. It has a high rejection pre-filter due to which it effectively avoids disconnection when receivers are operated under complex electromagnetic environments such as communication base station applications or urban areas. It provides real-time error corrections while simultaneously maintaining centimeter precise position data throughput when passing through solid objects or high coverage landscapes. This antenna is right-handed circular polarization (RHCP) which makes it perfect to reject multipath fading and interference thus improving the signal strength. The 2JM3201C5F offers low noise figures of 1.6 dB at 3V, ESD 2kV protection.

This antenna is also available in other configurations including RTK/L1L2 (2JM3201C2F) and IRNSS/L1L5 (2JM3201C3F).

Installation / Environmental

This compact and lightweight antenna is highly portable and provides an easy installation with a snap-in module. Both patches are manufactured from a durable ceramic material, offering durability in temperatures ranging between -40C to +85C. It is a ground plane independent design, which allows it to be installed securely on a wide range of surfaces without restrictions. The 2JM3201C5F is delivered with a standard U.FL connector and a 100 mm long mini coax standard cable. It is fully customizable by offering additional connector types, cable lengths, and cable types. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
