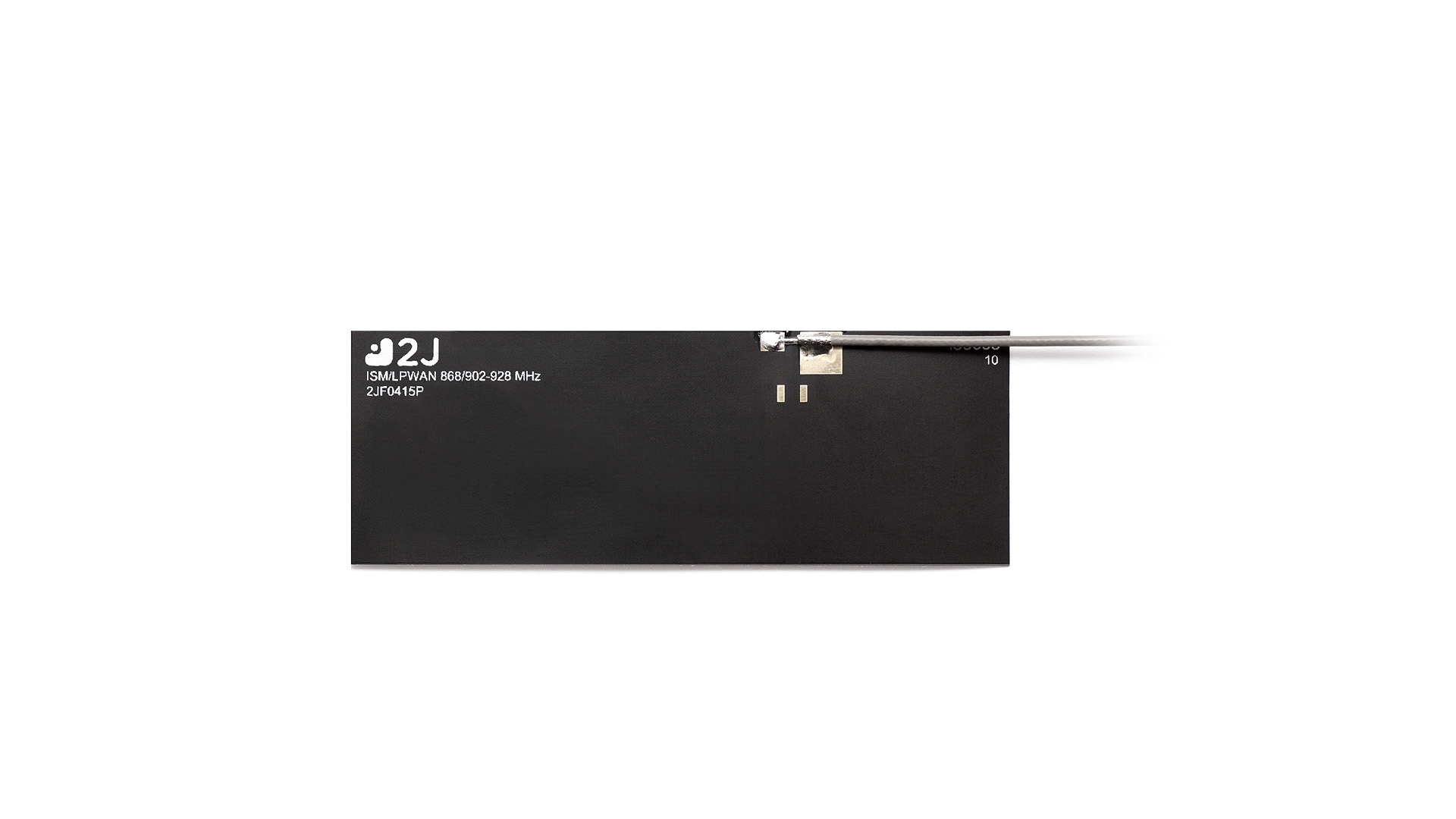

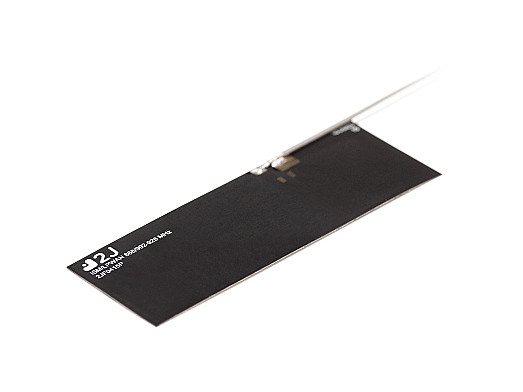

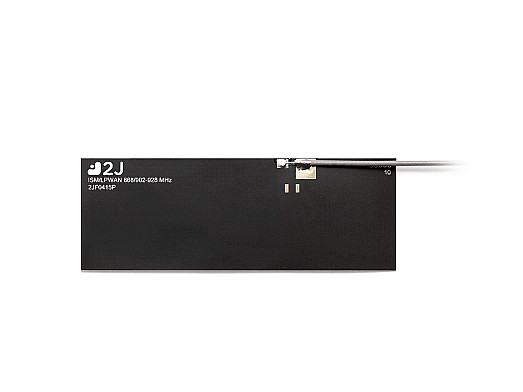

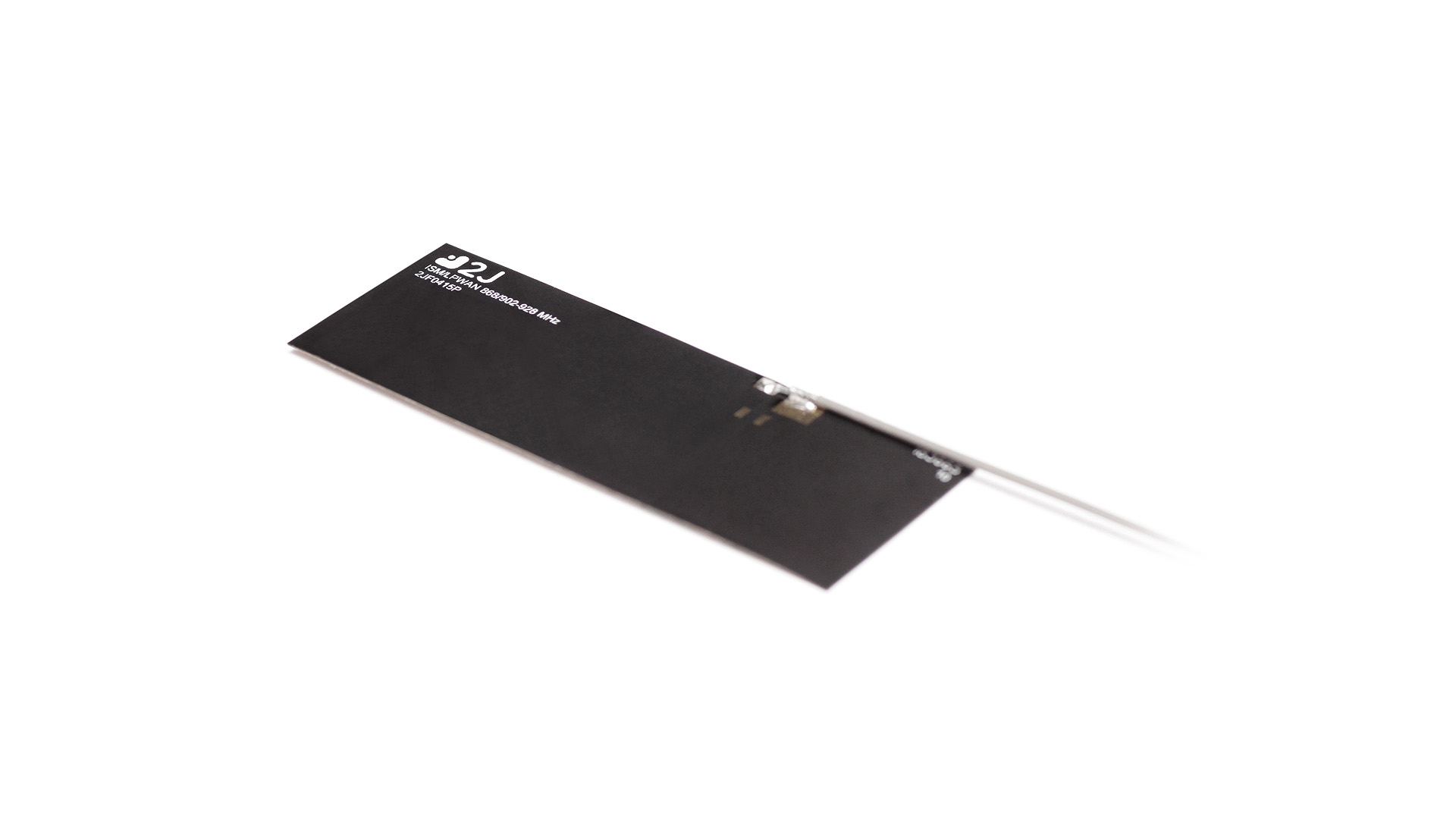

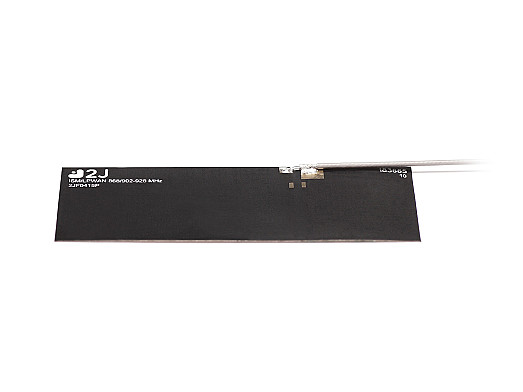

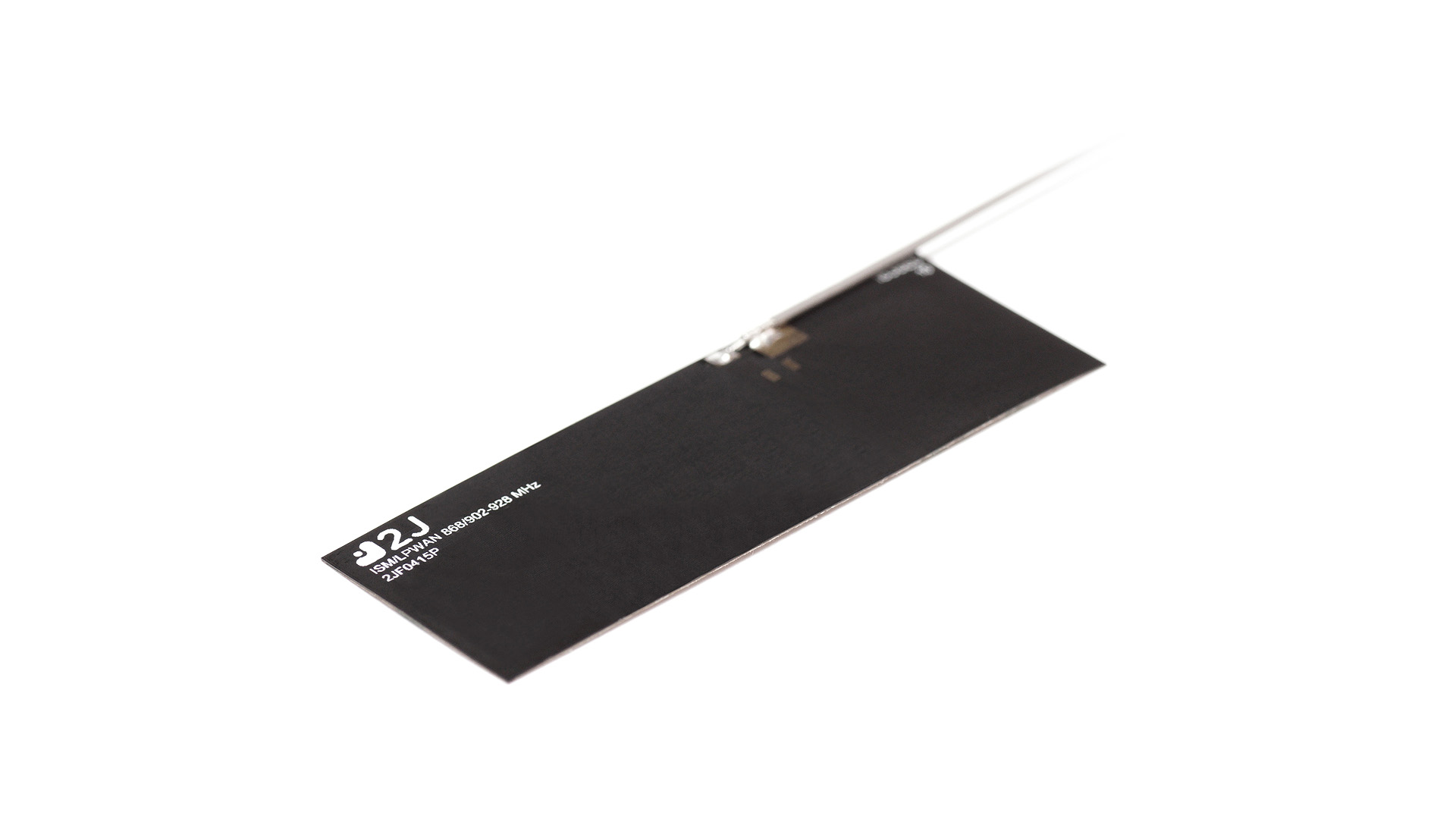

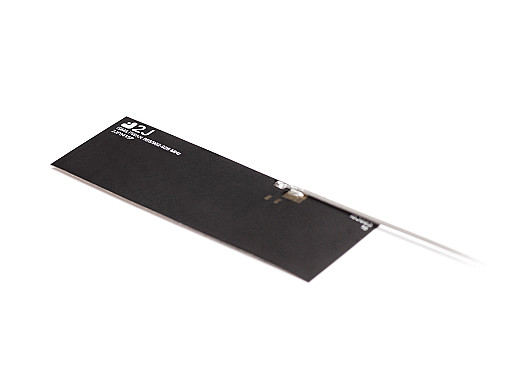

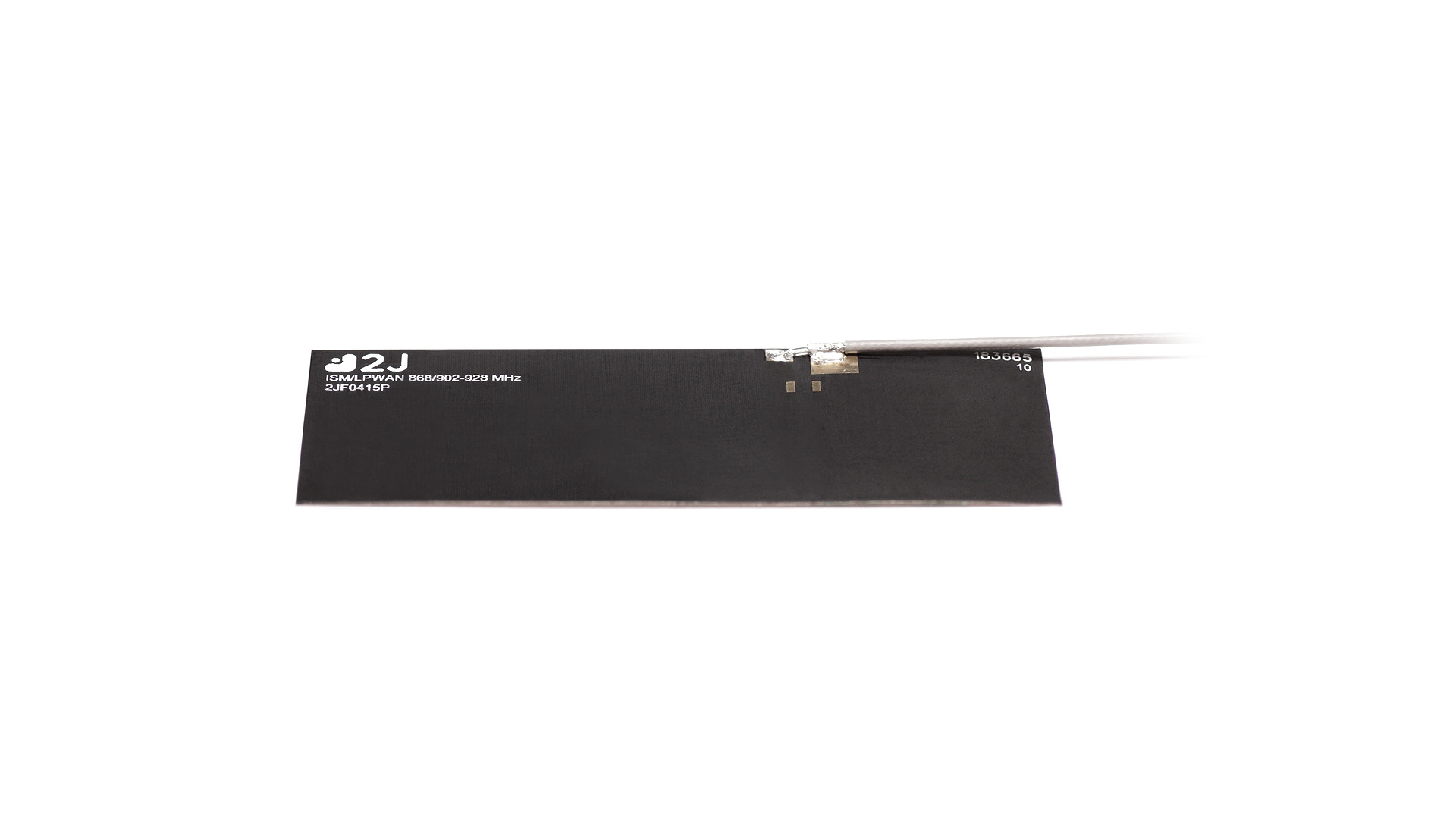

2JF0415P Antenna

868/915 MHz ISM Flexible ultra-thin PCB Adhesive Antenna

General specification
Frequency
868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
Mounting Adhesive Mount Flexible
Dimensions (mm) 25.0 x 70.0 x 0.2
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • Dual Band 868/915 MHz ISM Antenna
  • Self-Adhesive
  • Flexible Material
  • High Performance
  • Embedded Antenna
  • Ground Plane Independent
  • Customizable Cable and Connector
  • Antenna and electrical specifications

    connection 1

    868/915 MHz ISM

    Standards ZigBee, ISM, SIGFOX, LoRa
    Frequency 863-870, 902-928
    VSWR ~2.3:1, ~1.2:1
    Efficiency (%) ~58, ~77
    Peak Gain (dBi) ~2.7, ~3.6
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25

    Antenna description

    2JF0415P



    A very compact high-efficiency flexible Dual Band ISM PCB antenna

    At only 0.2mm thick, the 2JF0415P is an ultra-thin, high efficiency, flexible PCB antenna that has been designed for NB-IoT applications where device available space is at a premium. Integrating an omnidirectional design, this antenna provides a 360° coverage for all implementations where a dedicated frequency is needed.
    Utilizing 868MHz ISM for European standards and 915MHz ISM frequencies for the US market, this flexible embedded antenna is ideal for applications such as M2M, smart metering devices, precision agriculture management, remote keyless systems, optical connectivity solutions, underwater sensors, smart healthcare, and fitness monitoring devices, etc.

    Application Parameters

    The 868MHz and 915MHZ ISM bands (industrial, scientific, and medical) are bands that can be used freely (free of charge and without authorization) for industrial, scientific and medical applications. The unlicensed ISM bands below 1GHz are widely used for various consumer and industrial applications where long range, system cost, and long battery life concerns are critical.



    Typical applications

    - IoT applications
    - Remote Monitoring
    - Smart Metering
    - Home Automation
    - Medical Devices
    - M2M automation
    - And others

    Compatibility Standards

    868 MHz / 915 MHz ISM Cables
    - Sigfox, LoRa, ZigBee, ISM









    Key Features

    - Worldwide ISM coverage - 868 + 915 MHz
    - Flexible ultra-thin PCB for convenient integration
    - Self-Adhesive back side aiding Easy Installation
    - Eco-friendly in Size
    - High Efficiency
    - Ground Plane Independent
    - Customizable Cable and Connector



    Installation

    The 2JF0415P compact design antenna comes with a self-adhesive peel-and-stick backside, making installations simplistic in even very space-challenged designs.
