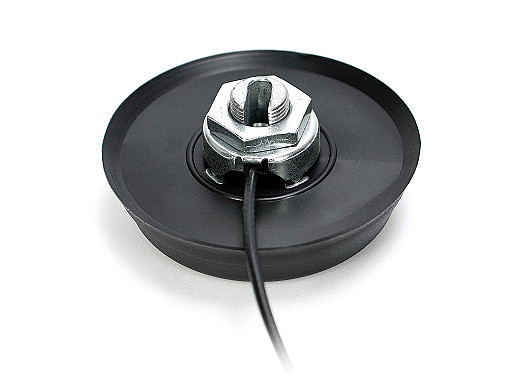

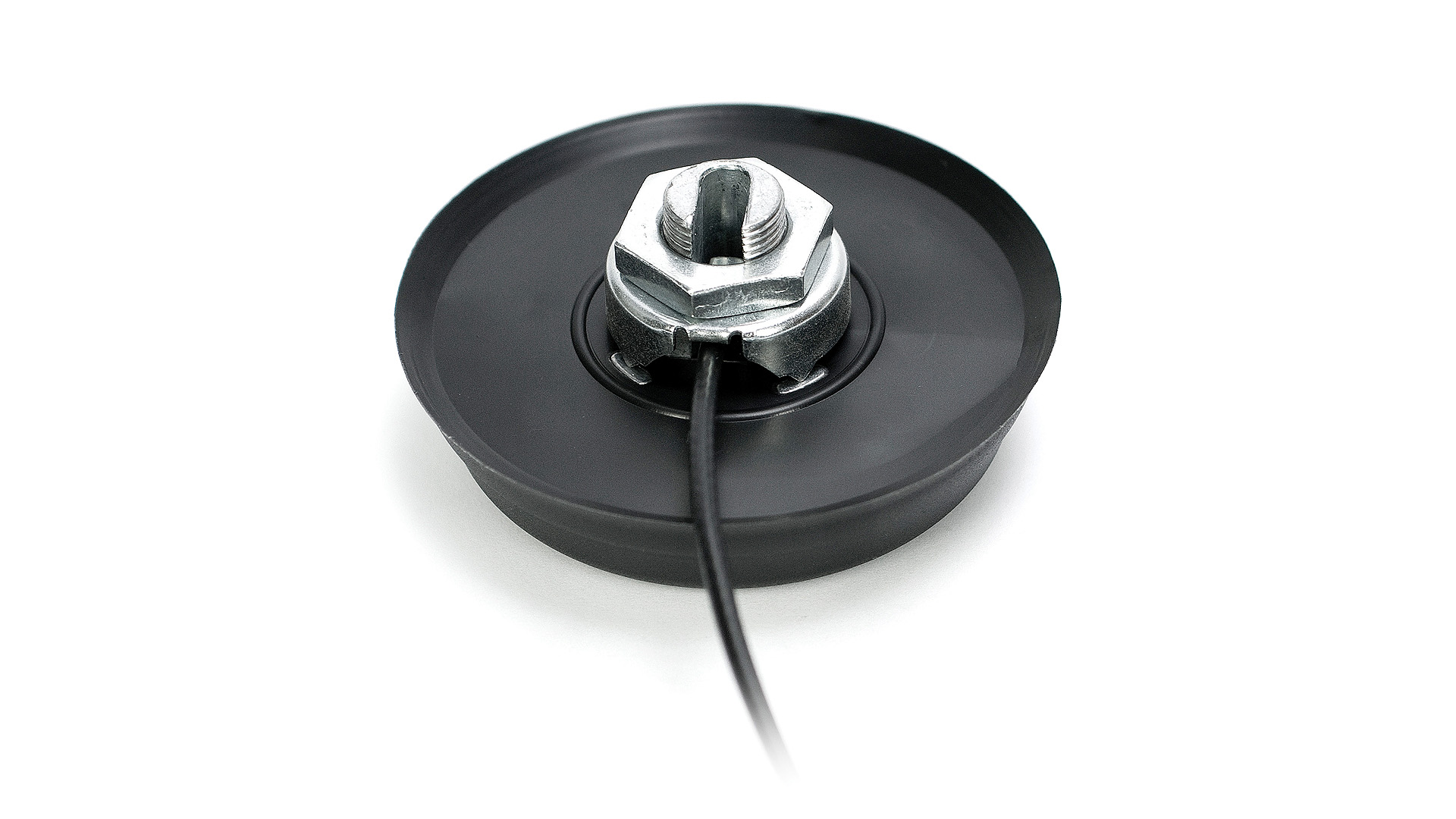

2J6615B-915 Antenna

915 MHz ISM Low Profile IP67 IP69K Customizable Antenna

General specification
Frequency 915 MHz ISM
Mounting Screw Mount
Dimensions (mm) 77.3 x 15
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Screw Mount
  • Certificates: IP67, IP69K
  • Low Proflile
  • Antenna and electrical specifications

    connection 1

    915 MHz ISM

    Standards ZigBee, ISM, SIGFOX, LoRa
    Frequency 902-928
    VSWR ~1.5:1
    Efficiency (%) ~33.5
    Peak Gain (dBi) ~0.85
    50
    Polarisation Linear
    Max. Input Power (W) 25
