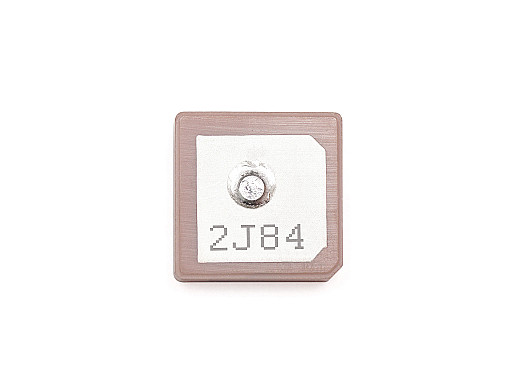

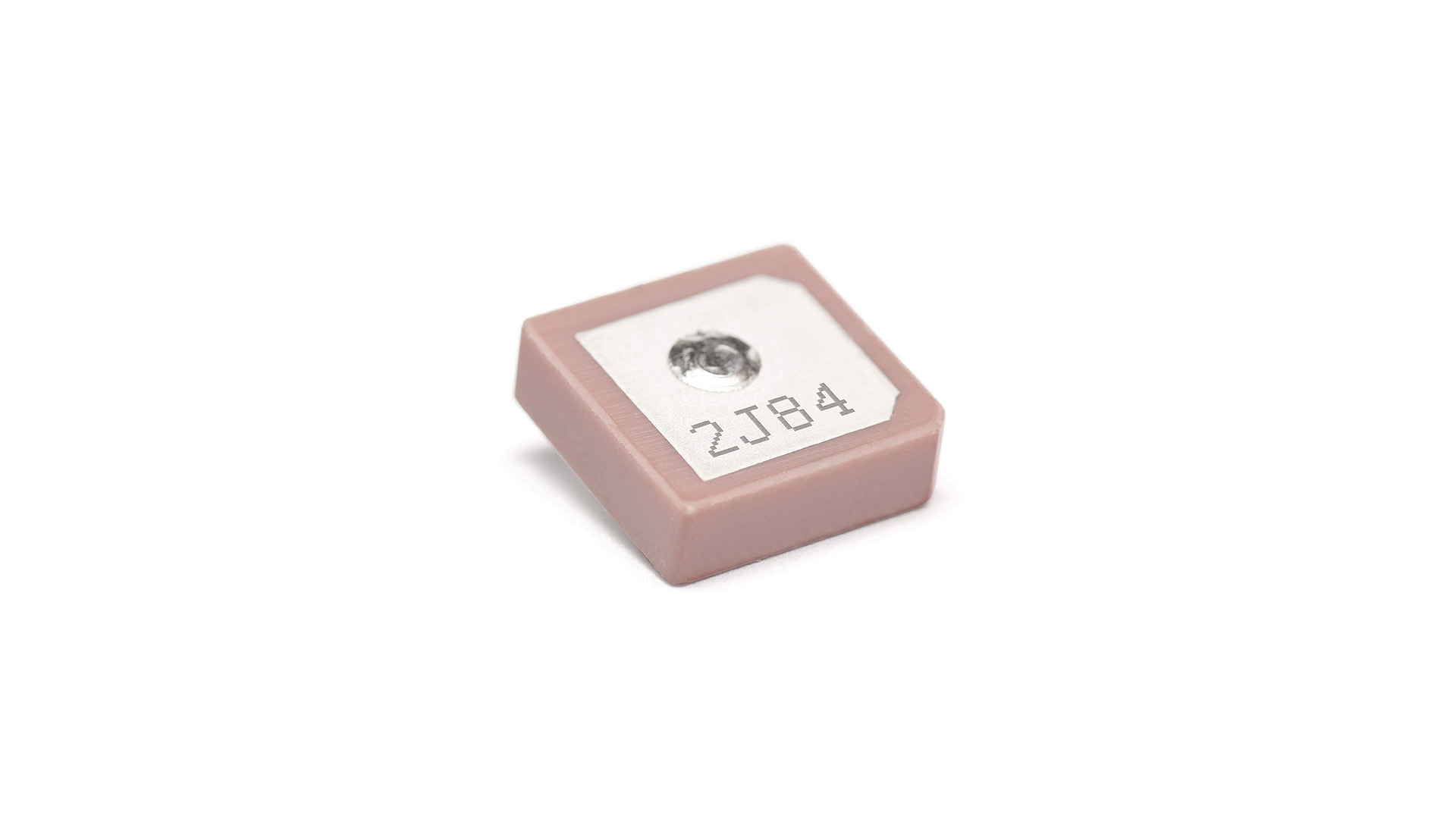

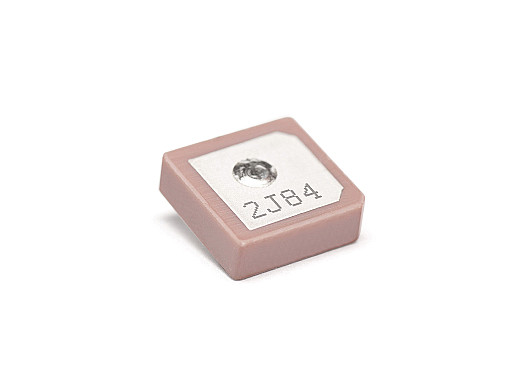

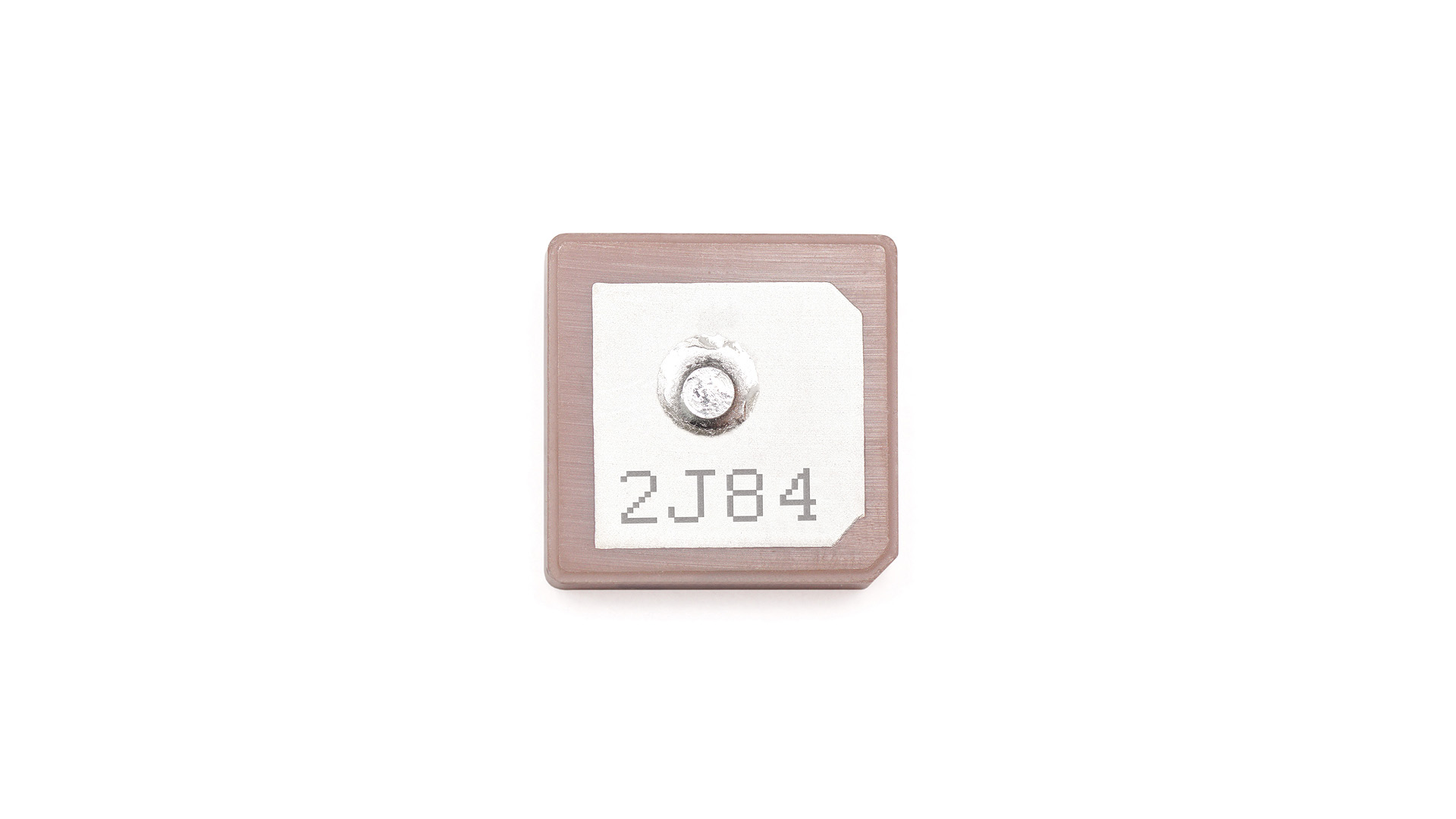

2JCP1340101Ga Antenna

GPS/GLONASS/Galileo High Gain Ceramic Passive Antenna

General specification
Frequency GPS/GLONASS/Galileo
Mounting Thru-Hole Mount Ceramic
Note Specification only for the 2JDK0401Ga-A28 Development Kit
Dimensions (mm) 13 x 13 x 4
Operating temperature -40 °C to +85 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • High Gain
  • Ceramic Passive Antenna
  • Thru-Hole Mount
  • 13 × 13 × 4 mm
  • Ground Plane Dependent
  • Antenna and electrical specifications

    connection 1

    GPS/GLONASS - Ceramic Passive Antenna

    Standards GPS/GLONASS/QZSS/Galileo
    Frequency 1575.42, 1598-1606
    Passive Gain (dBi) ~3.5, ~3.1
    Efficiency (%) ~58.5, ~54.6
    Radiation Pattern Hemispherical
