Key Features

  • High Gain

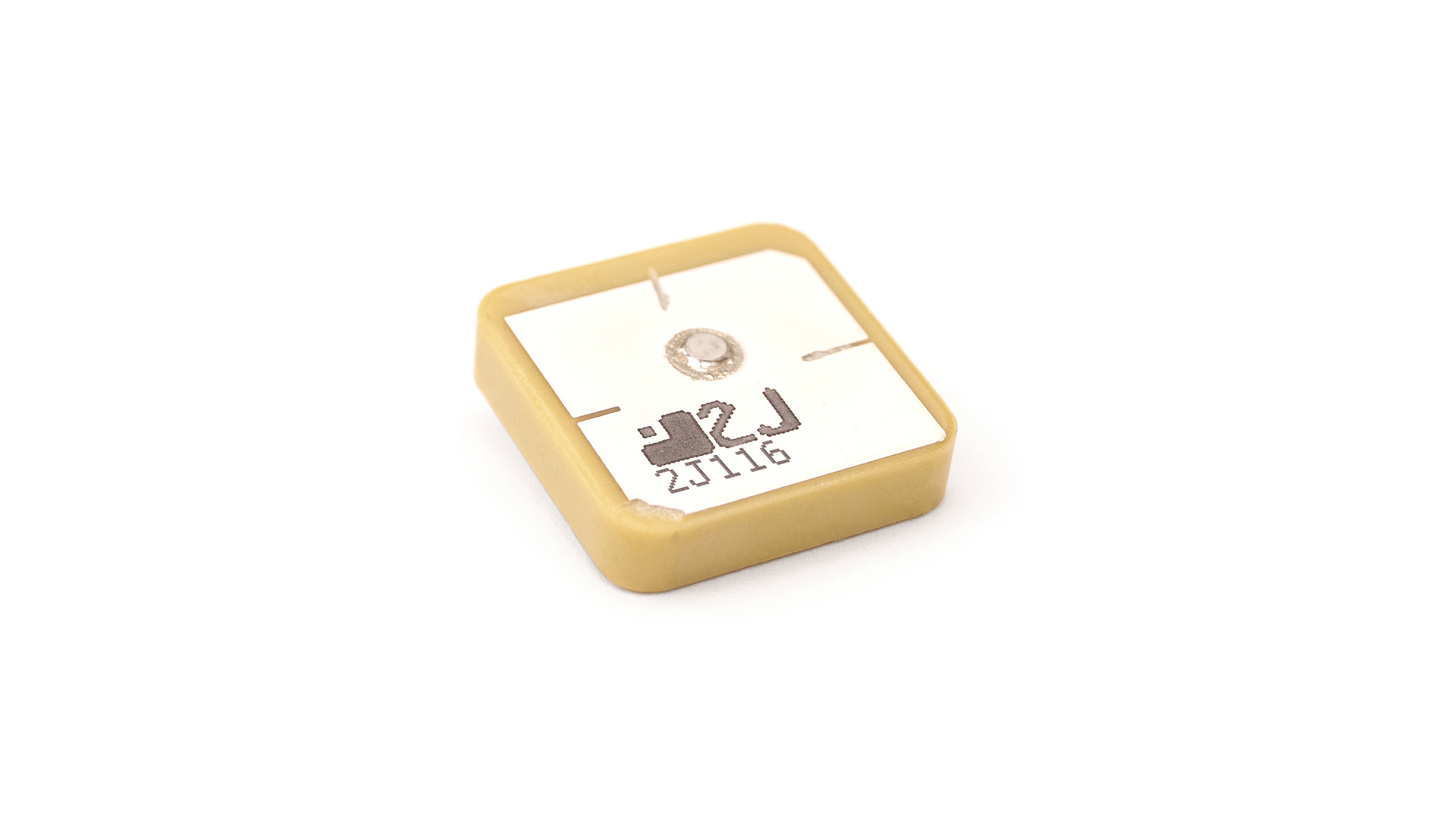

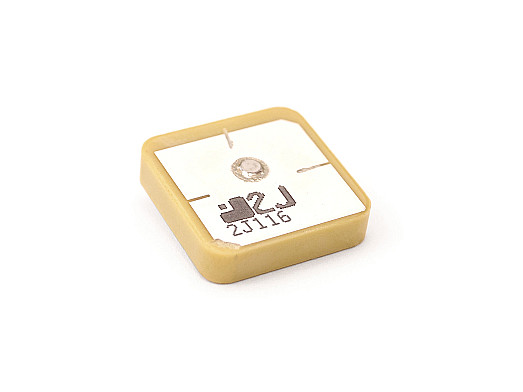

  • Ceramic Passive Antenna
  • Thru-Hole Mount
  • 18 × 18 × 4 mm
  • GPS/GLONASS/BeiDou/QZSS/Galileo
  • Ground Plane Dependent

Applications

Antenna and electrical specifications

connection 1

GPS/GLONASS/BeiDou - Ceramic Passive Antenna

Standards GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency 1561.098, 1575.42, 1598-1606
Passive Gain (dBi) ~5.2, ~5.4, ~5.4
Efficiency (%) ~65.6, ~61.4, ~68.7
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Polarization RHCP
