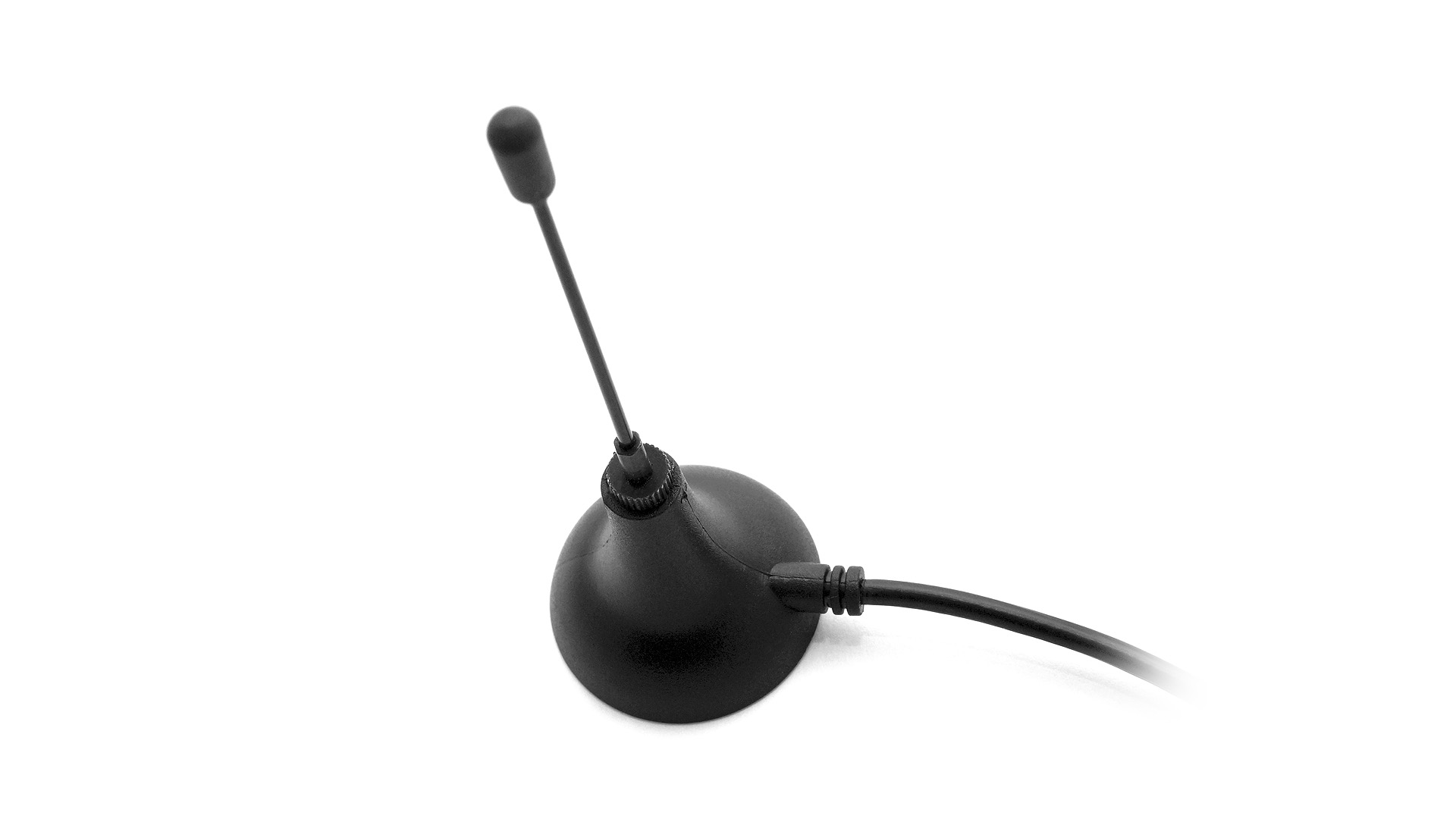

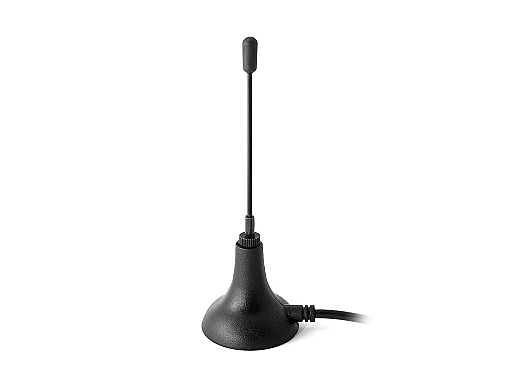

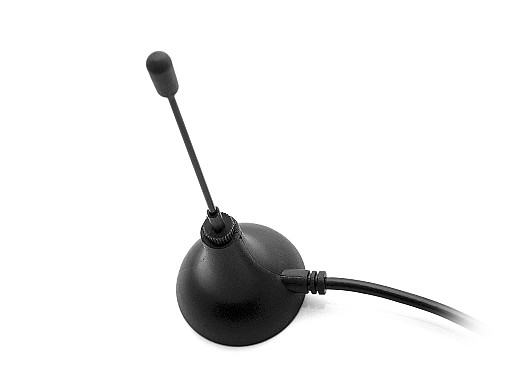

2J3915M-915 Antenna

915 MHz ISM High Gain Customizable Antenna

General specification
Frequency 915 MHz ISM
Mounting Magnetic Mount
Dimensions (mm) Ø 30.9 × 88
Operating temperature -40 °C to +85 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • High Performance
  • Customizable Cable and Connector
  • Ground Plane Dependent
  • High Gain
  • Magnetic Mount
  • Antenna and electrical specifications

    connection 1

    915 MHz ISM

    Standards ZigBee, ISM, SIGFOX, LoRa
    Frequency 902-928
    VSWR ~1.5:1
    Efficiency (%) ~64.6
    Peak Gain (dBi) ~3.0
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 50
