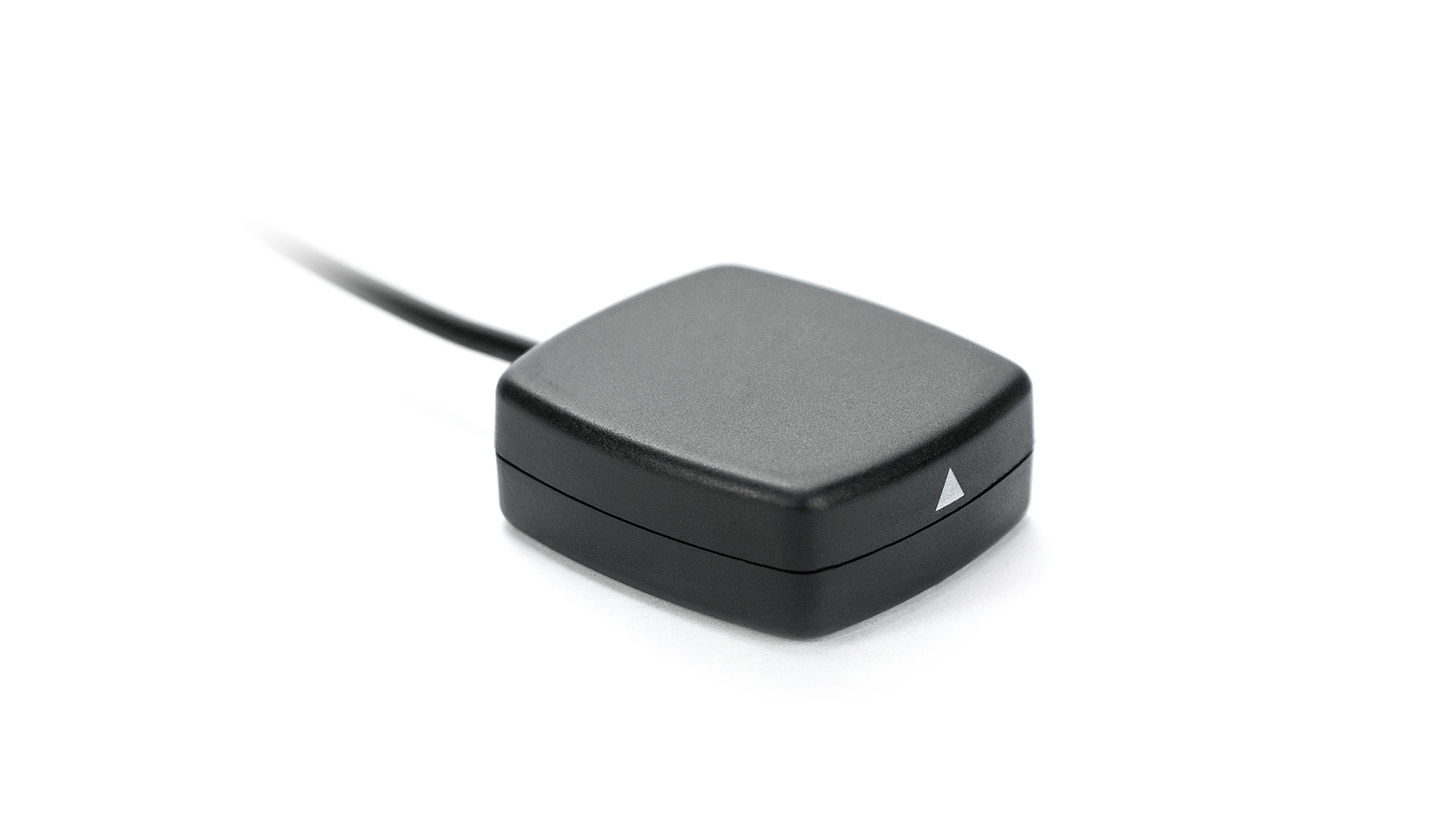

Key Features

  • GPS/GLONASS/BeiDou/QZSS/Galileo
  • Ground Plane Independent
  • Customizable Cable and Connector
  • Certificates: IP67
  • Magnetic/Adhesive Mount
  • Pre-Filter GNSS
  • Voltage 1.5 - 3.6 V

Applications

Antenna and electrical specifications

connection 1

GPS/GLONASS/BeiDou

Standards GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency 1561.098, 1575.42, 1598-1610
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Voltage (V) 1.5 – 3.6
Current (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
Saw Filter Type Pre-Filter
ESD Protection (kV) 2
