Antenna and electrical specifications

connection 1

GPS-IRIDIUM

Standards GPS/QZSS/Galileo-IRIDIUM
Frequency 1575.42, 1616-1627
Peak Gain (dBi) ~5.1, ~5.7
Efficiency (%) ~93.8, ~92.9
Impedance (Ohm) 50
Axial Ratio (dB) 3 max
Radiation Pattern Hemispherical
Polarisation RHCP

Key Features

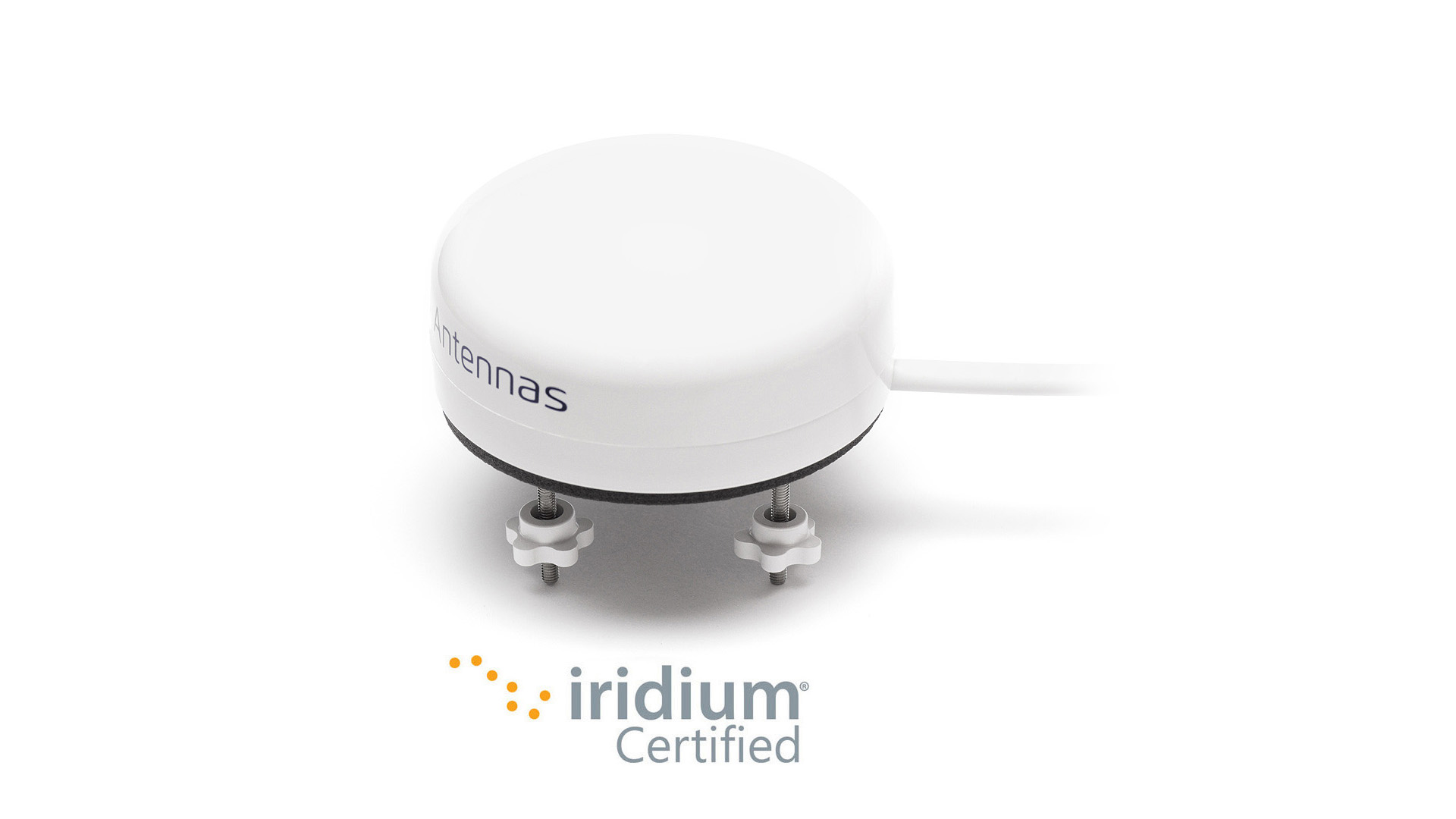

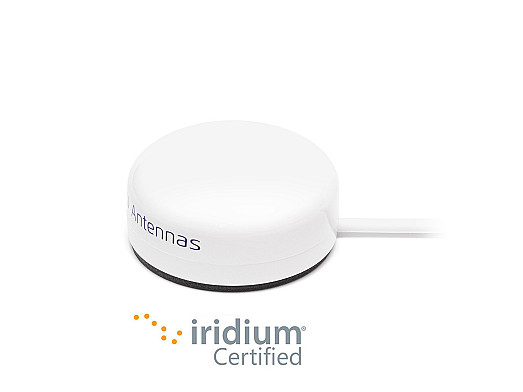

Passive GNSS-IRIDIUM Antenna
Iridium Certified Antenna

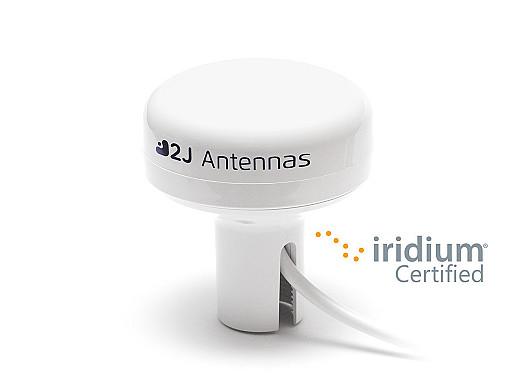

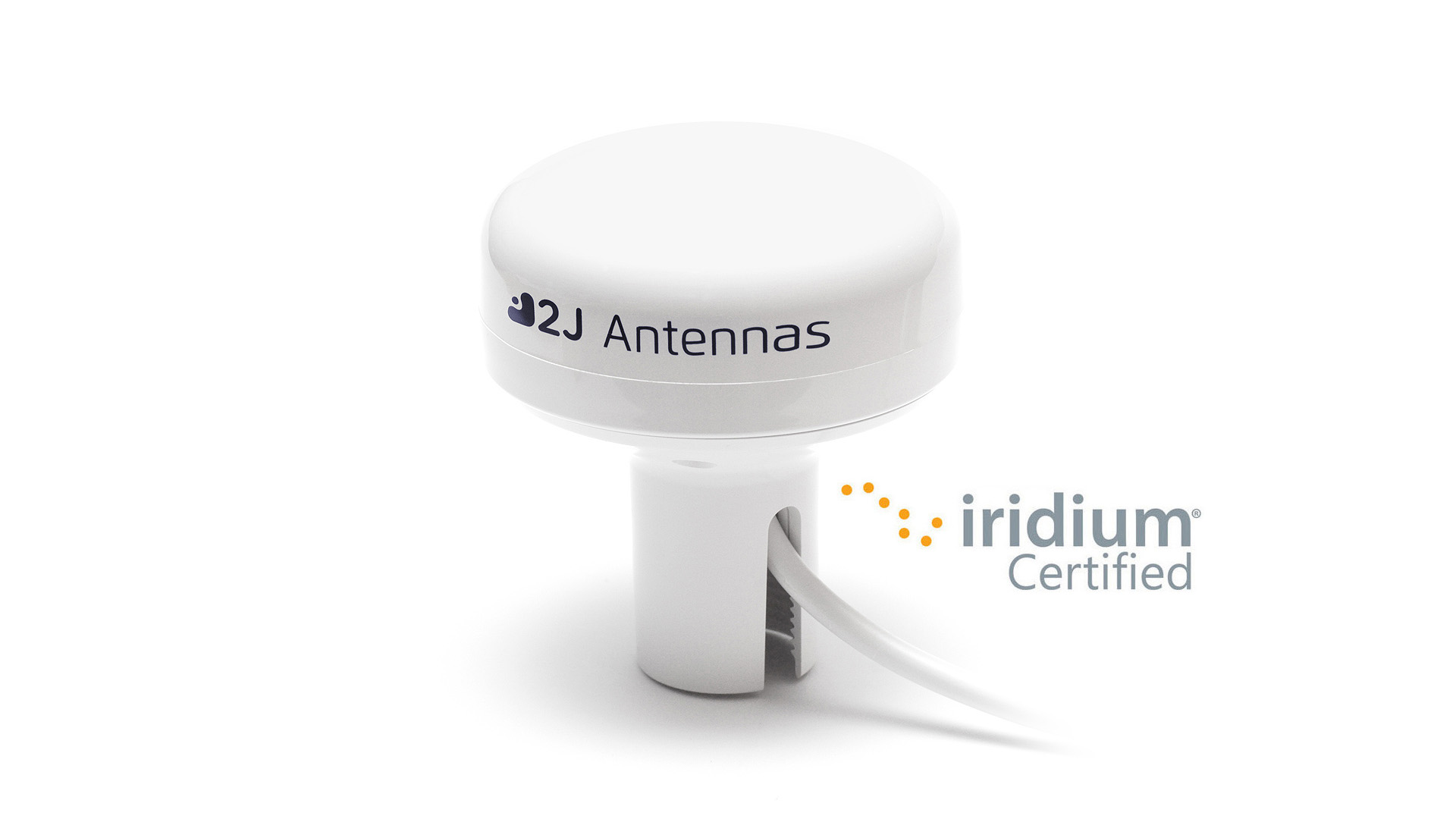

Compact Marine antenna
Ground Plane Independent
5.7 dBi GNSS Peak Gain
High Performance
High Efficiency
Single Feed Technology

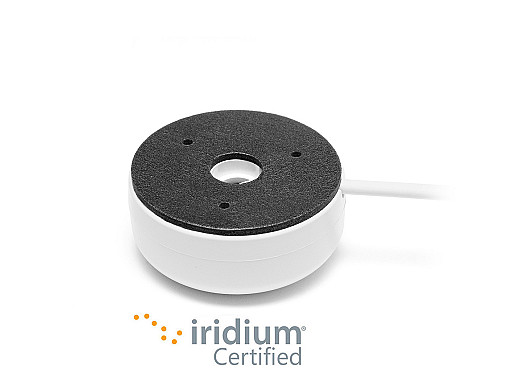

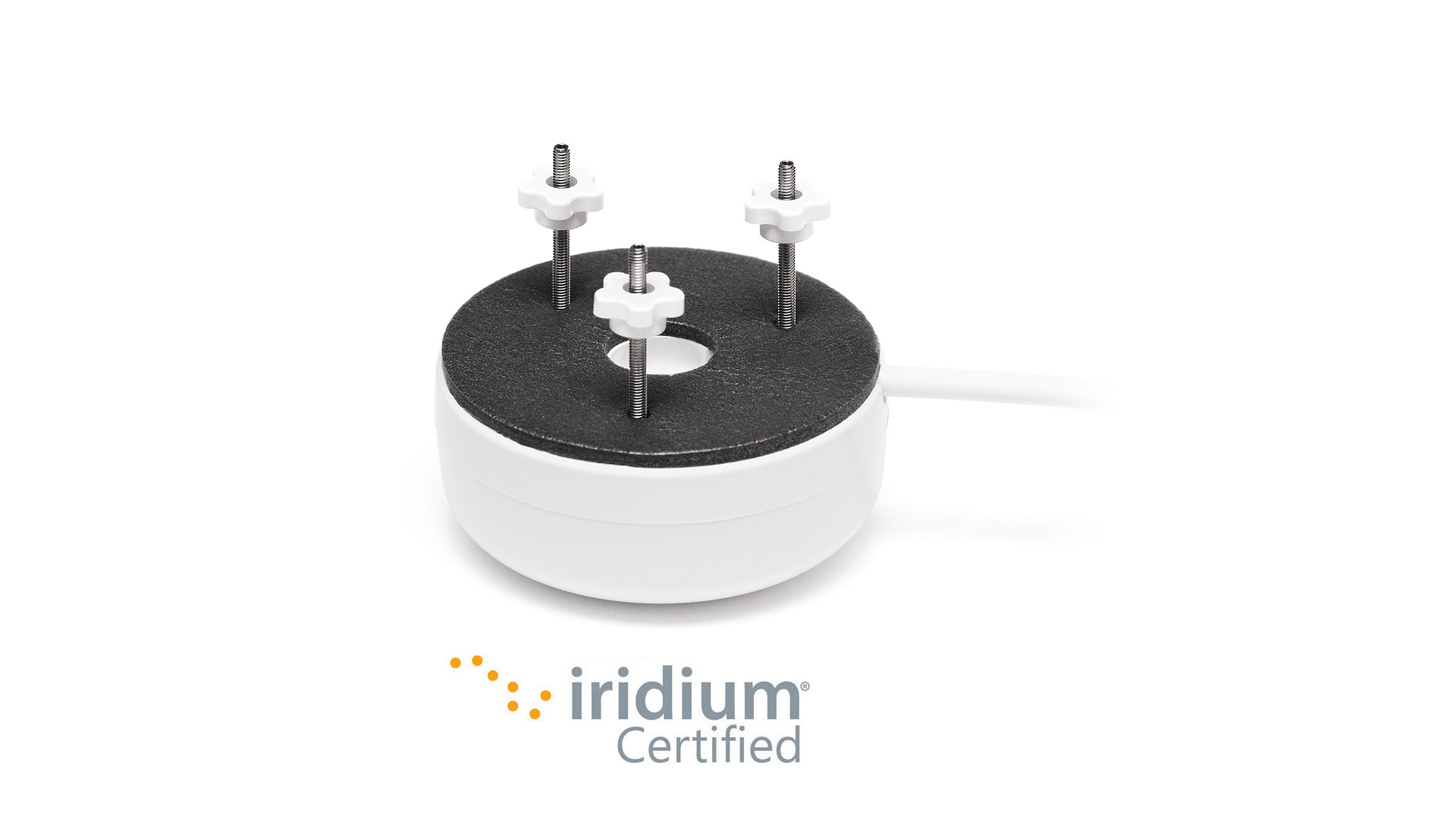

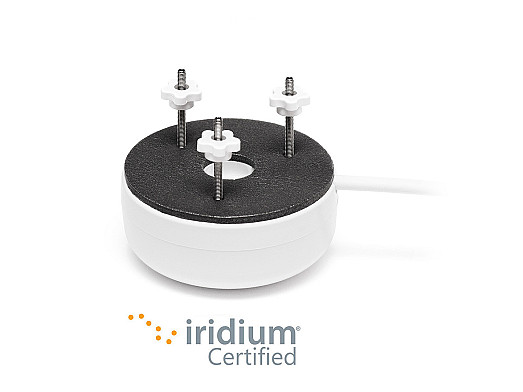

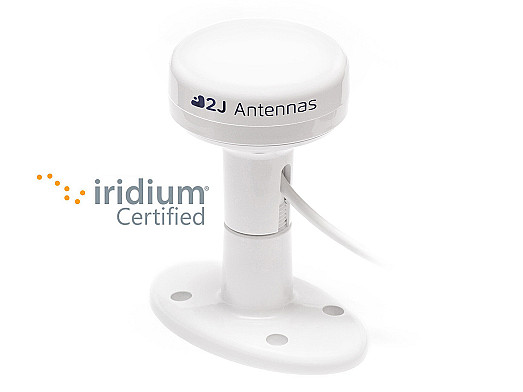

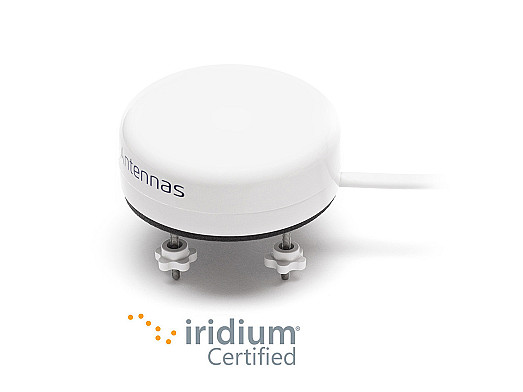

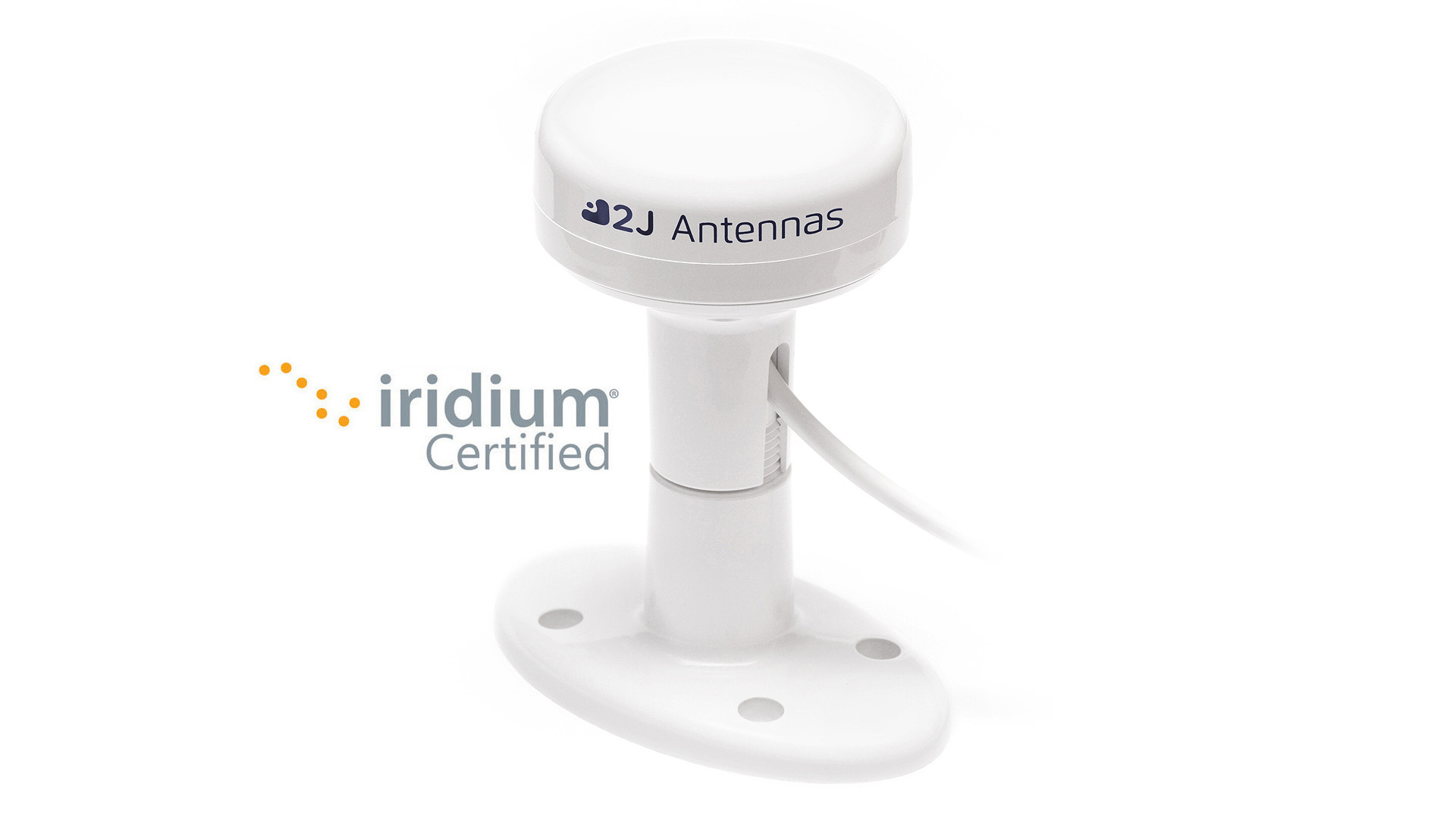

Configurable Mount options

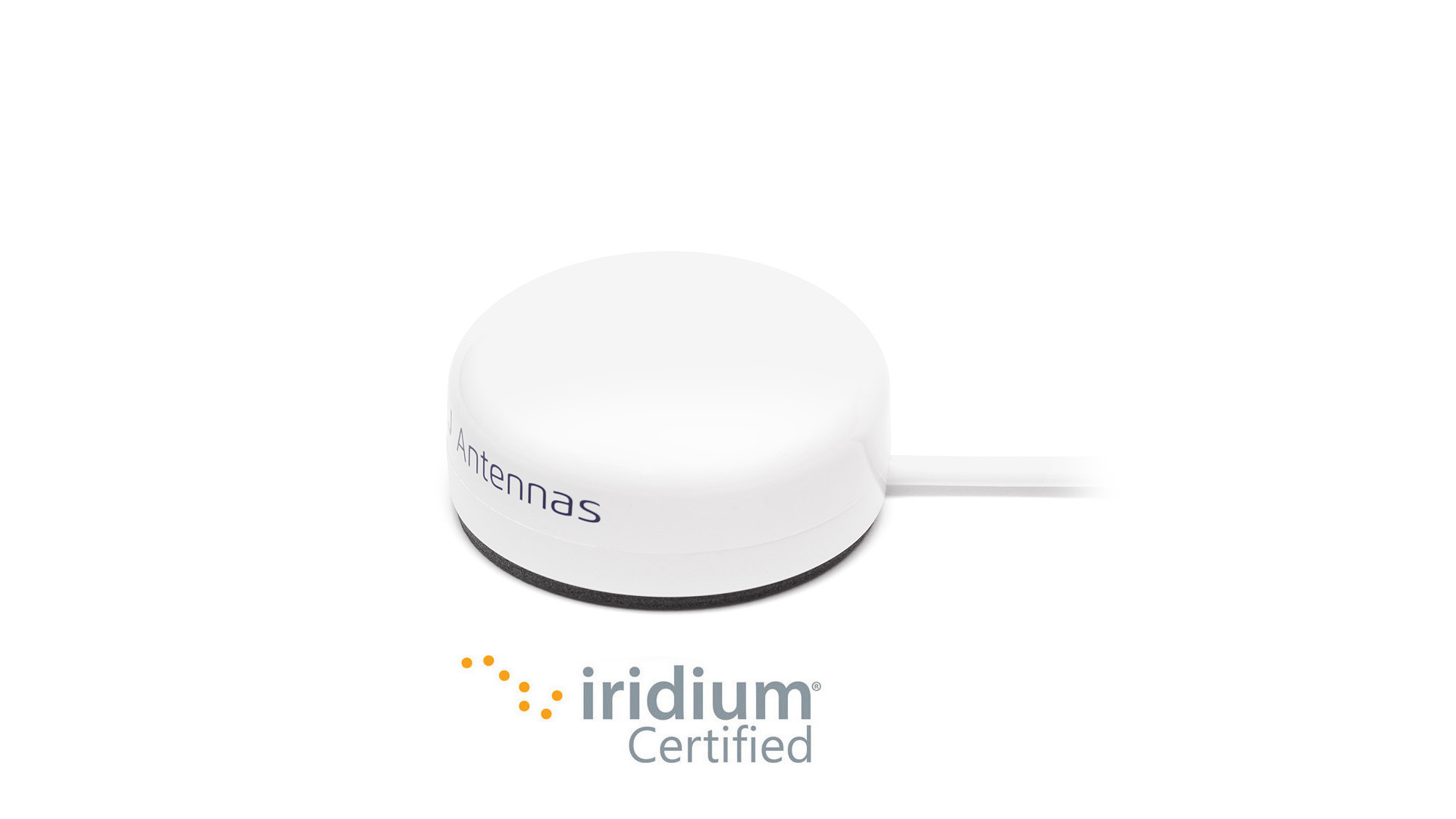

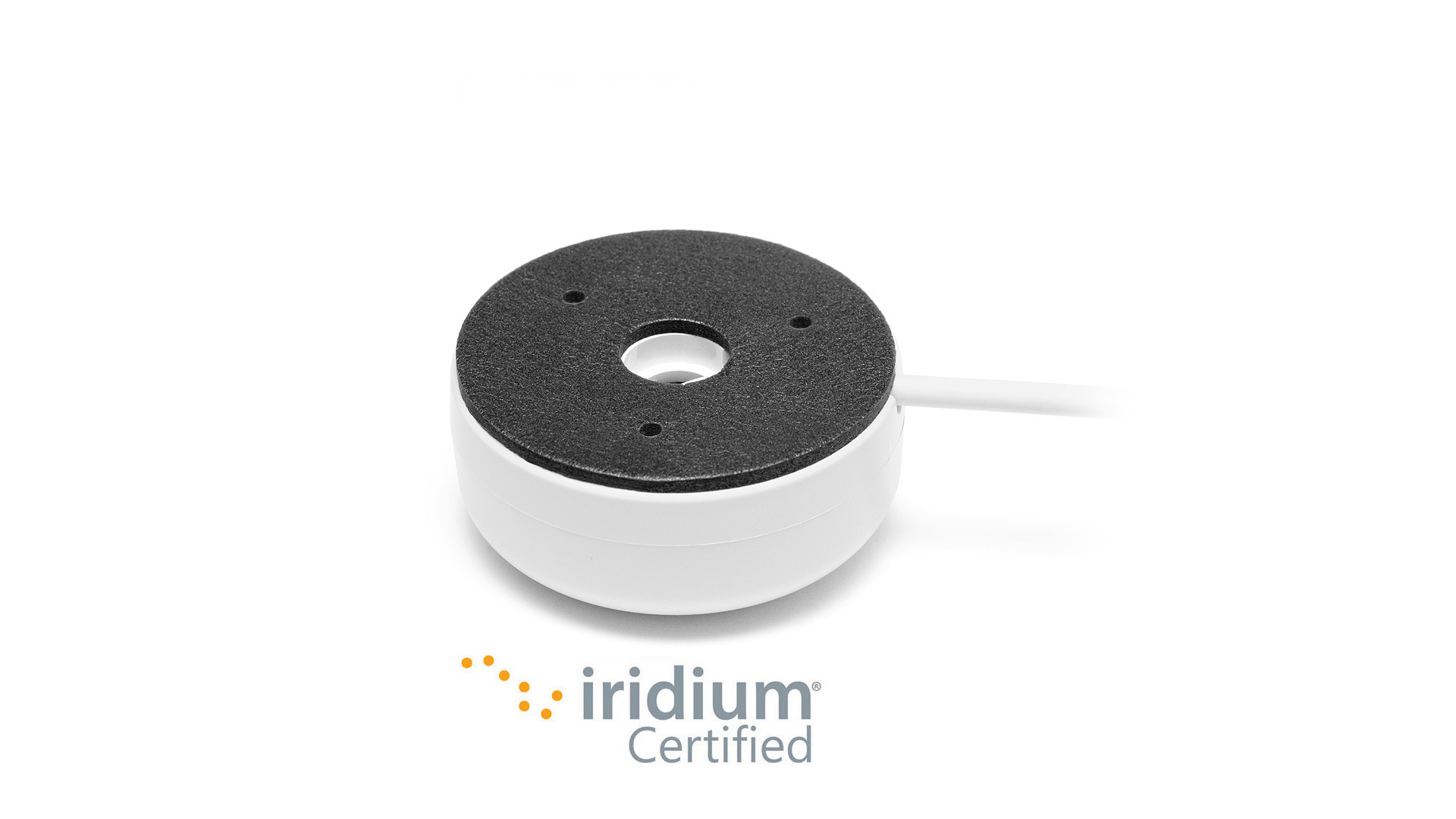

Adhesive Mounting sticker included
Customizable Cable and Connector
