Antenna and electrical specifications

connection 1


Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.0:1, ~2.4:1, ~1.2:1
Efficiency (%) ~45.5, ~26.2, ~31.0
Peak Gain (dBi) ~3.5, ~2.2, ~4.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 2


Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.9:1, ~2.4:1, ~1.2:1
Efficiency (%) ~34.3, ~25.4, ~40.0
Peak Gain (dBi) ~3.5, ~2.3, ~4.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 3

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.0:1, ~1.3:1, ~1.3:1
Efficiency (%) ~24.7, ~27.4, ~25.4
Peak Gain (dBi) ~-0.2, ~1.7, ~1.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

3-in-1 Combination Antenna
Wide band Antenna
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
698-2700 MHz 4GLTE Bands
4.2 dBi 4G LTE Peak Gain
1.7 dBi WIFI Peak Gain
Low Profile
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description


Powered With WIFI 6E / WIFI 7, We Introduce The Most Reliable Cellular/ ISM Antenna On The Market

Our low-profile 3-in-1 wide-band adhesive mount antenna (2J6947Pa) combines dual Cellular/4G LTE MIMO technology, single 2.4/5.0/6.0 GHz ISM and includes the less congested seventh generation of Wi-Fi (802.11be). Servicing low-power wide-area MIMO, IoT devices for automation, vehicle connectivity, smart home and any other devices that operate within 698 MHz – 7125 MHz, make this highly efficient antenna the first choice for connectivity on the market.

2x Cellular/ LTE MIMO Cables:

The dual cellular/ LTE connection is tuned for high data throughput devices that operate within 4G LTE, FirstNet, LPWA, NB-IoT, CAT-X/-MX/-NBx, 3G and 2G standards. The 4G LTE and the CAT connections are backwards compatible with existing 3G, 2G and other LTE networks. The benefits of dual MIMO cellular capabilities are that the antenna can search and pair the strongest signal to assure continuous connectivity. This well-designed antenna is ideal for high device usage and where transmission traffic must maintain consistent device connectivity.

2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Cable:

Designed for low-power-wide-area (LPWA) devices that operate within WiFi, BT, RFID, ZigBee, ISM, SigFox and LoRa standards. WIFI 6E / WIFI 7 is specifically designed for devices that operate on 6.0 GHz bands and offers a very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and network congestion. This antenna is ideal for home automation and monitoring applications that demand faster WiFi, efficient device battery consumption and consistent network availability.


Typical applications

- Automotive/ Transportation Navigation
- Autonomous Vehicles
- Emergency Response and Public Safety
- Multi-Media and Real-Time Video Streaming
- Automotive tracking and telematics
- Internet of Things (IoT)
- RFID / Asset Tracking
- Automation (home/office/industrial)
- Consumer Electronics Terminal
- High Traffic MIMO Device Connectivity

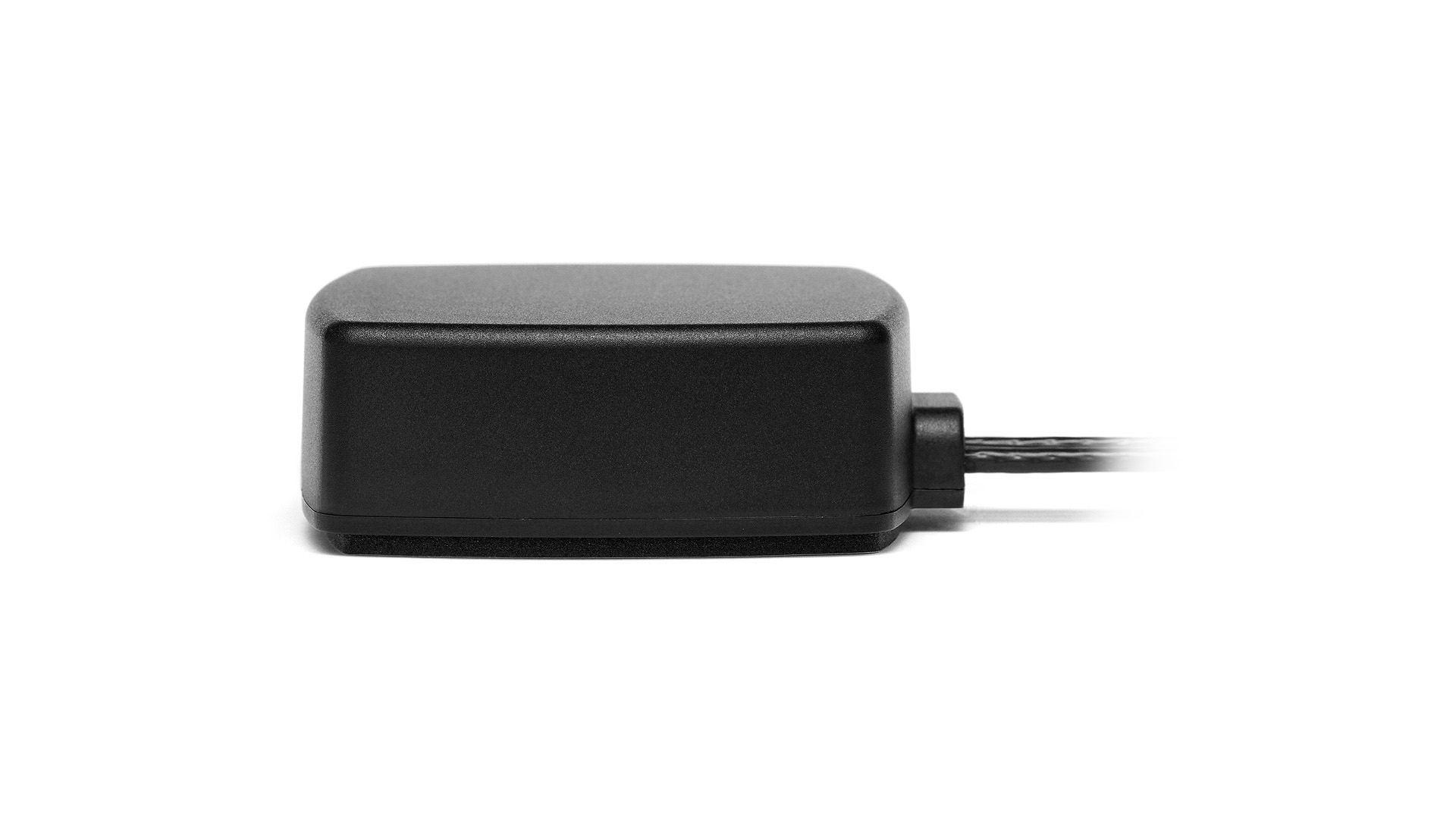

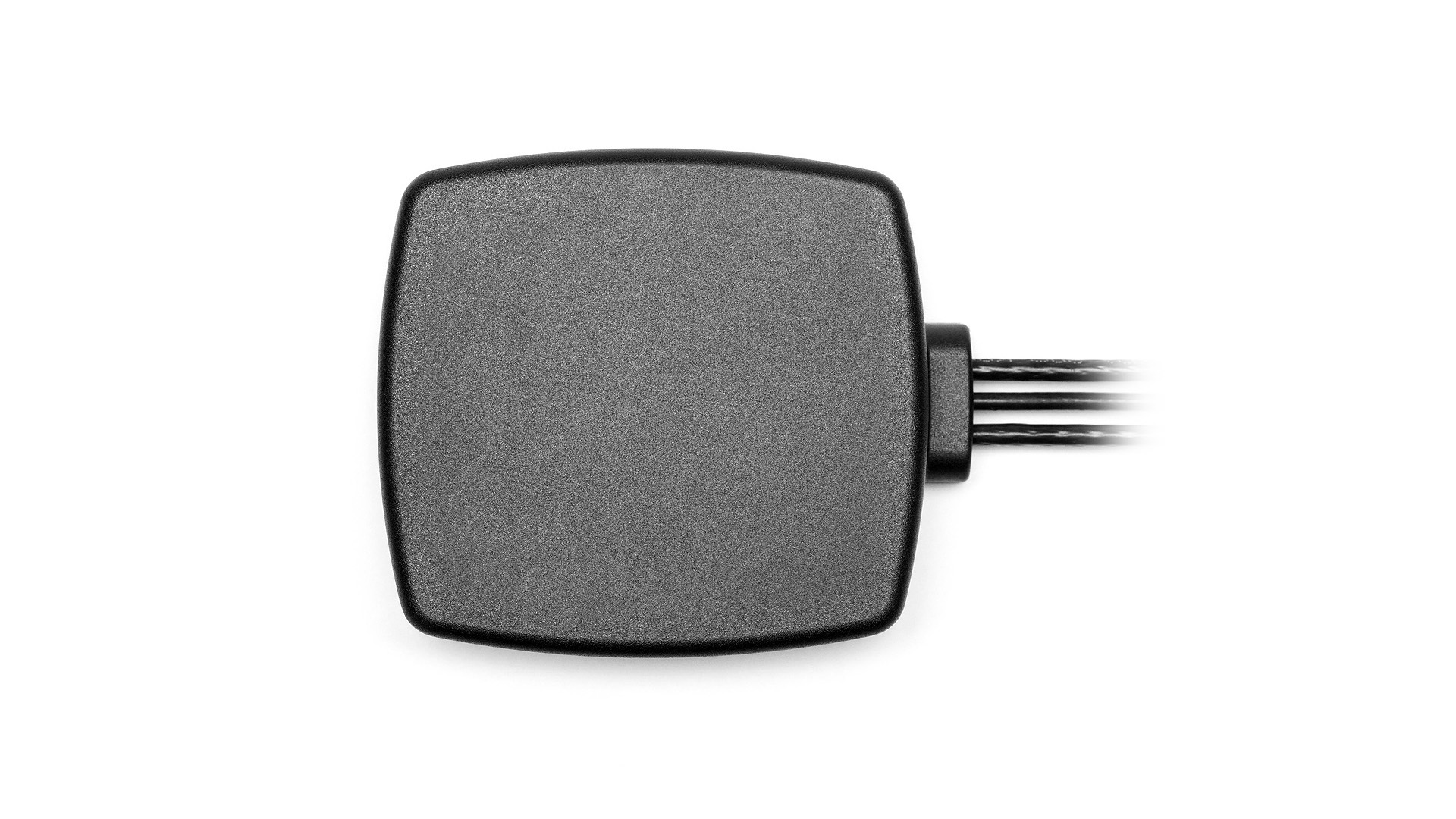

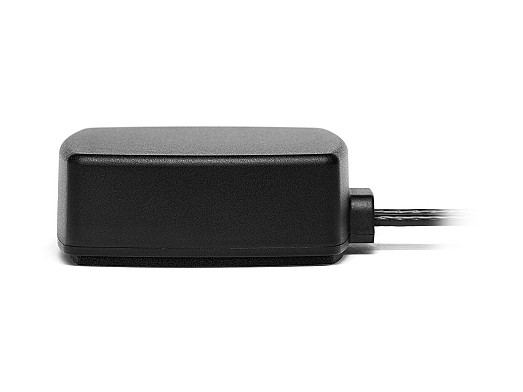

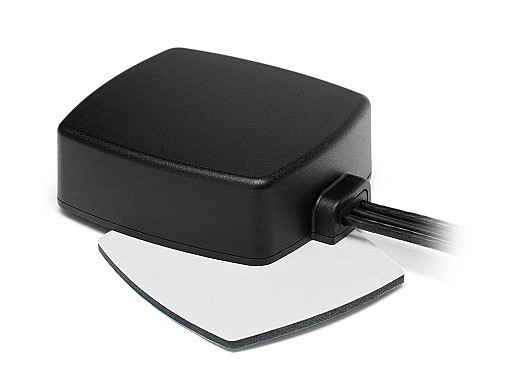

The low-profile, boxed shaped antenna housing (89 × 76 × 30 mm) is manufactured with PC/ASA material and available in white and black colors. Ground plane independence and high-grade adhesive mounting allow for easy installation on metal or non-metal surfaces, making this antenna an ideal solution for quick and easy installation on a wide range of surfaces. The housing is IP67/IP69 rated resisting dust, sand, and water.

The 2J6947Pa is tuned for optimal performance and comes with standard SMA-Male connector and with 300cm long D302 cables. 2J Antennas also offers a wide range of alternative connectors and cables for any customization needs. It is important to match the right antenna with the job and our expert engineers are available for installation support, customization needs and antenna selection support.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
