Antenna and electrical specifications

connection 1

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~4.5
Efficiency (%) ~76
Impedance (Ohm) 50
Axial Ratio (dB) 3 max.
Radiation Pattern Hemispherical
Polarization RHCP
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Impedance (Ohm) 50
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7V

Key Features

2-in-1 Combination Antenna
Ground Plane Independent
Iridium Certified Antenna
4.5 dBic IRIDIUM Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Customizable Cable and Connector

Antenna Description

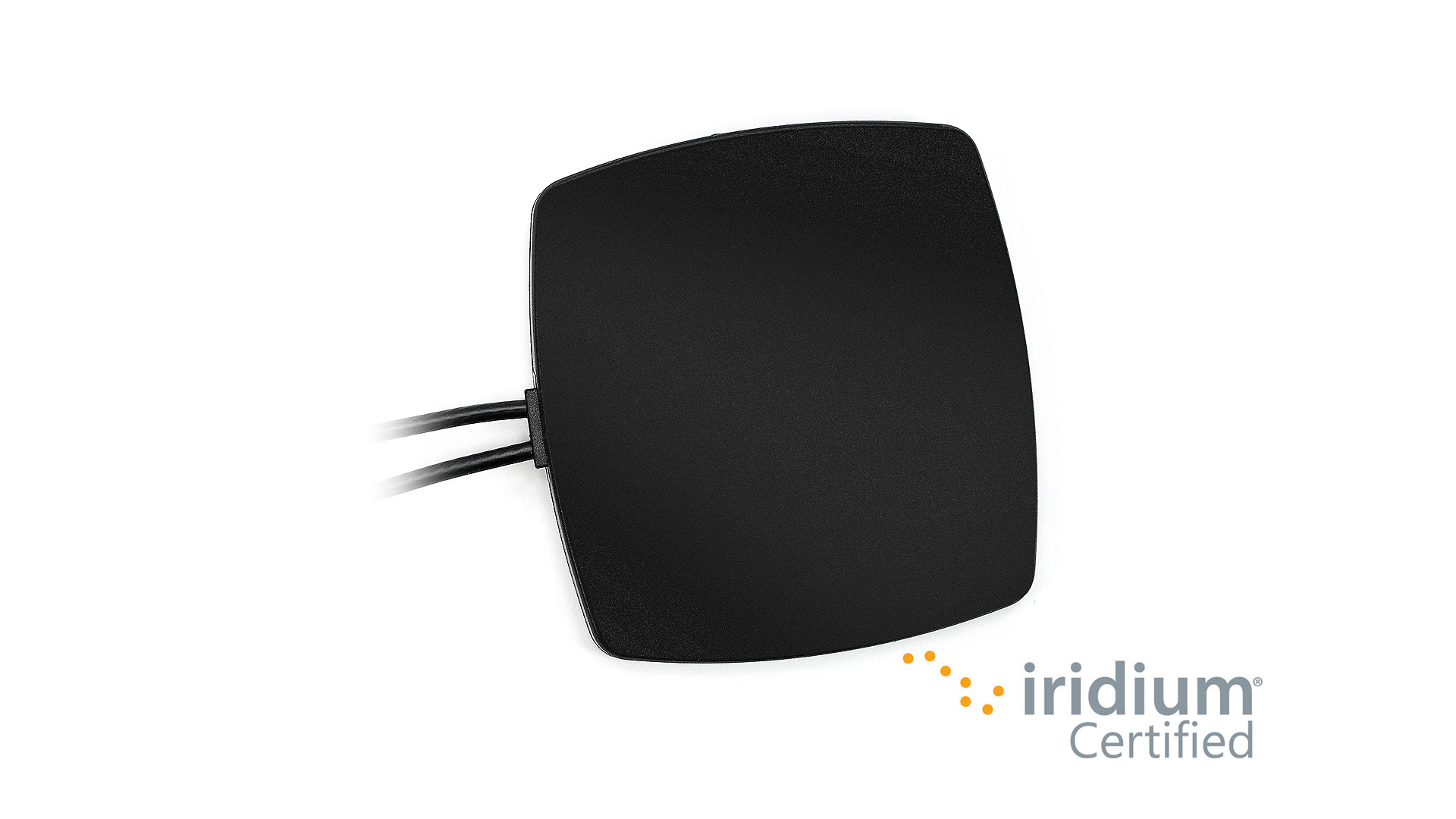

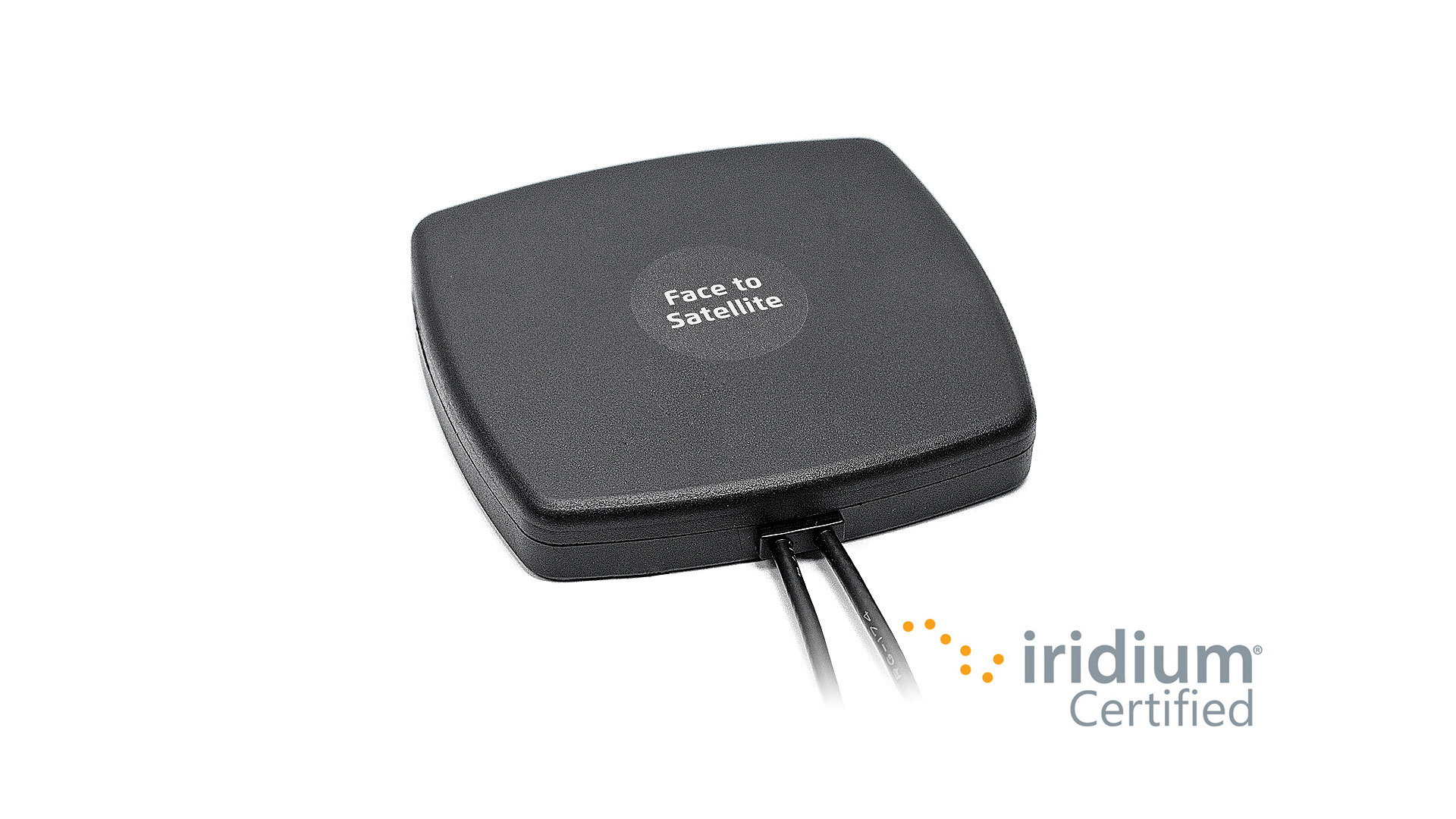

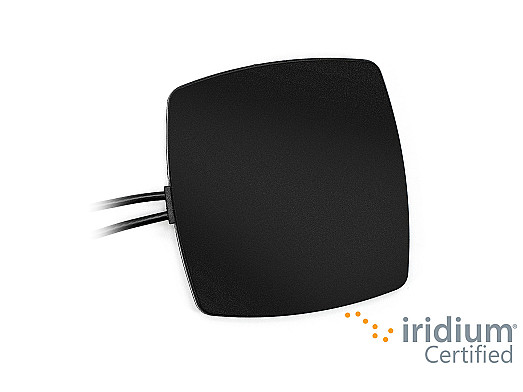

2J6033PGF

When it comes to choosing the most competitive and versatile antenna solution, the Falcon Series is at the top of its class. This uniquely designed 2J6033PGF Falcon Antenna is built to enable compatibility with different communication standards and a variety of technologies offering the architecture of a 3-in-1, 2-in-1 and also 1-in-1 configurations.

The outstanding feature of this multi-versatile antenna is that it has a unique, sleek and compact design with a maximum height of 15 mm. This allows for a turnkey implementation of Iridium Satellite and GNSS devices to be used in applications such as environmental monitoring, waste management, fleet tracking and other multitudes of systems. This solution combines the advantages of low profile, low cost and massive deployment operations. Several mounting options such as adhesive, magnetic, screw and magnetic/adhesive make the installation of this antenna extremely convenient.



High Rejection GNSS Filter Technology

The Global Navigation Satellite System is a modernized technology denoting satellite navigation systems that provide autonomous geo-spatial positioning with global coverage. To keep up with its latest technological refinement, the 2JP6033PGF Falcon Antenna offers a high rejection GNSS filter technology in a compact design, enabling it to handle reception when collocated along other antennas in the same enclosure such as Iridium standard, allowing the absorption and protection against undesired out-of-band signals. The low noise figure helps to maintain excellent signal quality providing signal attenuation without impacting in-band signal quality.



Installation and Safety Profile

A double-adhesive pad is provided for fast installation on any surface locations that include glass windshields, plastic PVC or any other metal area with ease. Among the different mounting options, this package is fully customizable with variable cable lengths and connector types.  It also includes a standard RF cable or low loss cable for better reception and range. Where durability is concerned, the Falcon antenna series retains a IP67 protection rating guaranteeing total protection against dust and water immersion of up to 1-meter depth.

Where projects require a highly durable antenna for extensive outdoor use, this series features a high-grade UV stable plastic that protects it from ultraviolet rays deterioration.
