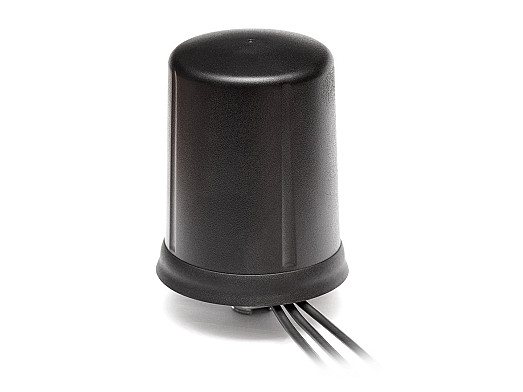

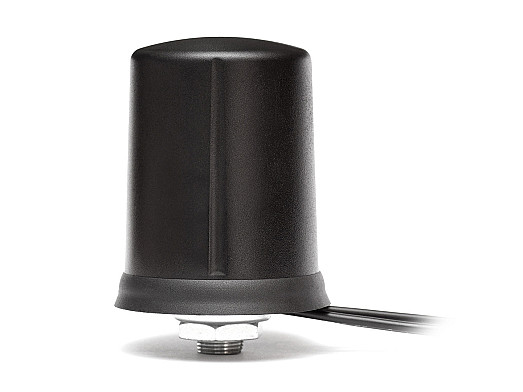

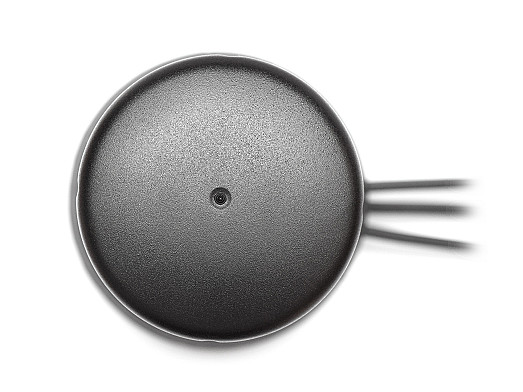

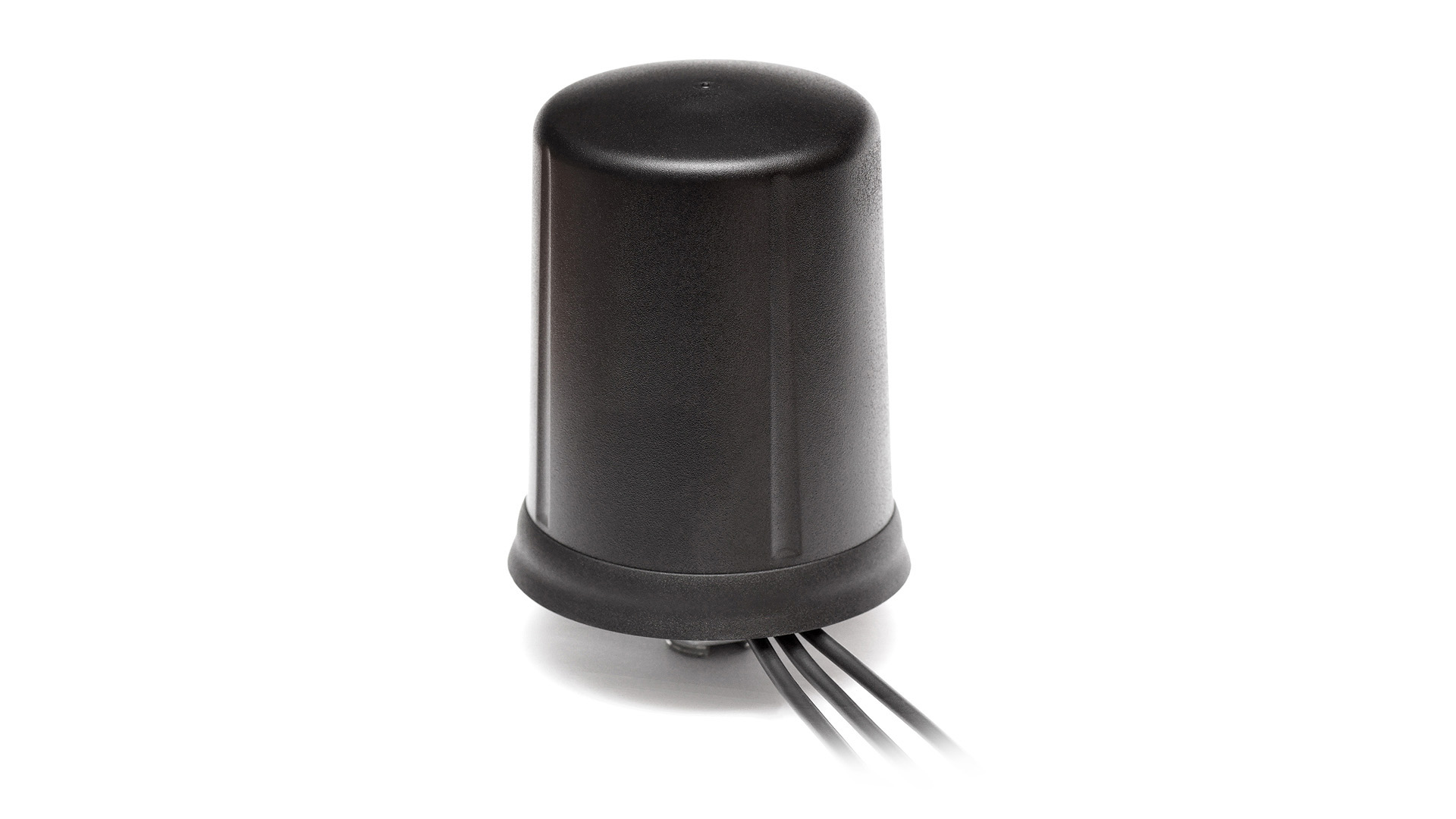

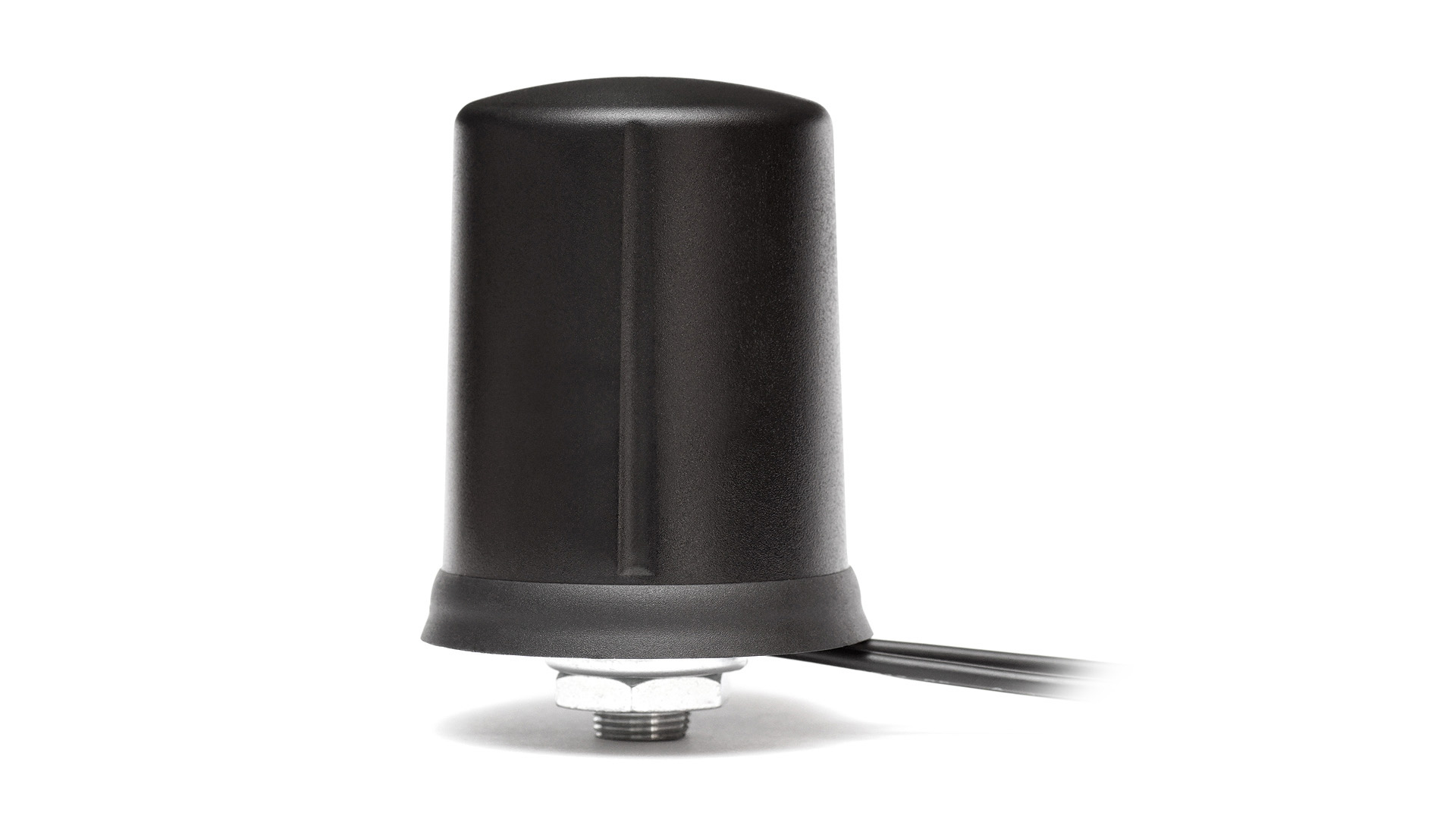

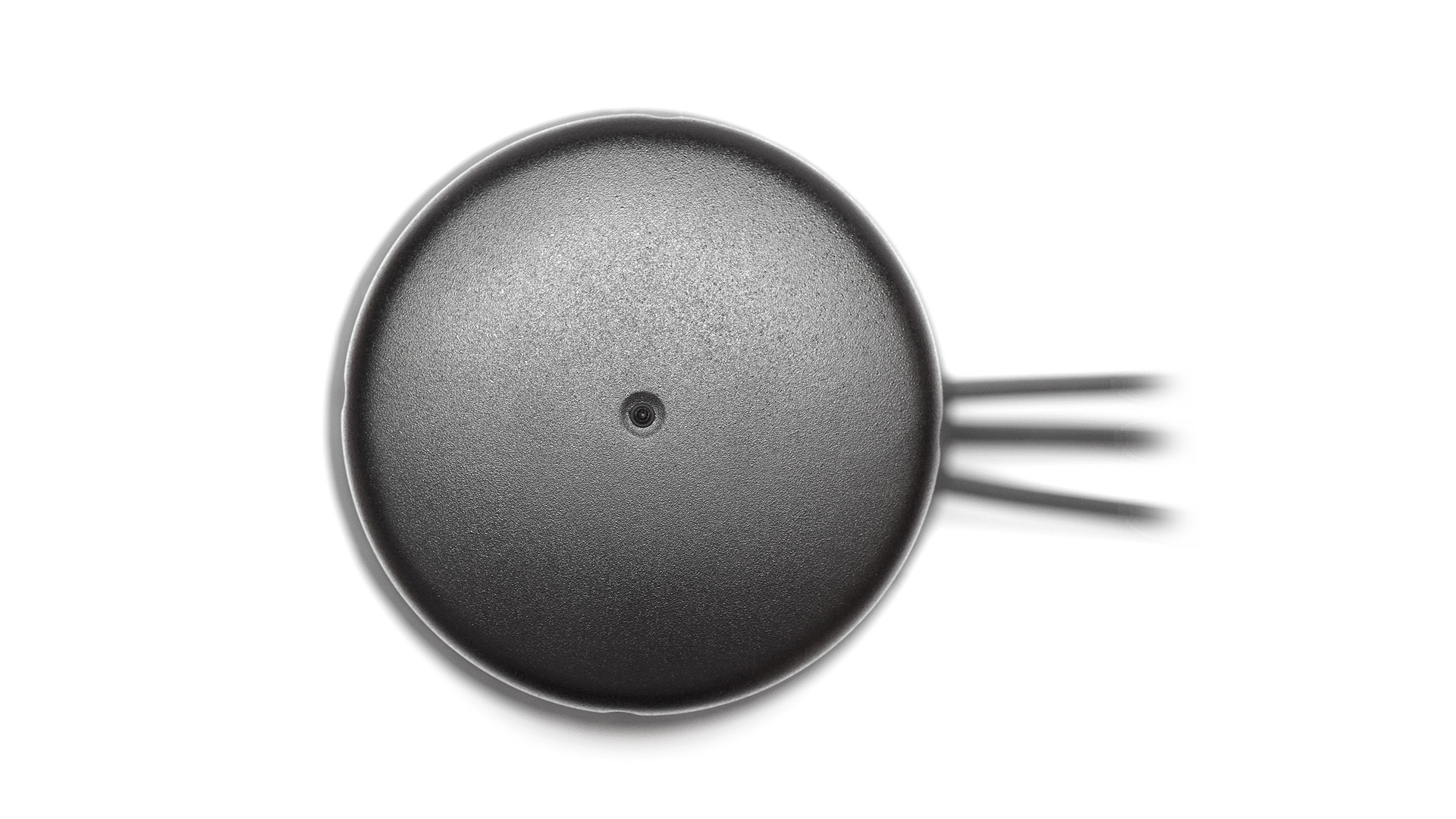

2J7741BGFa Antenna

Shaker 2 x 4G LTE/3G/2G MIMO, GPS/GLONASS/Galileo SM Antenna

General specification
Frequency
2× 4GLTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
Mounting Screw Mount
Dimensions (mm) Ø 60 x 69
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69, IK09
Standard colors
Get Datasheet
Product added to cart

Key Features

  • GPS/GLONASS/QZSS/Galileo
  • High Performance
  • Anti-Rotation Mounting
  • Customizable Cable and Connector
  • Ground Plane Dependent

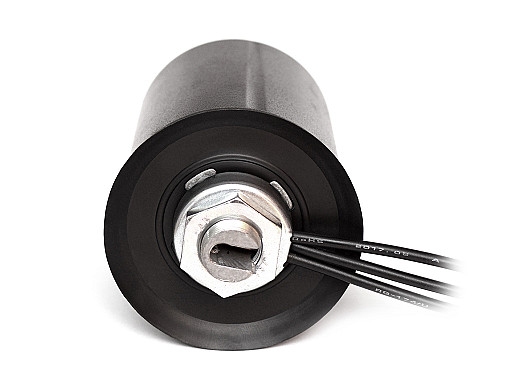

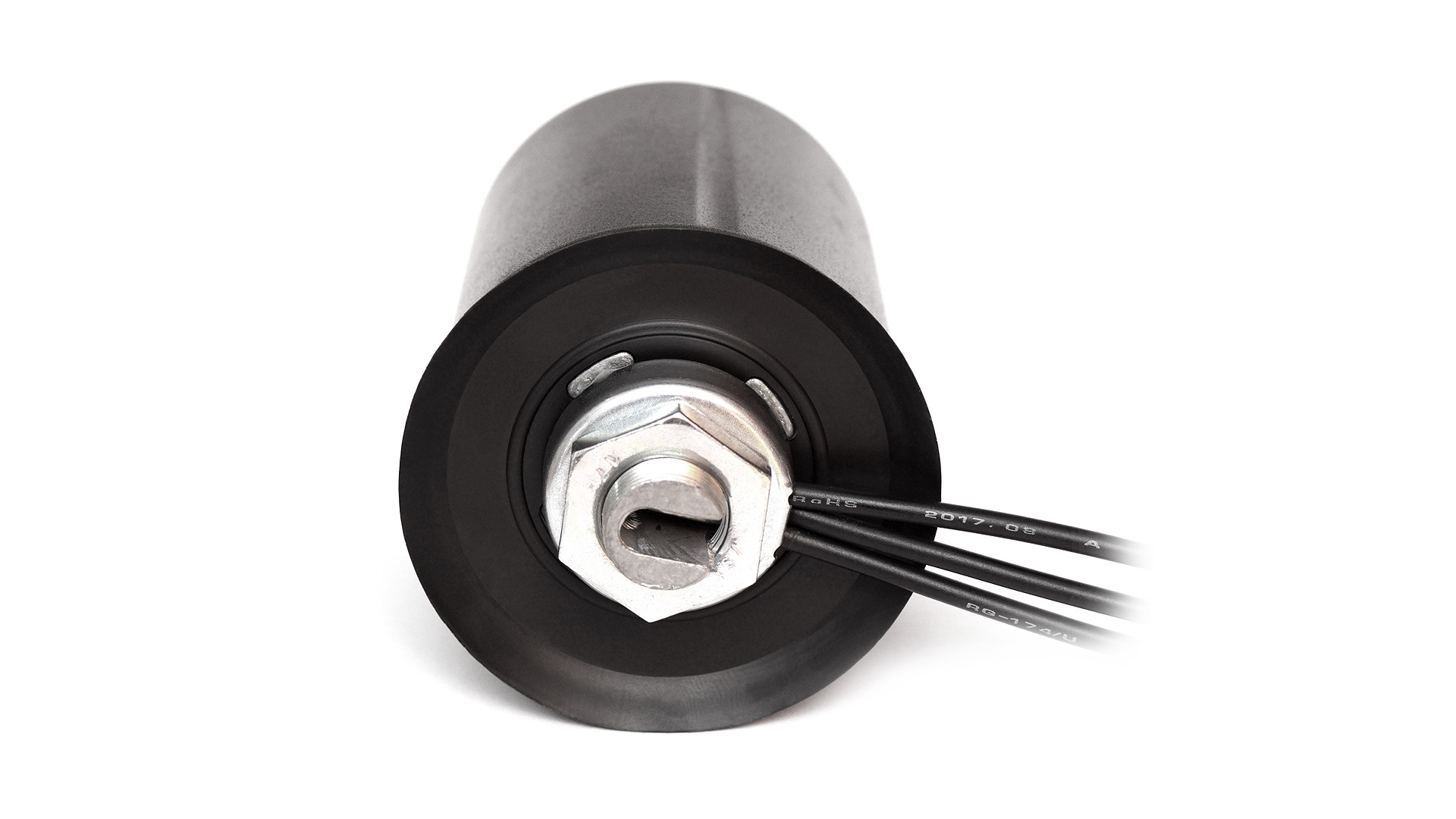

  • Screw Mount
  • 2 × 4G LTE MIMO antenna
  • Certificates: IP67, IP69, IK09
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.9:1, ~1.4:1, ~1.4:1
    Efficiency (%) ~37.8, ~53.3, ~54.9
    Peak Gain (dBi) ~-0.8, ~3.6, ~4.1
    50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.8:1, ~1.5:1, ~2.1:1
    Efficiency (%) ~38.7, ~52.3, ~42.1
    Peak Gain (dBi) ~-0.6, ~2.9, ~3.0
    50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 3

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1610
    VSWR <=1.4:1
    50
    Polarisation RHCP
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 - 3.6
    Noise Figure (dB) 1.5 Typ
    Current Consumption (mA) 9 Typ
    Power Consumption (mW) 24.3 Typ
    Saw Filter Type Pre-Filter
    ESD Protection (kV) 2
