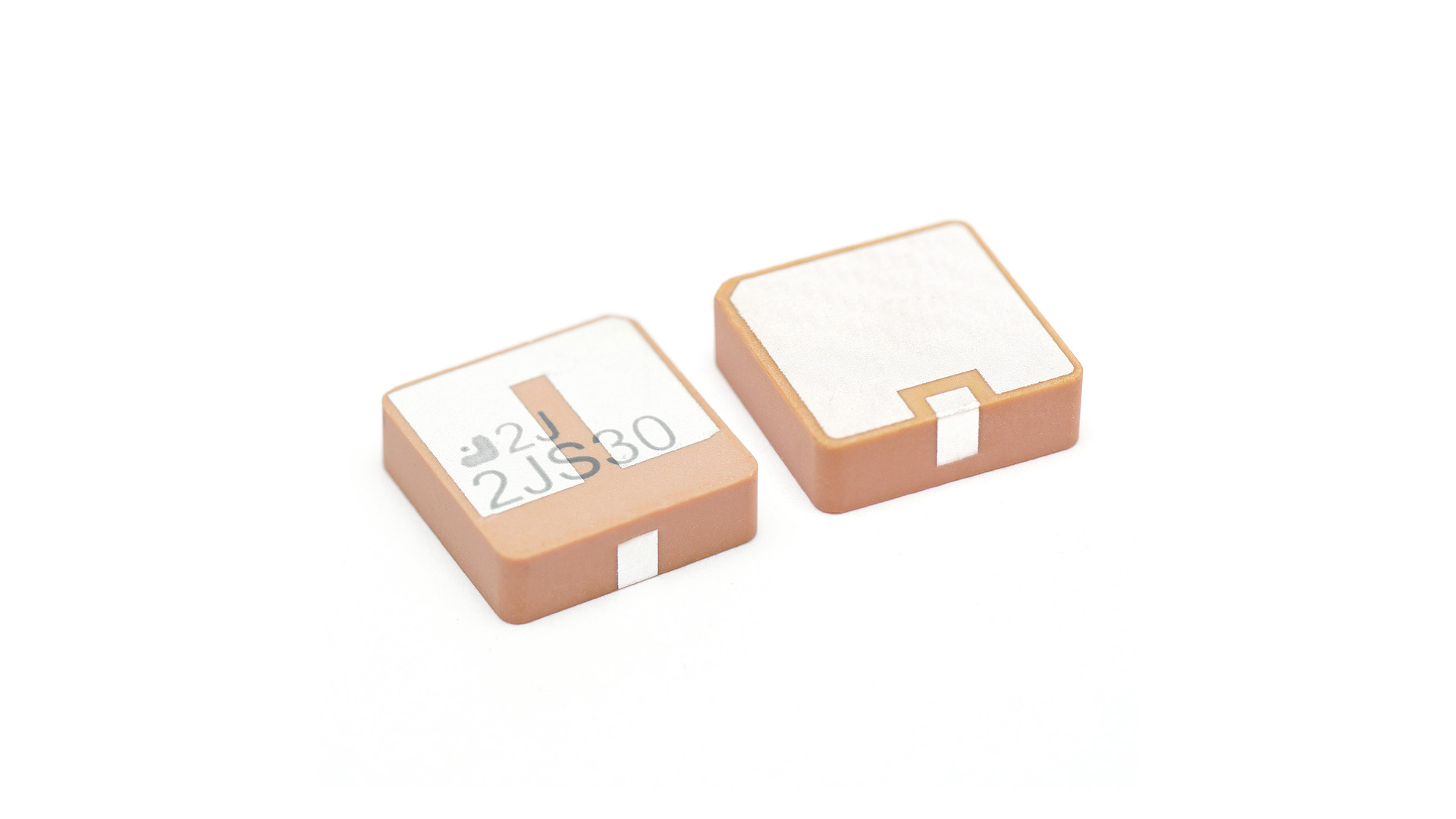

2JS30 Antenna

2.4 GHz ISM Surface Mount Hemispherical Antenna

General specification
Frequency
2.4GHz/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
Mounting Surface Mount Ceramic
Dimensions (mm) 13 x 13 x 4
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • Surface Mount
  • Easy to Integrate
  • Compact Size
  • Ceramic Material
  • Ground Plane Dependent
  • Antenna and electrical specifications

    connection 1

    2.4 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490
    VSWR ~2.5:1
    Efficiency (%) ~60.3
    Peak Gain (dBi) ~4.2
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25

    Antenna description

    2JS30

    2.4 GHz ISM Surface Mount Hemispherical Antenna

    Superior machine to machine global connection with reliability and precision

    The 2.4 GHz ISM Surface Mount Antenna (2JS30) offers interoperable wide-range wireless communications antenna for WiFi, BT, ZigBee and ISM standards. With hemispherical radiation pattern, the 2JS30 is designed to operate within 2410 MHz – 2490 MHz frequencies.

    The compact 2JS30 antenna is ideal for machine to machine connections in residential and commercial smart networks including consumer electronics, business wireless networks, smart homes, telecommunications, utility metering, industrial, science, medical (ISM) and any other wireless dependable equipment. This surface mount antenna is ideal for busy urban areas where building obstructions are a challenge to connectivity.

    Installation / Environmental

    The low-power, compact and ground plane dependent J2S30 antenna, offers easy integration within a minimum size area of 70x70mm. This surface mount antenna is ideal for pick and place automation circuit board assembly. Designed with durable ceramic housing and offering protection in extreme environmental conditions ranging from -40C to +80C, the 2JS30 antenna is RoHS compliant and is delivered on tape and reel for fast and efficient automated manufacturing.



    Typical applications

    - Residential/ Commercial Smart Networks
    - Smart Homes
    - Utility
    - Retail Services
    - Business wireless equipment
    - Consumer Electronics
    - Desktops/ Laptops/ Tablets
    - Automobiles
    - Smart TVs/ Digital Audio Players and Cameras
    - Drones
    - Printers
