| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 89 × 76 × 27/30 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67, IP69, Iridium Certified |
| Standards | GPS/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1575.42, 1616-1627 |
| Peak Gain (dBi) | ~5.1, ~5.7 |
| Efficiency (%) | ~93.8, ~92.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
The World’s Most Efficient High-Performance Antenna Design for GPS Markets
2J Antennas is excited to expand their “Phoenix” antenna series by offering the Iridium Certified/GPS High Gain Magnetic/Adhesive Mount Antenna (2J6934MP). This single cable antenna offers dual 1575 MHz and 1621 MHz frequency bands and is ideal for automotive and navigational applications that operate within L1 GPS, QZSS, Galileo and Iridium standards. L1 GPS is the oldest and most established signal and is compatible with the simplest GPS units with centimeter precision.
Designed with a hemispherical radiation pattern, RHCP and single feed technology provide much higher flexibility in terms of antenna size and design without compromising antenna performance. This antenna takes the lead in the market by constantly maintaining a >92% efficiency while operating peak gains remain >~5dBi.
|
Suggested applications include: - Satellite Communication |
|
Installation and Durability
With a convenient peel-n-stick adhesive magnetic mount, this antenna can be simply installed to any metal surface (vehicle or metal building) without the need for additional grounding. The adhesive and magnetic mount is strong enough for long-term installations but also offers an easy option for temporary applications and relocation. We recommend installing this antenna with a clear line of sight and directed to the signal for the most reliable connectivity.

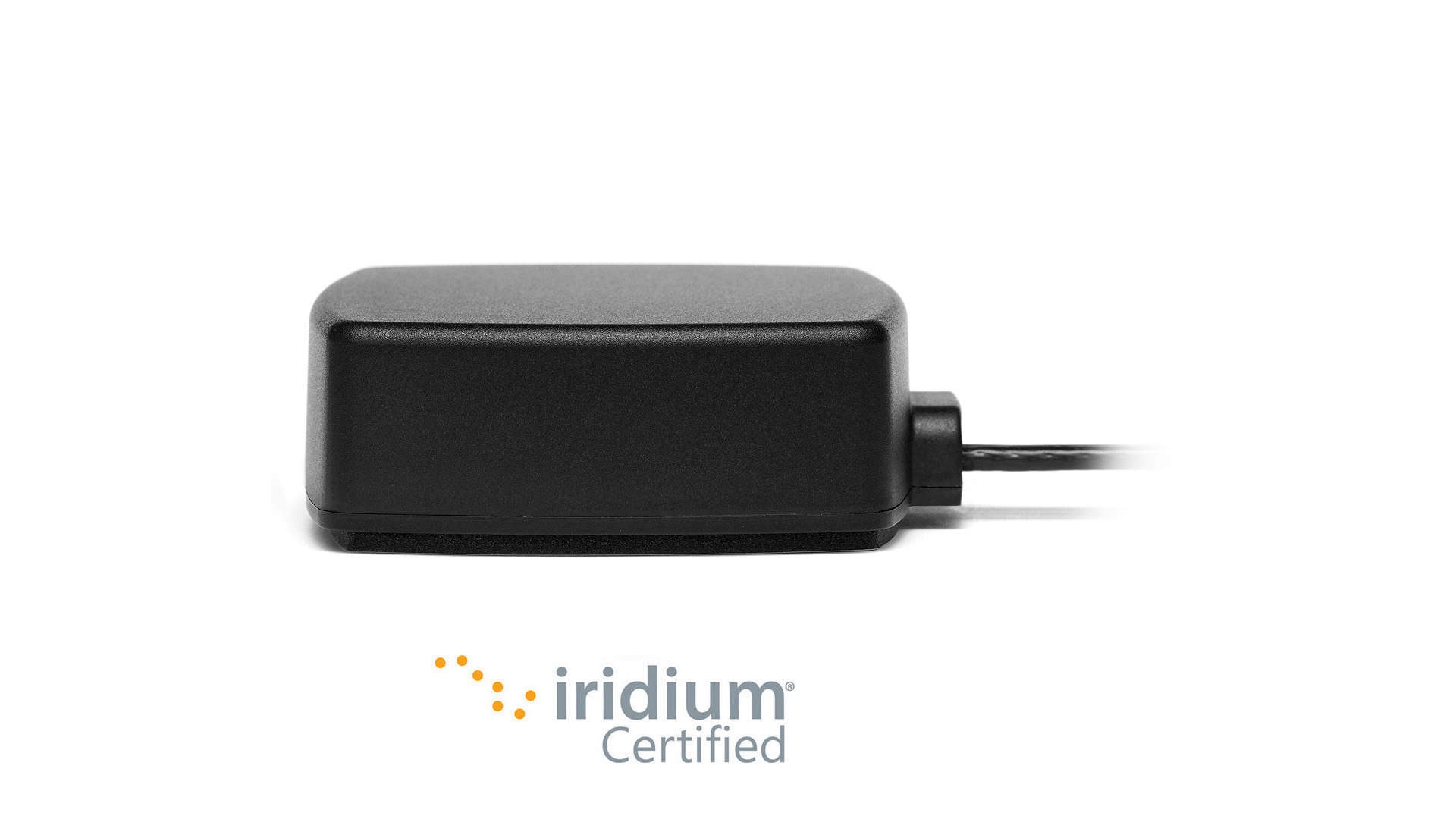

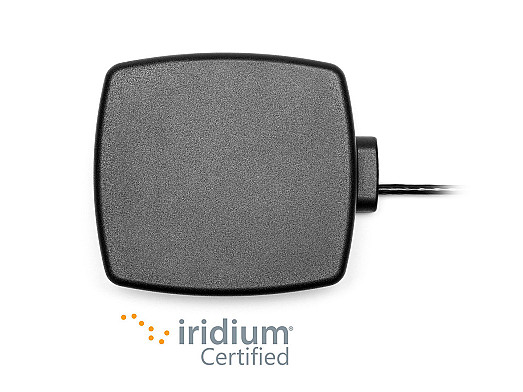

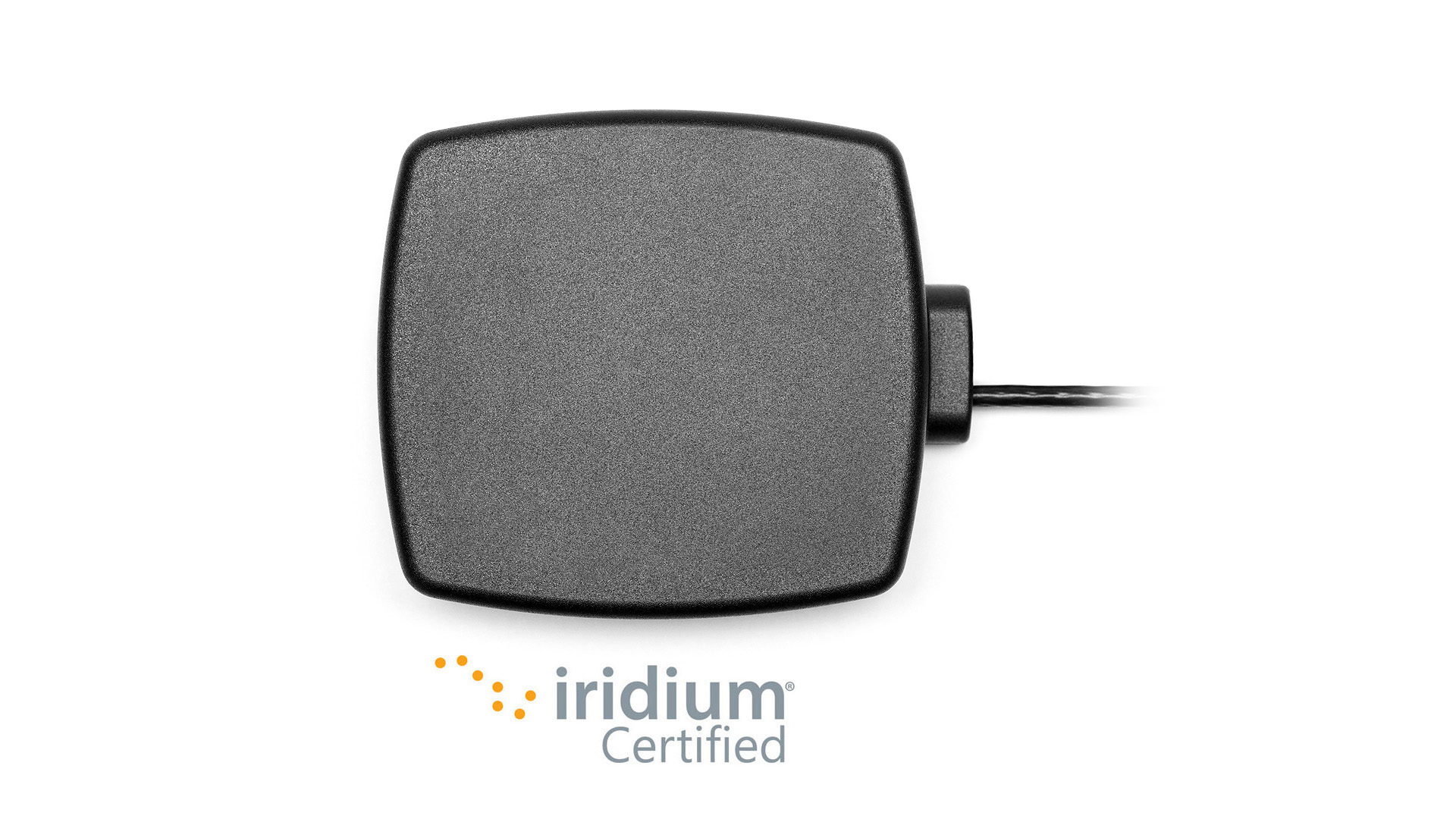

The low-profile box-shaped housing measures 89 x 76 x 27/30 mm and is manufactured with industrial-grade IP67/IP69 rated ABS UV stable material. This material is the top choice for antenna applications due to its high resistance to water, dust, sand and with high durability in extreme environmental conditions.
The 2J6934MP comes with a high-quality standard SMA-Male connector and a single 300cm long D302 cable. We offer a wide range of alternative connectors and cables for any customization needs to help our customers reach optimal antenna performance for their application needs. Please contact us for any requests or antenna selection needs.
All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
