Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.2, ~-16.3, ~-17.9, ~-18.9
VSWR ~2.5:1, ~1.4:1, ~1.4:1, ~1.3:1
Efficiency (%) ~38.5, ~45.8, ~41.6, ~36.6
Peak Gain (dBi) ~0.3, ~3.6, ~4.7, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.2, ~-15.6, ~-13.7, ~-13.2
VSWR ~2.5:1, ~1.4:1, ~1.7:1, ~1.9:1
Efficiency (%) ~42.2, ~45.3, ~43.0, ~36.7
Peak Gain (dBi) ~0.7, ~3.7, ~4.6, ~3.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 3

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.5:1, ~1.4:1
Efficiency (%) ~43.4, ~26.2
Peak Gain (dBi) ~5.3, ~1.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.6:1, ~1.3:1
Efficiency (%) ~41.8, ~30.9
Peak Gain (dBi) ~5.3, ~2.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 5

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137.5
Out of Band Rejection (dB) 32

Key Features

5-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
4.7 dBi 5G NR Peak Gain
5.3 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Lightweight Plastic Base
Configurable Mount options
Pole Mount plastic bracket included
Suitable for pole with max Ø43 mm
Adhesive Mounting sticker included
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

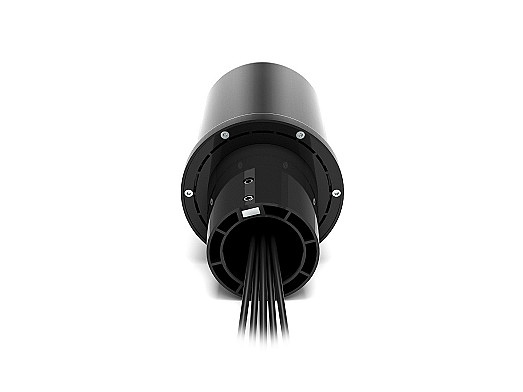

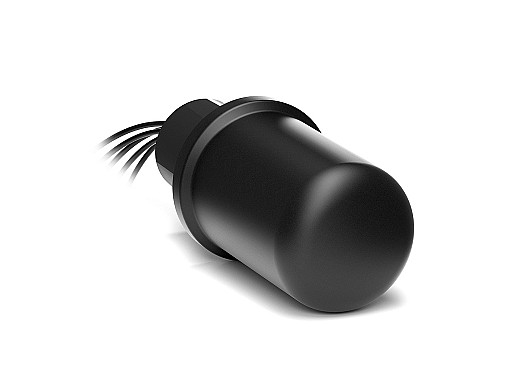

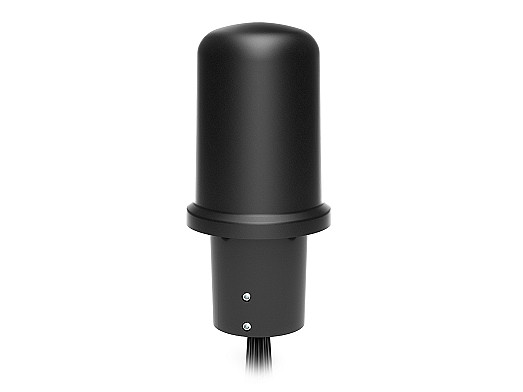

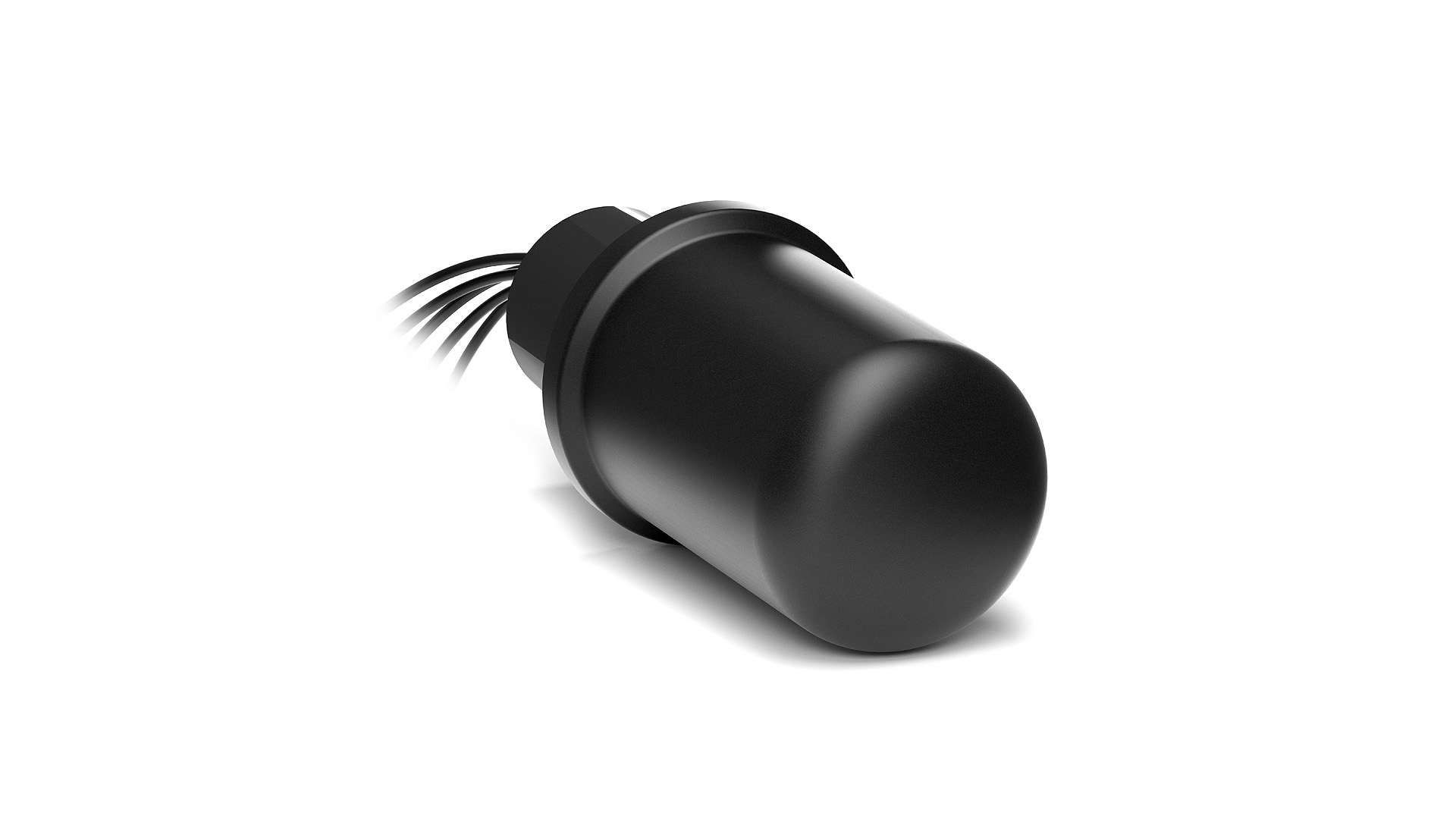

2J7B86JBGFa-B16J

The Next Generation Heavy Duty Low-Cost 5-in-1 Solution for Intelligent Machine Control

2J Antennas is excited to introduce “The Medusa Series” 5-in-1 5GNR MIMO 2.4/5.0 GHz ISM and GPS/GNSS Screw Mount Antenna (2J7B86JBGFa-B16J). This next-generation antenna integrates durability, high performance, efficiency and ultra-reliable low-latency communication (URLLC) into a low-cost and permanent solution for medical emergency, construction, agriculture and transportation industries. The 2J7B86JBGFa-B16J offers 5 high-performance antennas that support 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, WiFi, BT, ZigBee, ISM, GPS and GLONASS standards making it the most reliable antenna on the market.

Typical applications

- 5G Networks
- Infotainment systems
- WiFi hotspot
- HD video transmission
- Dash cameras
- Connected cars
- Self-driving cars
- Fleet management
- Gateways
- Routers
- GPS-enabled IoT Applications
- Real-Time HD Video Streaming
- And others

Compatibility Standards

5GNR Cables
- 5GNR, 4GLTE, FirstNet, CBRS, LPWA
- CAT 1 2 3 4 5 6 7 8 9 10 11 12
- NB-IoT, LTE-NB1, CAT-M1, CAT-M2, WCDMA, UMTS, HSPA,
- EDGE GRPS, GSM, CDMA

2.4/5.0 Cables
- WiFi, Bluetooth, BLE, ISM
- DSRC, V2V, V2X
- Sigfox, LoRa, ZigBee, RPMA, LPWAN

GPS/GLONASS Cable
- GPS, GLONASS
- Galileo, QZSS, L1, E1



Cable 1 and 2: 5GNR MIMO

Cables 1 and 2 are designed for 5GNR devices that operate within all 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz). The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. New generation LTE 4G applications demand high data speeds, therefore high efficiency and high gain MIMO antennas are required for necessary signal to noise ratio and throughput.

Cables 3 and 4: 2.4/5.0 GHz MIMO ISM

Cables 3 and 4 are dedicated to wireless-enabled device solutions operating within WiFi, ZigBee and ISM standards. Both cables are designed with omni-directional radiation pattern for maximum radiation efficiencies delivering unmatched performance making it the ideal solution for high-capacity network communications and HD video streaming.

Cables 5: GPS/GNSS

Cable 5 is designed for precision navigational applications that operate within GPS and GLONASS standards. Designed with a hemispherical radiation pattern and right-hand circular polarization allows cable 5 to radiate on all planes and maximize connectivity by avoiding conflict with propagating signals, penetrating obstructions, reducing dead spots, boosting throughput and improving resistance to signal degradation caused by inclement weather conditions. Cable 5 can maintain an active gain of 23 dB @ 3V and a noise figure parameter of 1.2 dB within the receiver system. The SAW post-filter blocks inadequate frequencies with an out of band rejection of ~32 dBc across the 1575 – 1602 MHz bands.

All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

Installation / Environmental

The 2J7B86JBGFa-B16J is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base options. This antenna is impact resistant, dust resistant and waterproof with full IP67, IP69 and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and reliable pole mount installation offer easy, permanent installations on a wide range of surfaces. We offer a wide range of alternative connectors and cables for any customization needs and our highly skilled team is available to guide our customers through any special requirements. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Applications

Mobile Networks Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Cellular Networks Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Machine Control Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Automotive Telecommunication Data Processing Broadband Communications Remote Monitoring and Control Smart Lighting Government & Public Safety Telemetry / Telematics Video Streaming Private Cellular Networks Digital Signage Routers, Gateways & Data Terminals First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything MIMO Device Connectivity Wireless Security System Energy Monitoring Smart Metering Air Quality and Pollution Monitoring Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Building Control Manufacturing Smart Grid Electricity Metering & Management Resources Management Utilities Marine Aviation Applications Satellite Realtime Navigation Retail Services Home Applications Public Wi-Fi Short-Range Personal Area Networks RFID devices V2X - Vehicle to Everything
