Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.0:1, ~1.6:1, ~2.3:1
Efficiency (%) ~43.3, ~38.8, ~22.1
Peak Gain (dBi) ~4.0, ~0.3, ~-1.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
4.0 dBi 4G LTE Peak Gain
Low Profile
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Installation Versatile, Compact and Exceptional Quality for Mobile Connectivity

2J Antennas is adding the 4G LTE, 3G, 2G Wideband Customizable Antenna (2J5424HP) to their “Raven Series” with optional permanent or adhesive mount. This wideband and ultra-compact antenna is compatible with Distributed Antenna Systems (DAS) that are ideal for indoor and outdoor applications where interferences in wireless coverage face connectivity problems common in malls, industrial/office buildings, hotels, airports, hospitals, and any other busy service areas.

Suggested applications include:
  • Wireless broadband communication
  • Mobile devices
  • Data terminals
  • Smart devices
  • First responders and public safety communications
  • Mobile HD TV
  • Smart metering
  • Commercial, industrial, or home automation

Designed for mobile devices that operate within 4G LTE, 3G and 2G standards, this antenna features a peak gain of ~4.0 dBi and maximum efficiency of ~43.3% (above the industry standard). This antenna is ideal for mission critical communications in public safety industries and for areas with high demand for cellular/ data connectivity.

Installation / Environmental

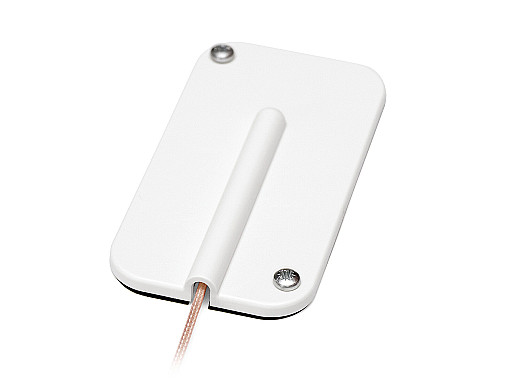

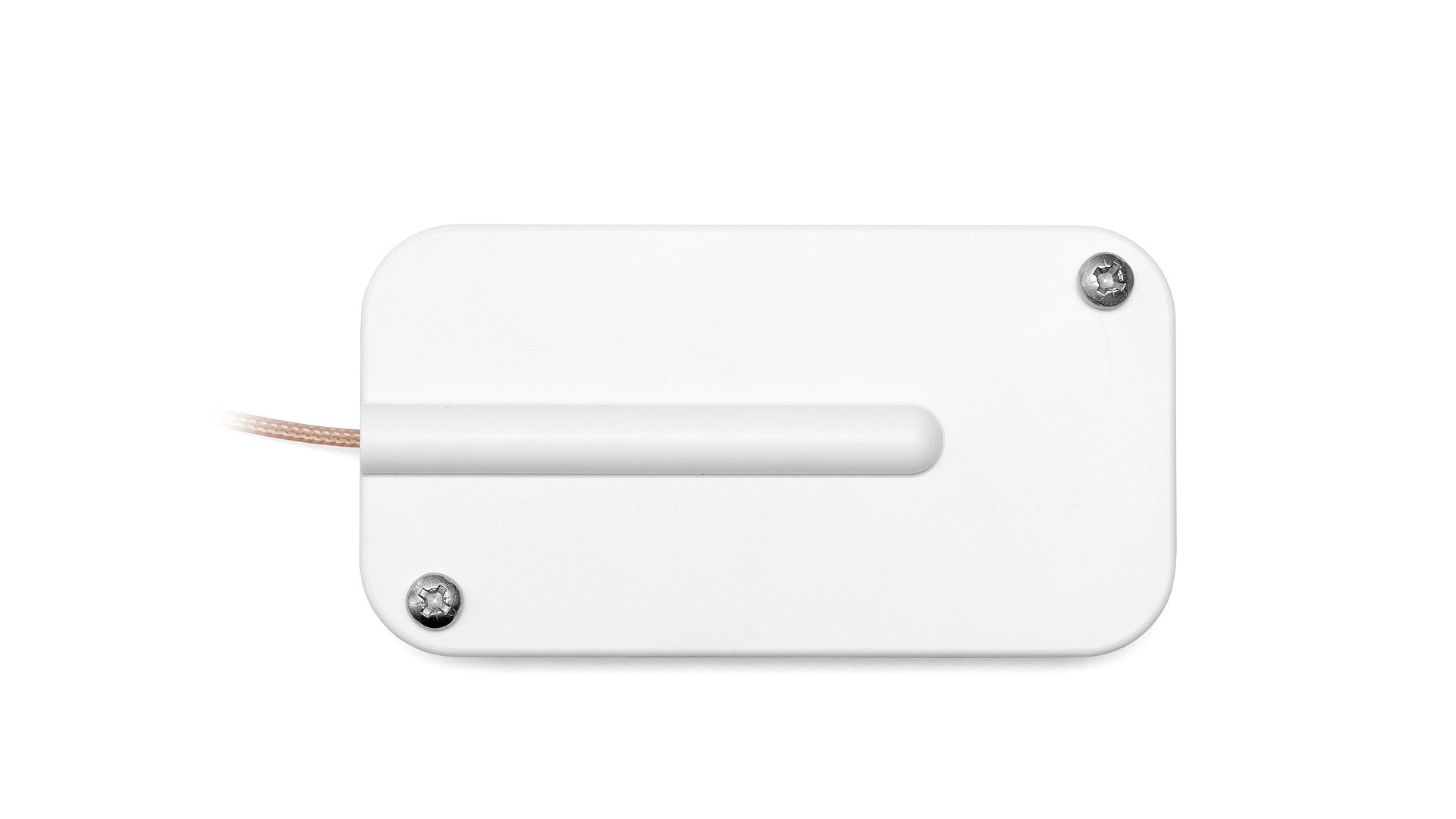

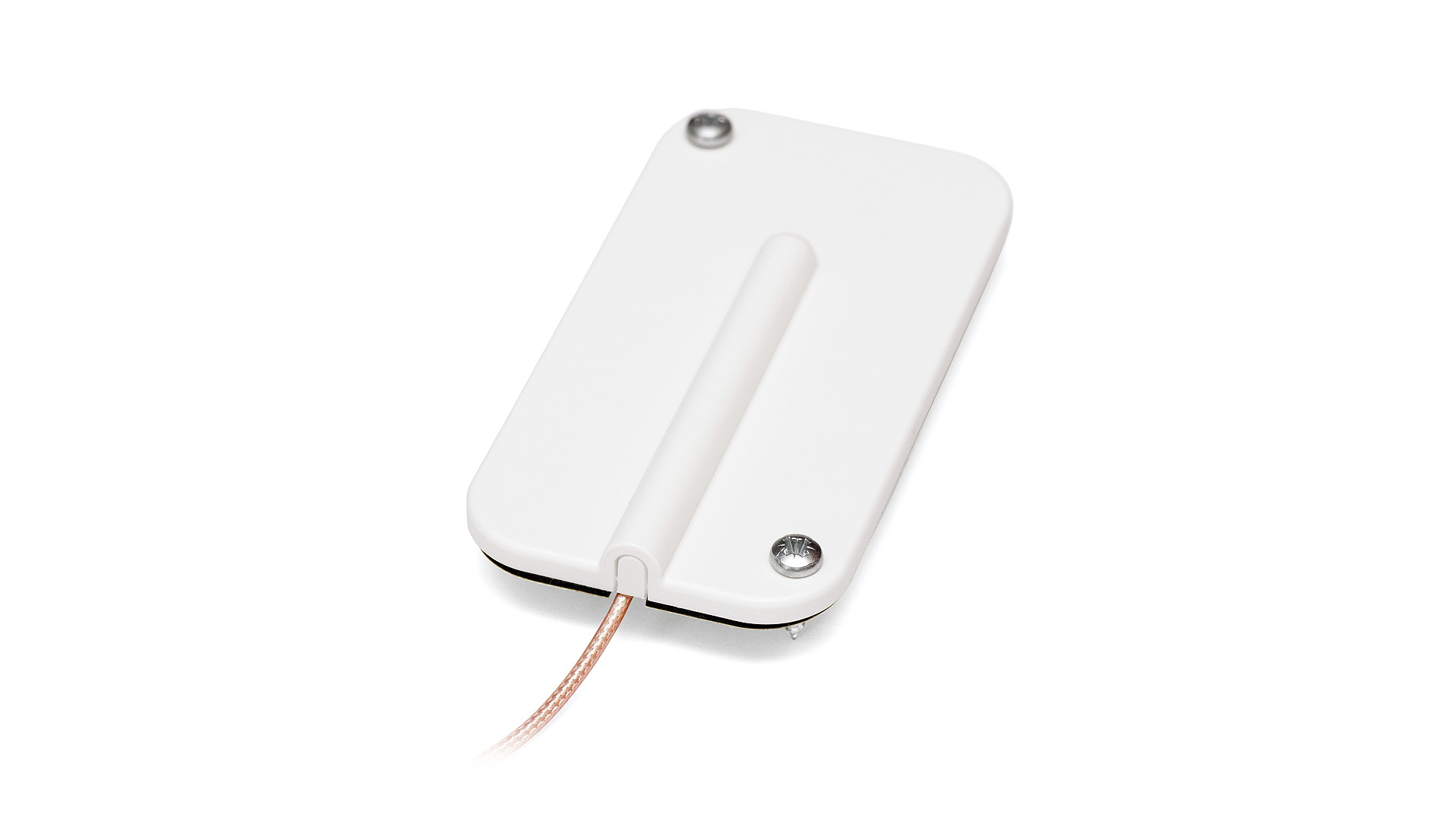

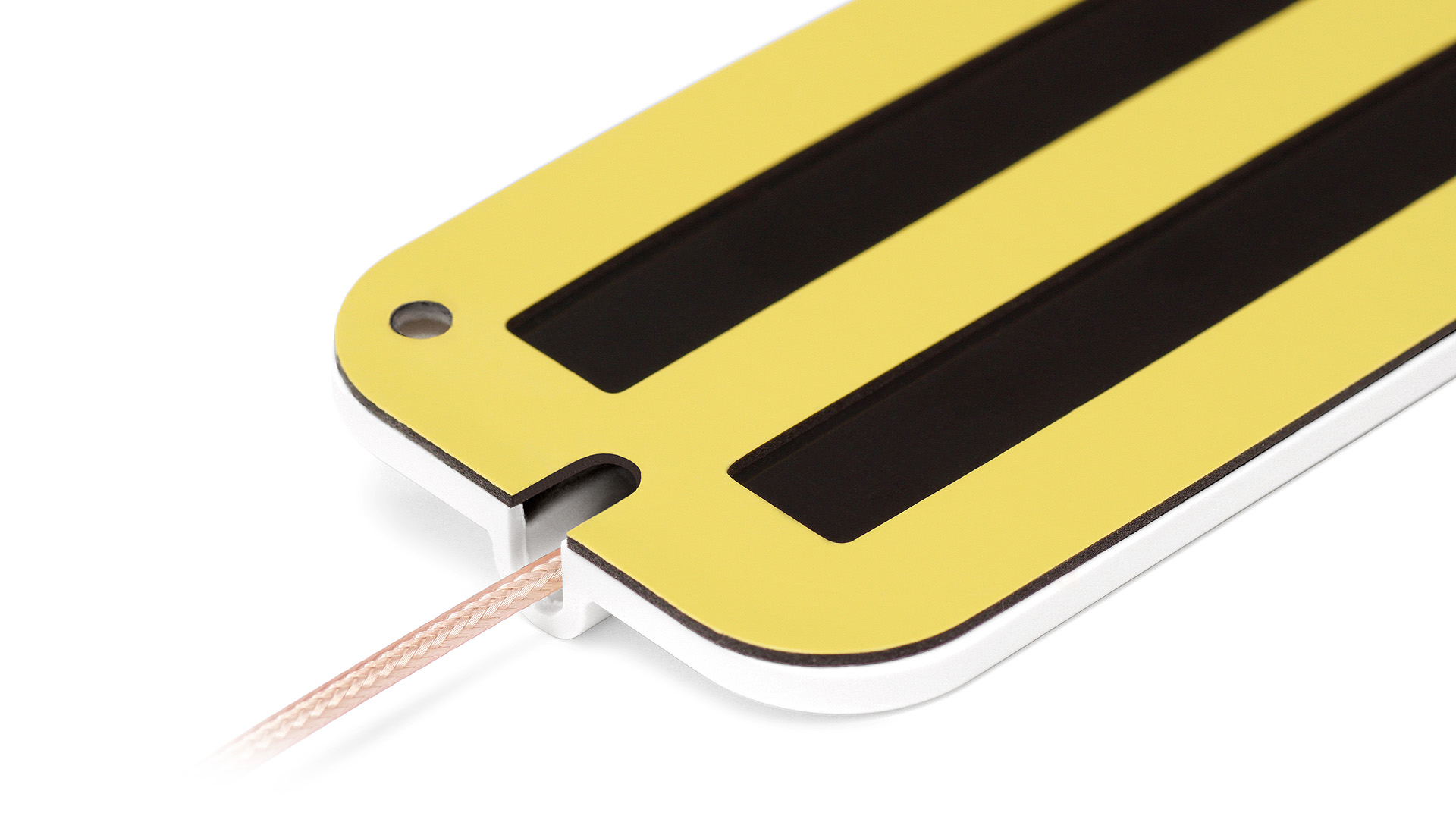

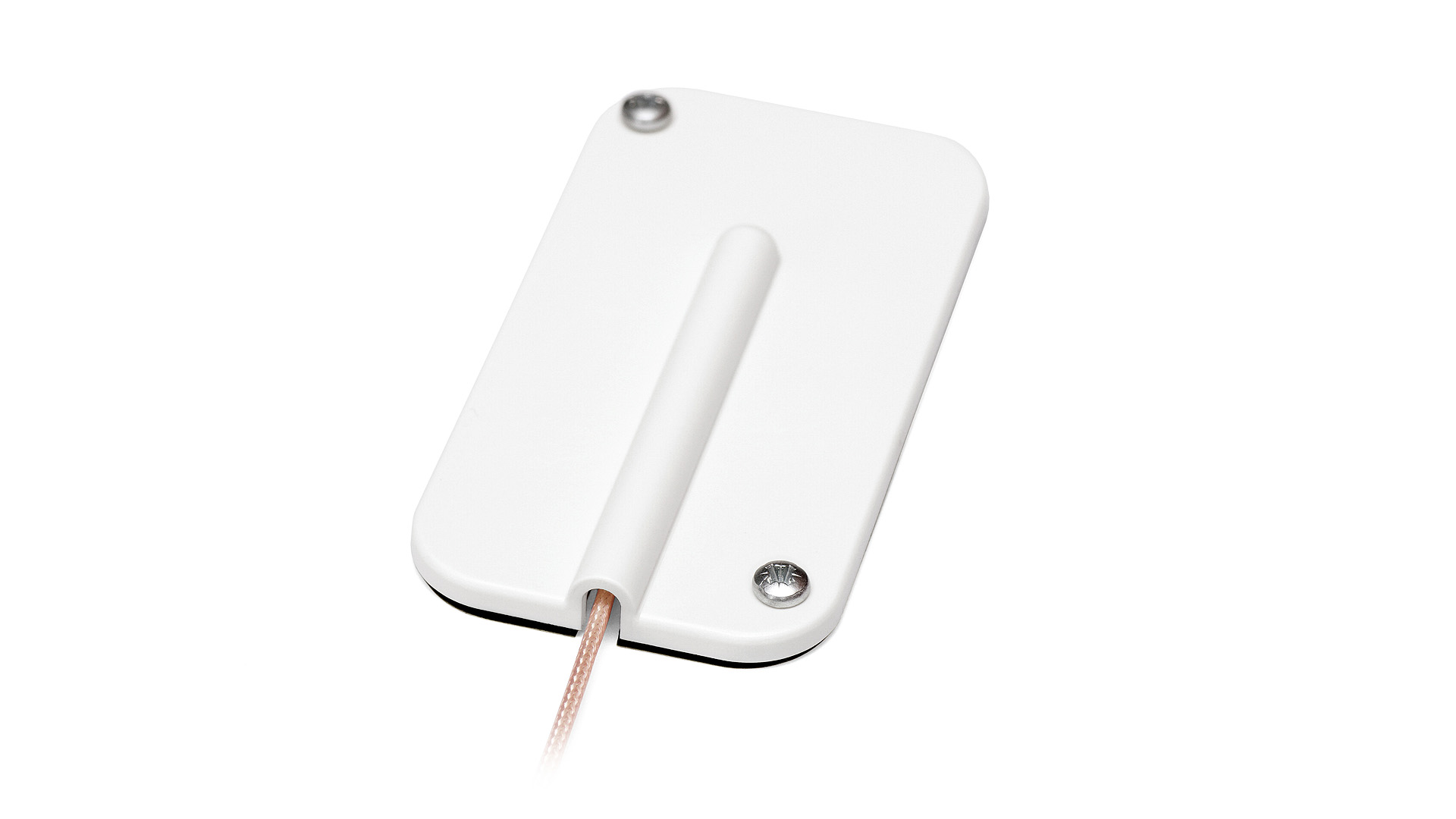

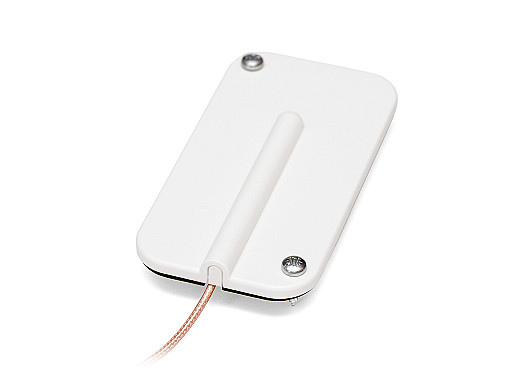

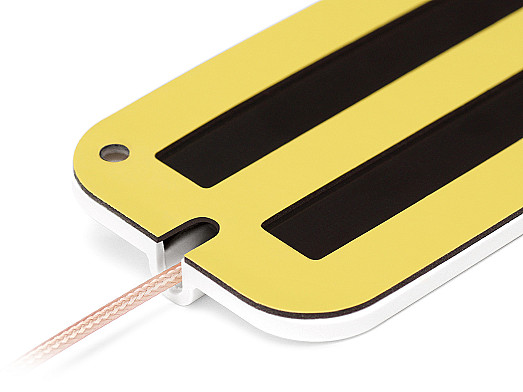

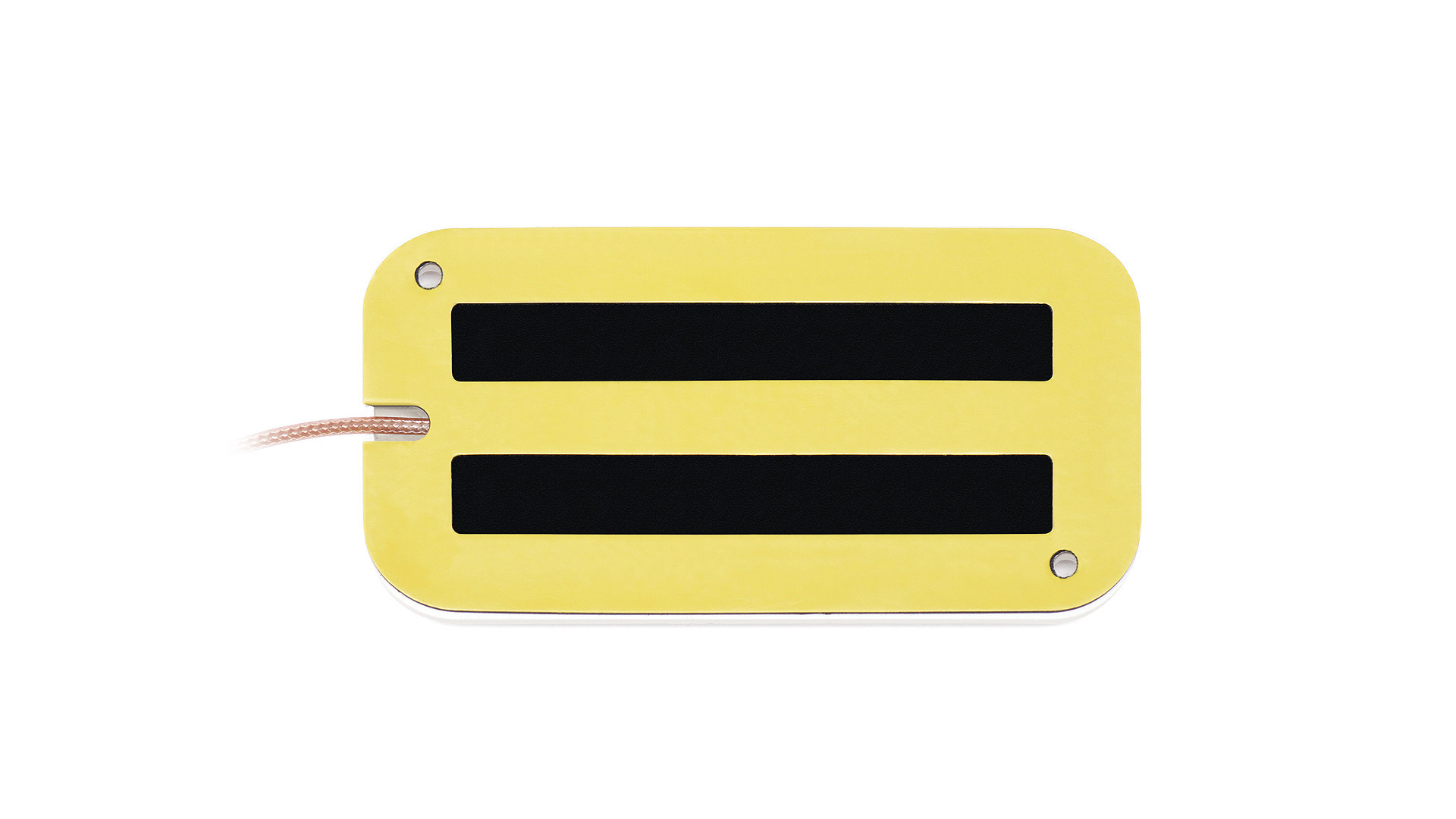

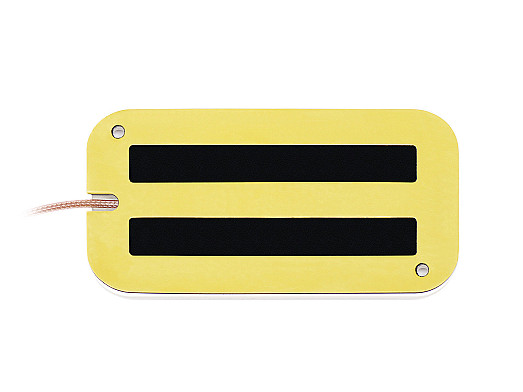

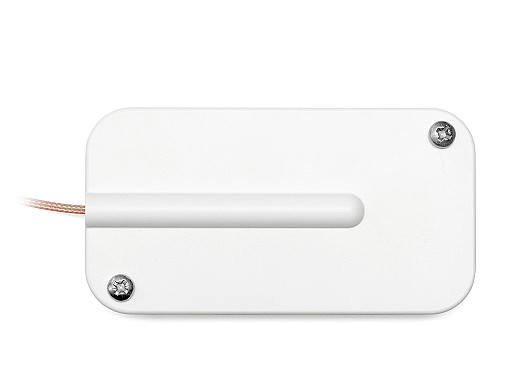

The antenna is protected with a light weight and durable layer of ASA material giving protection in outdoor or indoor temperatures as low as -40C (-40F) and as high as +85C (+185F). Total measurements for this compact antenna are only 112.5 x 60 x 11.3 mm and come with the option of a permanent wall mount or adhesive peel-n-stick mount for rough or smooth surface installations without the needs of a ground or free space.

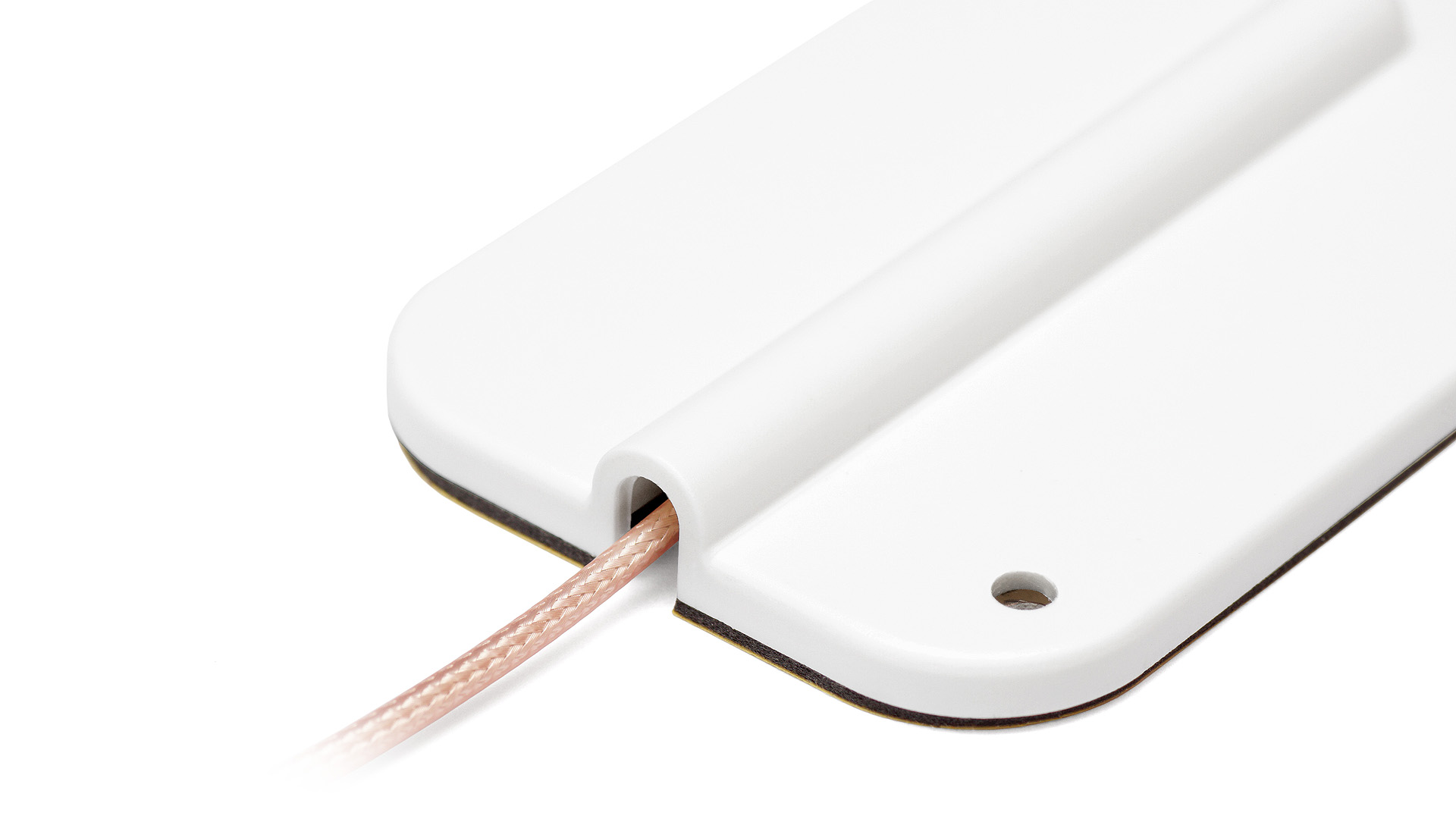

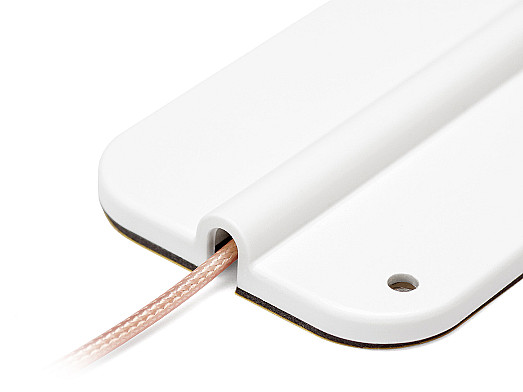

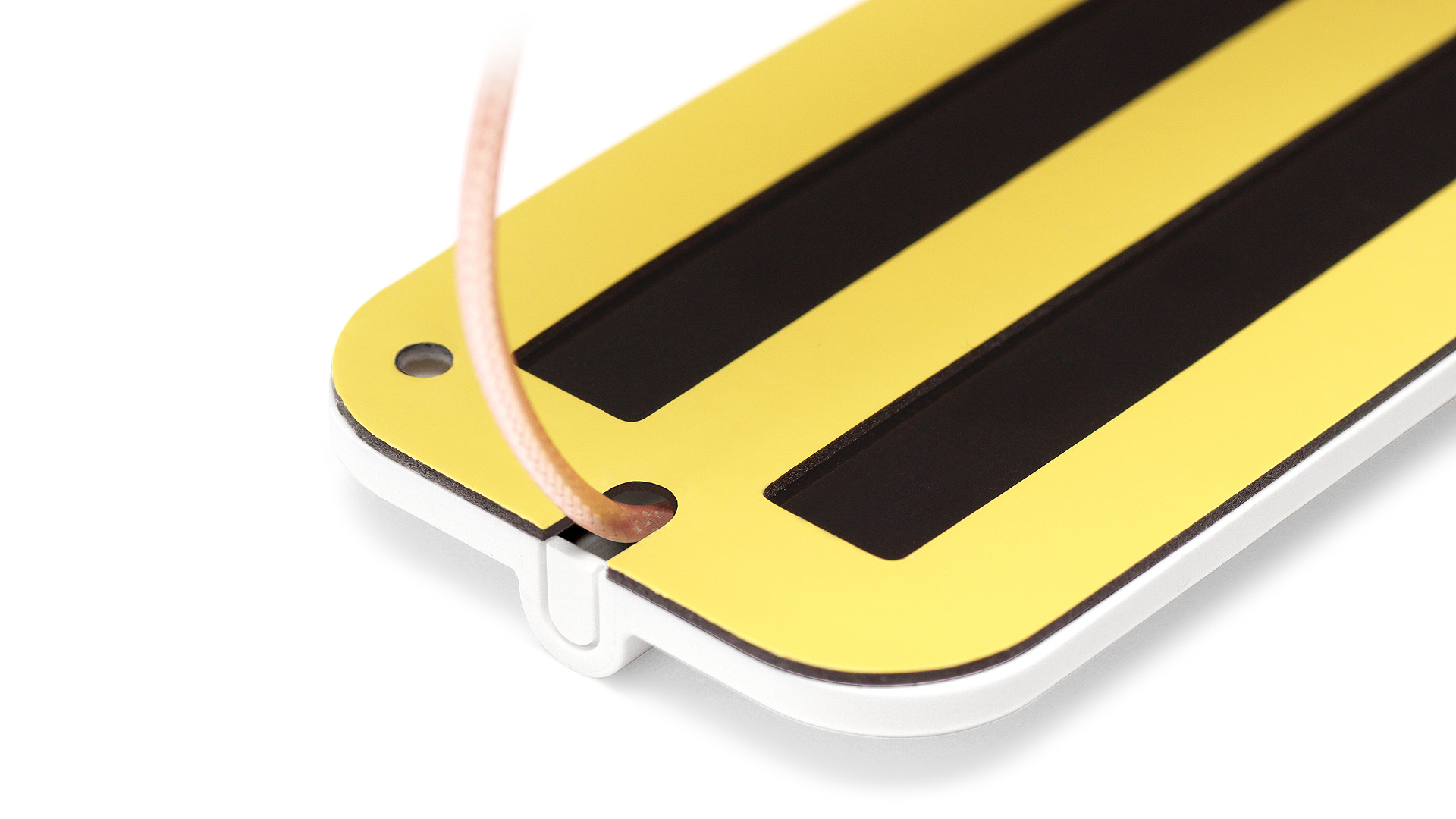

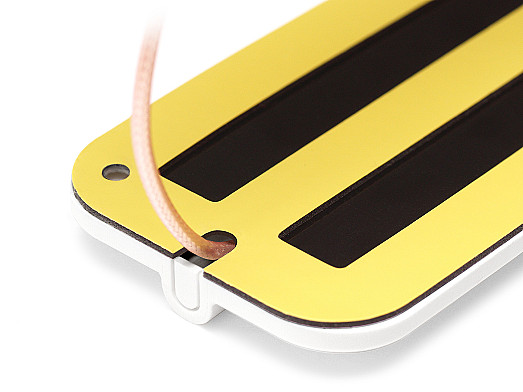

2J5424HP is tuned for optimal antenna performance with a 300cm long low loss cable that feeds from the side of the antenna wall and with an SMA-Male connection. We offer a large selection of alternative connectors and cables that meets any customization needs. Our experts are available to assist our customers with antenna selection and customization needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
