Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.1:1, ~1.8:1, ~2.5:1
Efficiency (%) ~56.4, ~56.1, ~37.8
Peak Gain (dBi) ~2.6, ~3.2, ~1.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
3.2 dBi 4G LTE Peak Gain
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16



Antenna Description

Designed for Cellular Wireless Devices with Quality, Cost and Reliability in Mind

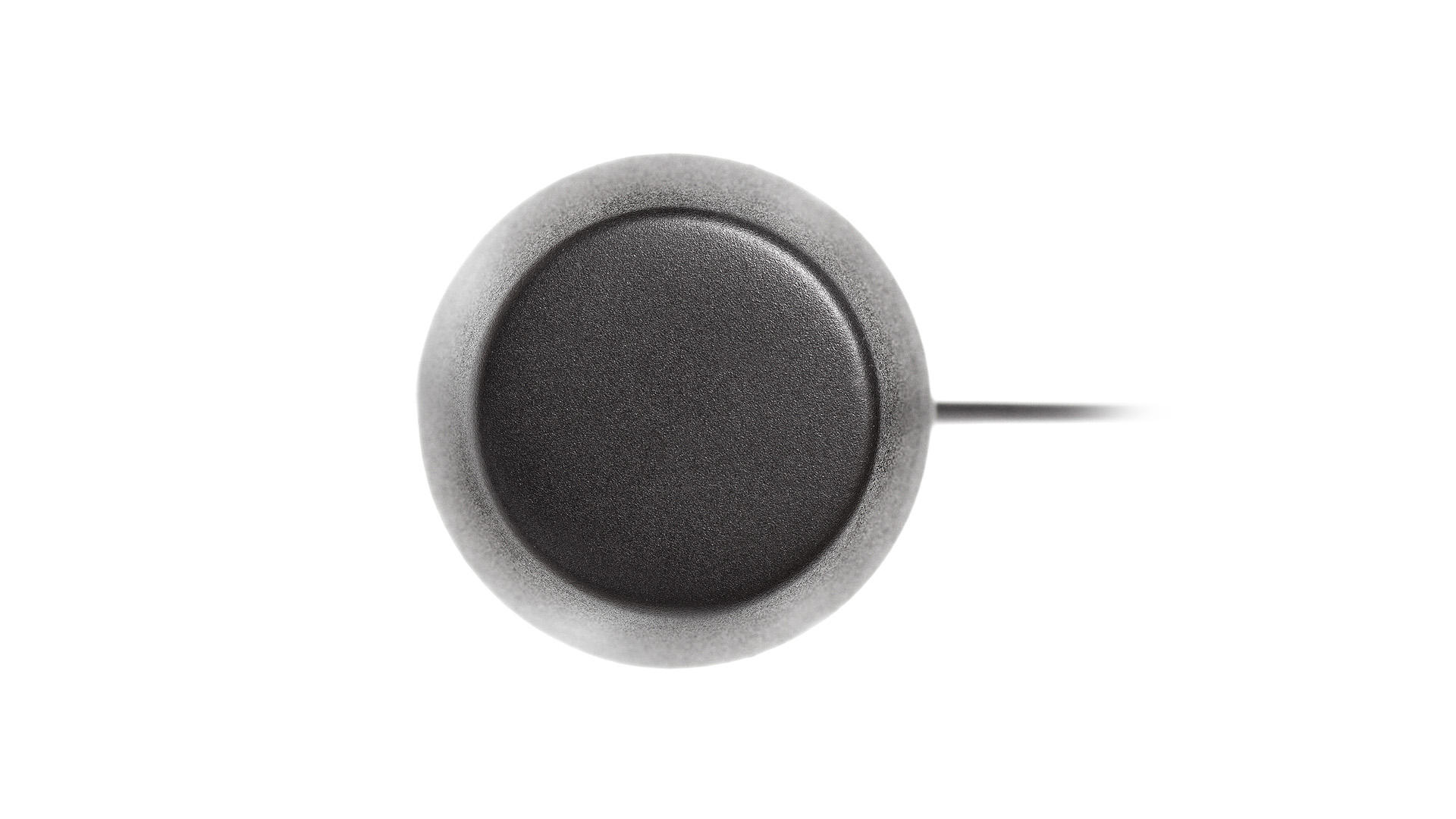

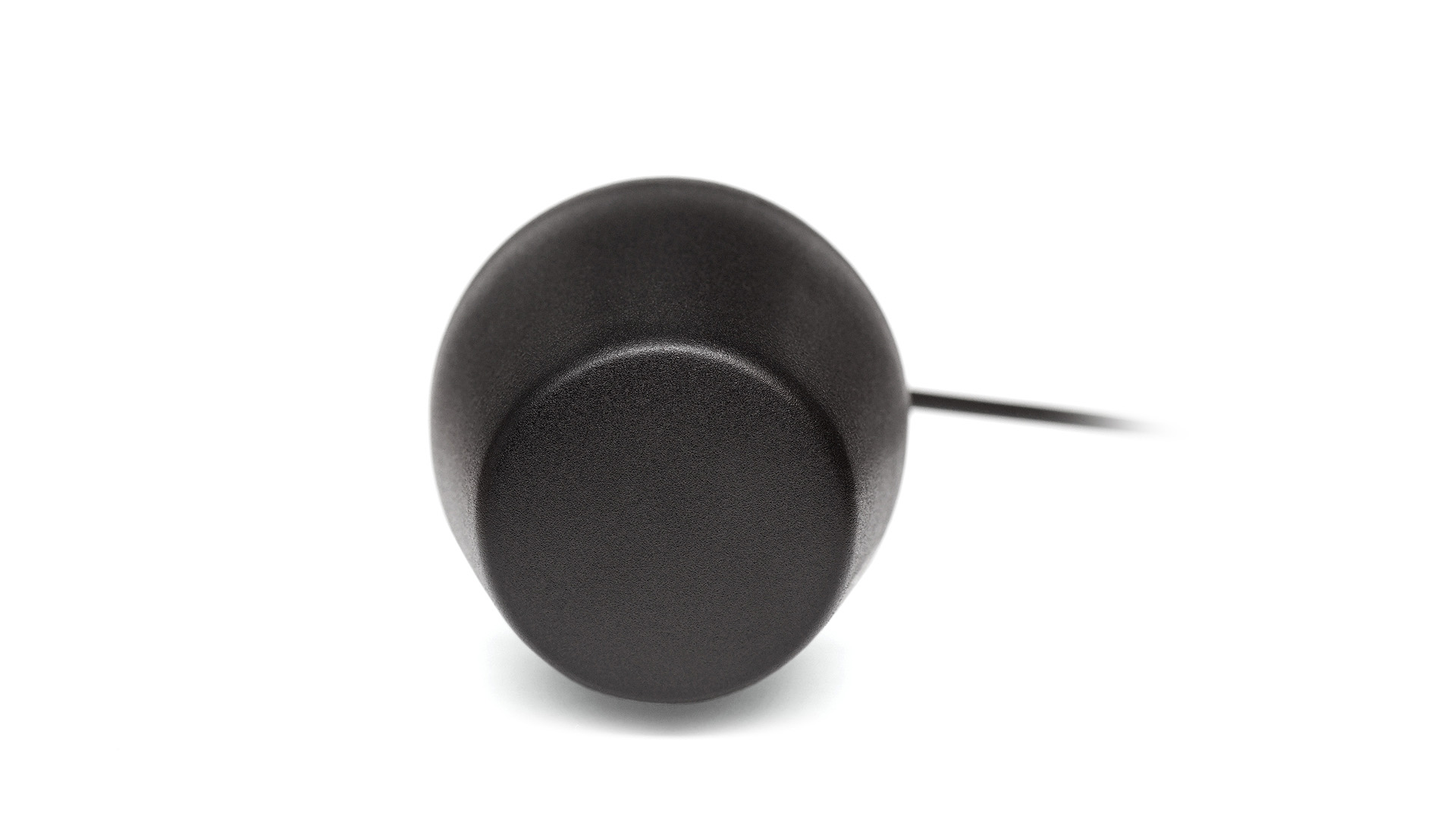

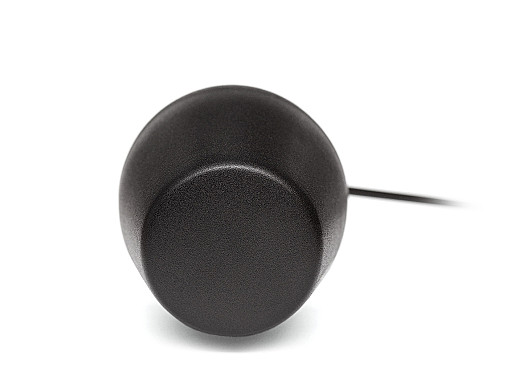

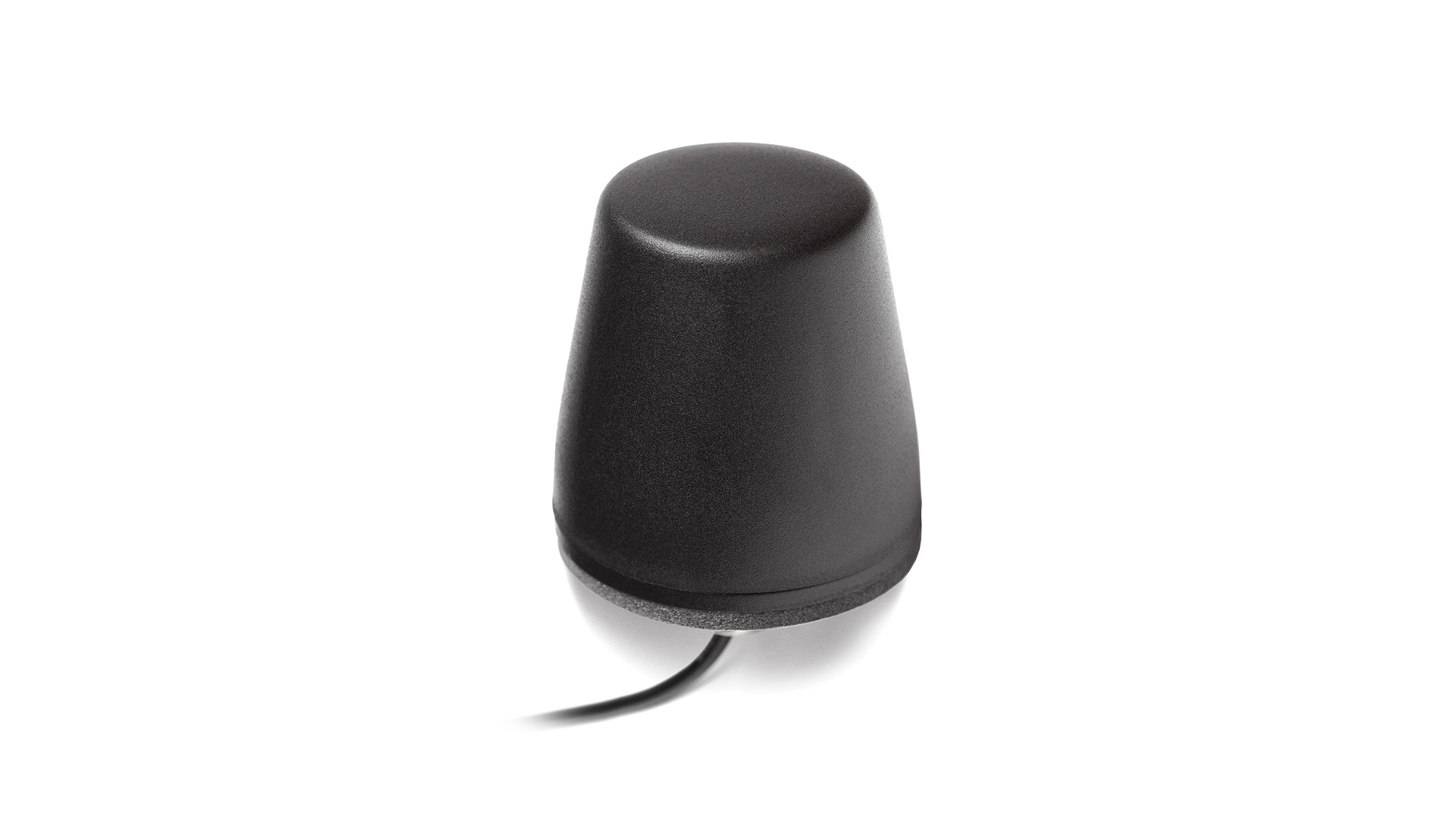

The Mini-Shaker 4G LTE, 3G, 2G Screw Mount Antenna (2J7624B) is designed to fit a wide range of installation requirements while keeping cost-effectiveness and reliable connectivity in mind. Designed with a low-profile housing, this antenna is ideal for high quality data and voice throughput for mobile, NB-IoT, LPWA, CAT-X/M and FirstNet applications that operate within 698 MHz to 2700 MHz frequencies.



Suggested applications include

  • Wireless broadband communication
  • Mobile devices
  • Data terminals
  • Smart cities
  • First responders and public safety communications
  • Mobile HD TV
  • Smart metering / home automation

Designed for mobile devices that operate within 4G LTE, 3G and 2G standards, 2J7624B provides a 360-degree signal strength while maintaining a stable ~3.2 dBi 4G LTE peak gain. If mission critical communication, uninterrupted connectivity and high quality voice/data throughput is your priority, then this antenna is the right choice for you.



Installation / Environmental

2J7624B is fully IP67 and IP69 rated with protection against ingress of moisture, water, dust, and high temperatures (-40C - +85C) without any compromise to antenna operations. The antenna housing is manufactured with commercial grade ASA material with a Zamak antenna base and double-sided foam gasket for extra protection. With compact measurements of Ø 50 x 50.8 mm make this ground plane independent antenna ideal for indoor or outdoor installations without restrictions.

This antenna is tuned with a single 300 cm long DACAR100 cable that feeds through the anti-rotation screw mount and an SMA-Male end connection. 2J Antennas also offers a large variety of alternative connectors and cables to meet any customization needs. Our highly skilled engineers are available to assist our customers with antenna selection and customization needs to assure perfect antenna performance for the job.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
