Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Ceramic Passive Antenna
  • 25 × 25 × 4 mm
  • Surface Mount
  • Easy to Integrate
  • Ground Plane Dependent

Applications

Antenna and electrical specifications

connection 1

GPS/GLONASS - Ceramic Passive Antenna

Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~4.6, ~4.7
Efficiency (%) ~84.2, ~80.9
Impedance (Ohm) 50
Radiation Pattern Hemispherical

Antenna description

2JS20

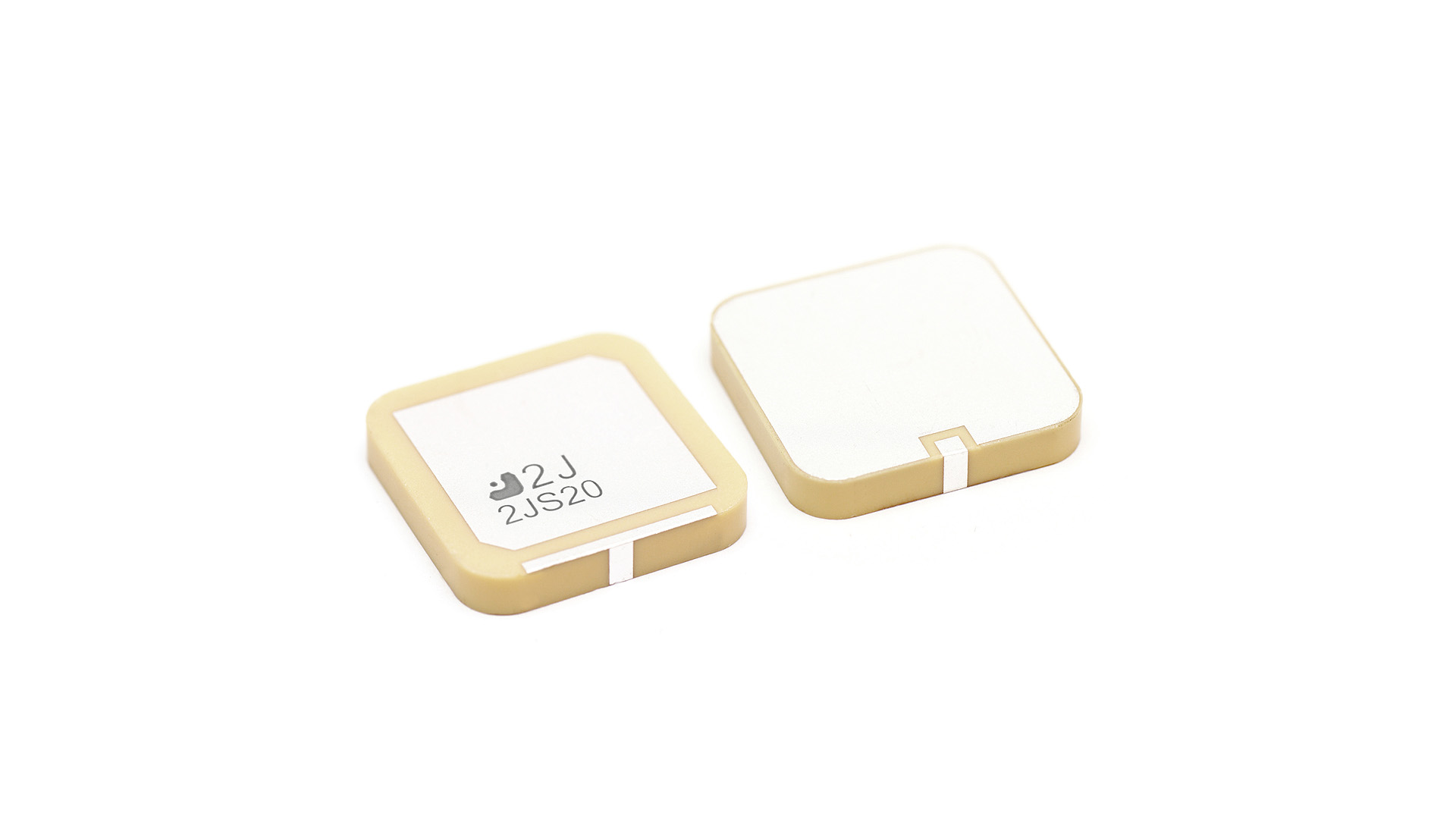

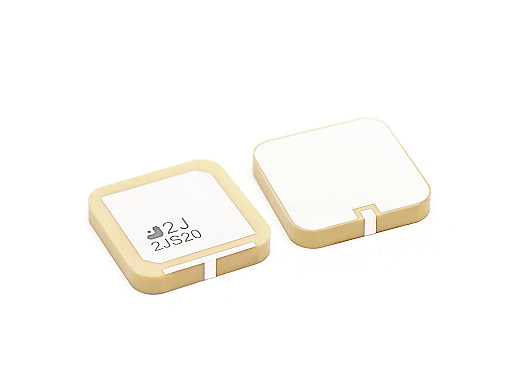

GPS/GLONASS/QZSS/Galileo 25x25x4mm Ceramic Antenna

Global Navigational Connectivity for precision and reliability

The GPS/GLONASS/QZSS/Galileo Ceramic Surface Mount (2JS20) is designed with a high degree of standards for global navigational connectivity and no compromise on efficiency. The compact size 2JS20 outperforms any competitor within GPS, QZSS, Galileo and GLONASS standards. With directional hemispherical radiation pattern and peak gain of ~4.6 to ~4.7 dBi, the 2JS20 operates within 1575-1606 MHz frequencies and is the best solution for tracking/mapping devices, industrial machinery, sea vessels, air/automobile navigation and any compatible devices that require constant global connectivity with precision guidance.

Installation / Environmental

The low-power, compact and ground plane dependent 2JS20 can be easily integrated into a minimum area of 70x70mm. Designed with a durable ceramic housing, the 2JS20 offers protection in extreme environmental conditions ranging from -40C to +80C. Global access to multiple satellites improves accuracy, redundancy and ensure constant connectivity in rural or busy urban environments.  The 2JS20 is delivered with fast manufacturing needs in mind, available for automation pick and place machines on a tap & reel packaging. This antenna is RoHS compliant.



Typical applications

- Tracking/ Mapping Devices
- Industrial Machinery
- Sea Vessels
- Air Navigation
- Automobiles/ Transportation
