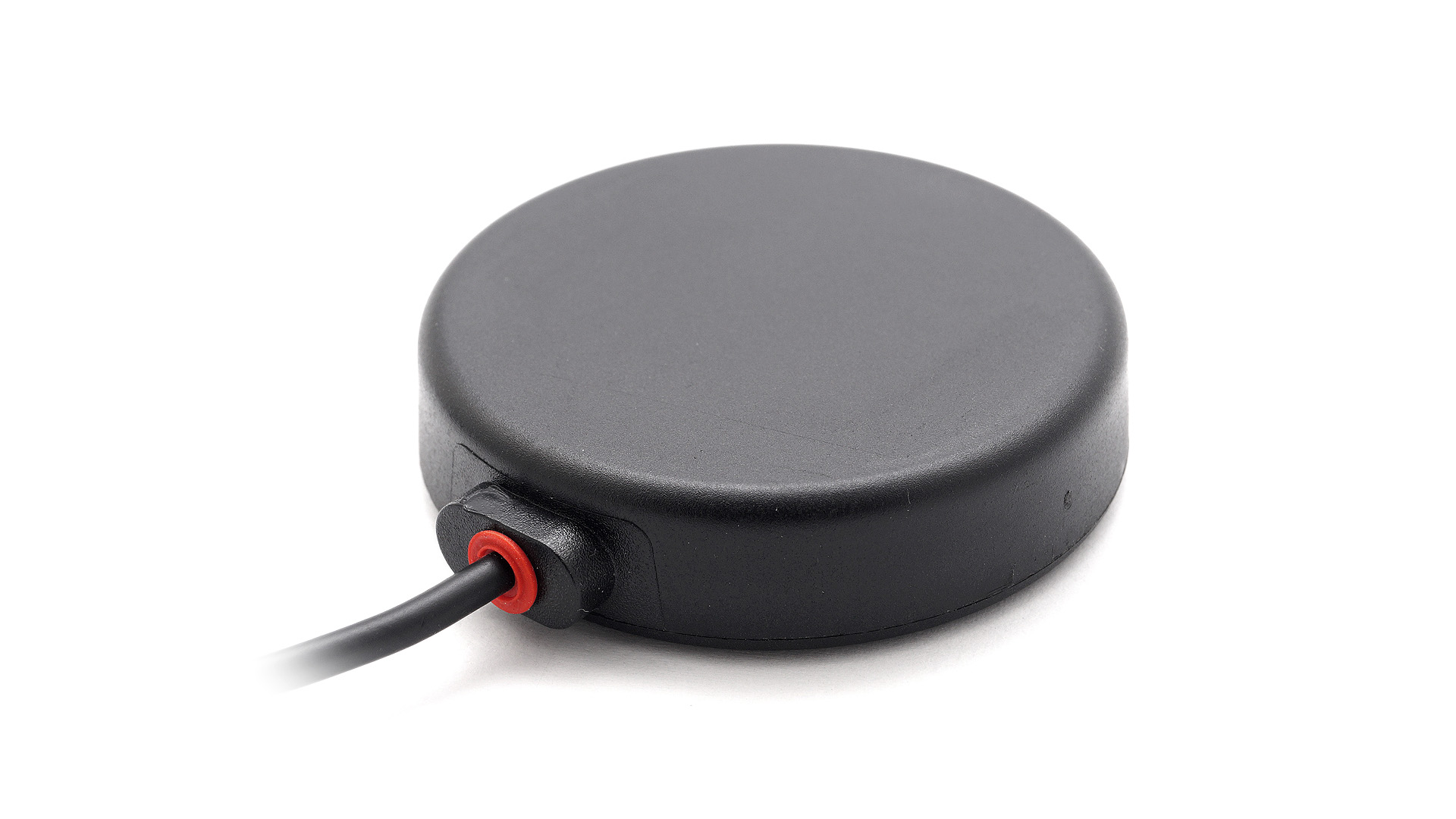

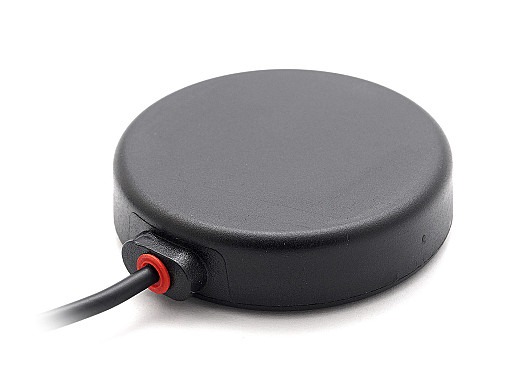

2J6302MP Antenna

WiFi ISM Ground Plane Dependant IP67 Customizable Antenna

General specification
Mounting Magnetic/Adhesive Mount, Adhesive Mount, Magnetic Mount
Also available Adhesive (P) only or Magnetic (M) only
Dimensions (mm) Ø 52.5 × 14.3
Operating temperature -40 °C to +85 °C
Certificates IP67
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Magnetic/Adhesive Mount
  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Certificates: IP67
  • Applications

    Antenna and electrical specifications

    connection 1

    2.4/5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490, 4920-5925
    VSWR ~1.6:1, ~1.5:1
    Efficiency (%) ~42.7, ~29.7
    Peak Gain (dBi) ~1.7, ~2.3
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
