Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Pre-Filter
  • 28 dB Gain
  • Low Noise Figure
  • Low Power Consumption
  • 25 × 25 × 7.6 mm

Applications

Antenna and electrical specifications

connection 1

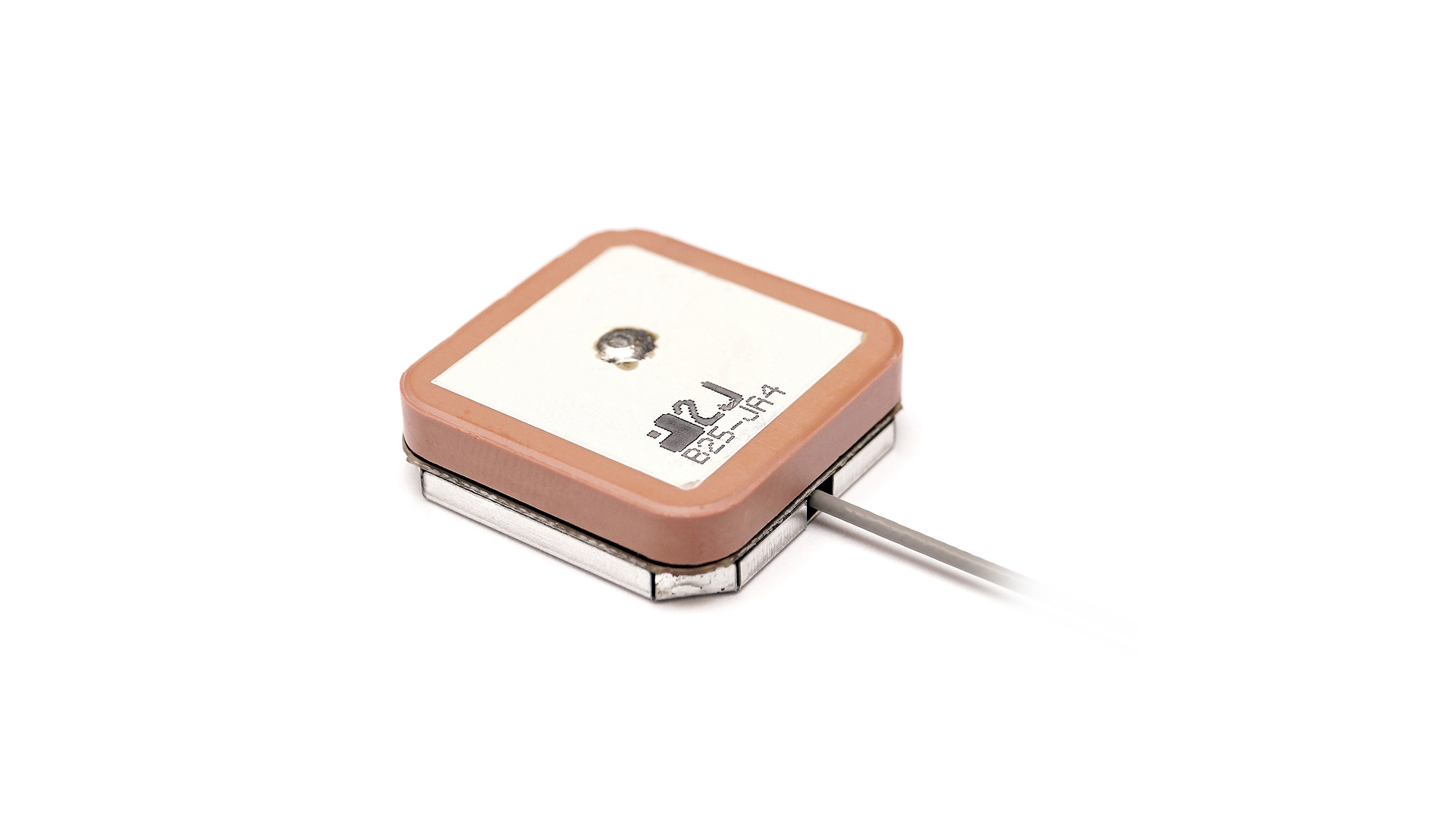

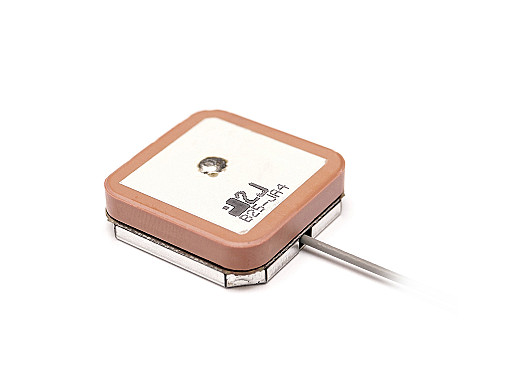

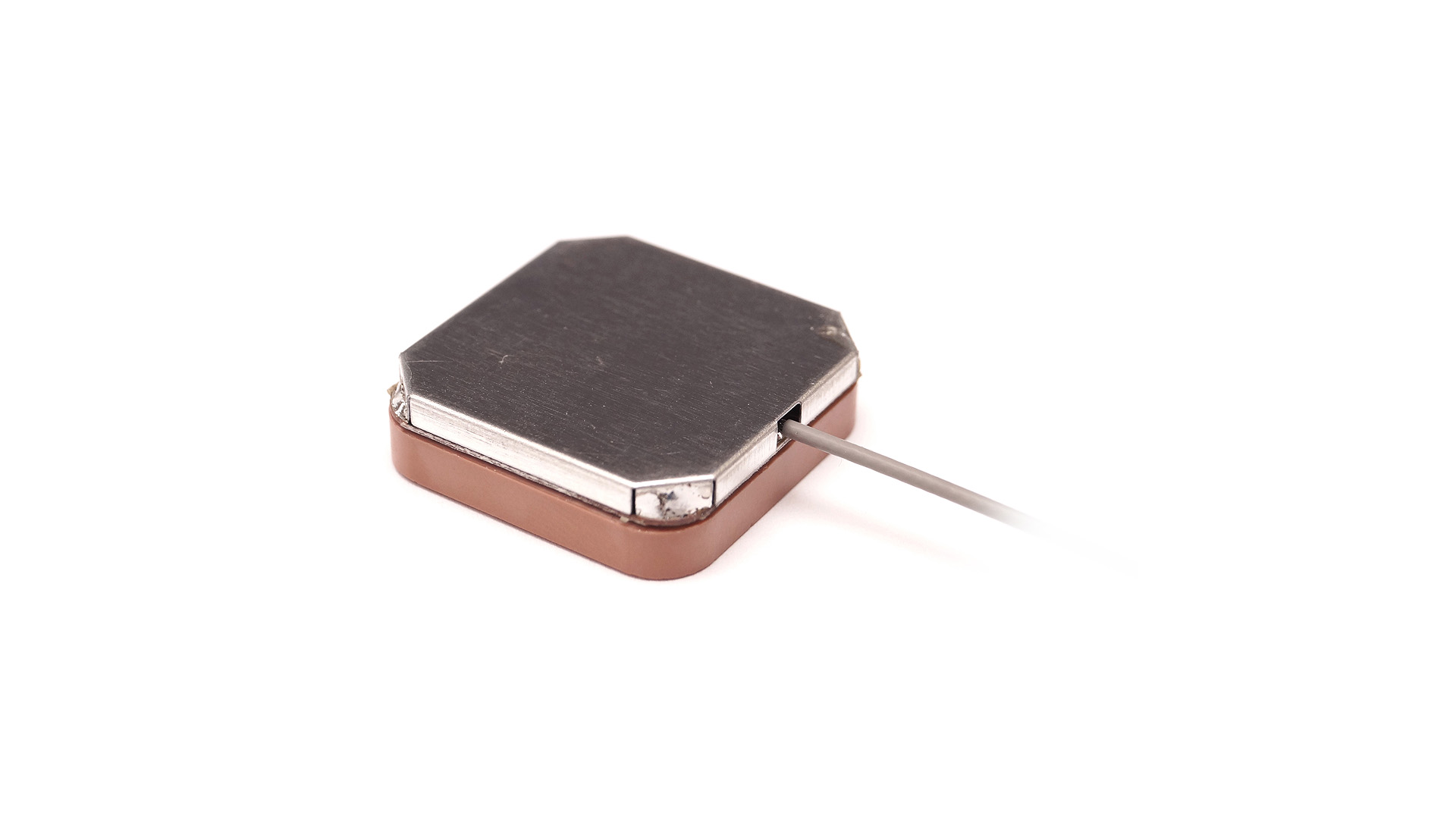

GPS/GLONASS - Ceramic Active Antenna

Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impendance (Ohm) 50
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6
