Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.8:1, ~1.9:1, ~1.6:1
Efficiency (%) ~30.7, ~41.2, ~56.1
Peak Gain (dBi) ~-1.5, ~3.2, ~6.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.8:1, ~1.8:1, ~1.7:1
Efficiency (%) ~31.5, ~40.0, ~55.4
Peak Gain (dBi) ~-0.9, ~3.0, ~5.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.8:1, ~1.8:1, ~1.7:1
Efficiency (%) ~30.8, ~41.0, ~55.0
Peak Gain (dBi) ~-1.3, ~3.1, ~5.7
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.9:1, ~1.8:1, ~1.7:1
Efficiency (%) ~30.8, ~41.4, ~55.1
Peak Gain (dBi) ~-0.6, ~3.3, ~5.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

4-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
6.5 dBi 4G LTE Peak Gain
High Performance
Heavy Duty antenna
Lightweight Plastic Base
Anti-Rotation Mounting
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Four Is Better Than One When It Comes to High Performance Antenna Solutions

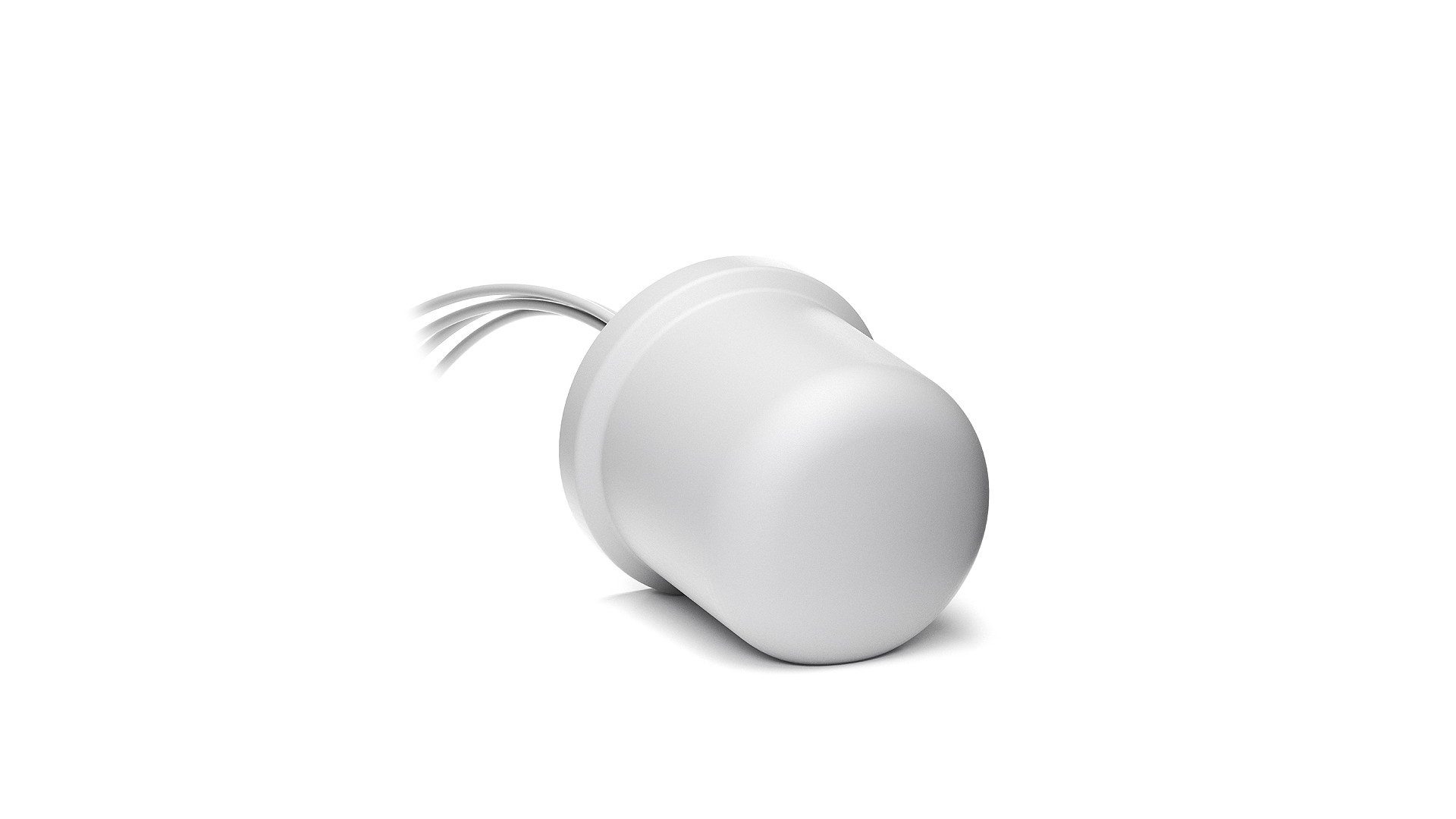

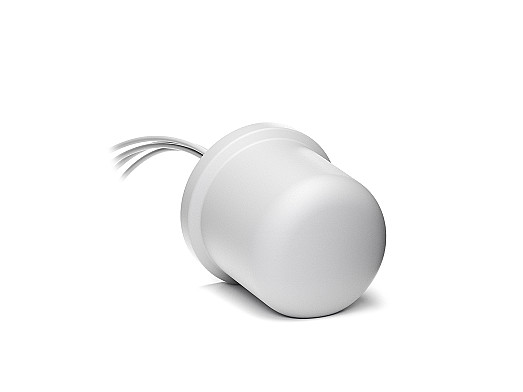

As part of the “Medusa” portfolio, 2J Antennas is offering the 4-in-1 combination high gain antenna (2J7A24Bc) that delivers advanced MIMO technology for LTE networks. By adding four cellular 4G LTE/3G/2G Cellular MIMO capabilities, the antenna will continuously search and pair the strongest signal to assure uninterrupted connectivity. Backwards compatibility with existing LTE cellular networks makes this antenna a cost-effective solution for existing and future LPWA, IoT and MIMO applications. The 2J7A24Bc housing and base are designed with durable and lightweight material making it a lower cost and eco-friendly alternative to our popular heavy-duty antennas in the Medusa series.

For detailed antenna specifications, please see our comprehensive datasheet.

Suggested applications include:

- Mobile / Cellular LTE Devices
- Data Terminals
- Smart Cities
- Industrial Automation
- Public Safety / Emergency Response
- Sensors and Monitors

With growing demands for high performance data and video data throughput, high efficiency and high gain wideband antenna technology is necessary. 2J7A24Bc meets the growing demand for within 698 MHz – 2700 MHz frequency bands with high efficiency and high ~6.5 dBi 4G LTE peak gains.

Installation / Environmental

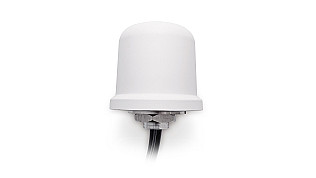

The antenna’s fully waterproof (IP67/IP69/IK09) dome shape housing and the lightweight antenna base is manufactured with durable and high quality ASA material with recommended operating and storage temperatures between -40C to +85C. Designed with a screw mount and an anti-rotation mechanism, this ground plane independent antenna is ideal for permanent and secure installations on any surface.

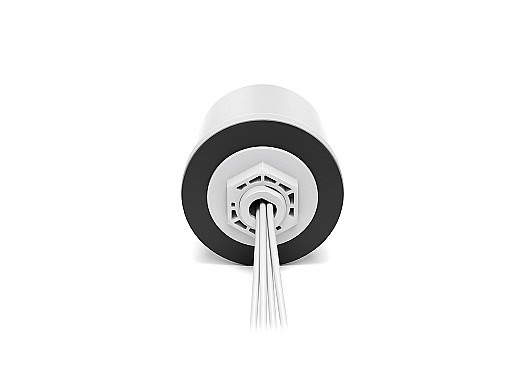

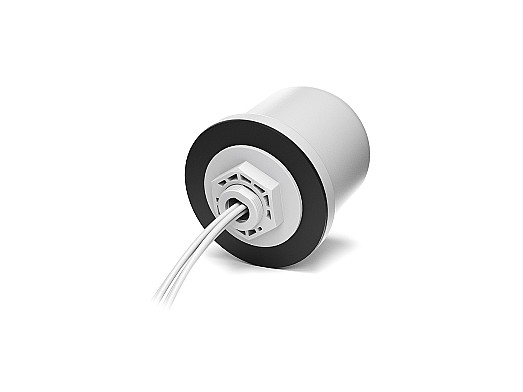

All cables come with standard SMA-Male connector and 300 cm long low loss 195 cables that are finely tuned for optimal antenna performance. We also offer a large selection of alternative connectors and cables that meet most customization needs. Please contact our highly knowledgeable engineers for antenna selection or customization needs.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
