2JDK0126a-C104N DevKit

General specification
Frequency
IRIDIUM
Mounting Thru-Hole Mount Ceramic

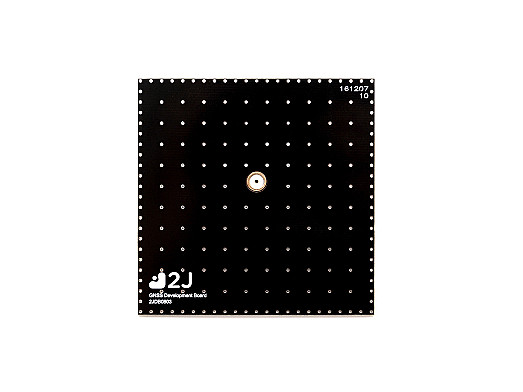

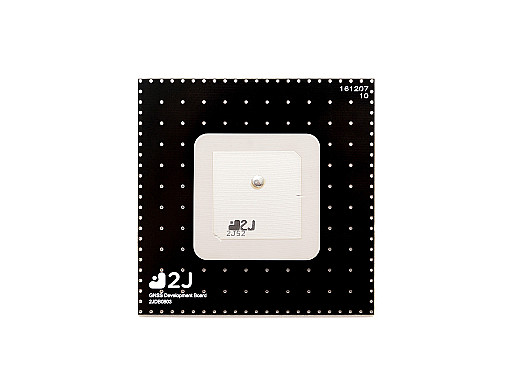

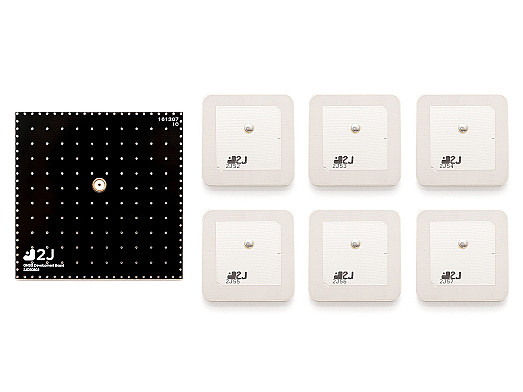

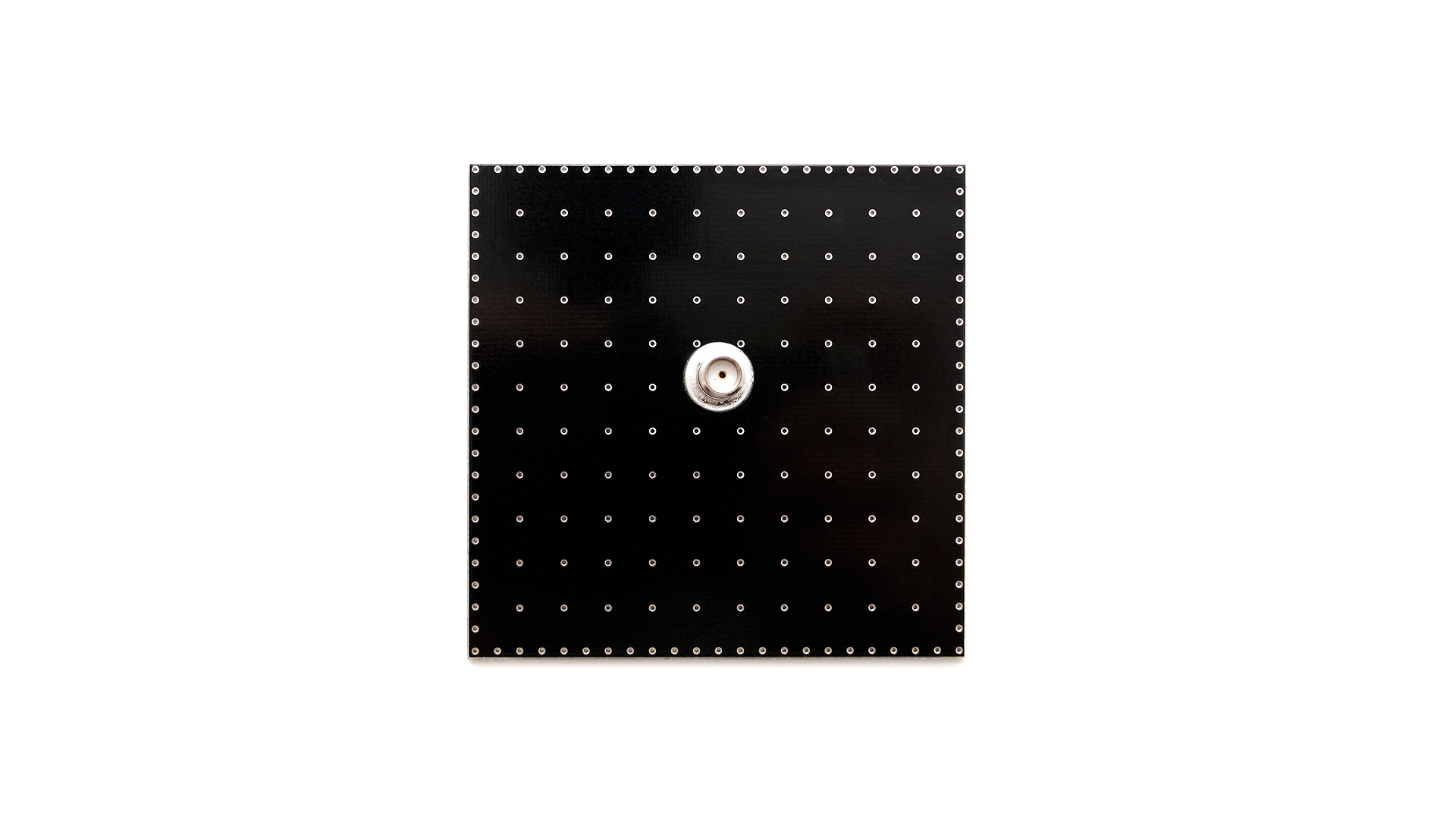

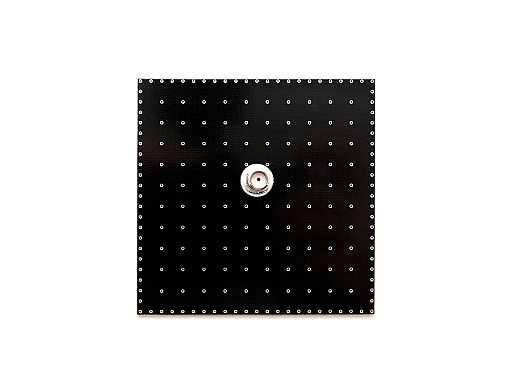

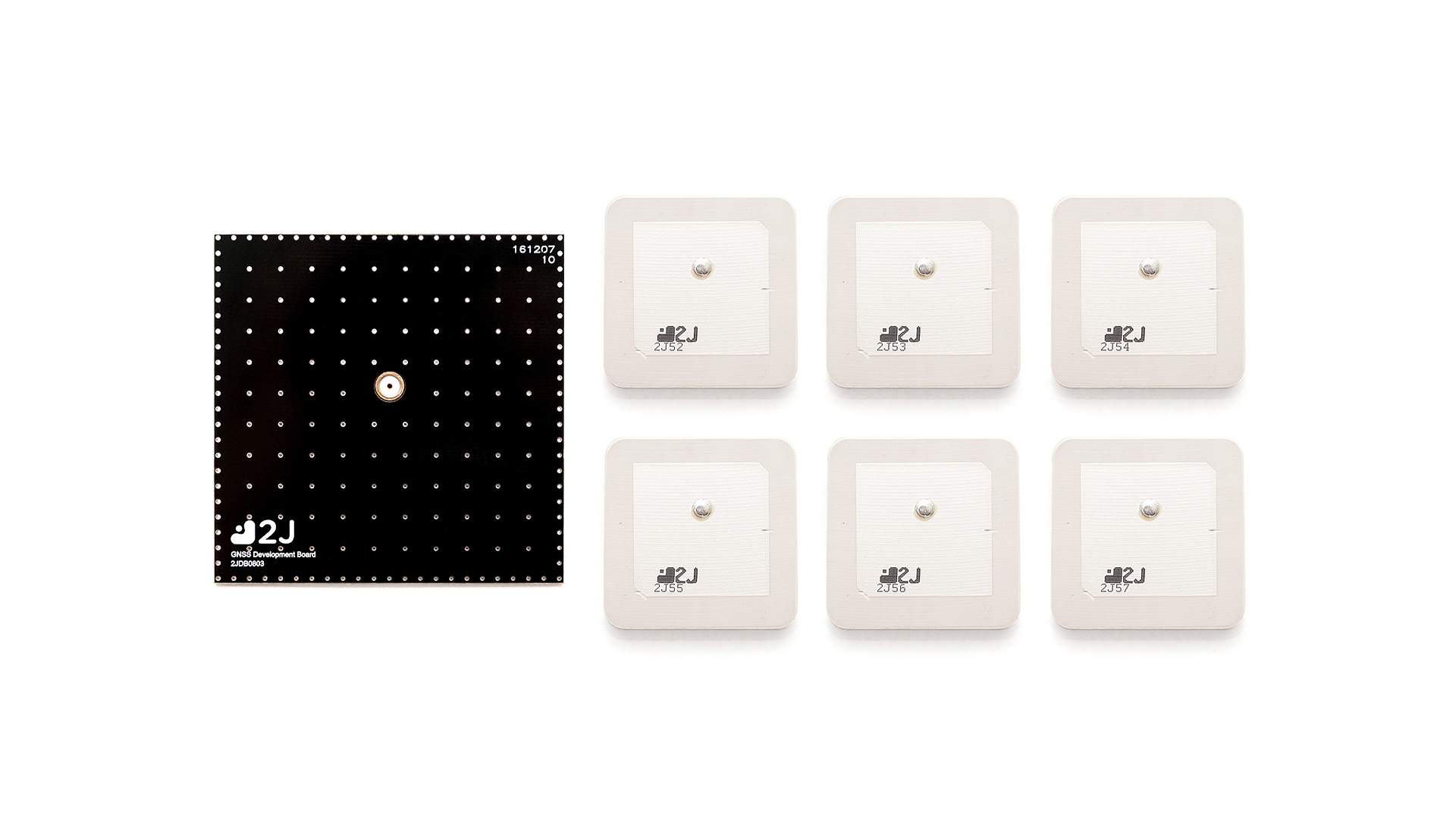

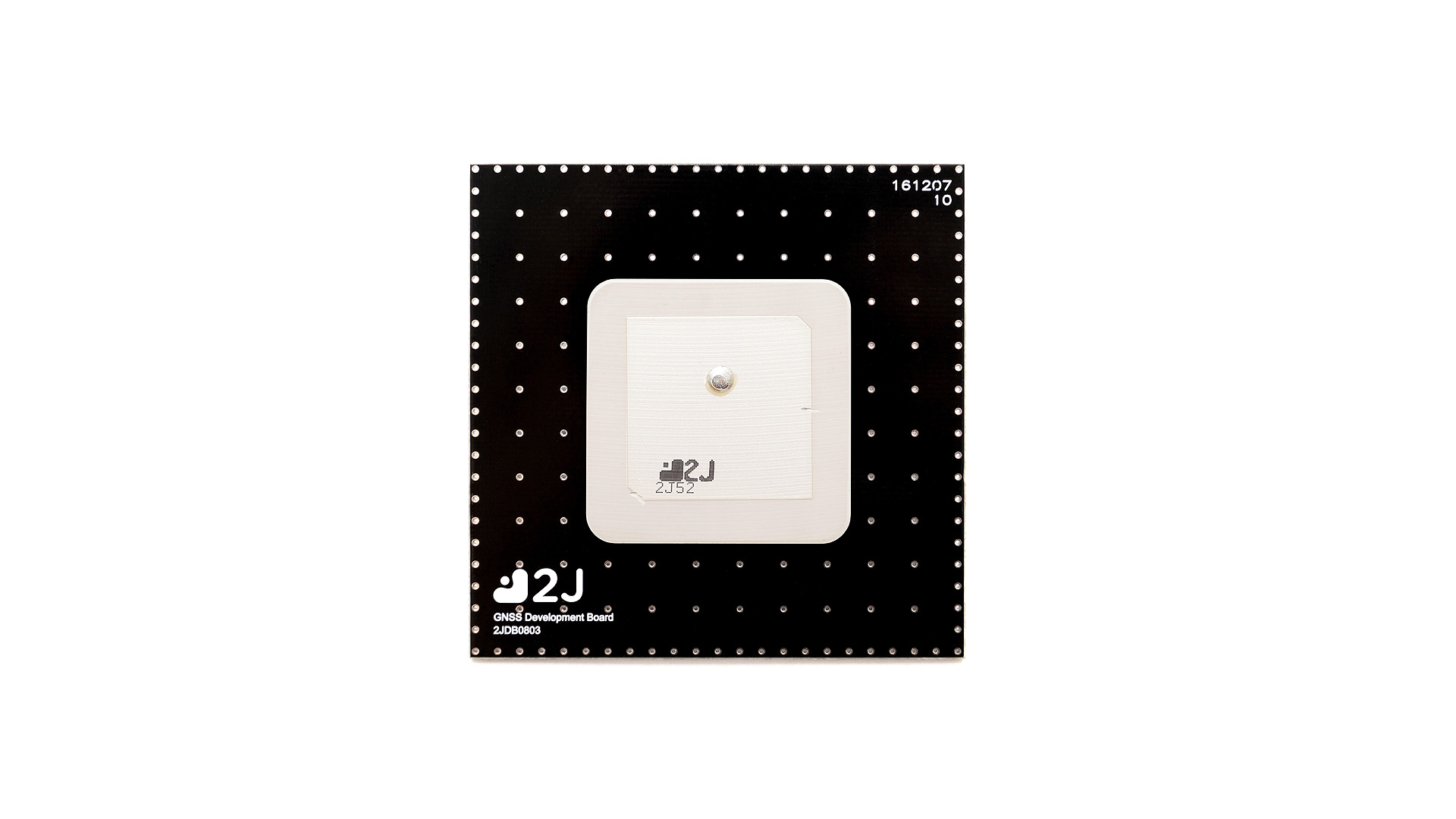

Included in Kit 1×2JDB0803-C104N Development Board
2JCP3642601a Ceramic Antennas
Dimensions (mm) 36 x 36 x 4 (Patches)
70.4 × 70.4 × 13.5 (Board)
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • Ground Plane Independent
  • High Gain
  • Thru-Hole Mount
  • Set of 6 patches to try on devices
  • Development Kit for IRIDIUM
  • Patches 36 x 36 x 4 mm
  • Antenna and electrical specifications

    connection 1

    IRIDIUM - Ceramic Passive Antenna

    Standards IRIDIUM
    Frequency (MHz) 1616-1627 - Ceramic patch 2JCP3642601a (2J 52)
    1621-1632 - Ceramic patch 2JCP3642602a (2J 53)
    1626-1637 - Ceramic patch 2JCP3642603a (2J 54)
    1631-1642 - Ceramic patch 2JCP3642604a (2J 55)
    1636-1647 - Ceramic patch 2JCP3642605a (2J 56)
    1641-1652 - Ceramic patch 2JCP3642606a (2J 57)
    Passive Gain (dBi) ~4.5
    Impendance (Ohm) 50
    Radiation Pattern Hemispherical
    Axial Ratio (dB) 3 max
    Polarization RHCP
