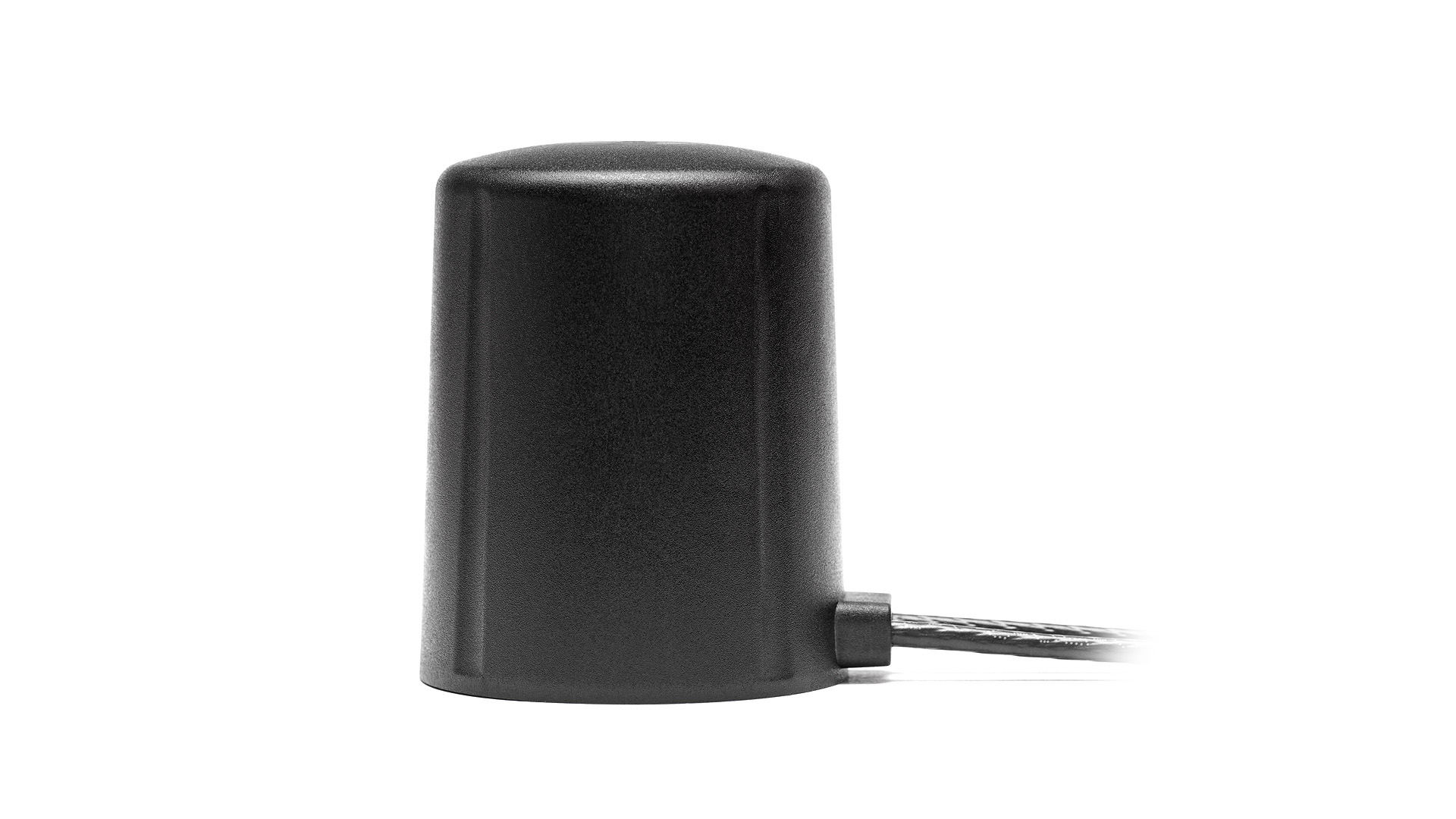

Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.7:1, ~1.5:1, ~1.4:1
Efficiency (%) ~39, ~52, ~50
Peak Gain (dBi) ~-0.1, ~2.9, ~3.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.7:1, ~1.5:1, ~1.5:1
Efficiency (%) ~38, ~52, ~53
Peak Gain (dBi) ~-0.1, ~3.1, ~2.7
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Voltage (V) 1.5 - 3.6
Noise Figure (dB) 1.5 Typ
Current Consumption (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
Saw Filter Type Pre-Filter
ESD Protection (kV) 2

Key Features

Magnetic Mount
Ground Plane Dependent
Customizable Cable and Connector
2 × 4G LTE MIMO antenna
GPS/GLONASS/QZSS/Galileo
Certificates: IP67, IP69, IK09
