Antenna and electrical specifications

connection 1


Technologies 5G, 4G, 3G and 2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.9, ~-9.2, ~-8.2, ~-7.5
VSWR ~2.6:1, ~2.4:1, ~2.7:1, ~2.5:1
Efficiency (%) ~55.0, ~51.2, ~25.7, ~28.3
Peak Gain (dBi) ~2.3, ~5.1, ~2.6, ~2.7
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 2


VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606

Key Features

2-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
5.1 dBi 5G NR Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21


Antenna Description


The Most Cost Effective 2-in-1 Combination Antenna without Compromising  Performance

2J Antennas is proud to add the ultra-wide band 2-in-1 combination antenna to their “Phoenix” series portfolio that offers 5GNR and GNSS as part of their 617-5925 MHz Sub 6GHz Bands. 2J6984BGF is a cost-effective solution for industrial, commercial, and residential applications that rely on high performance, reliability, high data throughput and precision.

Cable 1 is designed for 5GNR parameters and caters to applications that operate within 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards. The 4G LTE is fully backwards compatible with existing 3G and 2G CDMA technologies for a seamless and continuous signal even in low serviced areas. The license free CBRS band enables carriers to deploy faster, offer more reliable wireless applications, and reduce data transmission cost for 5G applications. With a 360-degree omni-directional radiation pattern, this antenna has maximum ~5.1 dBi 5GNR peak gain while maintaining high efficiency.

Cable 2 is dedicated for precision navigation applications that service GPS, QZSS, Galileo and GLONASS global standards. With 28 dB active gain, pre-filter, and low noise figure of 1.5 dB, this active GNSS antenna maintains consistent performance while connecting to the major global satellite systems. Ideal for low power devices in automotive, transportation and asset tracking applications in industrial, commercial and residential industries.

For detailed antenna specifications, please see our comprehensive datasheet.


Typical applications

- Navigation
- Asset / Inventory Tracking
- Automotive / Transportation
- Telematics
- Critical Communications / Emergency Response



Installation / Environmental

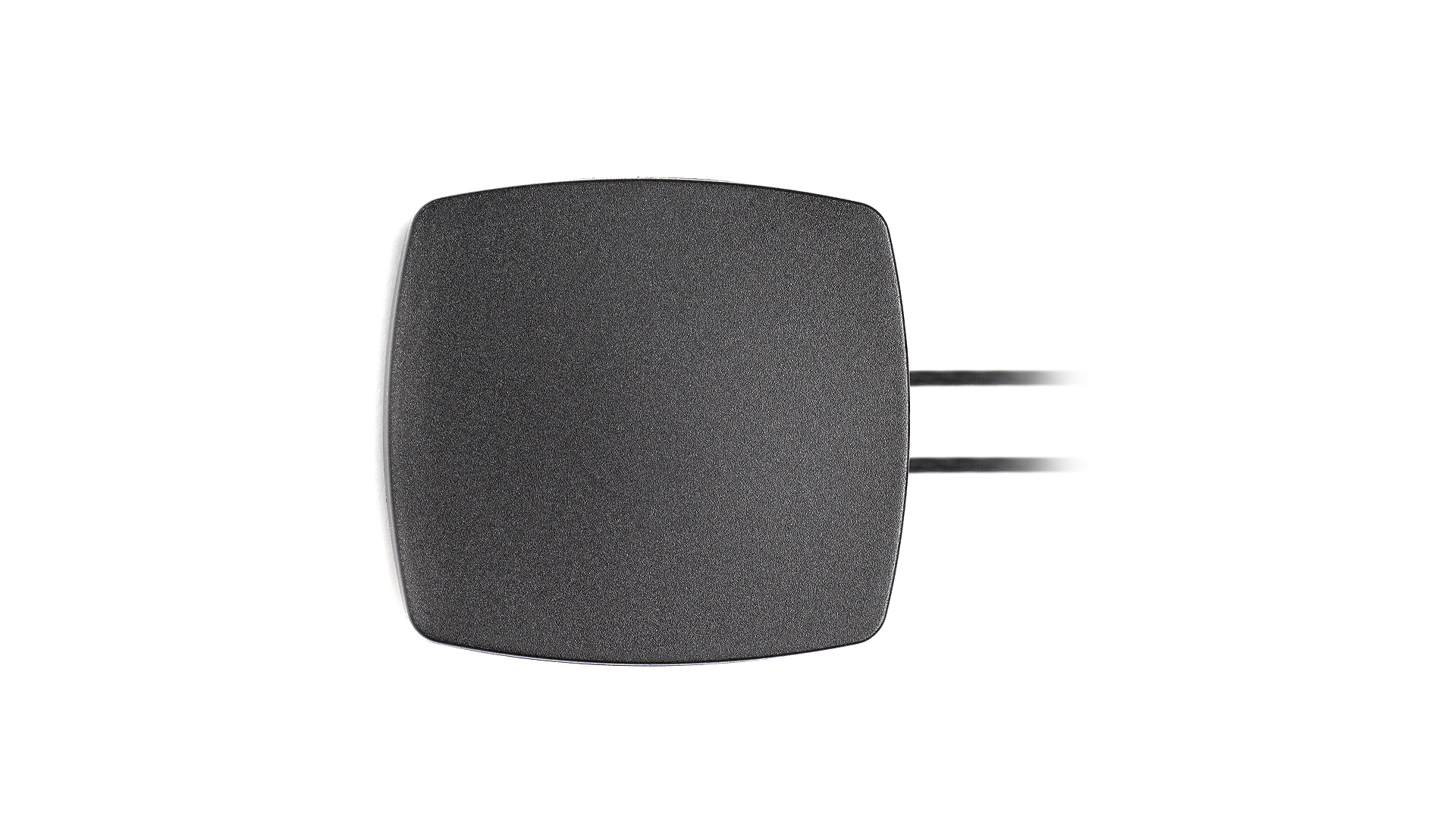

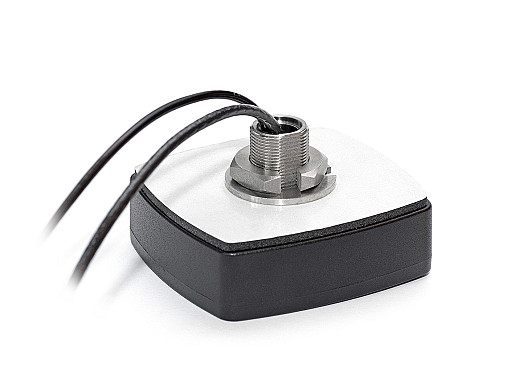

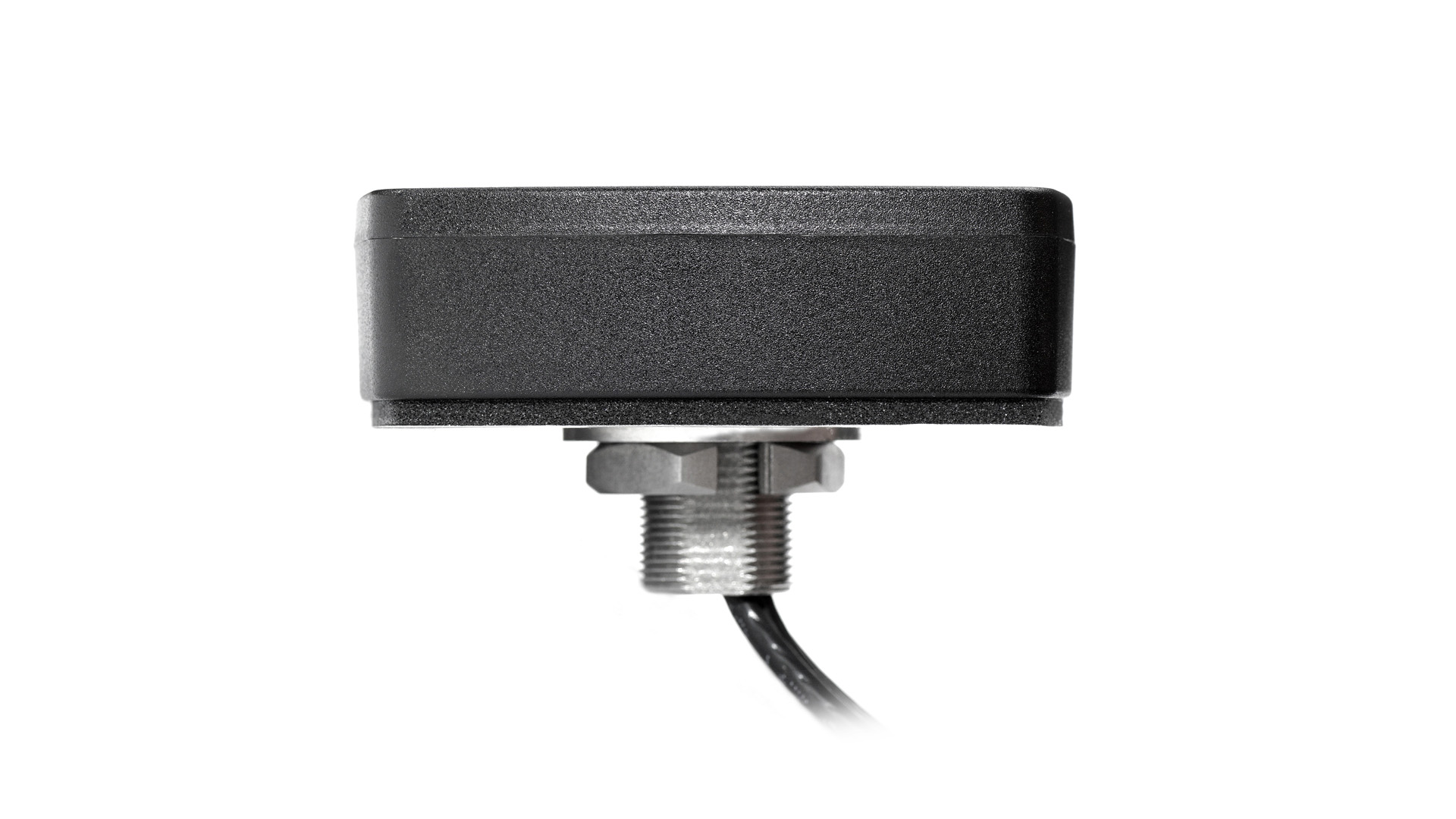

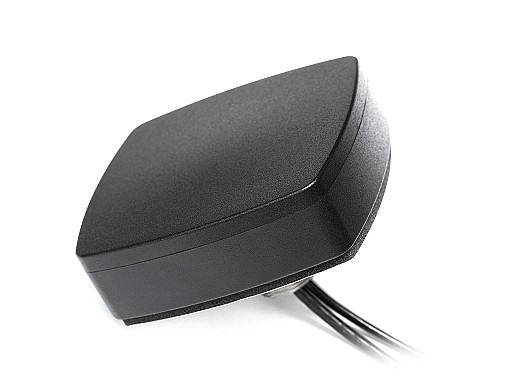

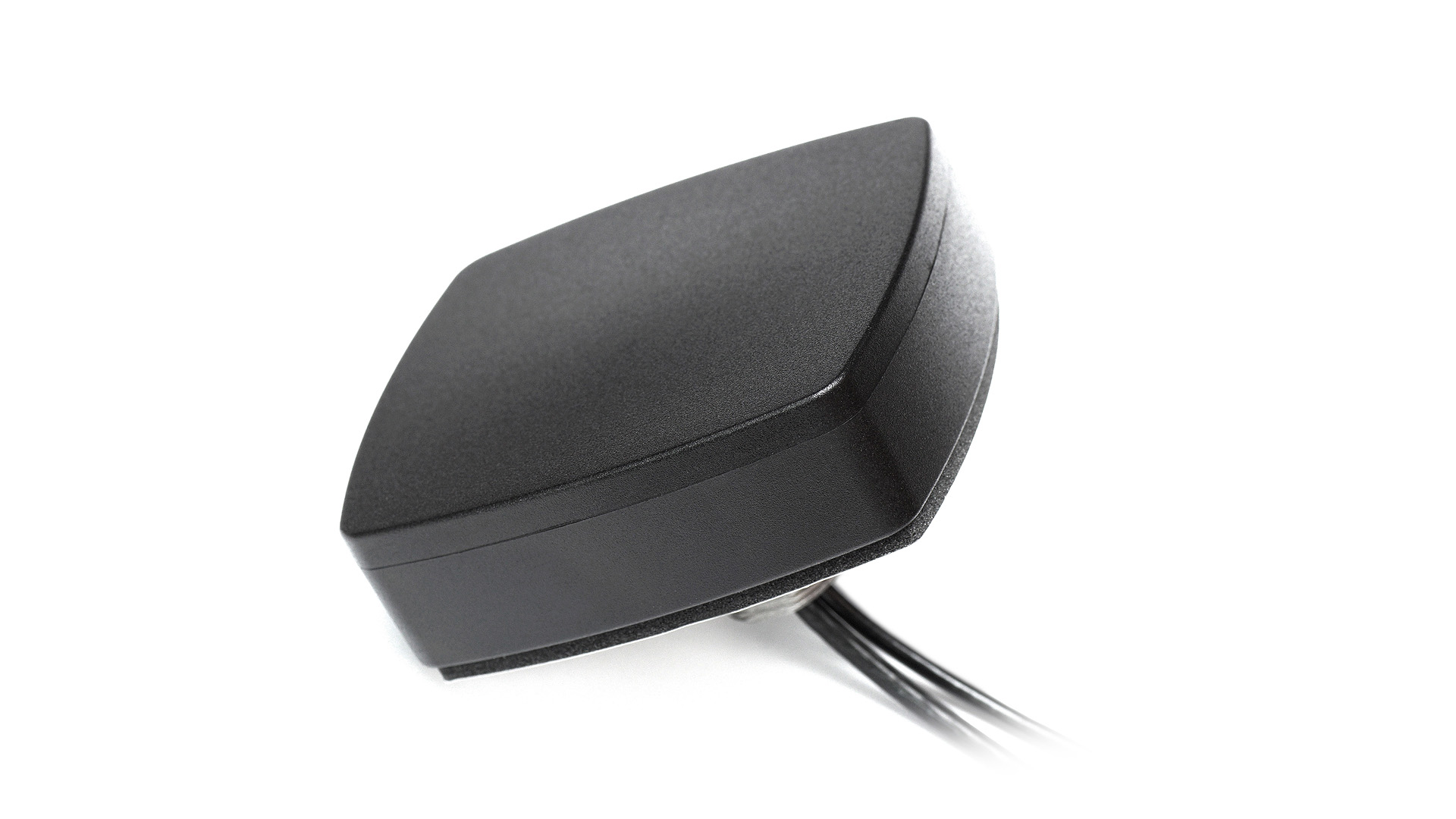

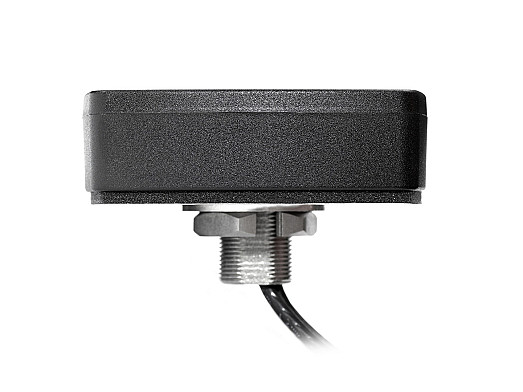

The low-profile box shape antenna housing measures 80 x 74 x 25.6 mm and is manufactured with highly durable ASA UV stable material (available in black and white). Fully IP67 and IP69 certified, give this antenna full protection to water and dust in the harshest environments. Designed with a heavy-duty anti-rotation screw mount, this antenna can be securely and easily installed on vertical or horizontal surfaces without the need for grounding. With an omni-directional radiation pattern, the antenna position should be aligned in 360-degree line of sight for optimal and uninterrupted signal strength. Each D302/LL100 cable measures 300 cm in length, connects with a SMA-Male connector and feeds through the screw mounting for easy installation. This antenna is tuned for optimal performance and it is important for the correct cable type and length to avoid performance loss. With a wide range of customization needs, 2J Antennas has an expert team available to assist with antenna selection and offers a large selection of alternative connectors and cables. All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
