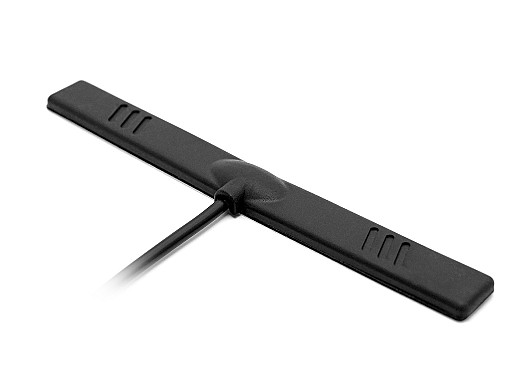

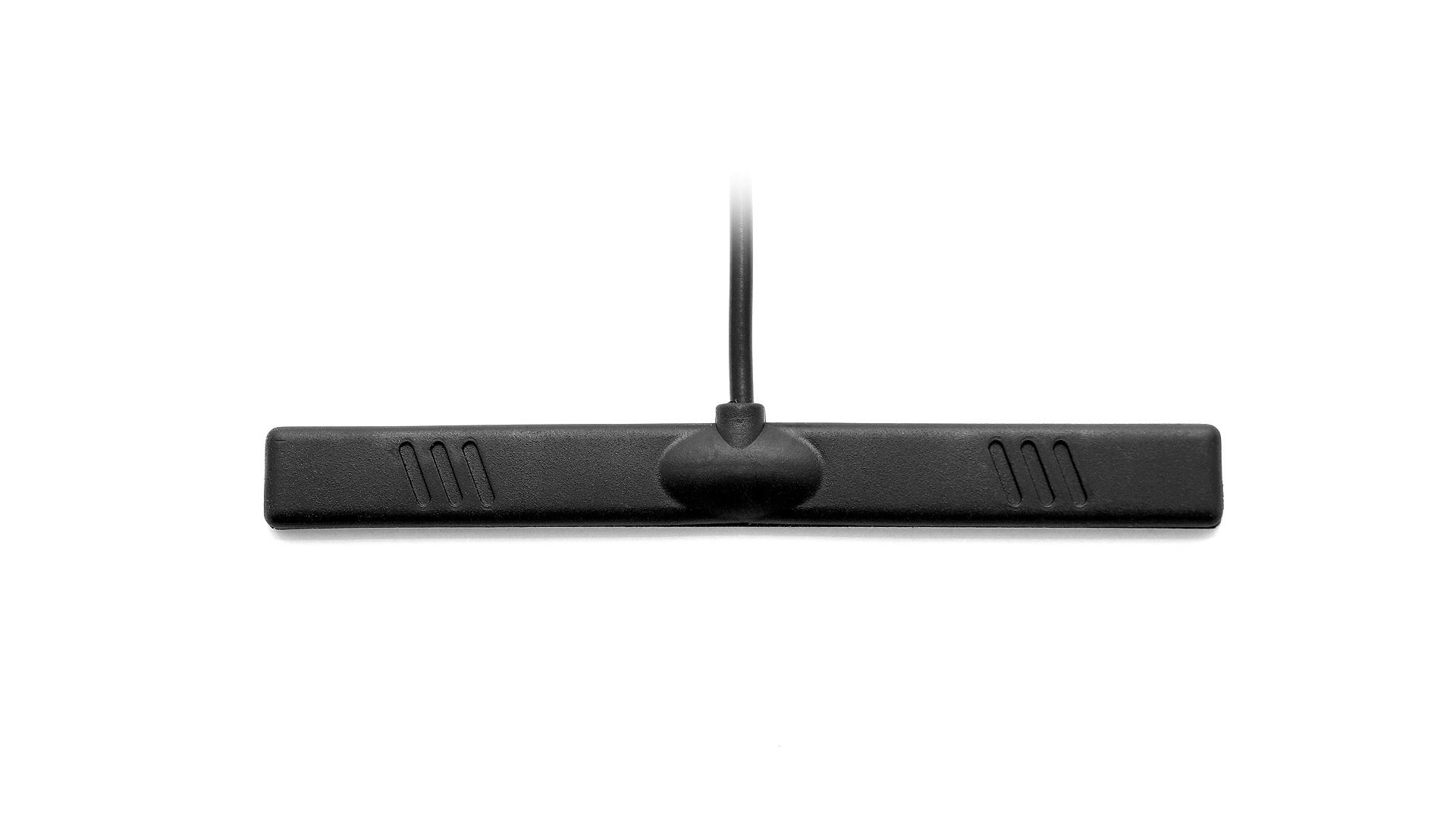

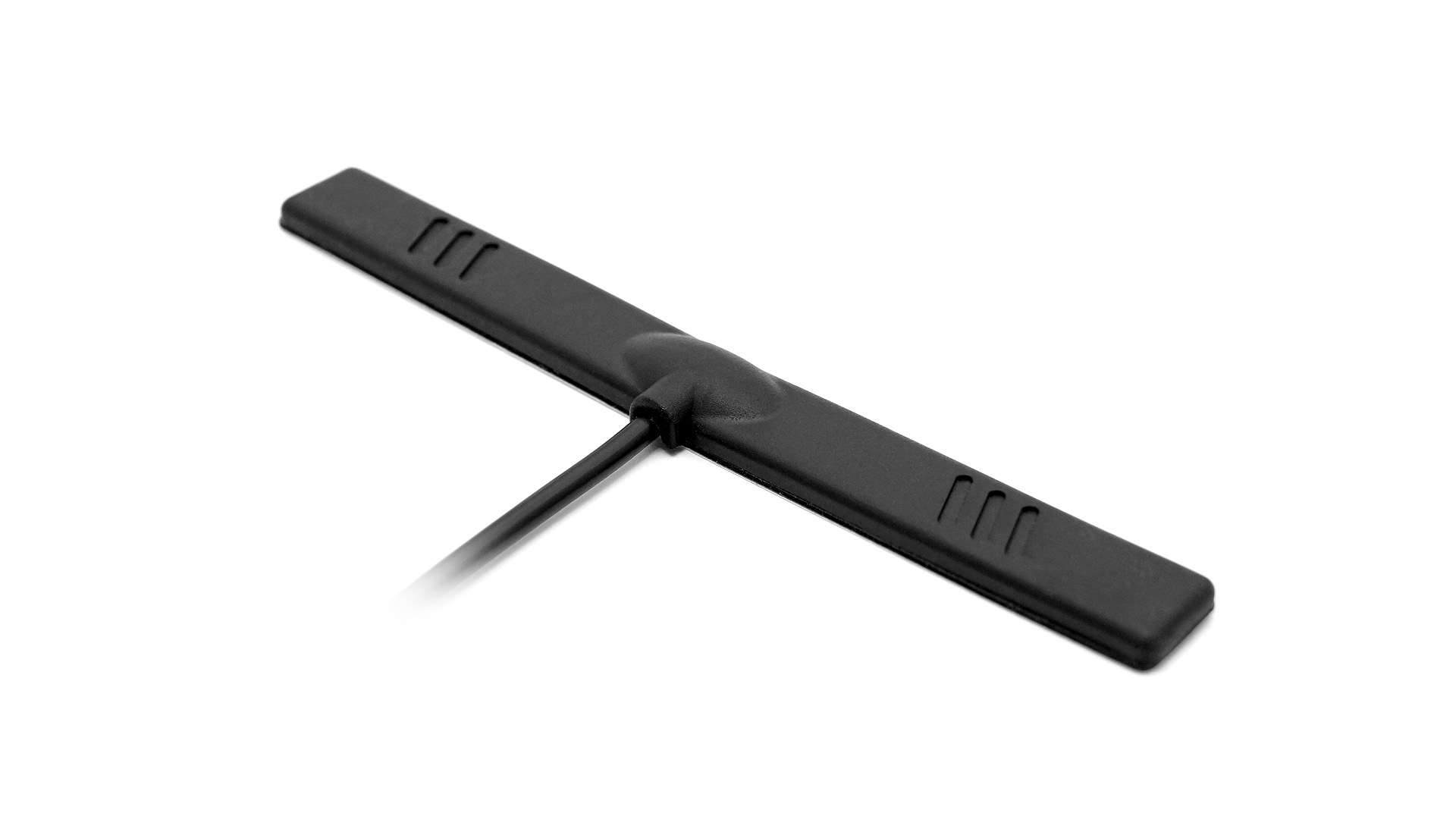

2J5224P Antenna

4G LTE/3G/2G Compact Size High Performance Antenna

General specification
Frequency
4GLTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Mounting Adhesive Mount
Dimensions (mm) 117.4 x 12.5 x 6.5
Operating temperature -40 °C to +85 °C
Note Optional Antenna Detection Resistor
Standard colors
Get Datasheet
Product added to cart

Key Features

  • High Performance
  • Adhesive Mount
  • Customizable Cable and Connector
  • Flexible Housing
  • Compact Size
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.0:1, ~1.5:1, ~1,8:1
    Efficiency (%) ~53, ~52, ~41
    Peak Gain (dBi) ~2.0, ~4.1, ~4.1
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
