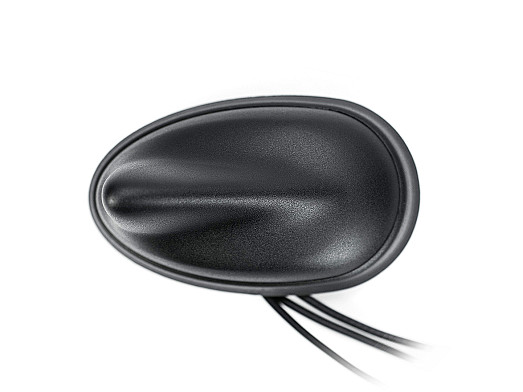

Antenna and electrical specifications

connection 1

CELLULAR

Standards 2G and 3G
Frequency 824-960, 1710-2170
VSWR ~3.0:1, ~1.9:1
Efficiency (%) ~11.3, ~20.4
Peak Gain (dBi) ~-5.1, ~0.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 100
connection 2

2.4 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490
VSWR ~1.5:1
Efficiency (%) ~27.4
Peak Gain (dBi) ~0.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
Impedance (Ohm) 50
Active Gain (dB) 26 @ 3V, 27 @ 5V
Saw Filter Type Pre-Filter
Voltage (V) 2.7 - 5.5
Current (mA) 15 - 25
Power Consumption (mW) 40 - 137

Key Features

3-in-1 Combination Antenna
Ground Plane Dependent
0.1 dBi 3G 2G Peak Gain
0.4 dBi WIFI Peak Gain
Active GNSS Antenna
27 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V

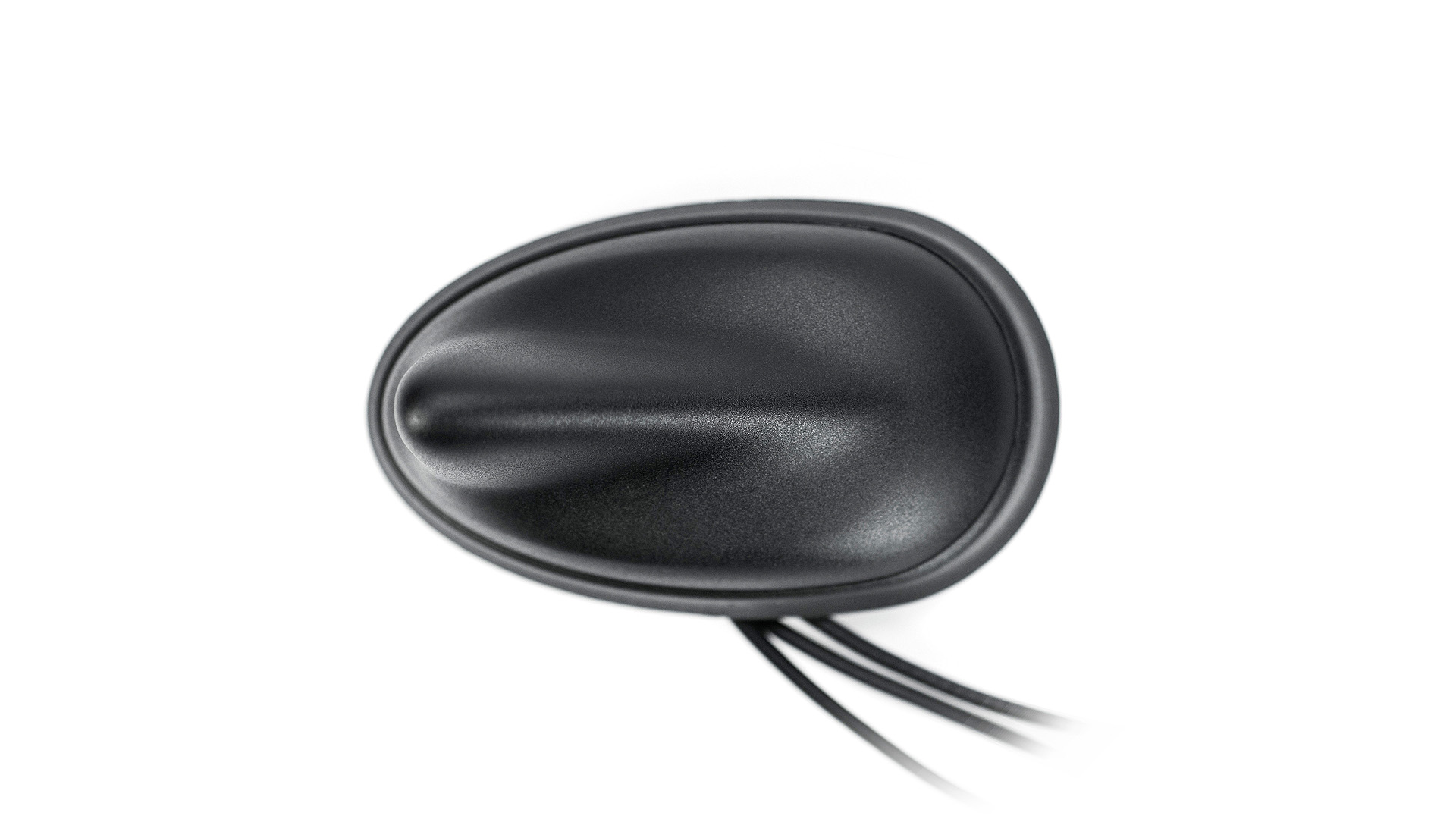

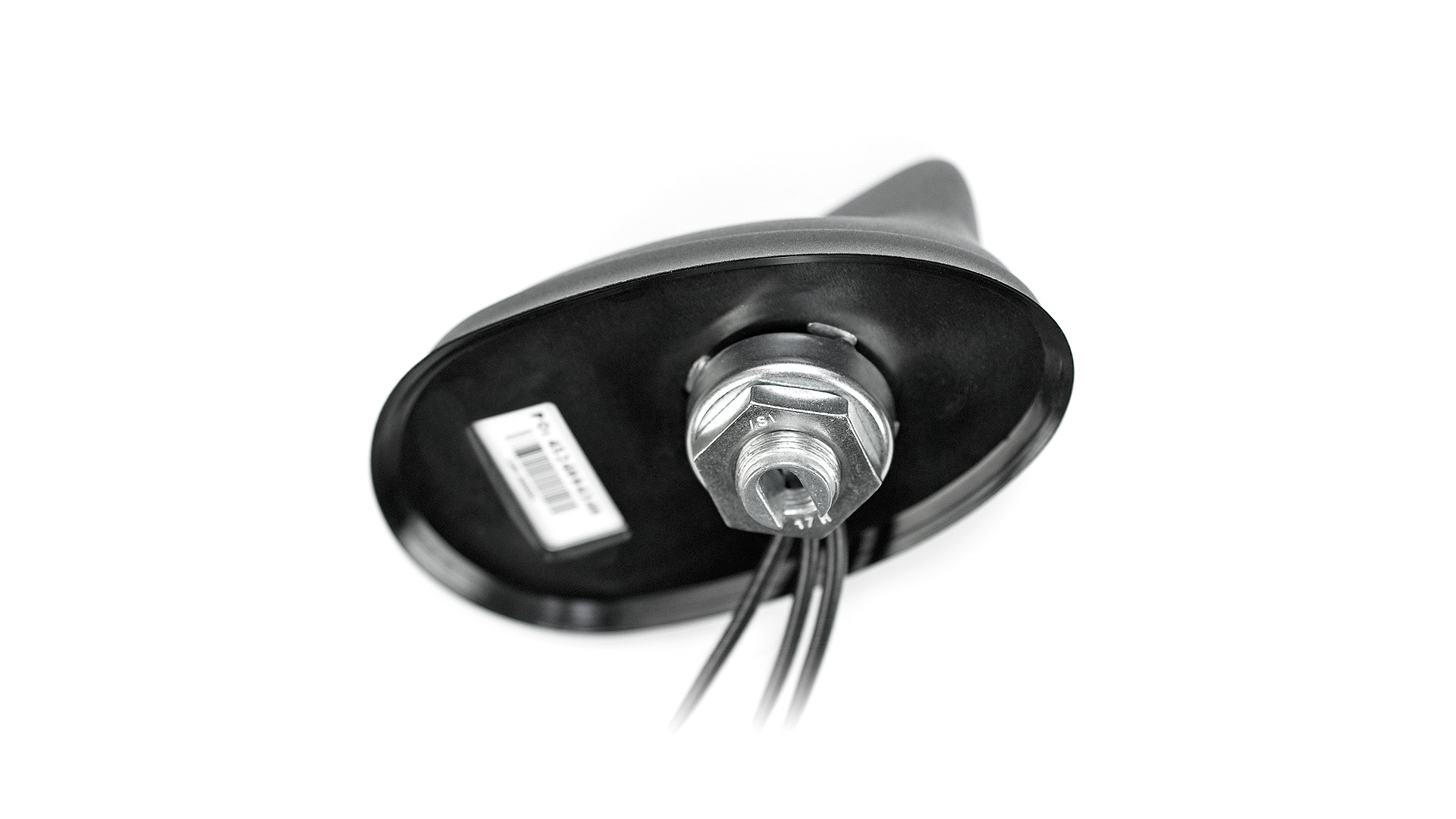

Anti-Rotation Mounting
Customizable Cable and Connector
