Key Features

  • Self-Adhesive
  • Ultra Wide band Antenna
  • High Performance
  • Ground Plane Independent
  • Fiberglass Material
  • Customizable Cable and Connector
  • Rigid Embedded Antenna

Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-14.3, ~-14.7, ~-8.7, ~-7.3
VSWR ~1.5:1, ~1.6:1, ~2.5:1, ~2.6:1
Efficiency (%) ~50.0, ~63.3, ~50.3, ~48.0
Peak Gain (dBi) ~0.5, ~3.0, ~3.9, ~4.5
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

2JP0783P

Next-Generation of Ultra-Wideband Antenna That Brings Superior Performance to 5GNR Technologies

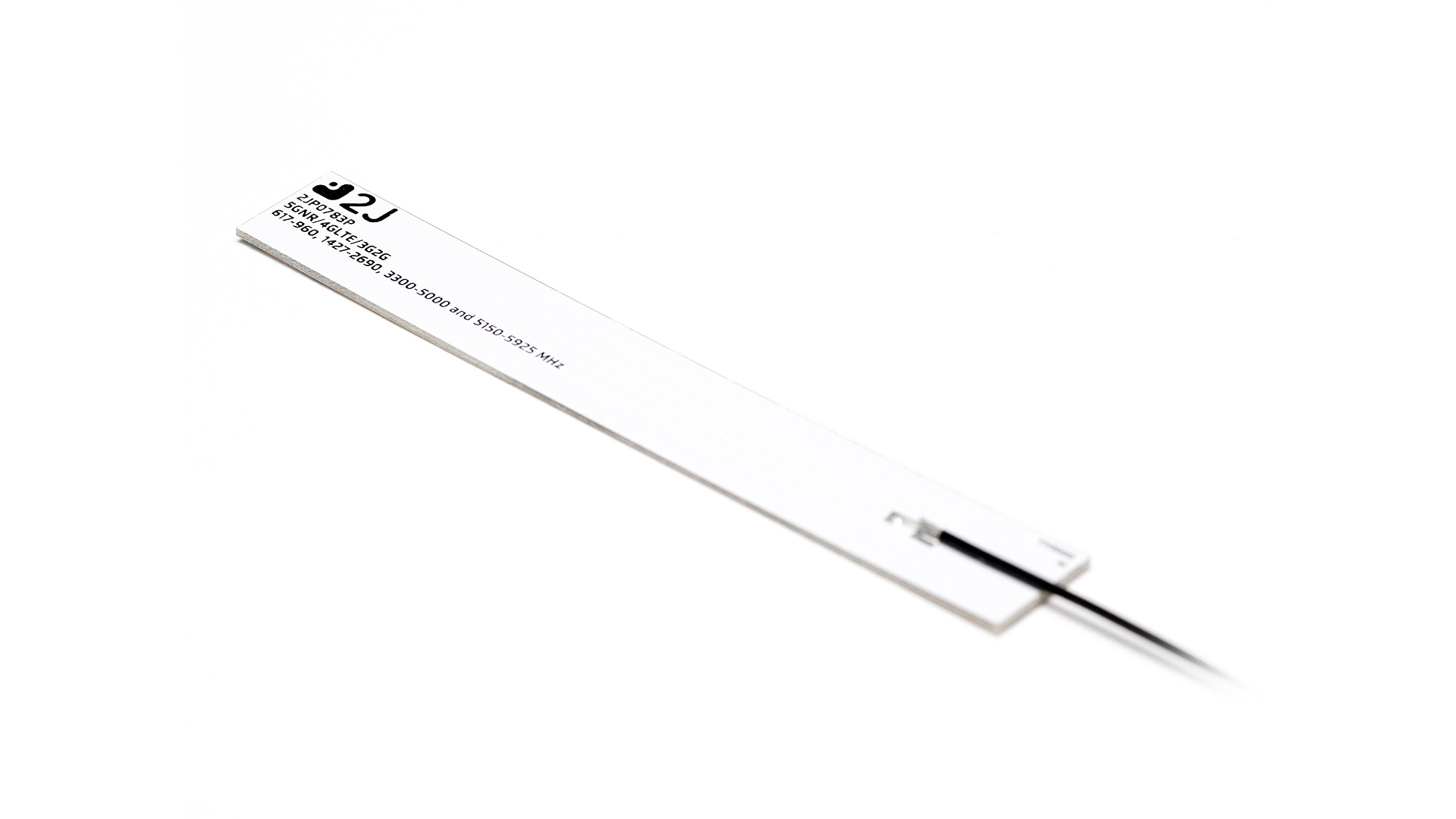

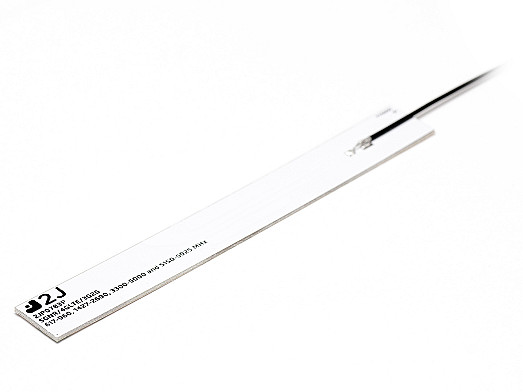

The next-generation 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G rigid fiberglass antenna (2JP0783P) caters to sub-6GHz ultra-wideband applications that rely on exceptional global connectivity. Fully compatible with existing LTE networks and integrated with Cat-X, this antenna is covering all bands around the world in a single package. In addition to the new 5GNR technology enhancing mobile broadband and ultra-reliable low-latency communications, this antenna also includes FirstNet technology offering interoperable public safety communications required in the public safety devices.

Suggested applications include:

- Industrial / Commercial and Residential IoT
- Consumer Electronics / Wearables
- Public Safety Broadband Devices
- Business / Home Automation Devices
- Transportation / Automotive
- Robotics / Automation
- Drones and UAV’s

The 2JP0783P optimizes full-range signal strength, signal quality and 360-degree coverage within 617MHz – 5925MHz frequencies while maintaining stable peak gains and efficiency of more than 45% across all bands.  This high-performance antenna offers a peel-and-stick solution with low costs, high efficiency, superior reliability, and low device power consumption making it the first choice for high volume device manufacturers.

Installation and Durability

Designed with rigid fiberglass RF materials and also available in high-grade flexible polymer, this antenna gives resistance to chemicals in corrosive applications making it ideal for outdoor or indoor devices that operate within moist environments and temperatures ranging from -40C to +85C.

With ultra-compact dimensions of 110 x 15 x 1mm, high-grade adhesive mounting and ground plane independence allow for a wide range of installation configurations within restricted spaces. Also available in alternative sizes to target the various verticals and devices found in quickly changing IoT industries.

For optimal performance, we recommend maximizing the position, orientation, cable routing and the tuning of matching components during the antenna integration process, please contact our Sales Department. The 2JP0783P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length.

Our team of experts is available to assist in customization options by offering a wide range of alternative connectors and cables for absolute customer satisfaction. We proudly offer antenna integration services including full antenna parameter reports for impedance and OTA (over the air) measurements.

2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
