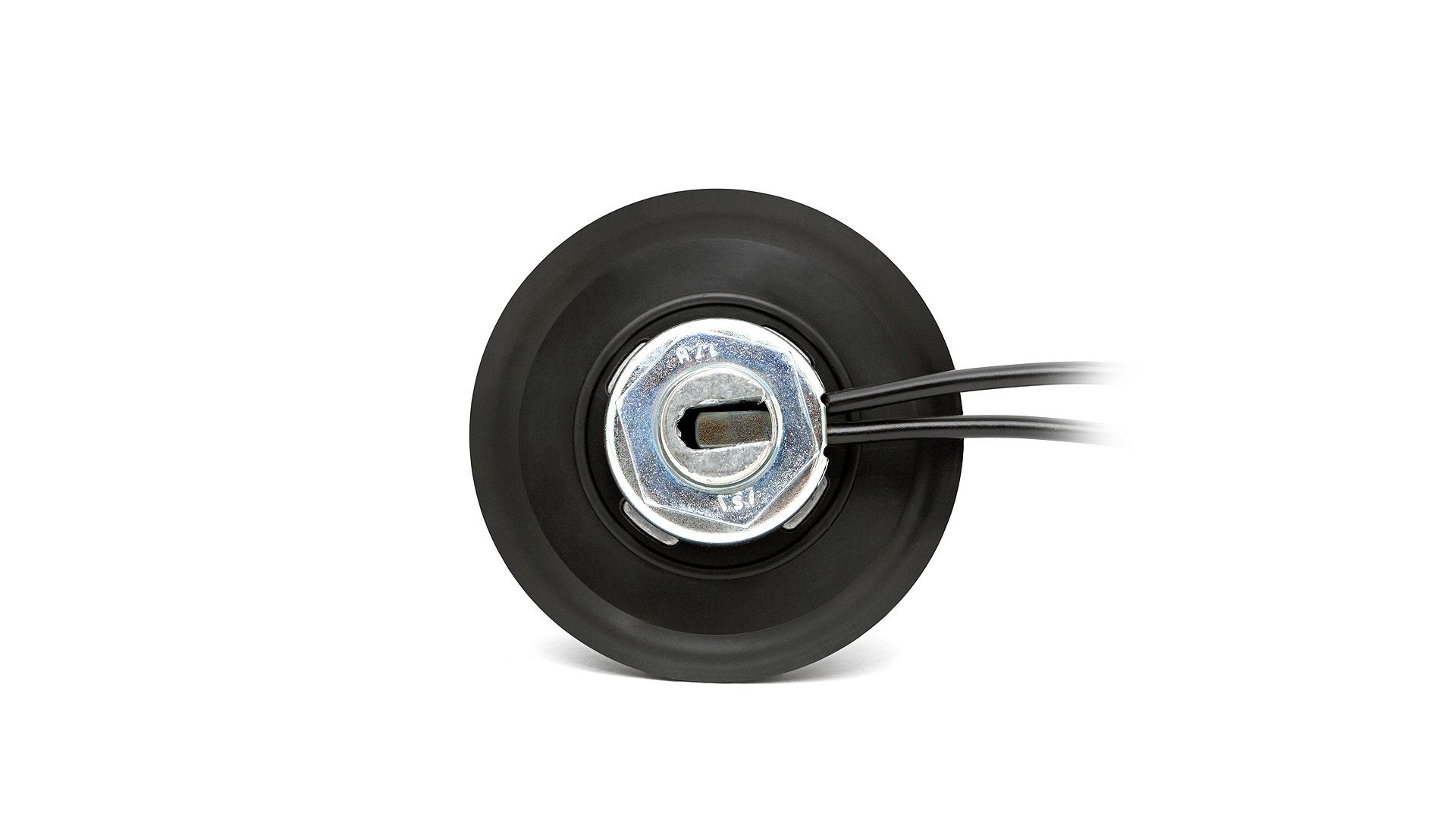

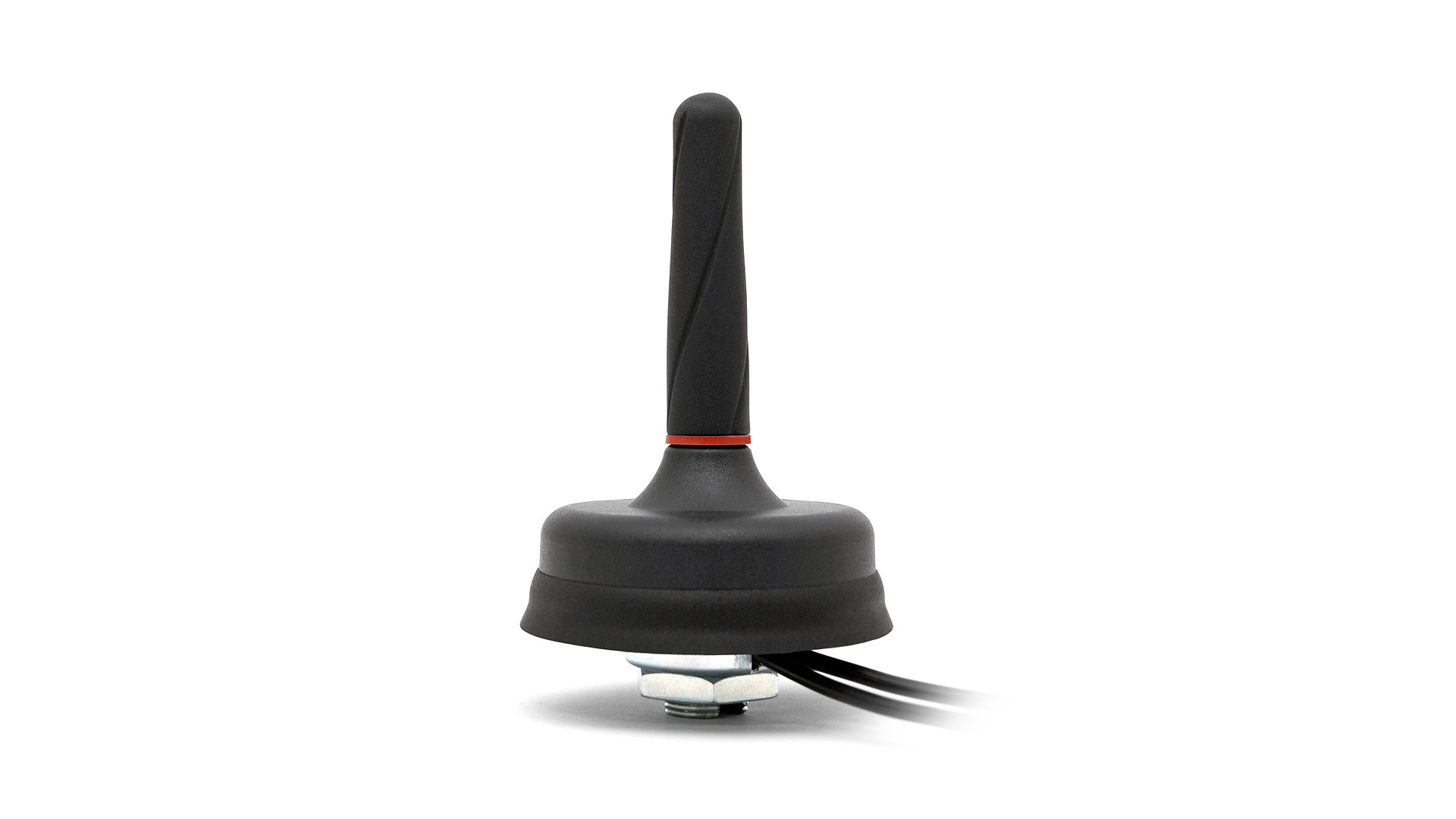

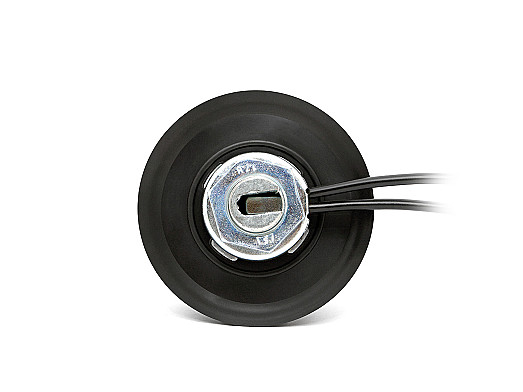

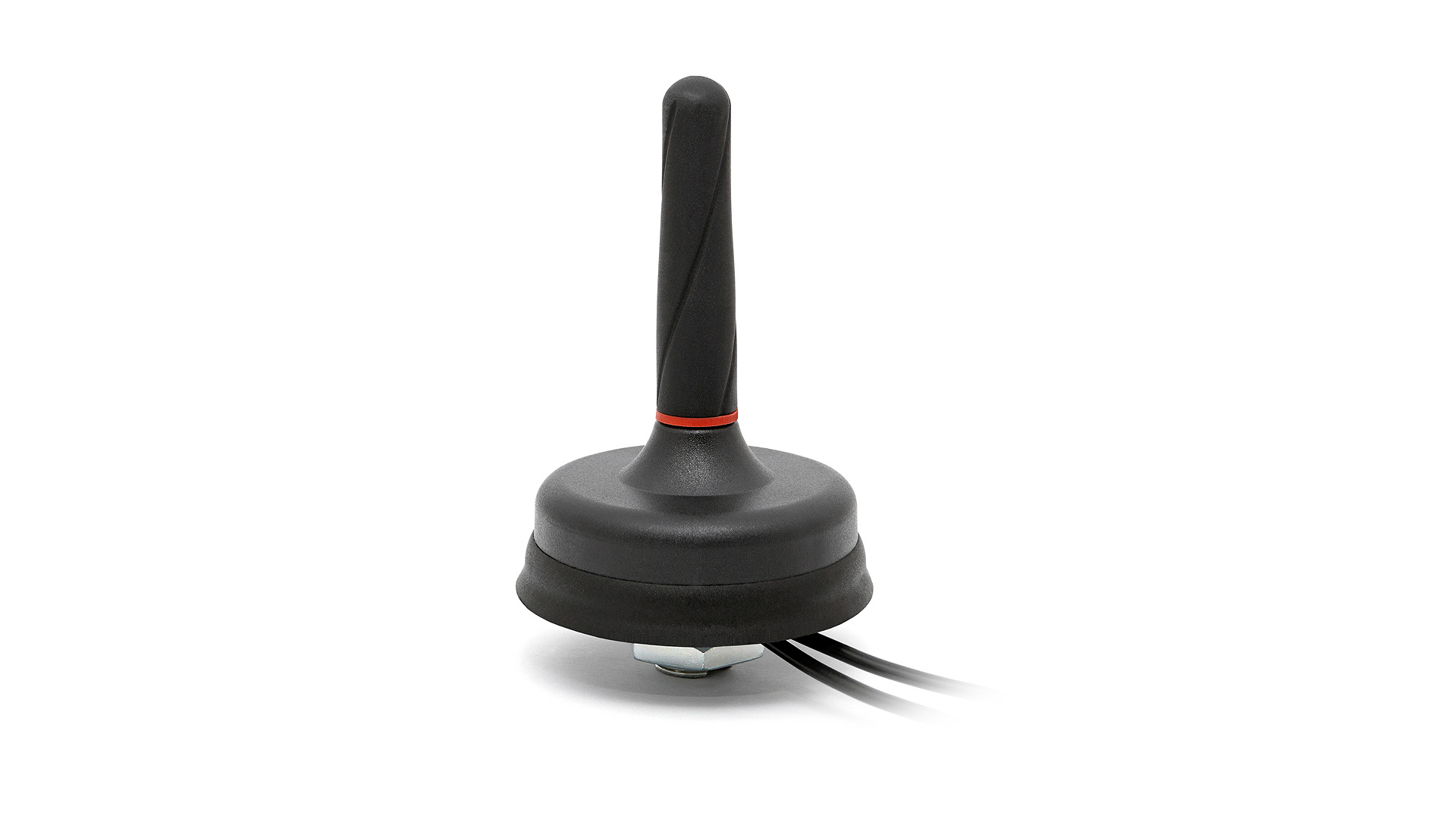

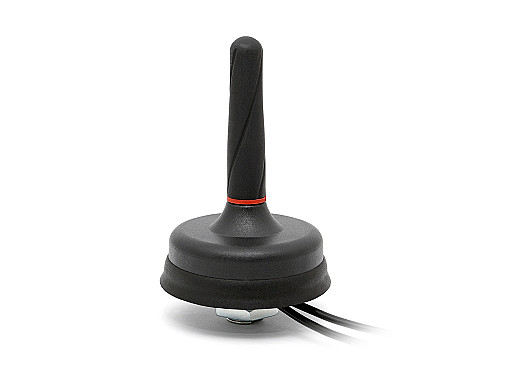

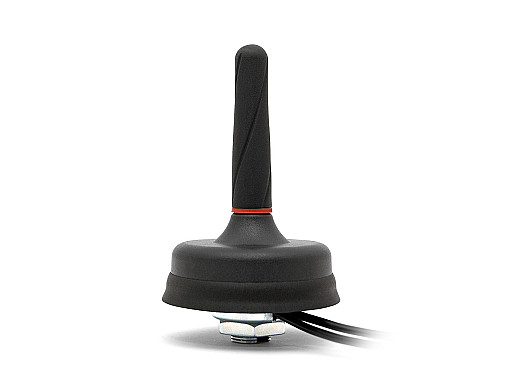

2J7541BG Antenna

4G LTE/3G/2G, GPS/Galileo High Performance IP67 IP69K Antenna

General specification
Frequency
4GLTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
Mounting Screw Mount
Dimensions (mm) Ø 60 × 81
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • GPS/GLONASS/QZSS/Galileo
  • High Performance
  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Screw Mount
  • Certificates: IP67, IP69K
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.1:1, ~1.6:1, ~1.5:1
    Efficiency (%) ~57, ~53, ~46
    Peak Gain (dBi) ~1.3, ~2.0, ~2.6
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1610
    VSWR <=1.2:1
    Impendance (Ohm) 50
    Polarisation RHCP
    Active Gain (dB) 26 @ 3V / 27dB @ 5V
    Voltage (V) 2.7 – 5.5
    Current (mA) 15 - 25
    Power Consumption (mW) 40 - 137
