Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.9, ~-9.2, ~-8.2, ~-7.5
VSWR ~2.6:1, ~2.4:1, ~2.7:1, ~2.5:1
Efficiency (%) ~45.0, ~53.2, ~25.7, ~28.3
Peak Gain (dBi) ~2.3, ~5.1, ~2.6, ~2.7
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
Radiation Pattern Omni-Directional
connection 2

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~5.2
Efficiency (%) ~68.1
Radiation Pattern Hemispherical
Polarization RHCP
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Impedance (Ohm) 50
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7V

Key Features

3-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Ground Plane Independent
Full 4GLTE backward compatibility
5.1 dBi 5G NR Peak Gain
High Performance
High Efficiency
Iridium Certified Antenna
5.2 dBic IRIDIUM Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Adhesive Mounting sticker included
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna description

2J6975MPGF

The 3-in-1 Iridium certified antenna connecting you to the world with precision

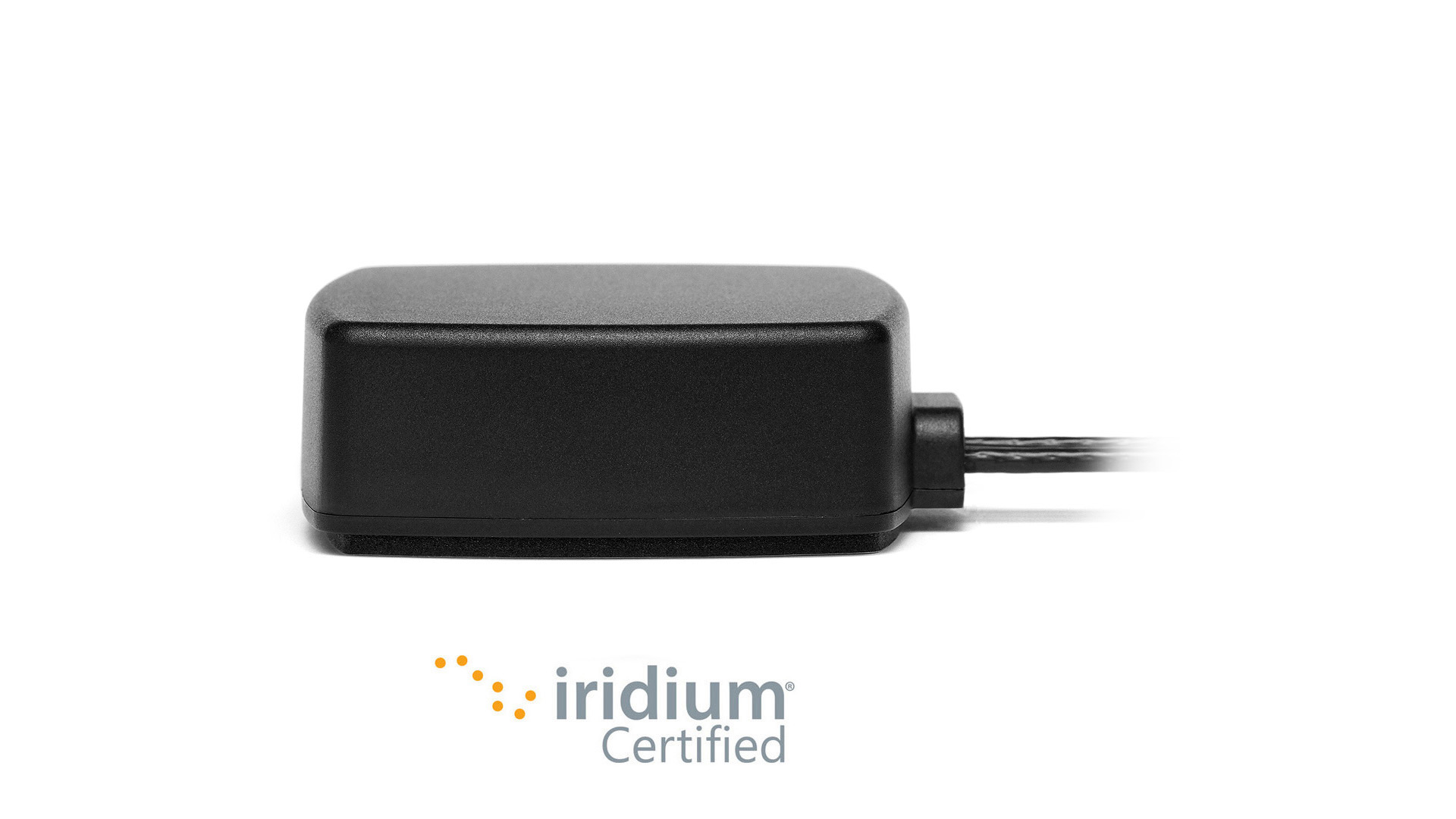

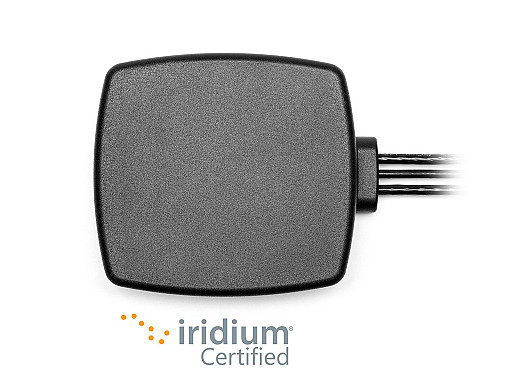

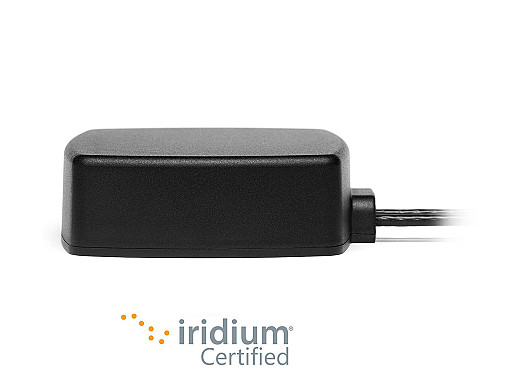

The 5G NR Cellular/LTE, GNSS and Iridium Magnetic/Adhesive Mount (2J6975MPGF) is a 3-in-1, high-performance antenna that maximizes versatile usability without compromising efficiency. The compact size 2J6975MPGF outperforms any competitor by offering 5G NR, 4G, LTE, 2G, 3G, GPS, QZSS, Galileo, GLONASS and Iridium standards. The 2J6975MPGF offers reliable, constant global connectivity with the highest precision ideal for tracking/mapping devices, industrial machinery, sea vessels, air/automobile navigation and worldwide voice/data communications.

The Cellular/LTE (Cable 1) is suitable within 5G NR, 4G LTE, 3G and 2G standards. With omni-directional radiation pattern the 2J6975MPGF operates within 617MHz-5925MHz frequencies. Designed to improve signal strength allowing uninterrupted connectivity, better signal quality, and reliability while providing increased data throughput.

The GNSS Ceramic Active Antenna (Cable 2) is designed for reliable navigational connectivity within GPS/ QZSS/ Galileo and GLONASS standards. With hemispherical radiation pattern, the 2J6975MPGF operates within 1575.42MHz and 1598MHz-1606MHz frequencies. The GNSS Ceramic Active Antenna offers access to multiple satellites improving accuracy, redundancy and availability at all times.

The Iridium Antenna (Cable 3) is designed for Iridium standards. With hemispherical radiation pattern, the 2J6975MPGF operates within 1616MHz-1627MHz frequencies and is IP67 and IP69 Iridium certified. The Iridium antenna offers the most reliable global connectivity on the market including poles, oceans and airways. This antenna is ideal for worldwide voice and data communication from hand-held satellite phones and other transceiver units.



Installation / Environmental

For internal and external applications, the production material used is black/white ASA UV stable, protecting the antenna from temperatures between -40C and +85C. With ground plane independence, this antenna is easy to install with minimal location restrictions. All three cables on the 2J6975MPGF antenna have a SMA-Male standard connector and come with 300cm standard cable length. The 2J6975MPGF is fully customizable by offering other connector types, cable lengths and cable types. The 2J6975MPGF is manufactured with RoHS compliance and complete IP67 and IP69 Iridium certification.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Logistics and Shipping Smart Cities Smart Farming Fleet Management Autonomous Driving Drone Operation Security and Surveillance Transportation GIS - Geographic Information System Hazard Mitigation Automation Construction Marine Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Aviation Applications Rail Applications Maritime Applications Satellite Realtime Navigation Autonomous Applications Mobile Applications Remote Monitoring and Control Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Routers, Gateways & Data Terminals Utilities Satellite Internet Agriculture Military Applications Satellite Voice and Data Communications Satellite Phones Emergency & Remote Communications Oil and Gas Industry Forestry Entertainment and Multimedia IoT - Internet of Things Smart Home Industrial IoT & Monitoring Medical and Healthcare Gaming and Virtual Reality Mission Critical Communications Cartographic Data Processing Smart Metering Smart Lighting Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything
