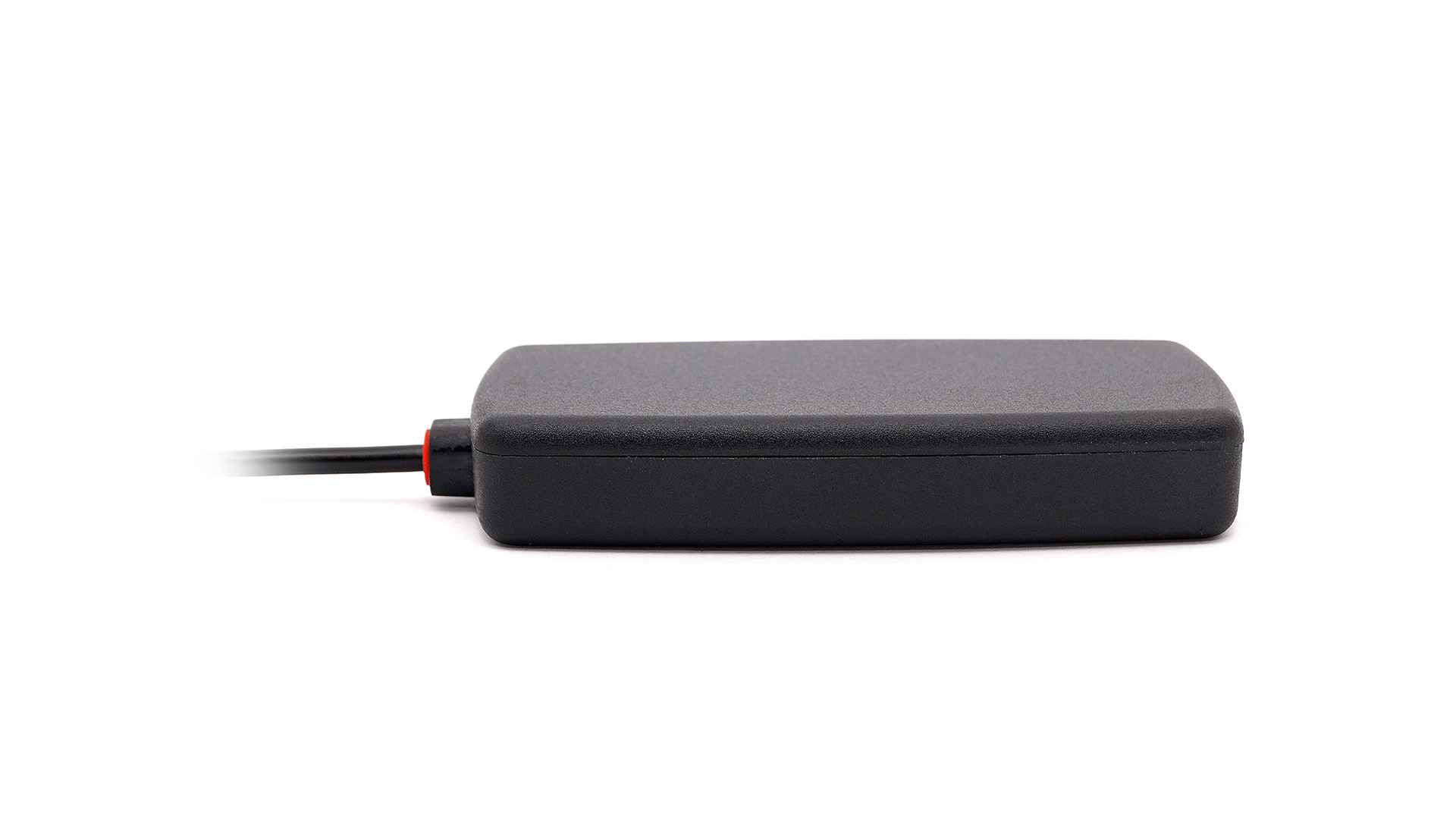

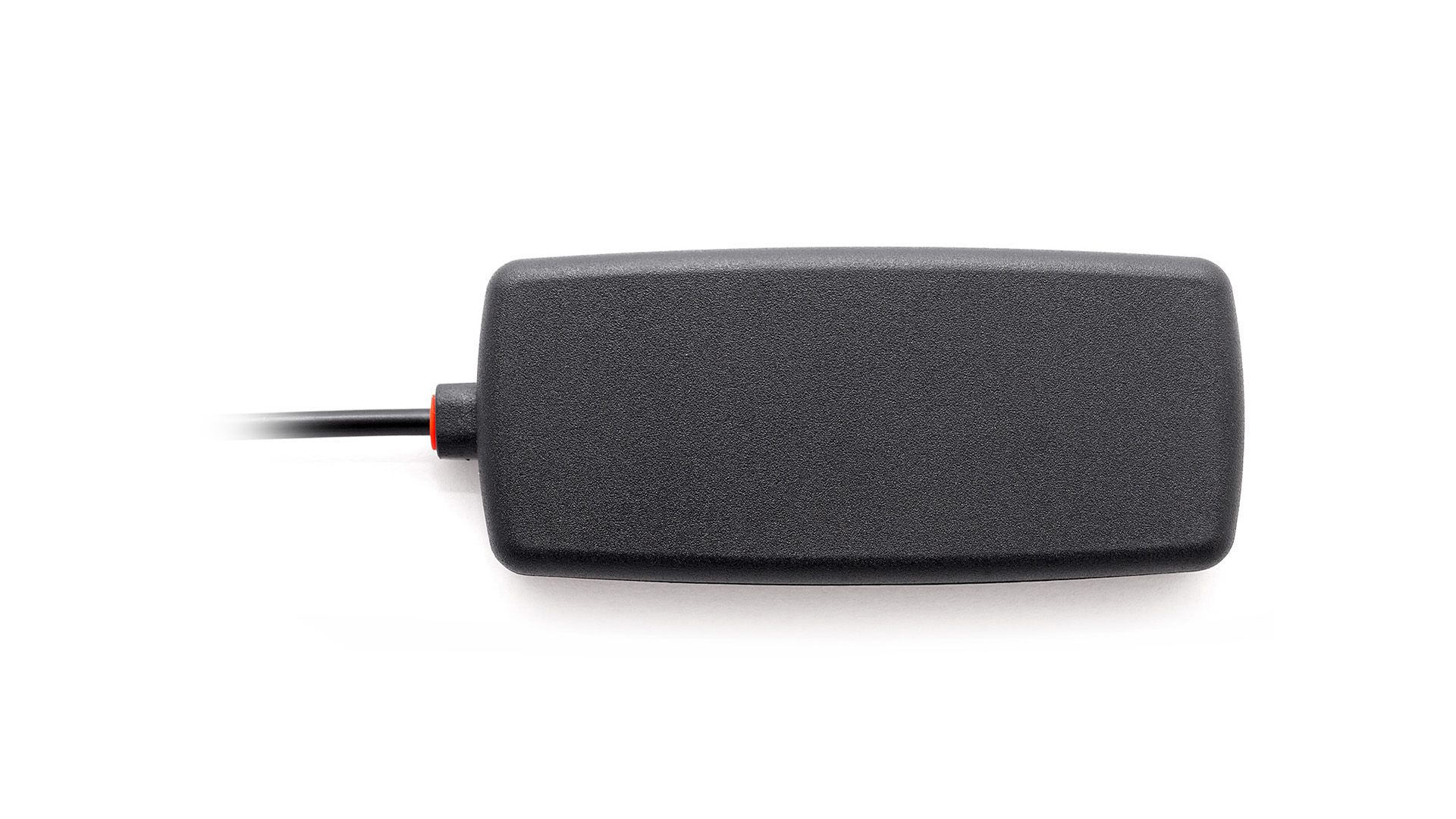

2J4804P Antenna

Cellular Customizable Ground Plane Independant Adhesive Antenna

General specification
Frequency CELLULAR
Mounting Adhesive mount
Dimensions (mm) 83 x 35 x 13.3
Operating temperature -40 °C to +85 °C
Note Antenna 2J4804PR equipped with 10K resistor for antenna detection is available.
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Adhesive Mount
  • Ground Plane Independent
  • Customizable Cable and Connector
  • Antenna and electrical specifications

    connection 1

    CELLULAR

    Standards 2G and 3G
    Frequency 824-960, 1710-2170
    VSWR ~1.4:1, ~1.3:1
    Efficiency (%) ~61, ~55
    Peak Gain (dBi) ~3.6, ~2.1
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
