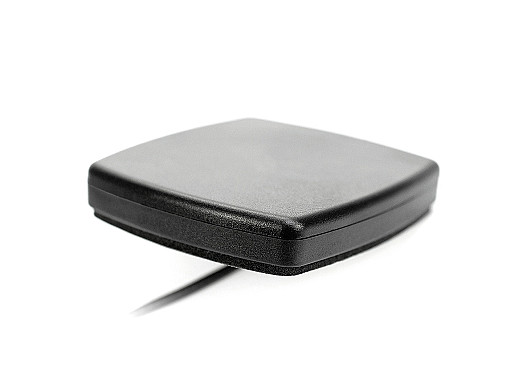

2J6015B-915 Antenna

Falcon 915 MHz ISM Sleek Compact Ultra Versatile Antenna

General specification
Frequency 915 MHz ISM
Mounting Screw Mount
Dimensions (mm) 80 x 74 x 14.7
Operating temperature -40 °C to +85 °C
Note 19mm Thread is Default Option. See Drawing in Datasheet for other Thread Options available.
Certificates IP67
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Screw Mount
  • Ground Plane Dependent
  • High Performance
  • Low Profile
  • Customizable Cable and Connector
  • Certificates: IP67
  • Antenna and electrical specifications

    connection 1

    915 MHz ISM

    Standards ZigBee, ISM, SIGFOX, LoRa
    Frequency 902-928
    VSWR ~1.5:1
    Efficiency (%) ~50.3
    Peak Gain (dBi) ~1.9
    50
    Polarisation Linear
    Max. Input Power (W) 25
