Key Features

  • Ground Plane Independent
  • High Gain
  • Thru-Hole Mount
  • GPS/GLONASS/BeiDou/QZSS/Galileo

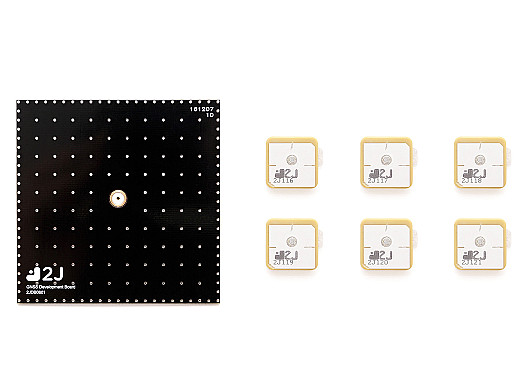

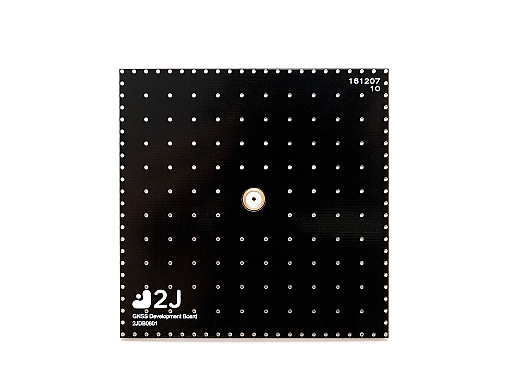

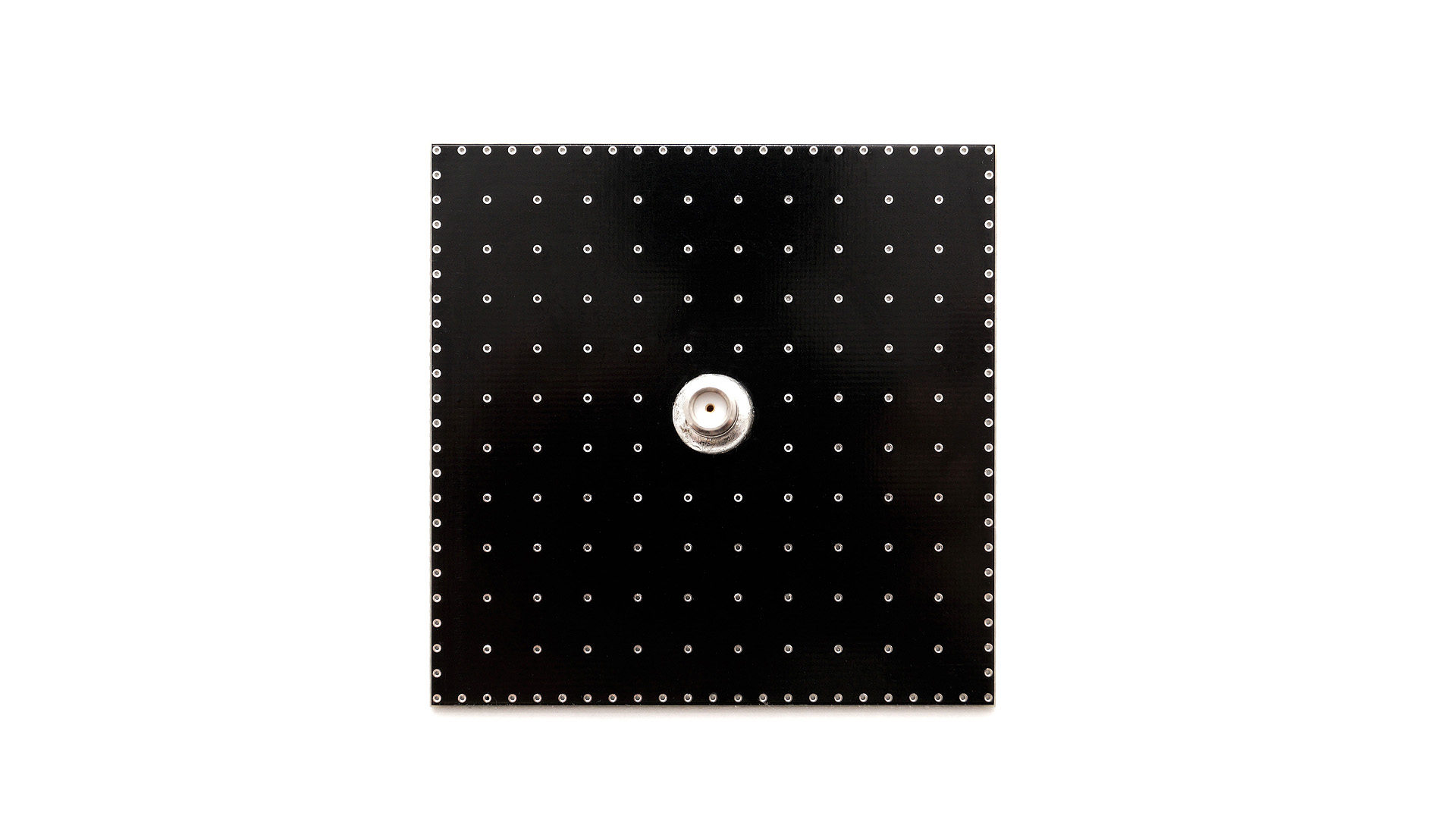

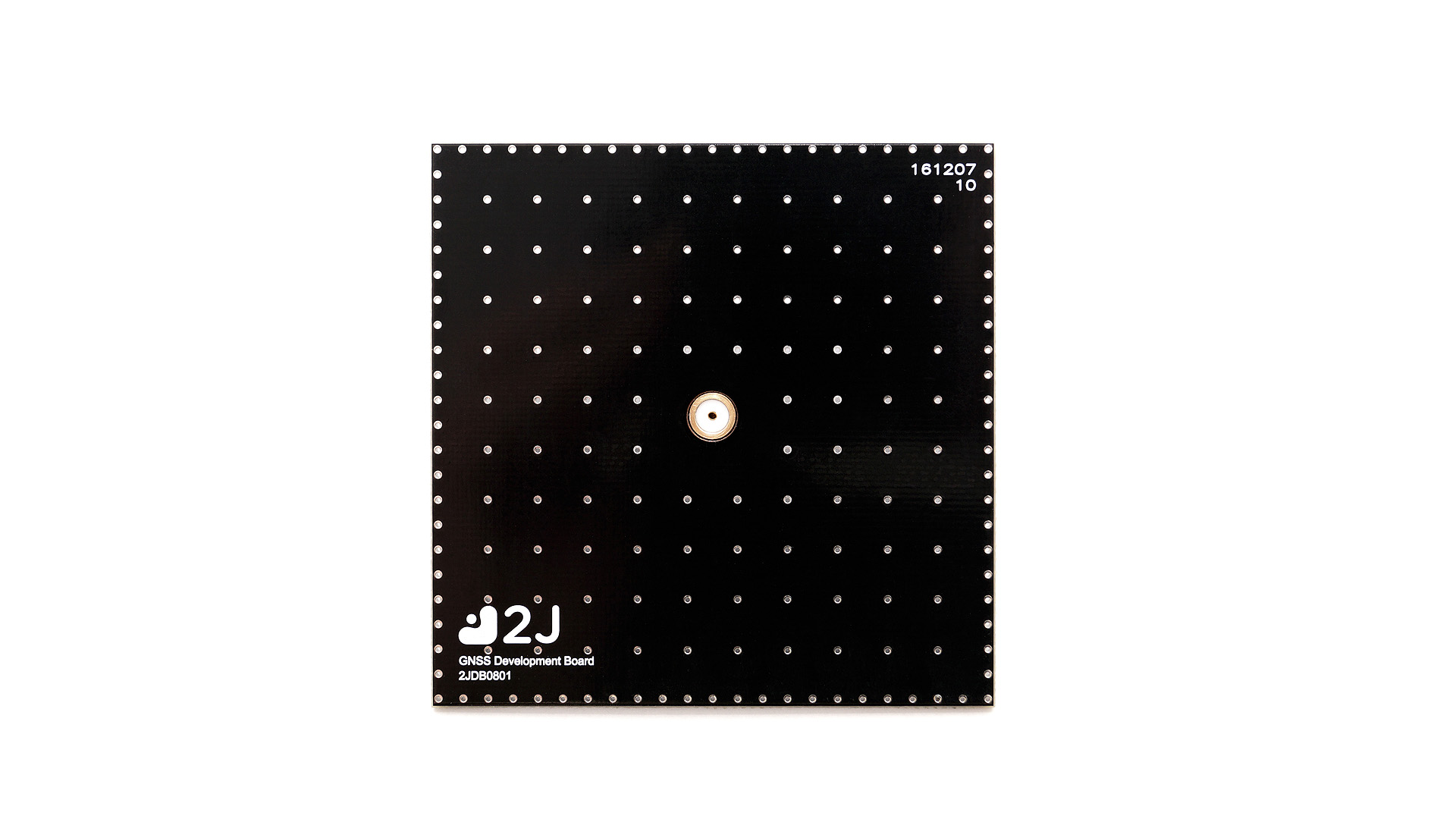

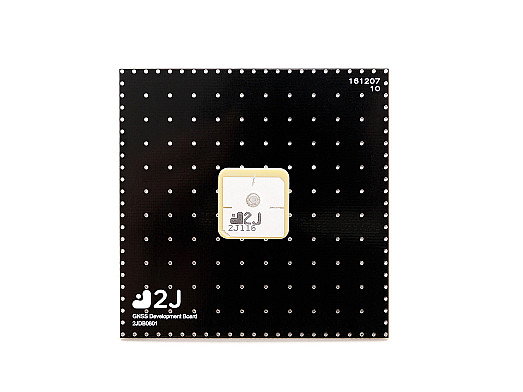

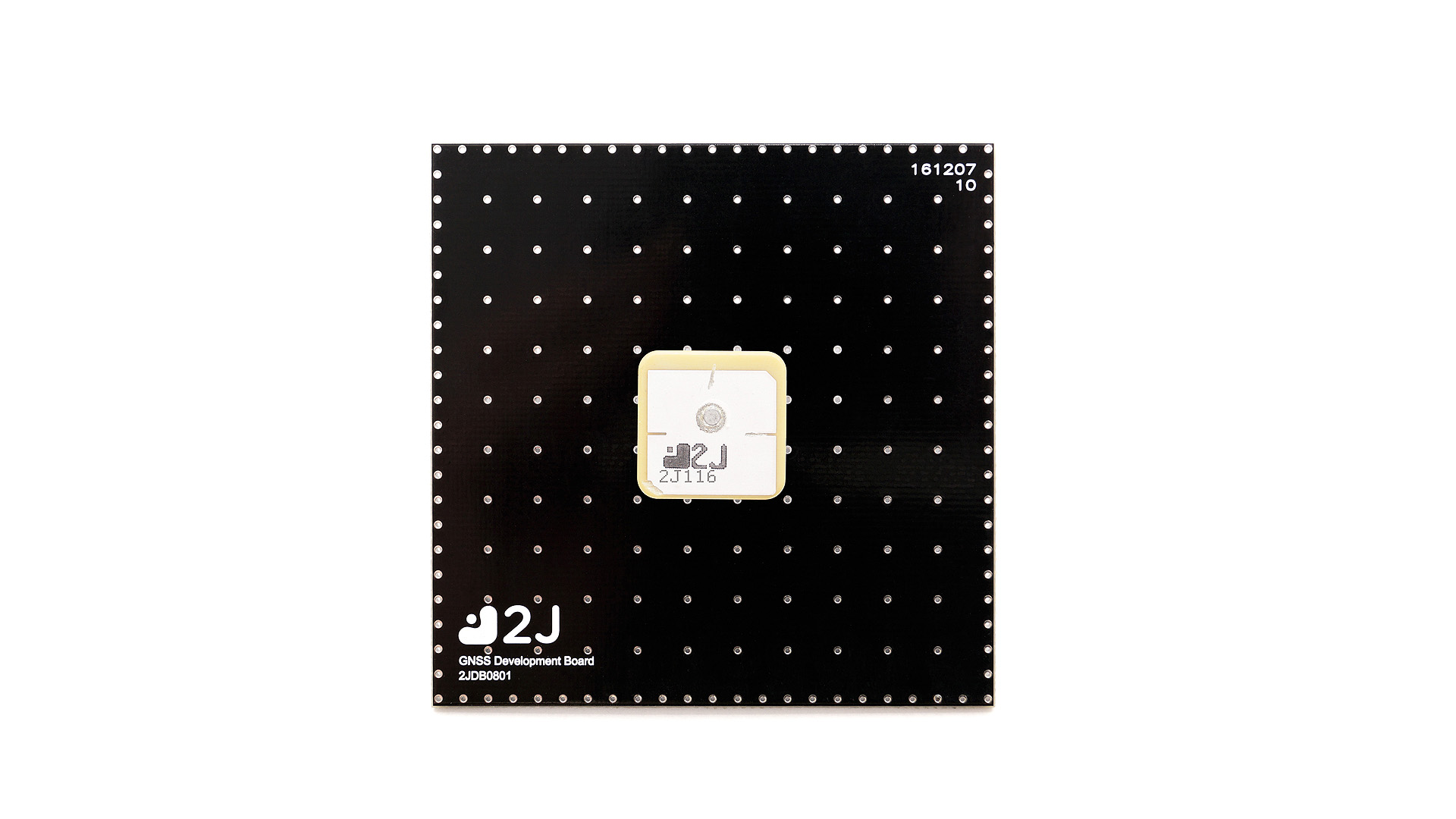

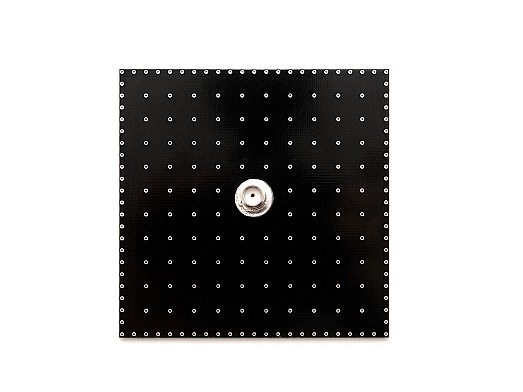

  • Development Kit for GNSS

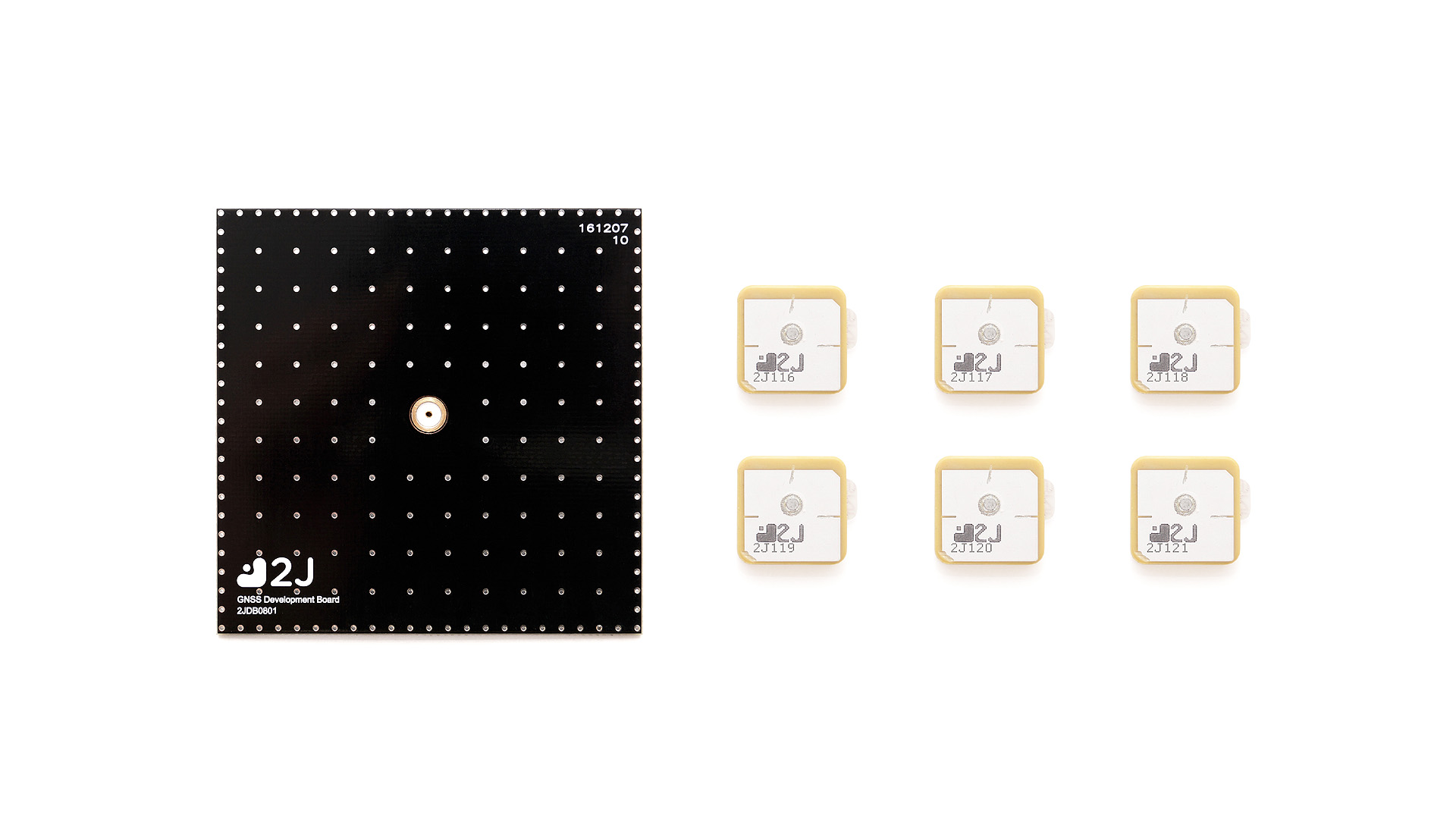

  • Set of 6 patches to try on devices
  • Patches 18 x 18 x 4 mm

Applications

Antenna and electrical specifications

connection 1

GPS/GLONASS/BeiDou - Ceramic Passive Antenna

Standards GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency (MHz) 1561.098, 1575.42, 1598-1606 - Ceramic patch 2JCP1840101Ca (2J 116)
1566.098, 1580.42, 1603-1611 - Ceramic patch 2JCP1840102Ca (2J 117)
1571.098, 1585.42, 1608-1616 - Ceramic patch 2JCP1840103Ca (2J 118)
1576.098, 1590.42, 1613-1621 - Ceramic patch 2JCP1840104Ca (2J 119)
1581.098, 1595.42, 1618-1626 - Ceramic patch 2JCP1840105Ca (2J 120)
1586.098, 1600.42, 1623-1631 - Ceramic patch 2JCP1840106Ca (2J 121)
Passive Gain (dBi) ~5.2, ~5.4, ~5.4
Efficiency (%) ~65.6, ~61.4, ~68.7
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Polarization RHCP
