2JDK0134a-C104N DevKit

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Mounting Thru-Hole Mount Ceramic

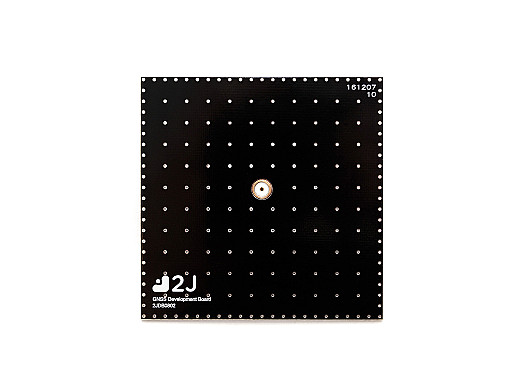

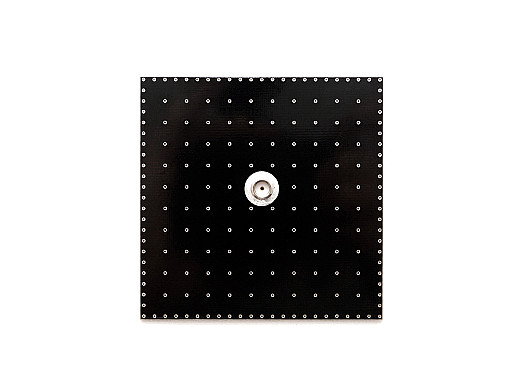

Included in Kit 1×2JDB0802-C104N Development Board
6×2JCP2543401a Ceramic Antennas
Dimensions (mm) 25 x 25 x 4 (Patches)
70.4 × 70.4 × 13.5 (Board)
Operating temperature -40 °C to +85 °C
Product added to cart
Products documents
Datasheet
3D model

Antenna and electrical specifications

Scroll down
connection 1

GPS-IRIDIUM - Ceramic Passive Antenna

Standards GPS/QZSS/Galileo-IRIDIUM
Frequency (MHz) 1575.42, 1616-1627 - Ceramic patch 2JCP2543401a (2J 128)
1580.42, 1621-1632 - Ceramic patch 2JCP2543402a (2J 129)
1585.42, 1626-1637 - Ceramic patch 2JCP2543403a (2J 130)
1590.42, 1631-1642 - Ceramic patch 2JCP2543404a (2J 131)
1595.42, 1636-1647 - Ceramic patch 2JCP2543405a (2J 132)
1600.42, 1641-1652 - Ceramic patch 2JCP2543406a (2J 133)
Passive Gain (dBi) ~5.1, ~5.7
Efficiency (%) ~93.8, ~92.9
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Polarization RHCP

Key Features

Development Kit for GNSS and IRIDIUM
GPS/QZSS/Galileo-IRIDIUM
Single Feed Technology
Set of 6 patches to try on devices
Thru-Hole Mount
High Gain
Patches 25 x 25 x 4 mm
