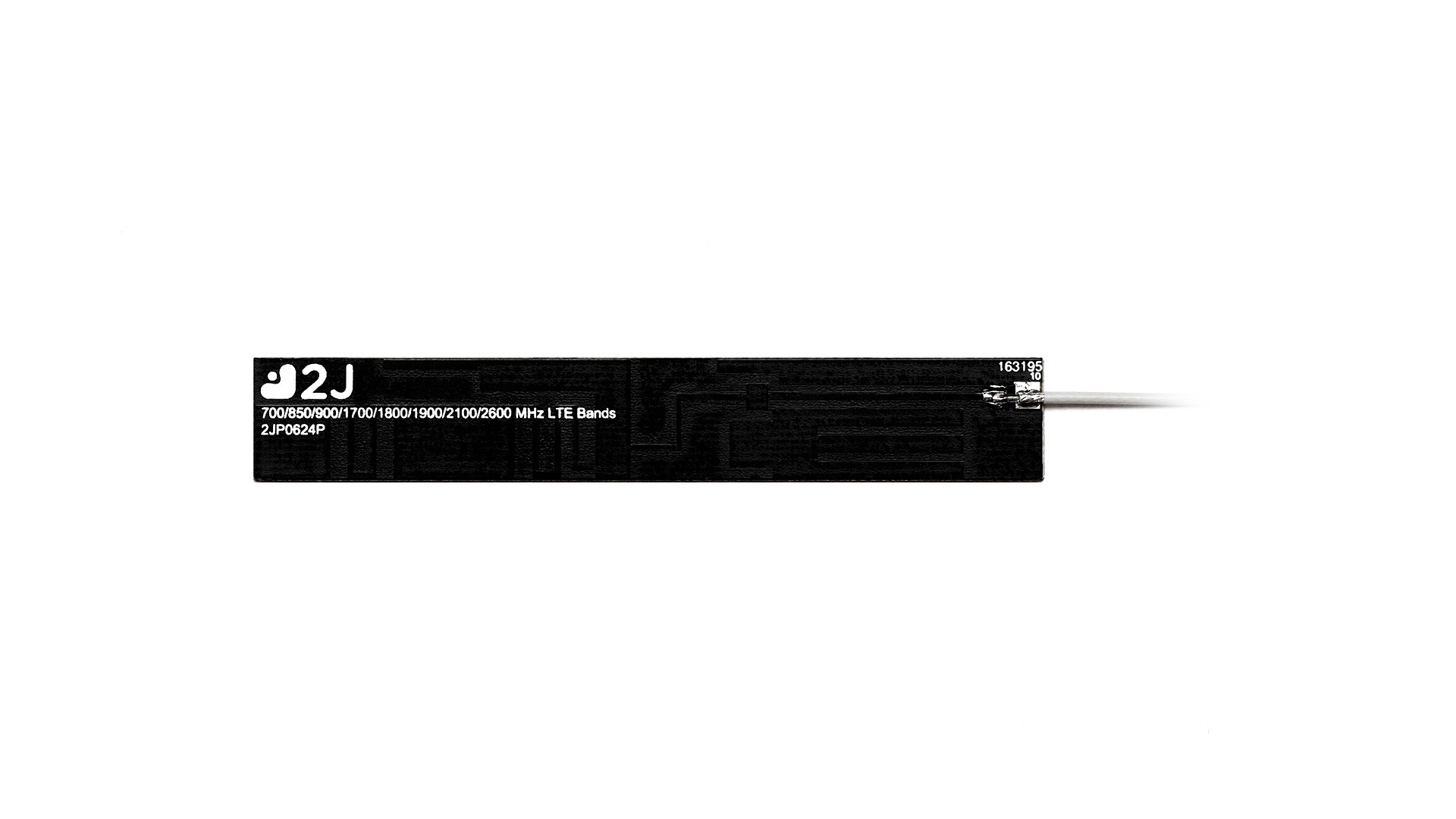

2JP0624P Antenna

4G LTE/3G/2G High Performance Rigid Customizable Antenna

General specification
Frequency
4GLTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Mounting Adhesive Mount Rigid
Dimensions (mm) 89.7 x 14.1 x 0.8
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • High Performance
  • Ground Plane Independent
  • Customizable Cable and Connector
  • Rigid Embedded Antenna
  • Self-Adhesive
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~1.5:1, ~1.8:1, ~2.1:1
    Efficiency (%) ~45, ~48, ~48
    Peak Gain (dBi) ~0.3, ~1.5, ~2.8
    50
    Polarisation Linear
    Max. Input Power (W) 25
