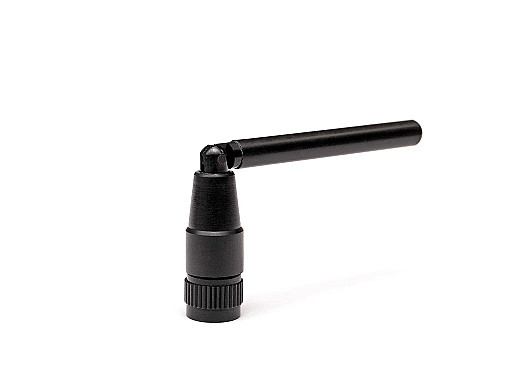

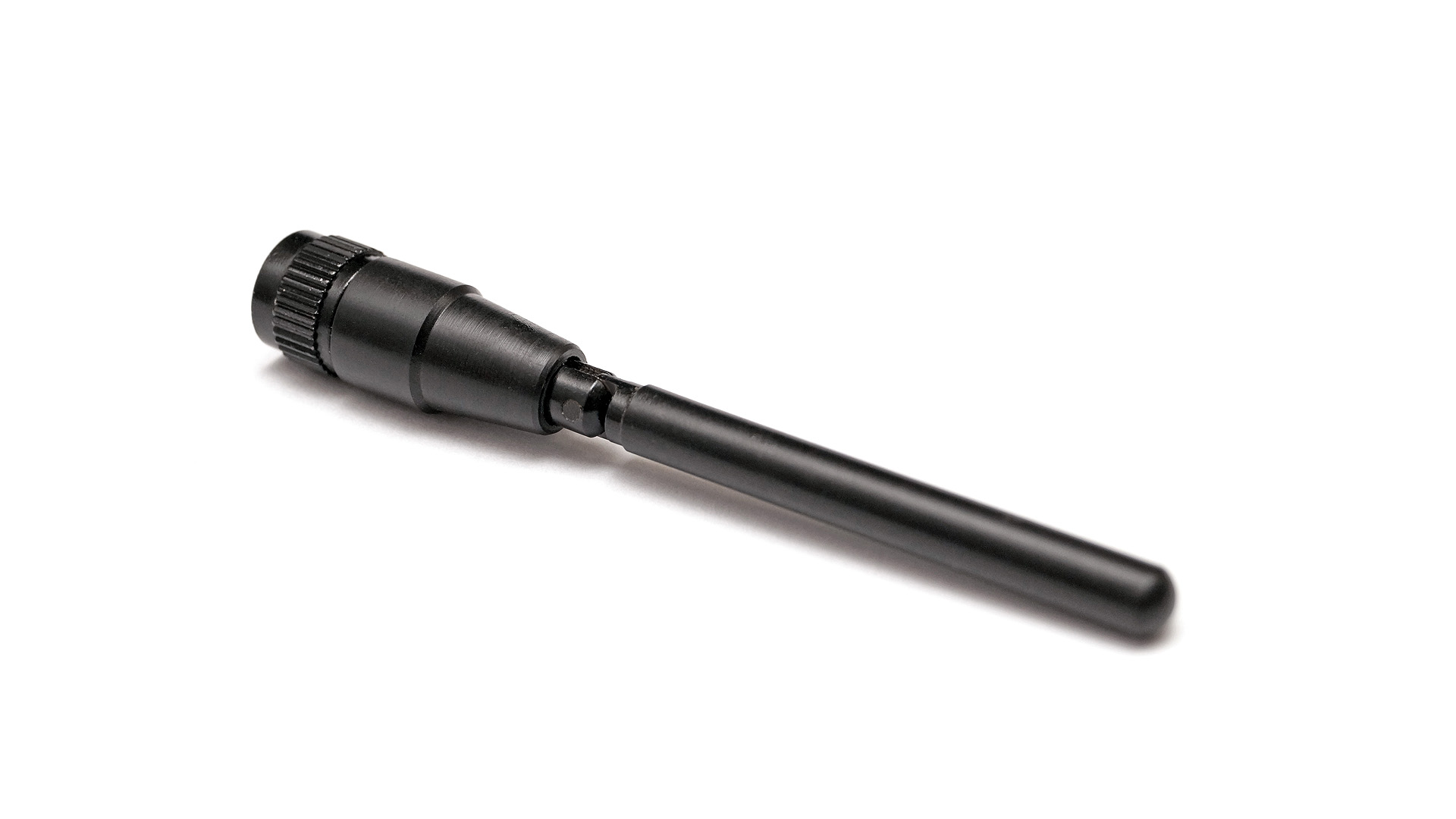

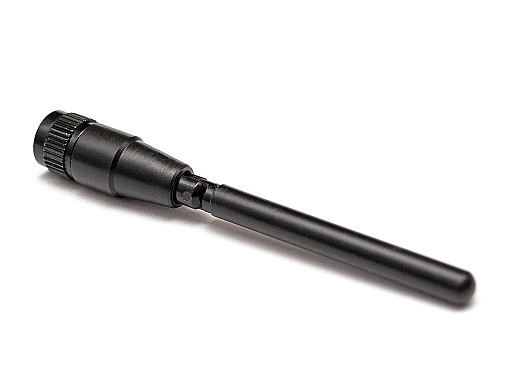

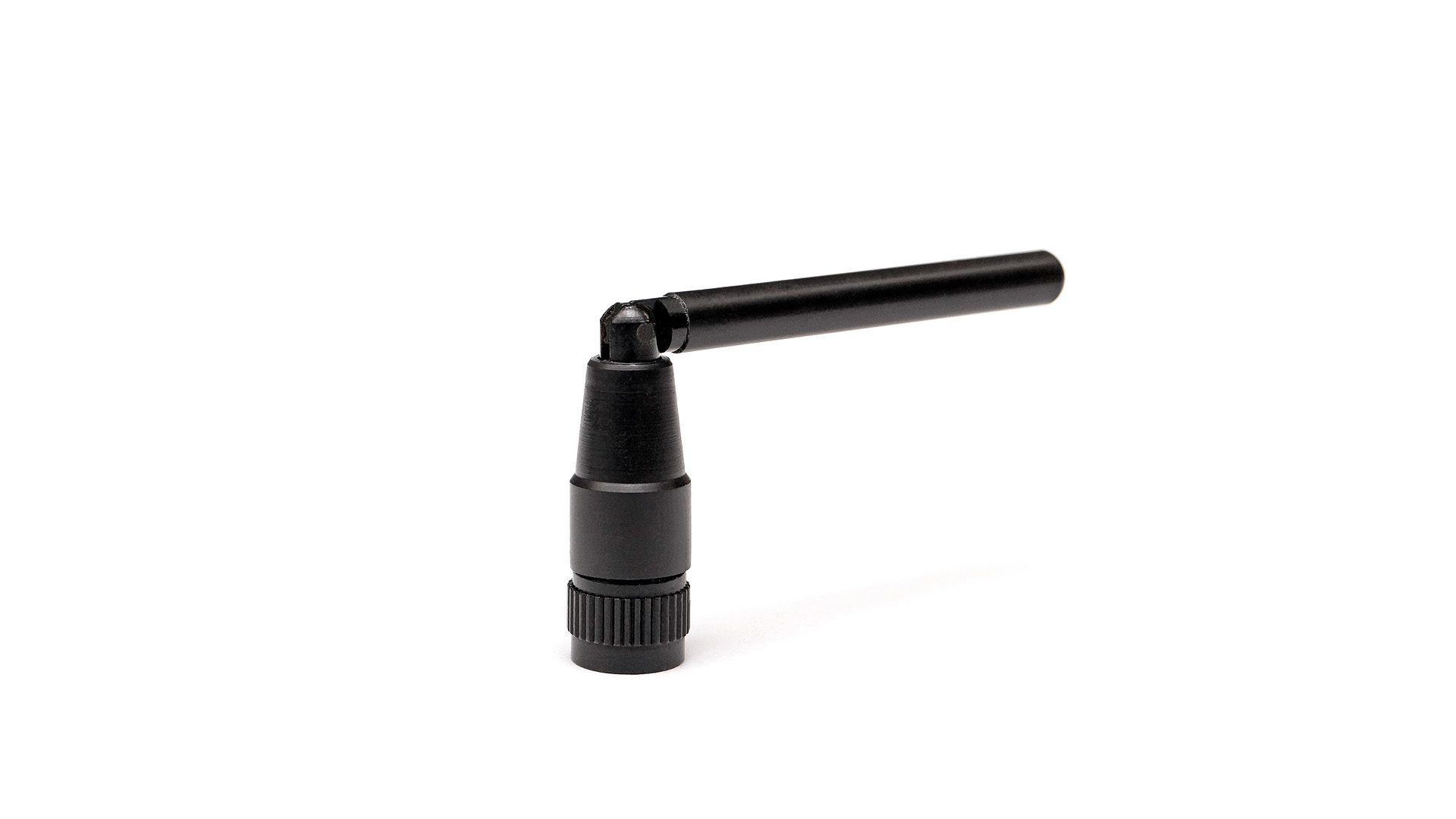

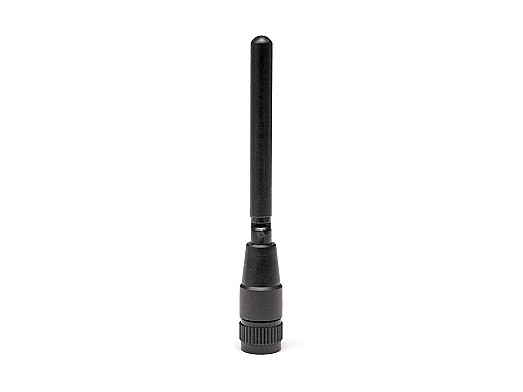

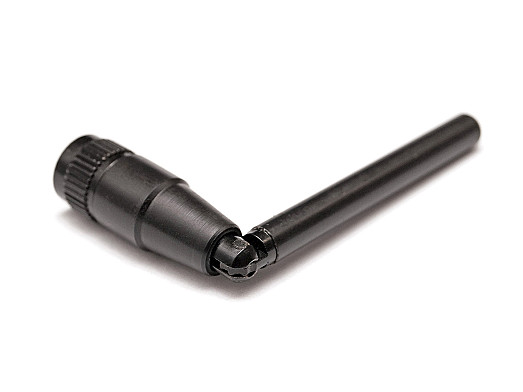

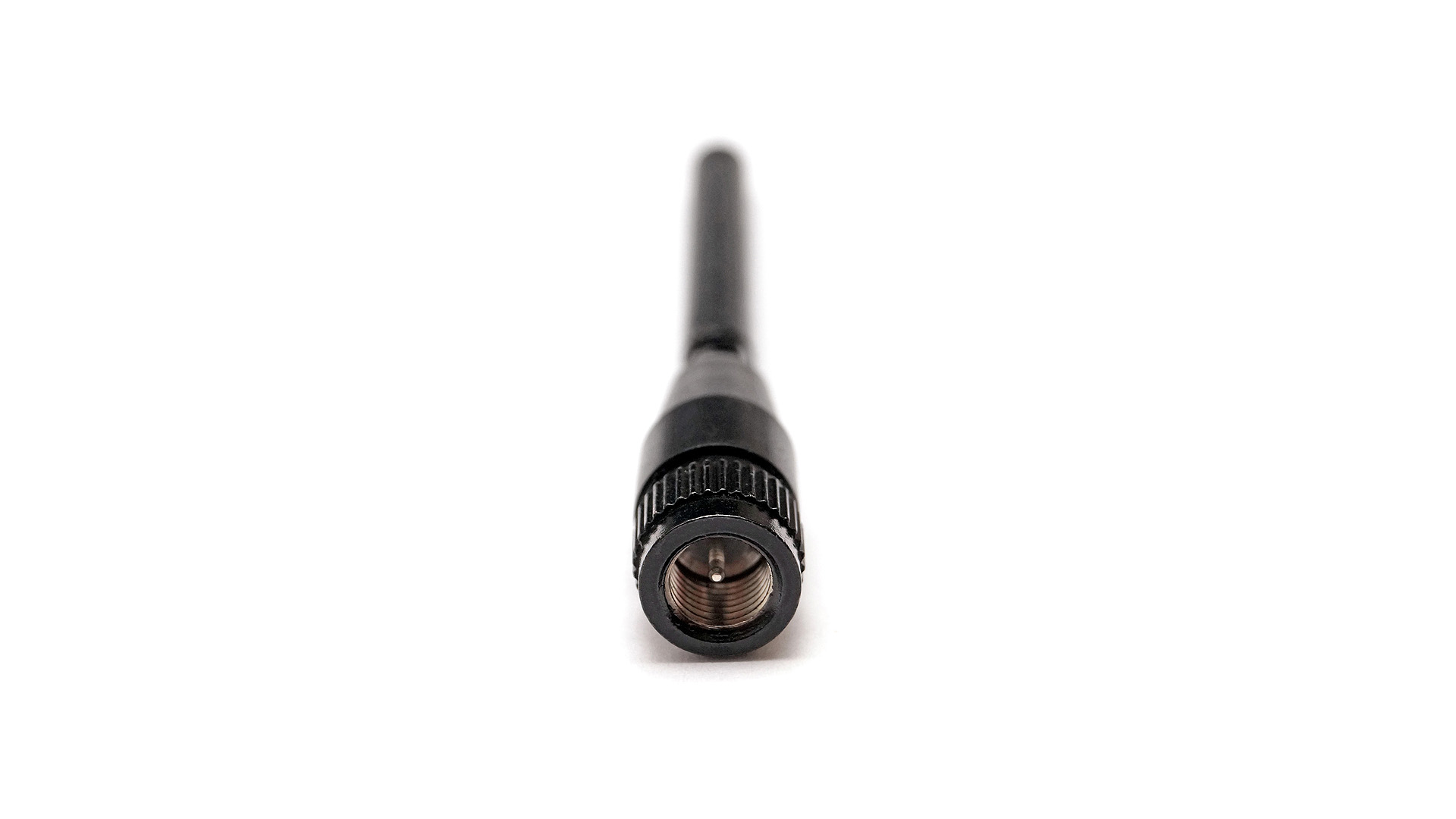

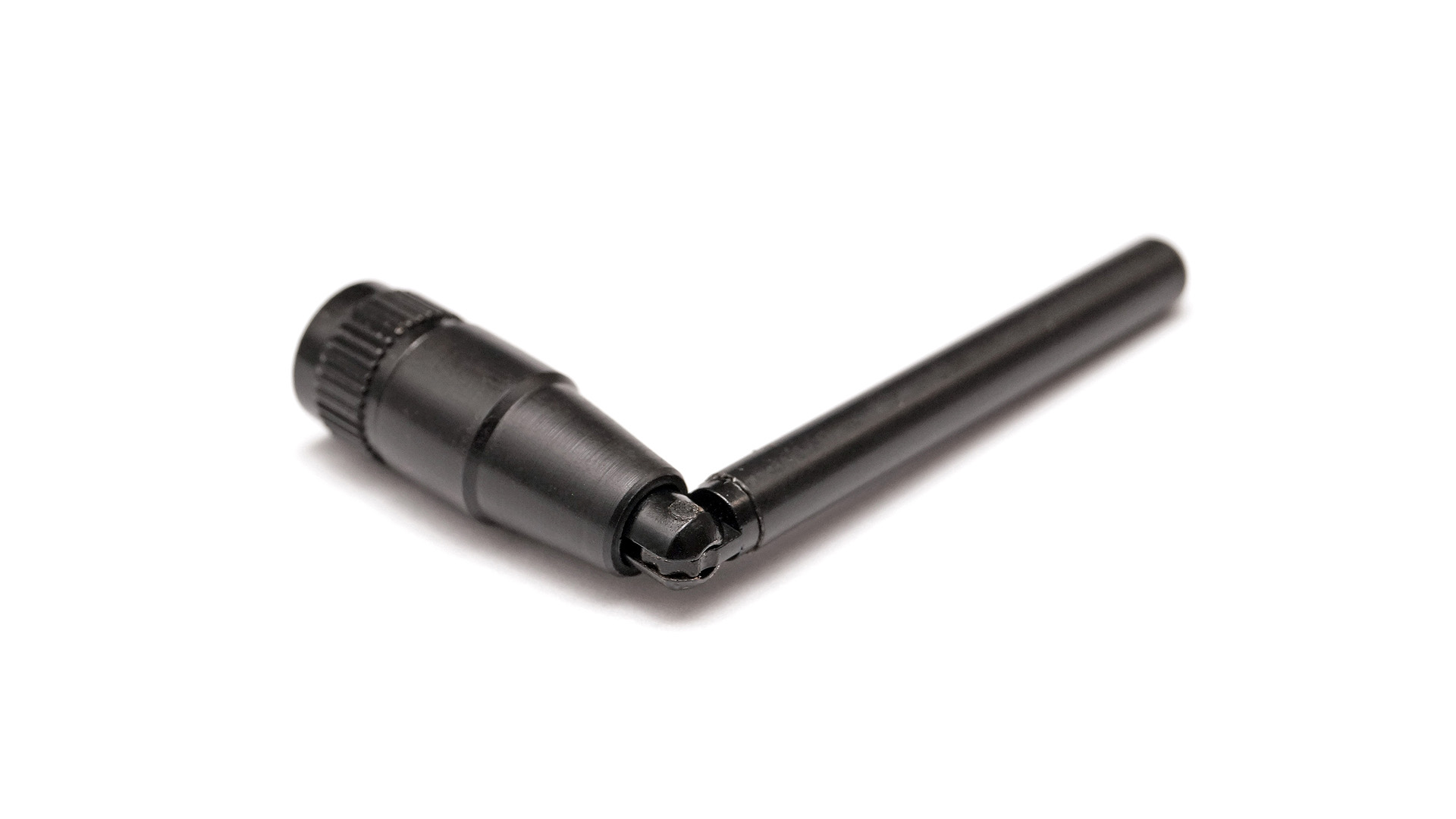

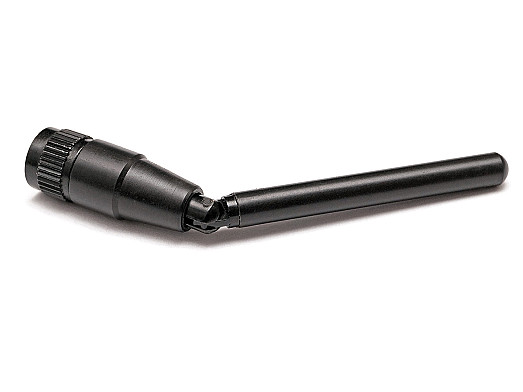

2JW1001 Antenna

GPS/GLONASS/BeiDou/Galileo 1561-1606 MHz High Efficiency Antenna

General specification
Frequency GPS/GLONASS/BeiDou/Galileo
Mounting Connector Mount
Dimensions (mm) Ø 10 × 71
Operating temperature -20 °C to +65 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Connector Mount
  • Low Profile
  • High Efficiency
  • Ground Plane Dependent
  • Antenna and electrical specifications

    connection 1

    GPS/GLONASS/BeiDou

    Standards GPS/GLONASS/BeiDou/QZSS/Galileo
    Frequency 1561.098, 1575.42, 1598-1606
    VSWR ~1.3:1, ~1.3:1, ~1.3:1
    Efficiency (%) ~70, ~70, ~69
    Peak Gain (dBi) ~2.9, ~2.8, ~2.9
    Impedance (Ohm) 50
    Radiation Pattern Omni-Directional
    Polarisation Linear
    Max. Input Power (W) 25
