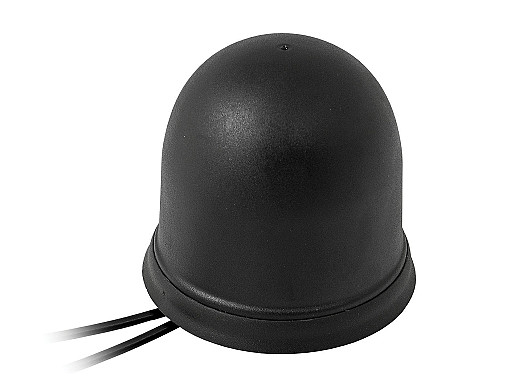

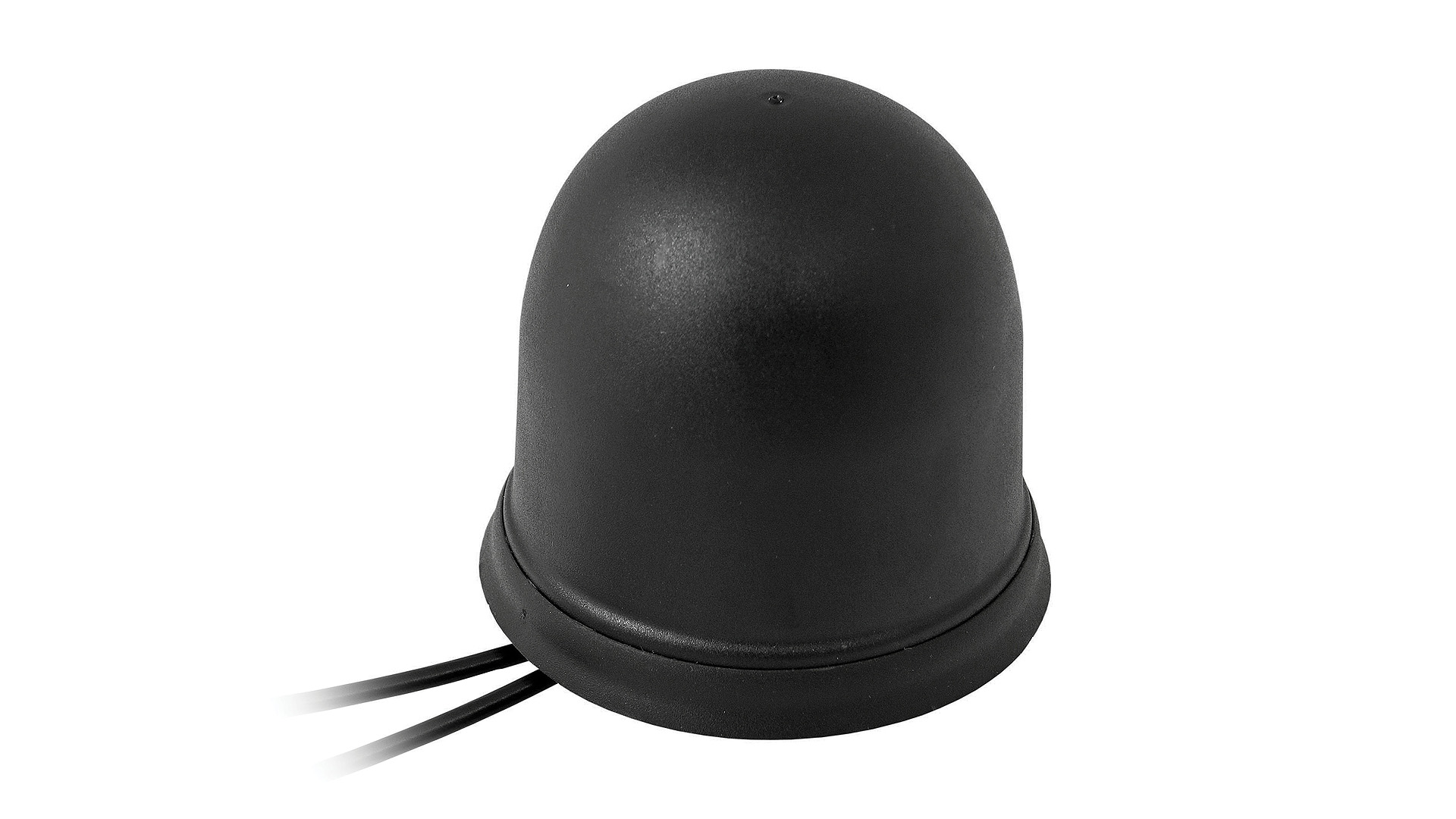

2J6A24Ba Antenna

2 x 4G LTE/3G/2G MIMO Ground Plane Dependent IP67 IK09 IP69K Antenna

General specification
Frequency
2× 4GLTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Mounting Screw Mount
Dimensions (mm) Ø 77.3 x 65.5
Operating temperature -40 °C to +85 °C
Certificates IP67, IK09, IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Customizable Cable and Connector
  • Ground Plane Dependent

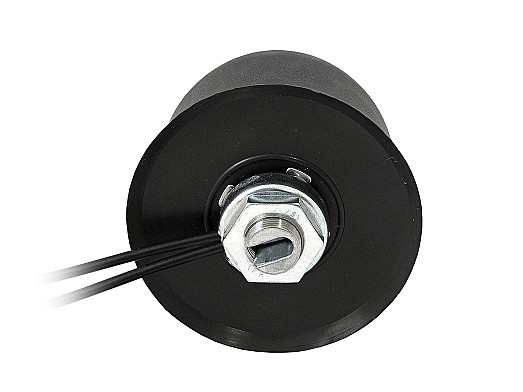

  • Screw Mount
  • Anti-Rotation Mechanism
  • Certificates: IP67, IK09, IP69K
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.8:1, ~1.7:1, ~1.3:1
    Efficiency (%) ~35, ~51, ~49
    Peak Gain (dBi) ~-0.8, ~2.5, ~3.4
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.9:1, ~1.4:1, ~1.8:1
    Efficiency (%) ~34.2, ~41.1, ~36.7
    Peak Gain (dBi) ~-1.0, ~1.7, ~3.2
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
