Antenna and electrical specifications

connection 1


Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.0:1, ~2.4:1, ~1.2:1
Efficiency (%) ~45.5, ~26.2, ~31.0
Peak Gain (dBi) ~3.5, ~2.2, ~4.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.3:1, ~1.7:1
Efficiency (%) ~38.4, ~25.6
Peak Gain (dBi) ~3.8, ~2.8
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3


Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Noise Figure (dB) 1.5 Typ
Current Consumption (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
ESD Protection (kV) 2

Key Features

3-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
4.2 dBi 4G LTE Peak Gain
3.8 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Adhesive Mounting sticker included
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description


3-in-1 Advanced Cellular, Navigation and Wireless Technology with Exceptional Performance

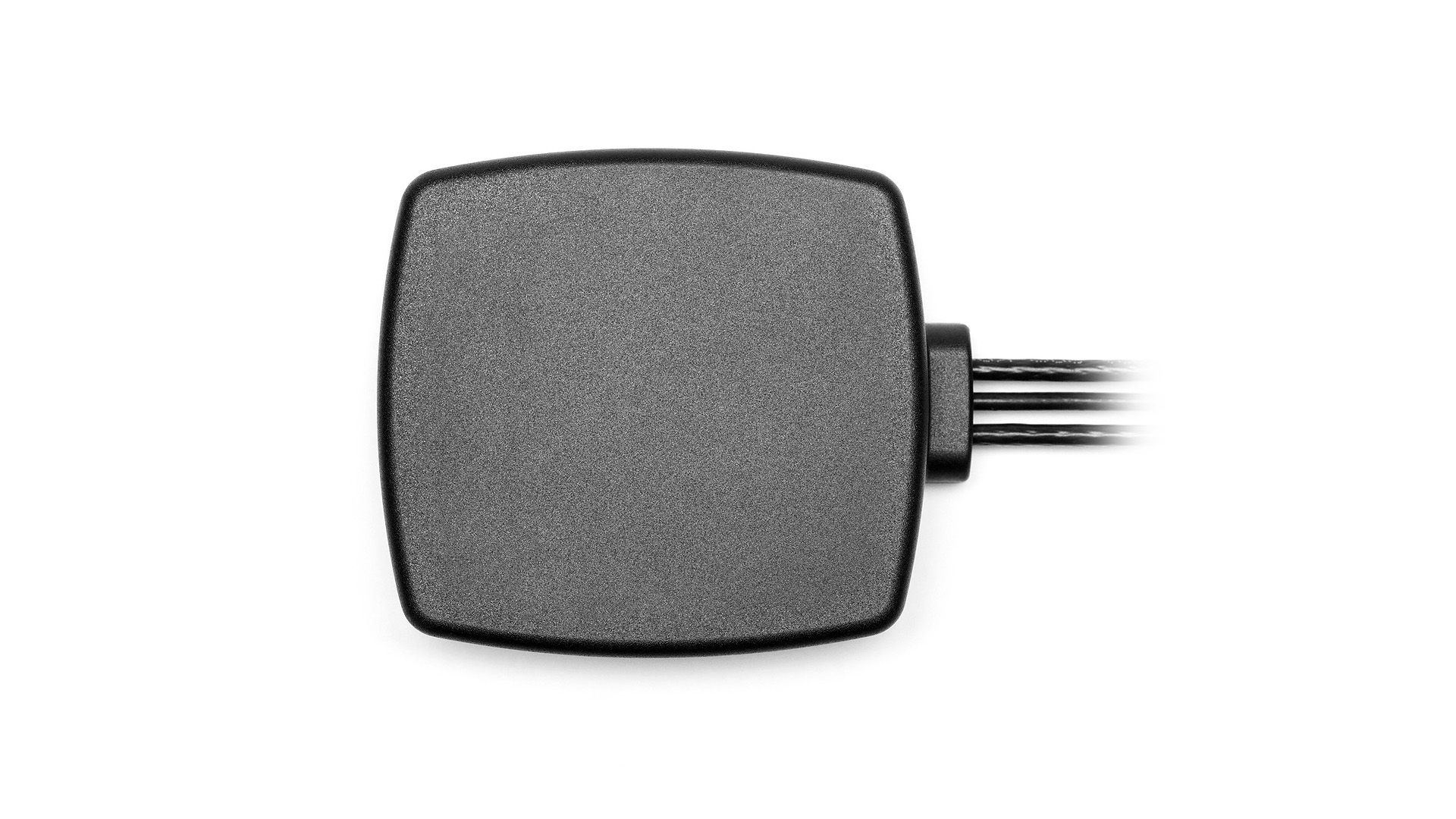

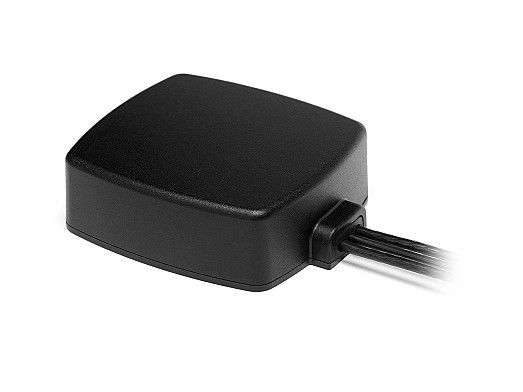

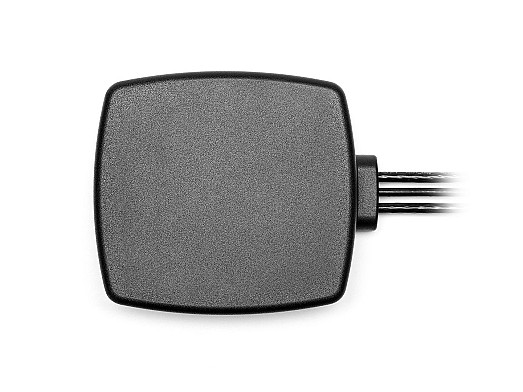

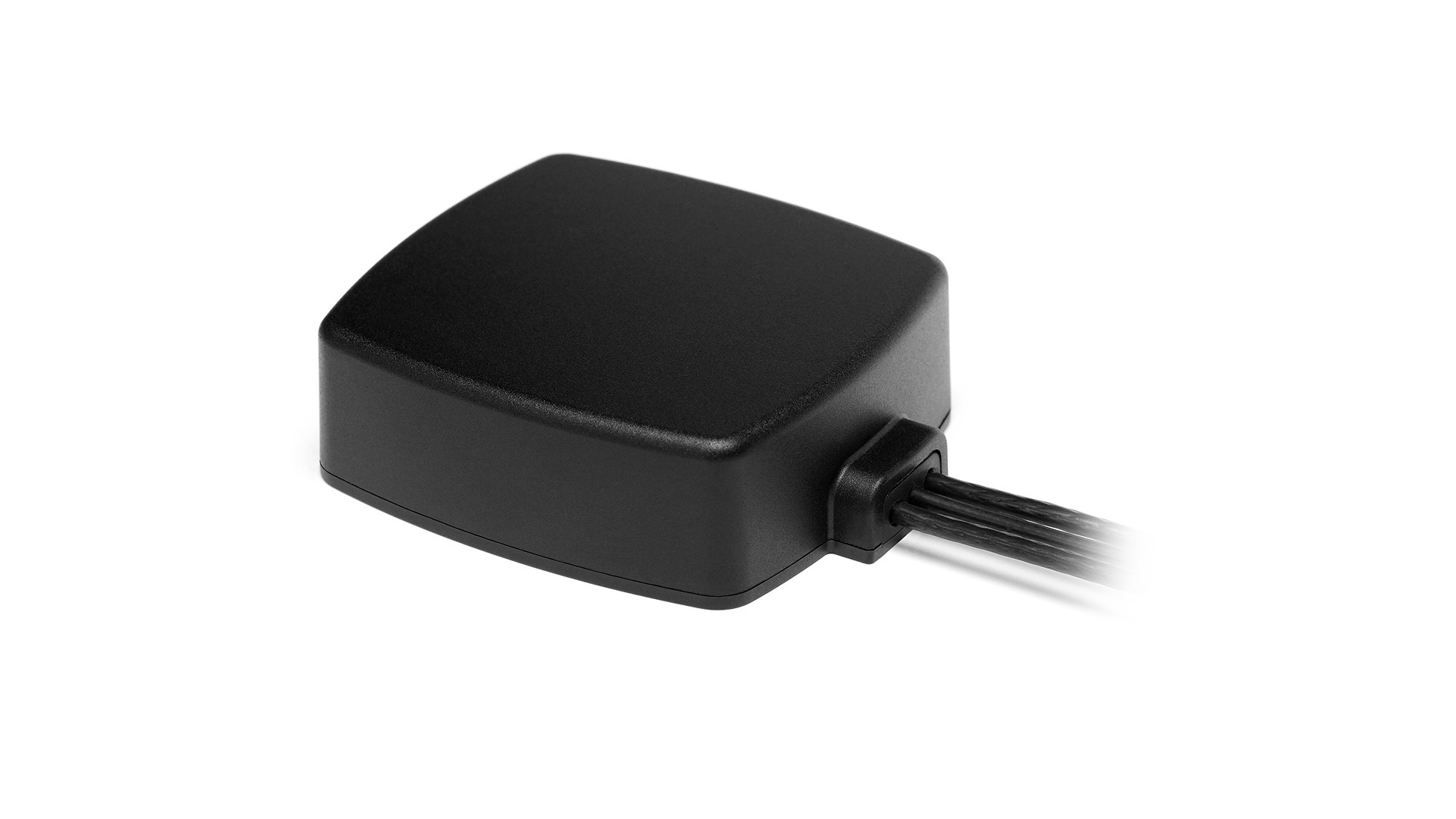

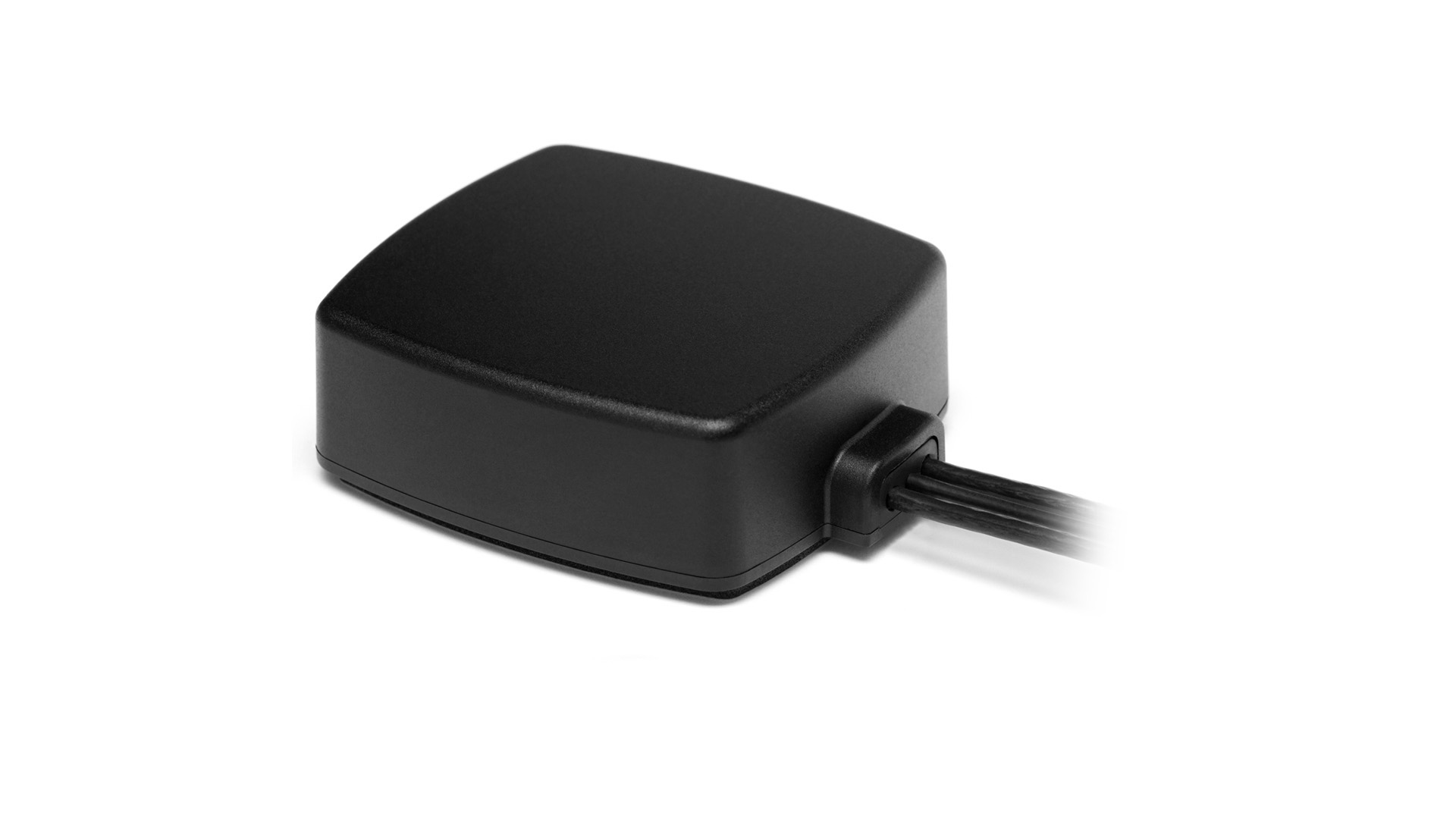

As part of our high-performance antenna portfolio, 2J Antennas is pleased to offer the 3-in-1 Magnetic/Adhesive Mount Antenna (2J6950MPGF). This antenna is designed for cellular, 2.4/5.0 GHz ISM and navigation mobile devices that require constant global connectivity across volatile terrains. This multi-application antenna caters to device applications that depend on 4G LTE, 3G, 2G, Wi-Fi, Bluetooth (BT), ZigBee, ISM, GPS, GLONASS, GZSS and Galileo networks standards all in one compact antenna housing.

The cellular 4G LTE, 3G and 2G (cable 1) ideal for device connectivity that operate within 698-960 MHz, 1710-2170 MHz and 2500-2700 MHz frequencies. Designed with a 360-degree omni-directional radiation pattern, this finely tuned antenna offers improved signal strength, lightning fast voice/data throughput and uninterrupted connectivity for short and long-range indoor or outdoor cellular applications.

The 2.4/5.0 GHz ISM (cable 2) intended for use with Wi-Fi, Bluetooth-BT, ZigBee, and ISM standards and caters to wireless devices that operate within 2410-2490 MHz and 4920-5925 MHz frequencies. This cable is tuned and designed for reliable M2M connection ideal for low power Wi-Fi, Bluetooth-BT, smart home, commercial automation, smart metering, and a wide range of consumer device applications.

The GPS/GLONASS Antenna (cable 3) is designed for reliable navigational connectivity within GPS, GLONASS, GZSS and Galileo standards. With a hemispherical radiation pattern, the GPS cable caters to navigational devices that operate within 1575-1606 MHz frequencies. This high-quality antenna offers access to multiple satellites simultaneously improving accuracy, redundancy, and uninterrupted availability ideal for global commercial and consumer geo navigational applications in busy urban areas where building obstructions can cause interference in connectivity and result in signal degradation.


Suggested applications include:

- HD Voice and Data
- Asset Tracking/ RFID
- Automotive/ Transportation Navigation
- Smart Metering
- Residential/ Commercial Automation



Installation and Durability

The multi-cabled 2J6950MPGF comes with a Magnetic/Adhesive mount making antenna installation easy and secure to any free space without the need for grounding.

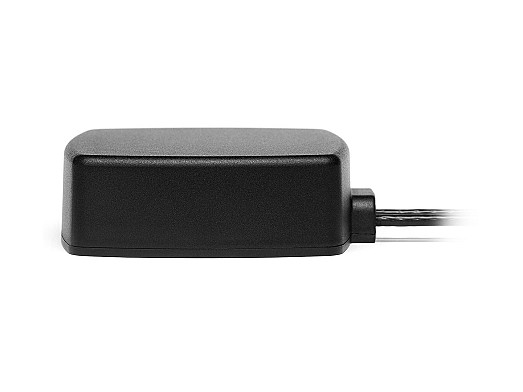

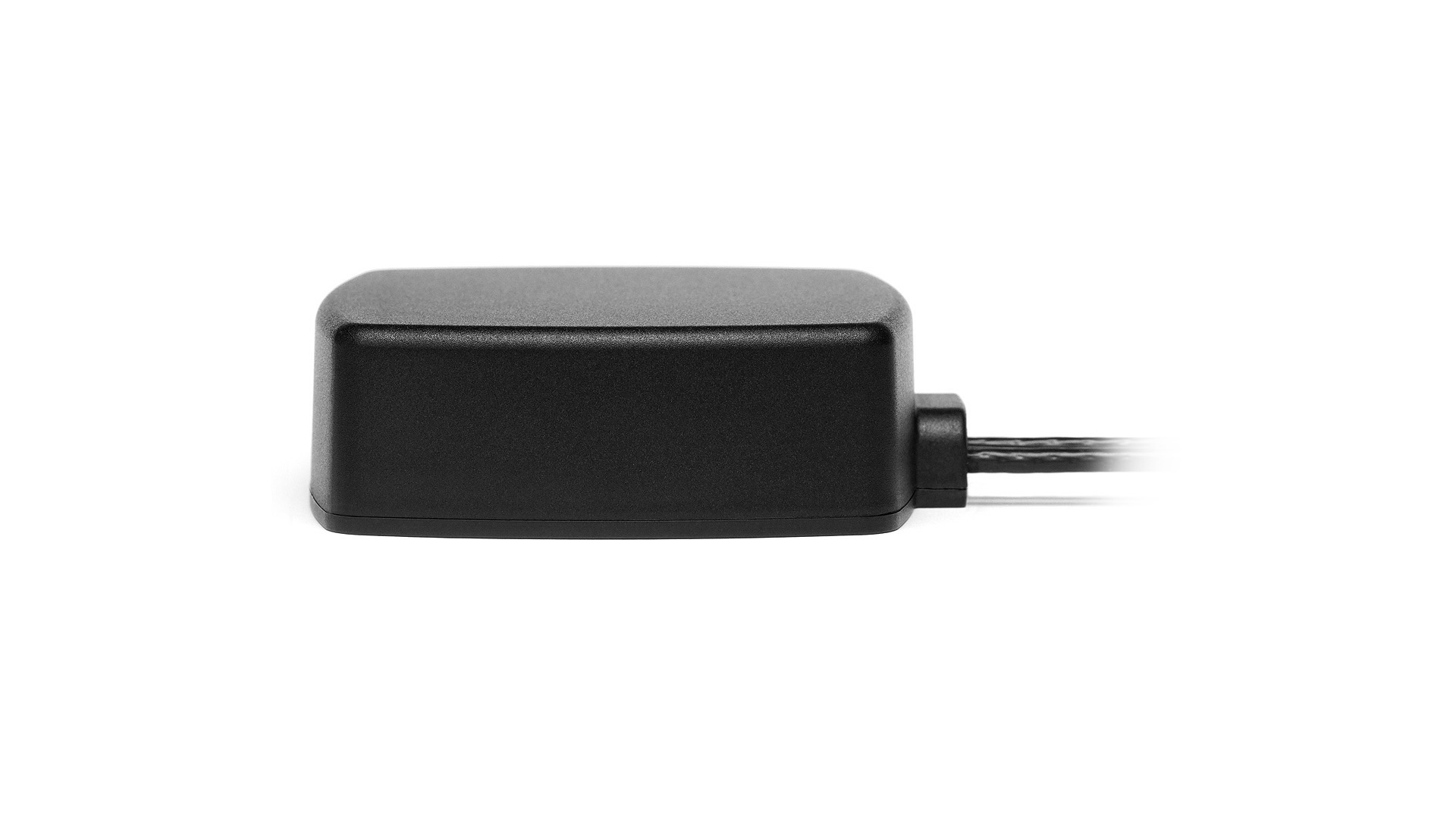

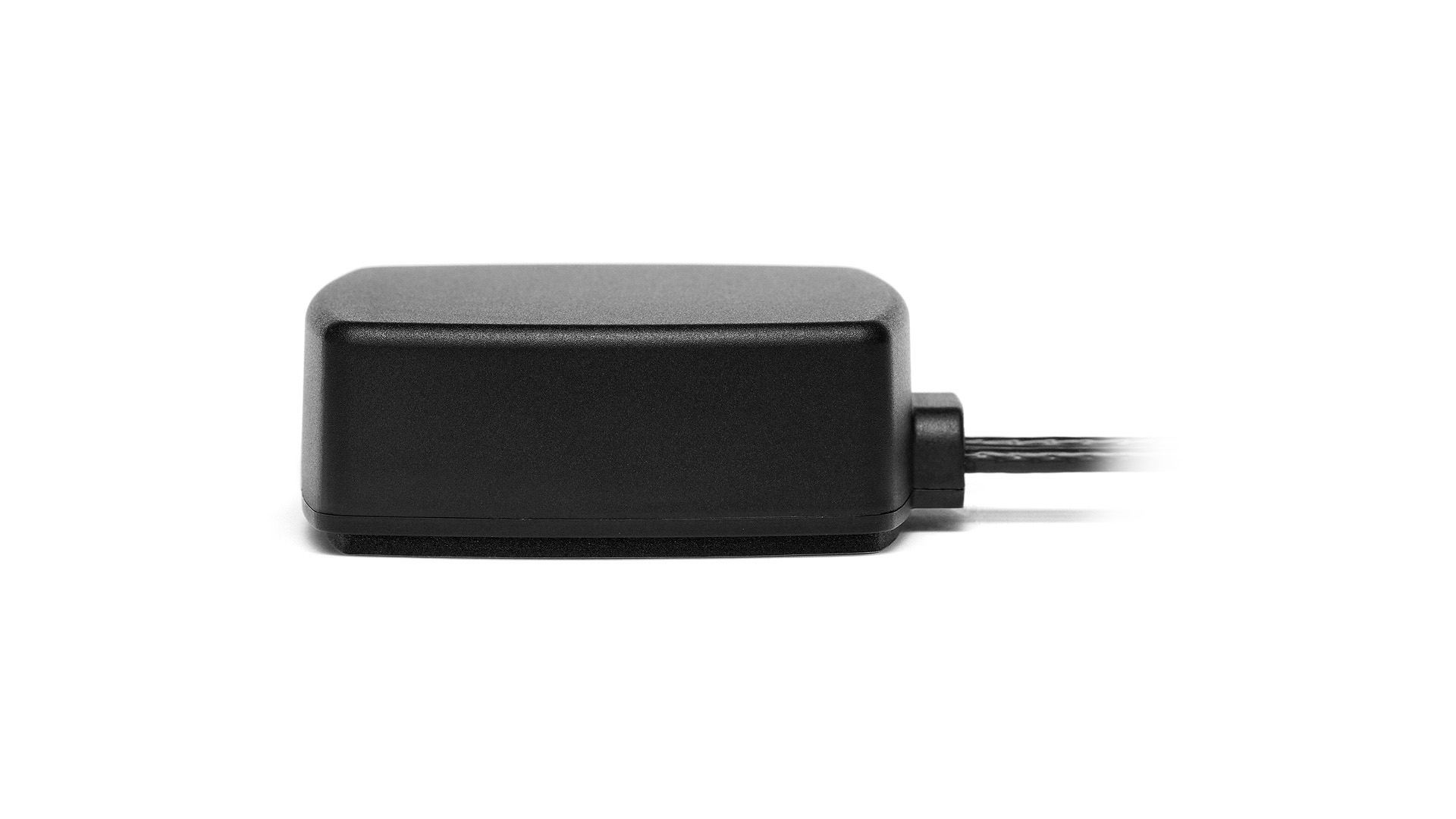

Designed with low-profile box shape housing measuring 89 × 76 × 27/30 mm and manufactured with the most durable IP67/IP69 rated ASA UV stable material offers the antenna protection against dust, sand, and water intrusion making it ideal for temporar or permanent installation in harsh environments. Recommended operating and storage temperatures are between -40C to +85C.

Cables come with standard SMA-Male connector and 300cm long D302 (Cellular & 2.4/5.0 GHz ISM) cables and RP-SMA-Male connector and D100 (GNSS Navigation) cable for superior antenna performance. In addition, we offer a wide range of alternative connectors and cables to help our customers optimize antenna performance for any customization needs. Please contact our experts for any requests or assistance with your antenna selection needs.

To focus on global environmental issues and health, all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
