Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Ground Plane Independent
  • Customizable Cable and Connector

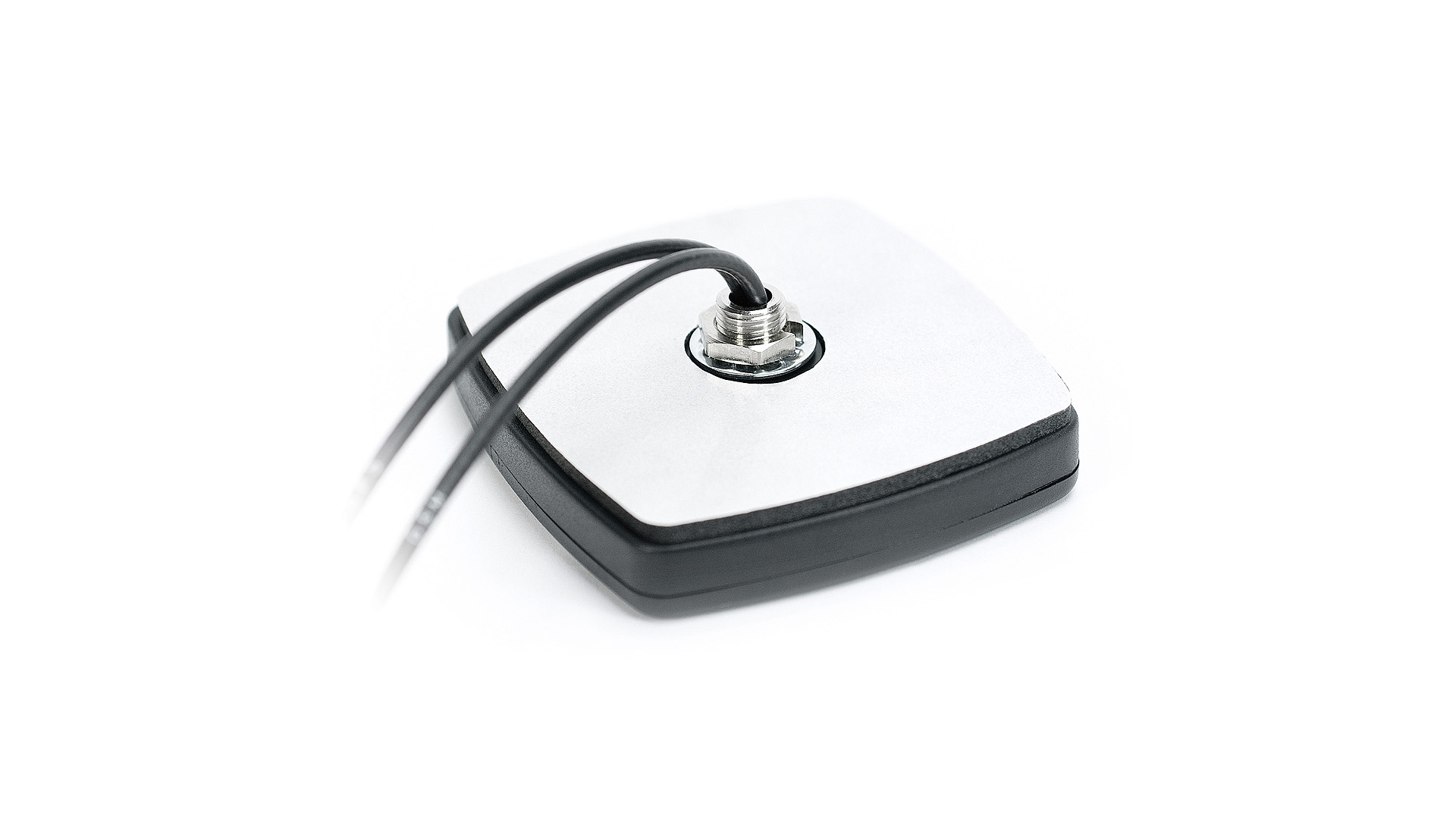

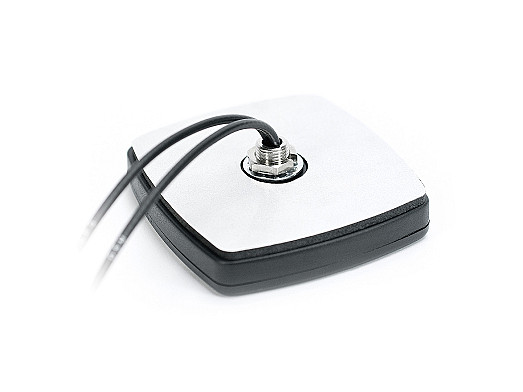

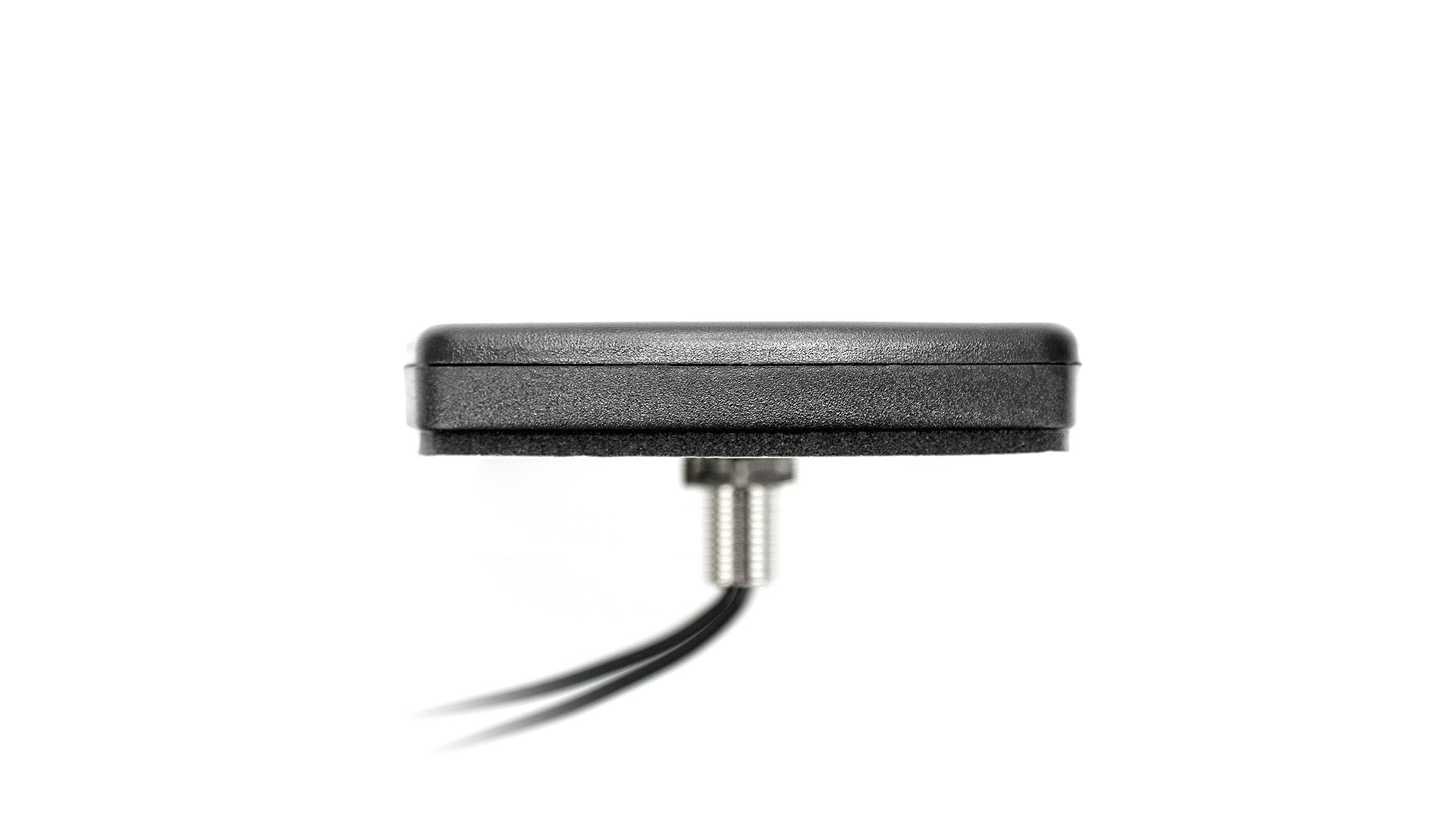

  • Screw Mount
  • Certificates: IP67
  • Applications

    Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.6:1, ~1.8:1, ~2.9:1
    Efficiency (%) ~40.7, ~47.5, ~18.3
    Peak Gain (dBi) ~1.8, ~5.0, ~-0,1
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1610
    VSWR <=1.4:1
    50
    Polarisation RHCP
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 – 3.6
    Current (mA) 9 Typ
    Power Consumption (mW) 24.3 Typ
