Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.9:1, ~1.9:1, ~1.3:1
Efficiency (%) ~36, ~41, ~53
Peak Gain (dBi) ~0.2, ~3.8, ~6.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.8:1, ~2.1:1, ~1.4:1
Efficiency (%) ~35, ~42, ~53
Peak Gain (dBi) ~-0.1, ~3.2, ~5.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.9:1, ~2.0:1, ~1.4:1
Efficiency (%) ~35, ~40, ~53
Peak Gain (dBi) ~-0.5, ~3.1, ~5.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.8:1, ~2.1:1, ~1.4:1
Efficiency (%) ~36, ~42, ~54
Peak Gain (dBi) ~-0.7, ~3.0, ~4.8
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 5

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137.5
Out of Band Rejection (dB) 32

Key Features

5-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
6.0 dBi 4G LTE Peak Gain
High Performance
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Anti-Rotation Mounting
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Bringing Four-Way Cellular Superiority and Precision Navigation to Global Markets

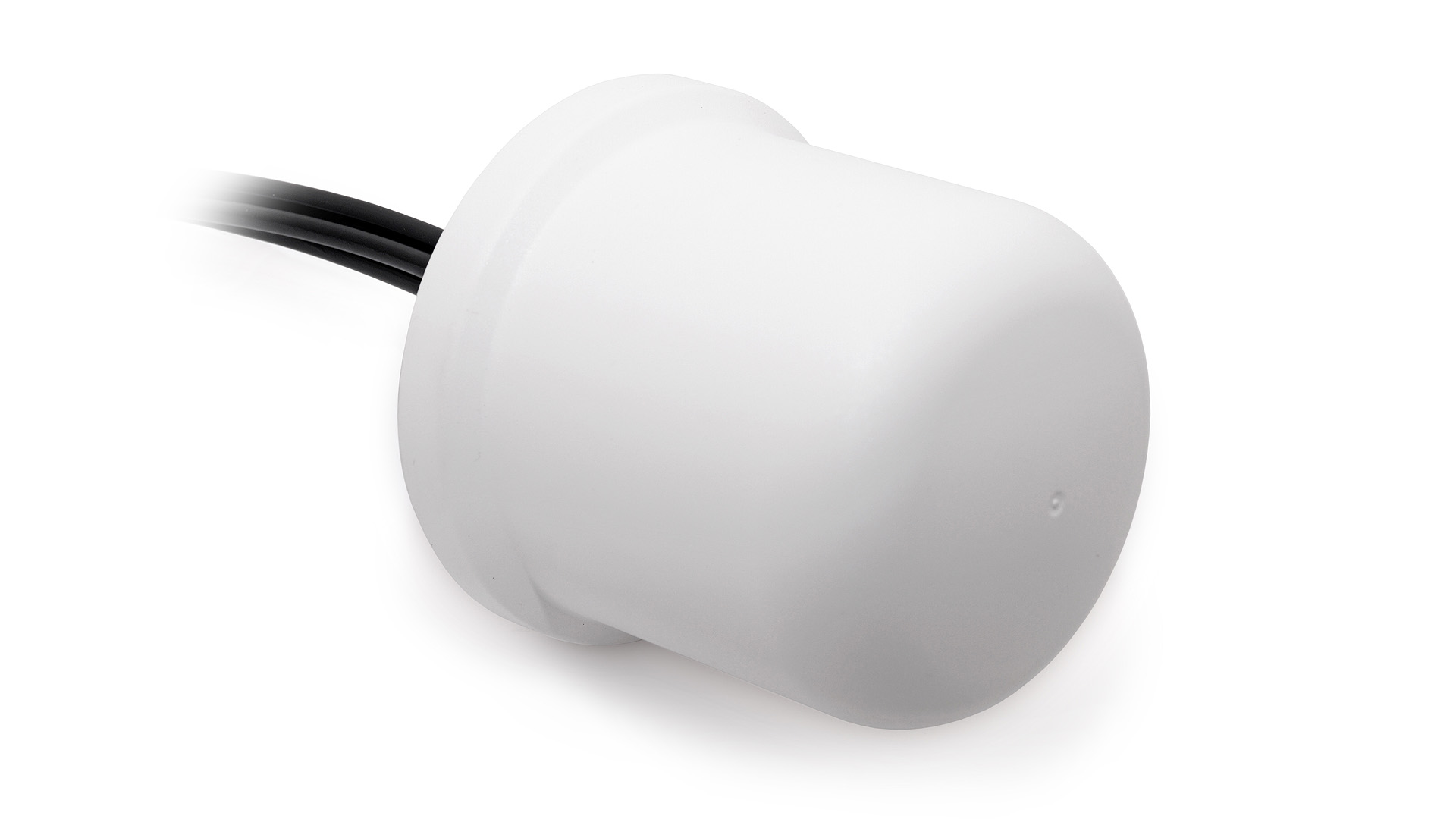

2J Antennas is expanding their “Medusa” series by adding a high-performance 5-in-1 combination antenna (2J7041BGFc) for Cellular/LTE MIMO and GNSS global navigation. This cost-effective antenna is the ideal solution for industrial, commercial, and residential applications. The well designed 2J7041BGFc operates with 698 MHz – 2700 MHz frequencies on four (4) cellular bands and 1575 MHz – 1610 MHz frequencies on a single GNSS band with a focus on high performance, reliability, high data throughput and precision.



Suggested applications include:

- Automotive/ Transportation Navigation
- Fleet Management
- Telematics
- Smart Metering
- Commercial, Industrial and Residential Automation
- Emergency Response / Public Safety

The four-way (4) Cellular/ LTE cable is tuned for high data throughput MIMO devices that operate within 4G LTE, FirstNet, LPWA, CAT-X/-MX/-NBx, NB-IoT, 3G and 2G standards. The CAT connection is backwards compatible with existing LTE networks reducing integration costs. With the power of four (4) MIMO cellular connections, this antenna has the ability to search and pair the strongest signals for continuous connectivity. With up to ~6 dBi peak gain for the LTE bands and with an efficiency of up to ~53%, this omni-directional antenna is the best choice for applications that rely on high performance.

The single cable GNSS connection is for highly accurate navigation services for devices that operate within the GPS, GLONASS, QZSS, Galileo and L1 satellite networks. This powerful active antenna is designed with a post saw pre-filter for high protection against LNA burn-out while maintaining a consistent active gain of 23 dB @ 3V and 24 dB @ 5V.

Installation / Environmental

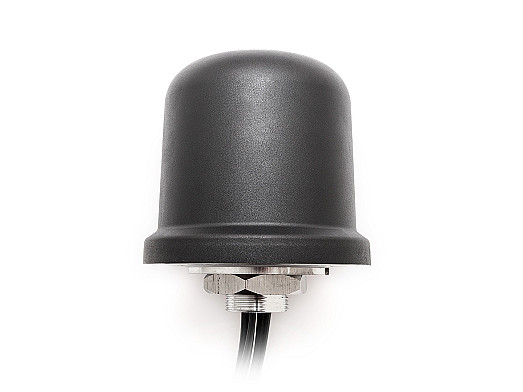

The elegantly designed dome shaped housing measures Ø 96 x H 90 mm and is available in black or white heavy duty ASA UV stable material. This antenna is fully IP67, IP69 and IK09 certified which assures full protection against water, high temperatures, dust, particles and is resistant to impact making it ideal for heavy duty outdoor applications.

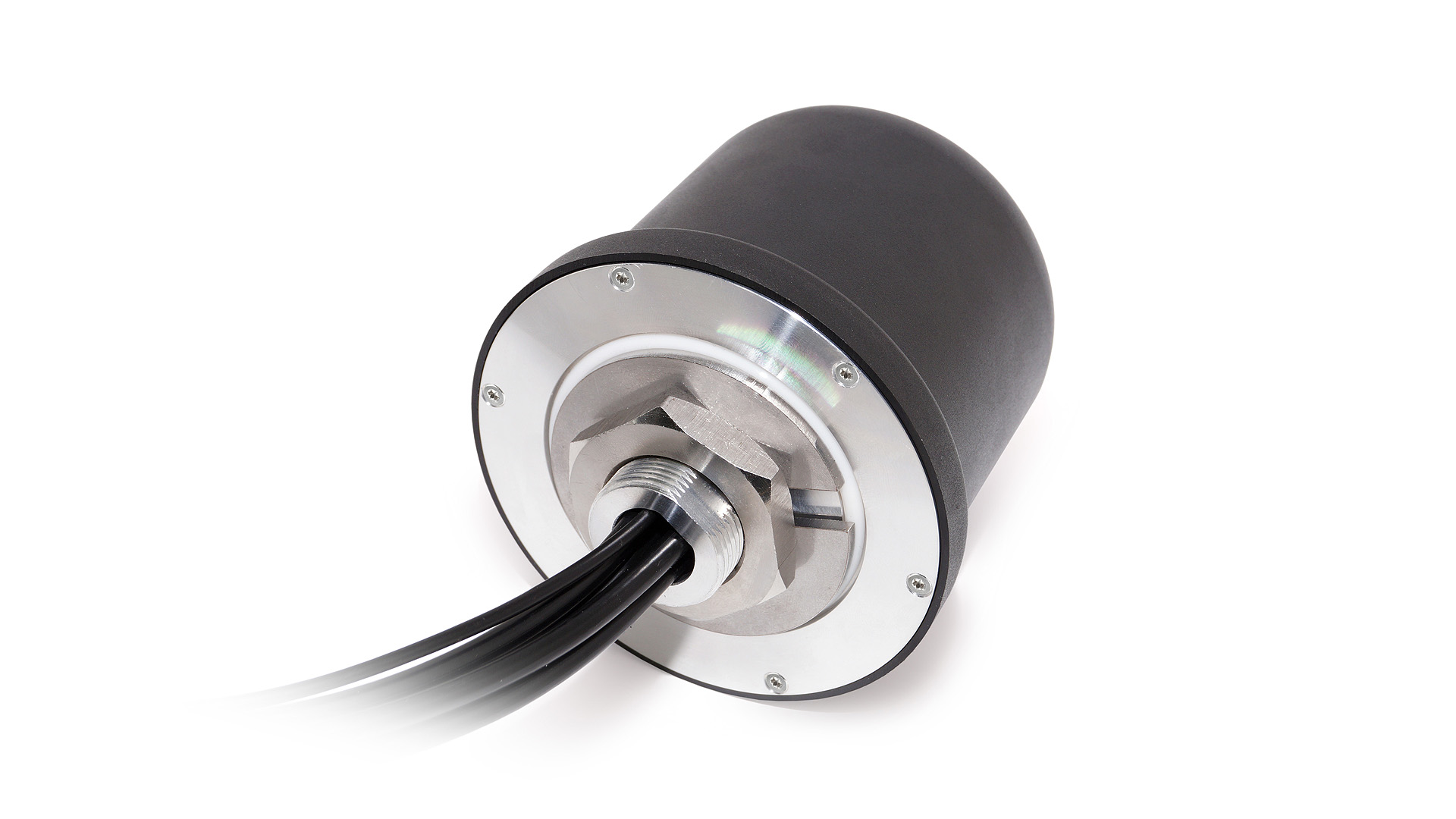

The 2J7041BGFc is tuned for optimal performance and comes with standard SMA-Male connector and with 300cm long LMR195 cables for the cellular connections and LMR100 cable for the GNSS connection. All 5 cables feed through the anti-rotation screw mounting located at the bottom center of the housing. It is important to match the right antenna with the right job and our expert engineers are available for installation support, any customization needs and antenna selection support.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
