Antenna and electrical specifications

connection 1

CELLULAR

Standards 2G and 3G
Frequency 824-960, 1710-2170
VSWR ~1.8:1, ~1.5:1
Efficiency (%) ~28.2, ~20.7
Peak Gain (dBi) ~0.4, ~2.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
Impedance (Ohm) 50
Active Gain (dB) 26 @ 3V, 28 @ 5V
Saw Filter Type No-Filter
Voltage (V) 2.7 - 5.5
Current (mA) 15 - 35
Power Consumption (mW) 40 - 138

Key Features

2-in-1 Combination Antenna
Ground Plane Independent
2.6 dBi 3G 2G Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Non-Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Low Profile

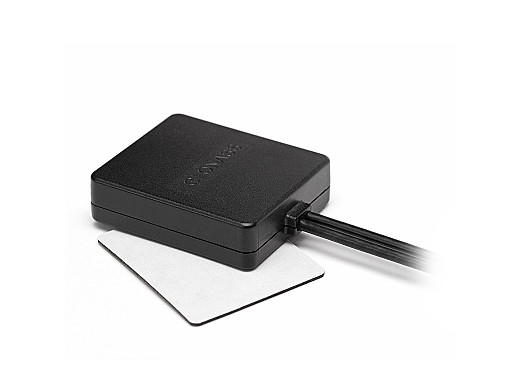

Adhesive Mounting sticker included
Customizable Cable and Connector
