Antenna and electrical specifications

connection 1

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBi) ~5.0
Efficiency (%) ~84.2
Impedance (Ohm) 50
Axial Ratio (dB) 3 max
Radiation Pattern Hemispherical
Polarization RHCP

Key Features

Iridium Certified Antenna
Internal Antenna
Ground Plane Independent
5.0 dBi IRIDIUM Peak Gain
High Performance
High Efficiency
Customizable Cable and Connector

Antenna Description

High-efficiency Next-Generation Antenna for Worldwide Satellite Voice and Data Communication Devices

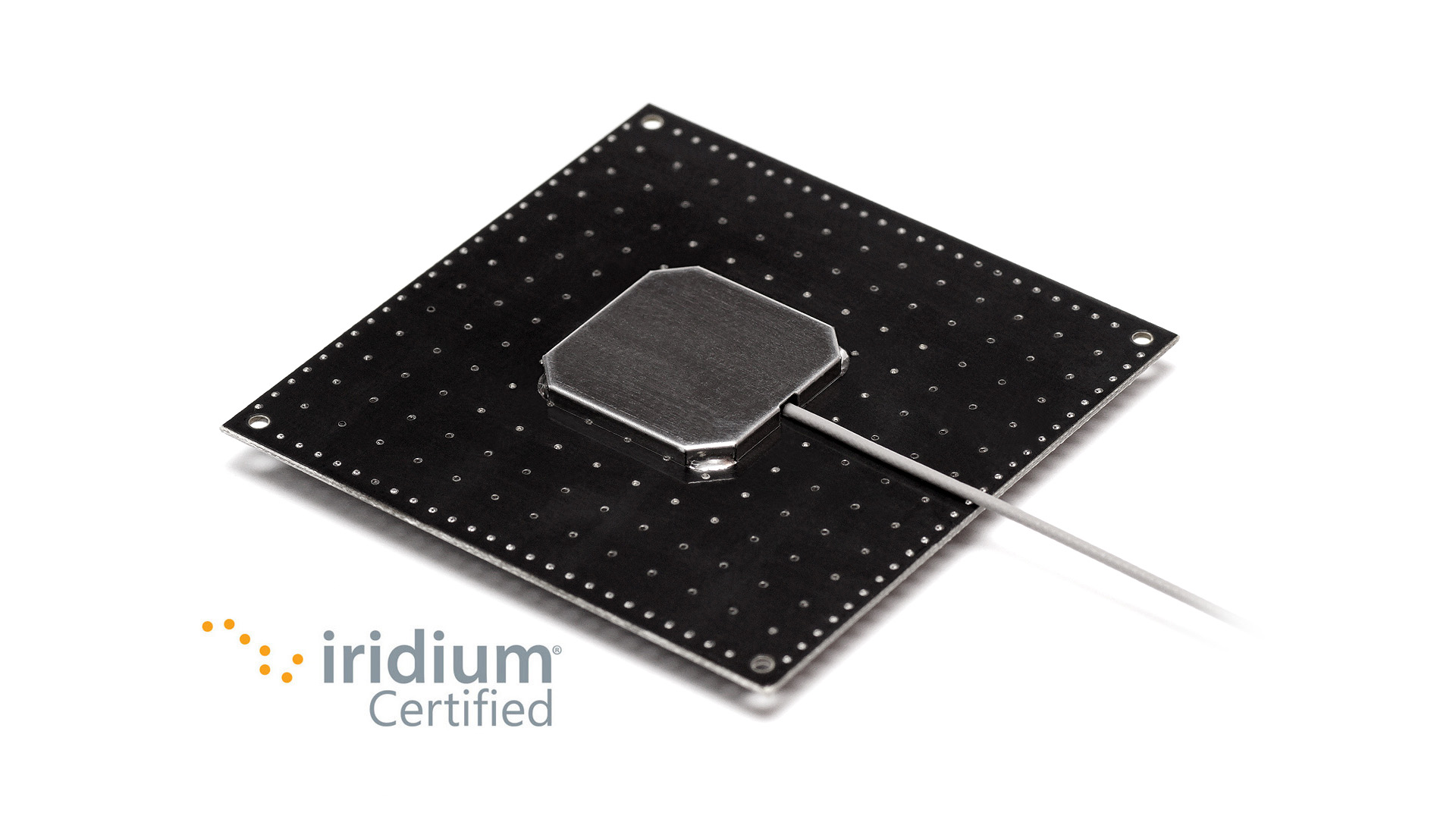

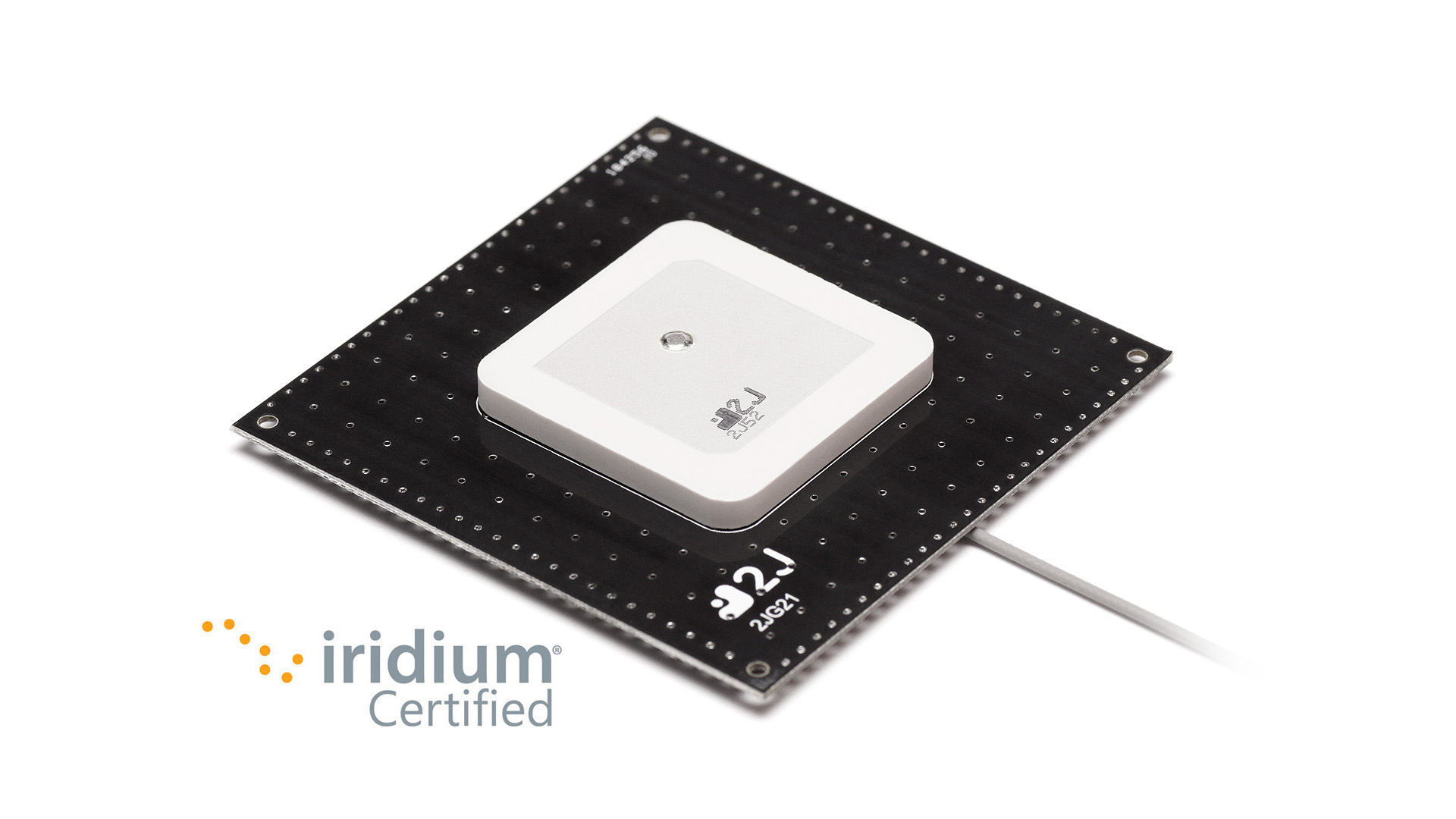

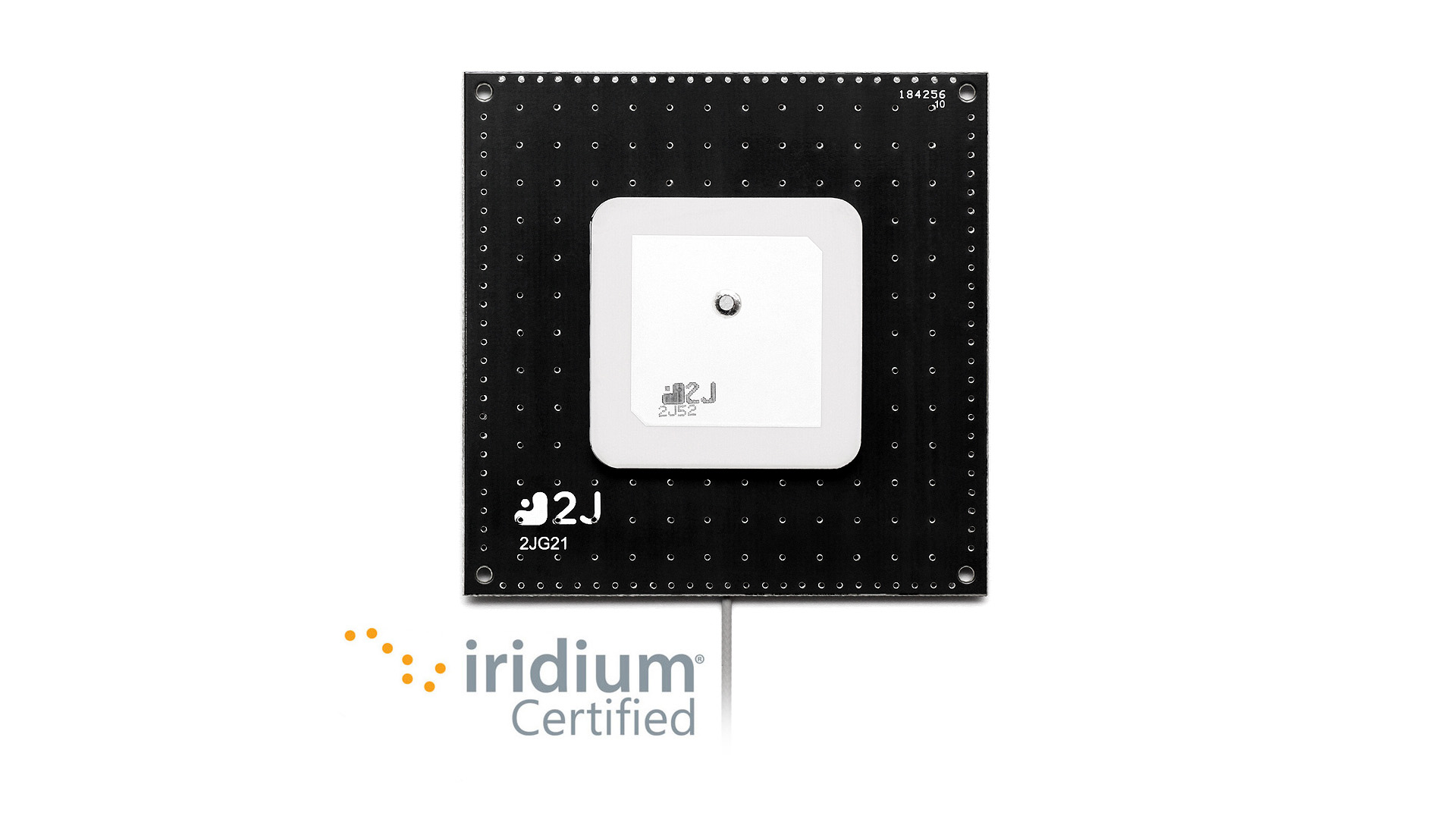

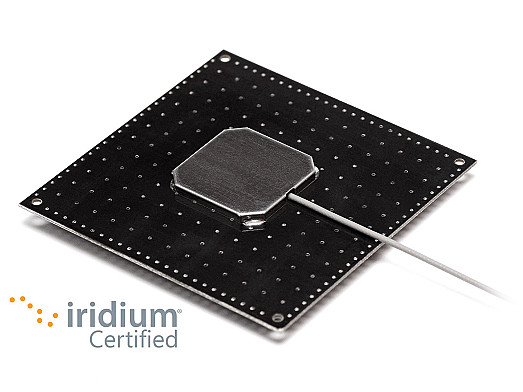

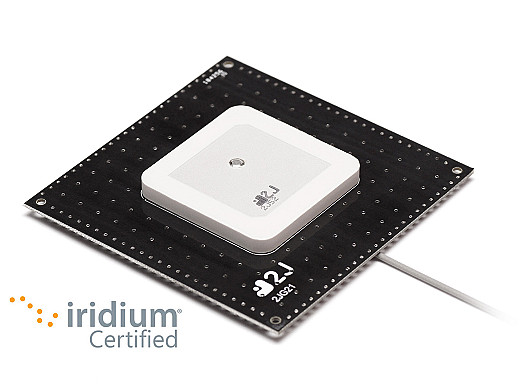

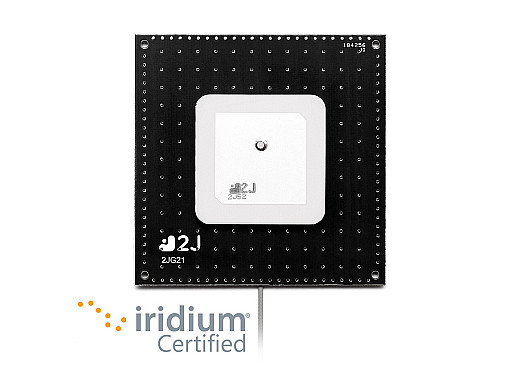

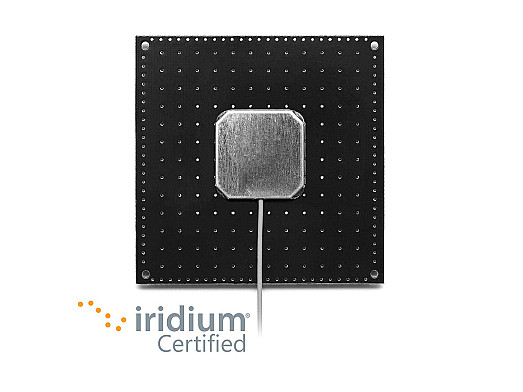

The 2JPO126B is a high-performance screw mount internal module antenna which is designed specifically to communicate efficiently with the Iridium Satellite Communication system. This embedded antenna is uniquely designed and developed to allow compatibility and optimal signal quality within 1616 MHz - 1627 MHz frequency spectrum.  This antenna gives exceptional performance by maintaining a ~84% efficiency while operating with an iridium peak gain of ~5 dBi. With right-hand circular polarization (RHCP), 2JPO126B rejects multi-path interference and optimizes signal strength.

Suggested applications include:

  • Commercial/ Residential
  • Emergency Communications
  • Voice & Data Satellite Communications
  • Automotive/Transportation
  • Satellite-based telecommunications
  • Navigation
  • Asset tracking

Installation / Environmental

This ground plane independent passive antenna is recommended for PCB device integration that requires a short distance between receiver and antenna. The 2JPO126B comes with a standard U. FL connector, a 100 mm long 1.37 Mini-Coax cable, and a screw mount that offers a secure installation to a wide range of surfaces. With low-profile dimensions (70 x 70 x 7.3 mm) this antenna comes with a selection of customized extension cable lengths and connector types. This antenna is manufactured without any hazardous materials while maintaining full REACH and RoHS compliance.
