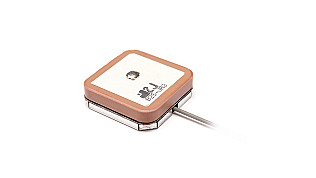

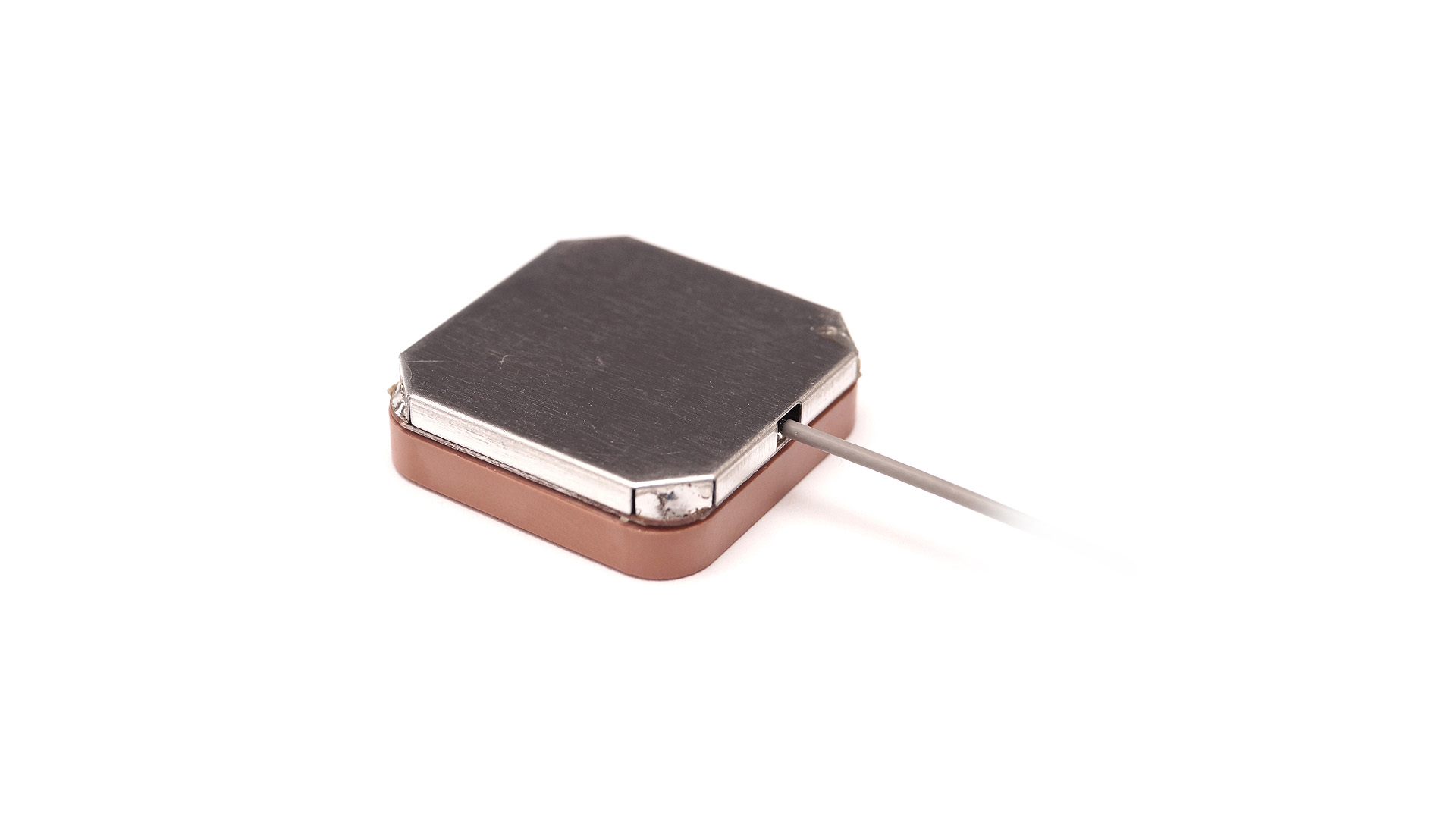

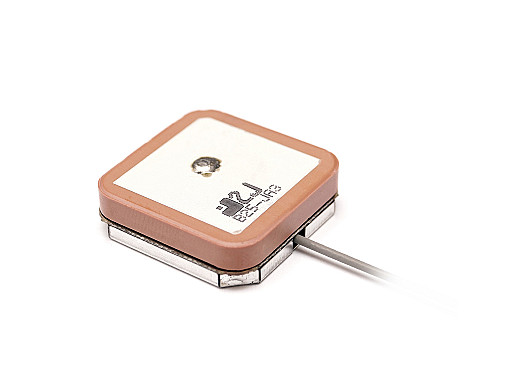

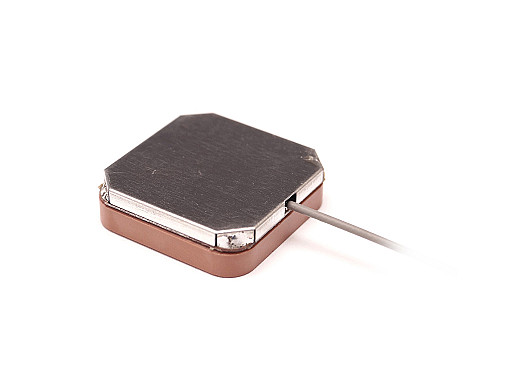

2JM0701F Antenna

GPS/Galileo 1575 MHz 28 dB Gain Low Power Consumption Antenna

General specification
Frequency GPS/Galileo
Mounting Snap-in Mount Module
Dimensions (mm) 25 x 25 x 7.6
Operating temperature -40 °C to +85 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • GPS/QZSS/Galileo
  • Pre-Filter
  • 28 dB Gain
  • Low Noise Figure
  • Low Power Consumption
  • 25 × 25 × 7.6 mm
  • Antenna and electrical specifications

    connection 1

    GPS - Ceramic Active Antenna

    Standards GPS/QZSS/Galileo
    Frequency 1575.42
    Passive Gain (dBi) ~3.6
    Impendance (Ohm) 50
    Voltage Range (V) 1.5 - 3.6
    Active Gain (dB) 28 @ 2.7 V
    Noise Figure (dB) 1.8 @ 2.7 V
    Current Consumption (mA) 9 @ 2.7 V
    Power Consumption (mW) 24.3 @ 2.7 V
    Saw Filter Type Pre-Filter
    Out of Band Rejection (dB) 43
    ESD Protection (kV) 6
