Antenna and electrical specifications

connection 1

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.3:1, ~3.1:1, ~3.8:1
Efficiency (%) ~58.7, ~33, ~34.1
Peak Gain (dBi) ~2.0, ~1.0, ~2.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Monopole Antenna
WIFI 6E / WIFI 7 Antenna
Ground Plane Dependent
2.0 dBi WIFI Peak Gain
High Throughputs
Low Latency
Small Form Factor
Hinged Connector
Fakra I-Beige Female connector

Antenna Description

The World’s Smallest Monopole WIFI 6E / WIFI 7 Antenna With Exceptional Throughput and Fakra Hinged Connector

With this one of its kind, small form factor connector mount monopole antenna, 2J Antennas is stepping into the world of next-generation 2.4/5.0/6.0 WiFi, and WIFI 6E / WIFI 7 antennas. WIFI 6E / WIFI 7 antennas are the future of wireless applications for both residential and commercial applications. The 2JW1002-FKI antenna is an ideal solution for low power consumption applications that need higher data rates making it the ideal choice for internet gigabit-speed applications.  It provides extremely low latency preferred for applications like gaming, virtual reality, and IoT that require minimum transmission delays.

The 2JW1002-FKI caters to 2.4/5.0/6.0 WiFi, WIFI 6E / WIFI 7, Bluetooth, ZigBee, ISM, Sigfox, and LoRa standards as well as being backward compatible and delivering exceptional signal quality to mobile devices operating within 2410-2490 and 4920-7125 MHz frequencies. This power-efficient antenna provides high efficiency for exceptional antenna performance throughout its operating bands. With optimal performance, it provides uninterrupted signal strengths and high bandwidths where desired, even amongst obstacles. The antenna offers efficiencies of up to 58.7%, depending on the band used. This linear polarization antenna with the omnidirectional radiation pattern solution offers 2.0 dBi WiFi peak gain. These features make it ideal in rejecting multipath fading and interference, thus improving the signal strength.

Suggested applications include:

  • Automotive
  • IoT devices
  • Commercial and residential automation
  • Consumer electronics
  • Mobile and computing devices
  • Gaming
  • Augmented reality
  • Virtual reality
  • Industrial, scientific and medical devices

Installation / Environmental

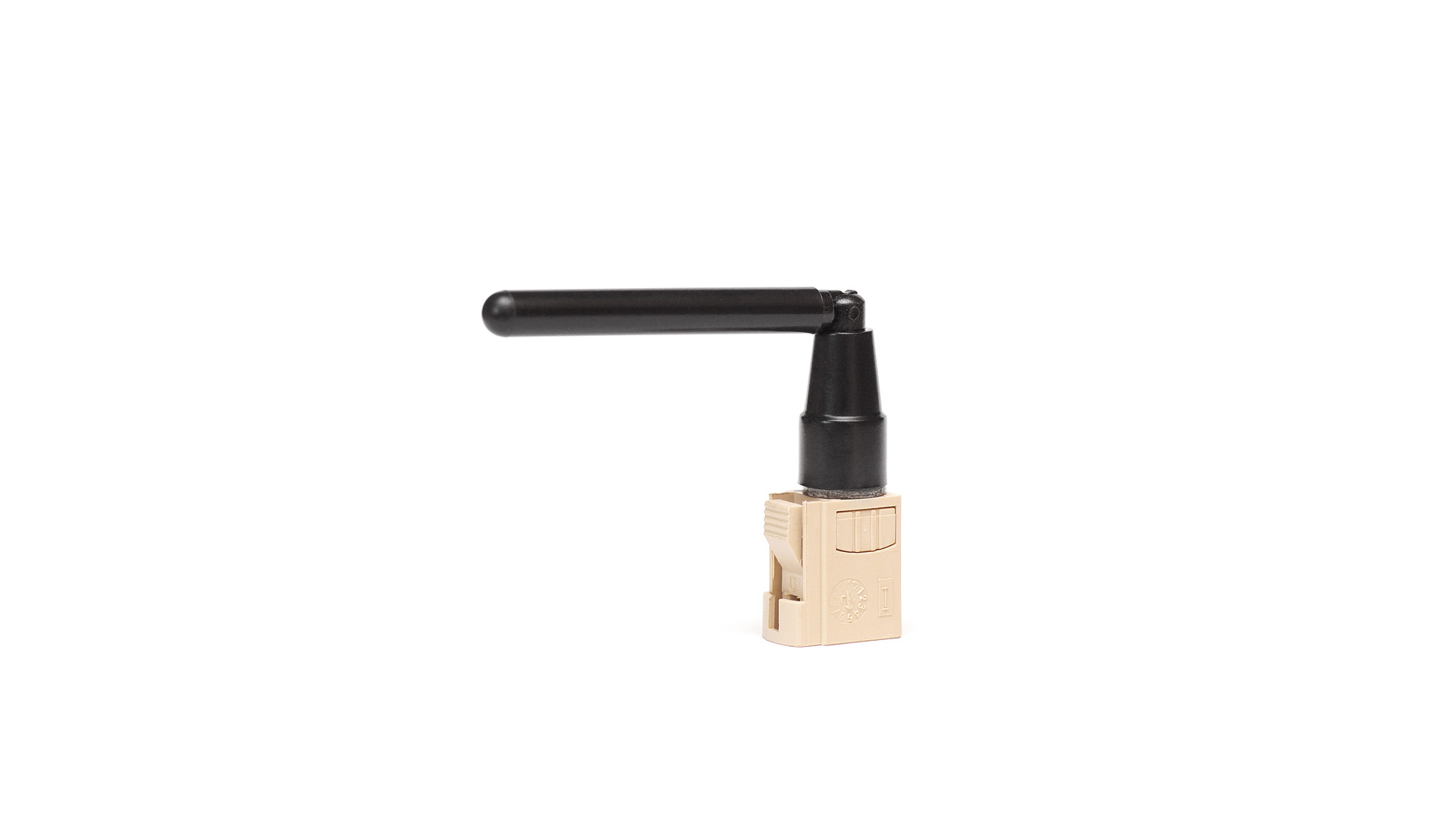

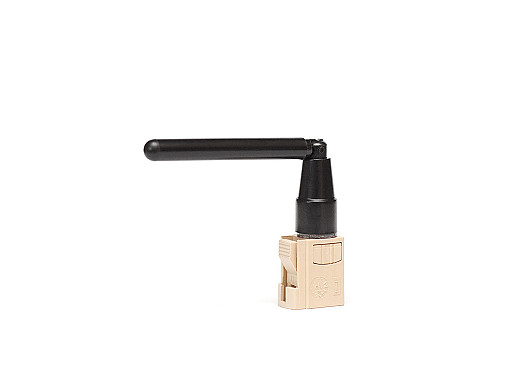

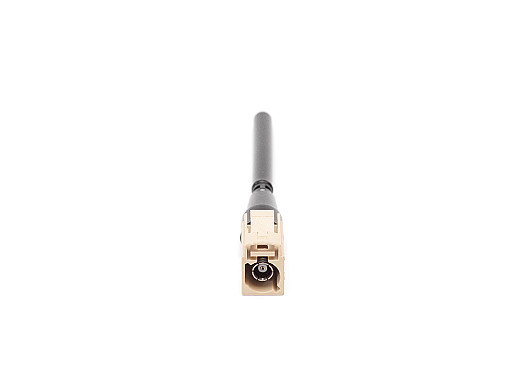

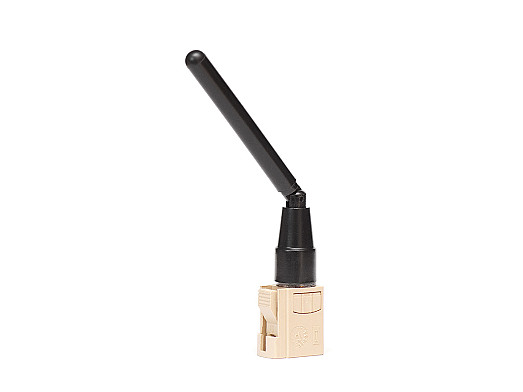

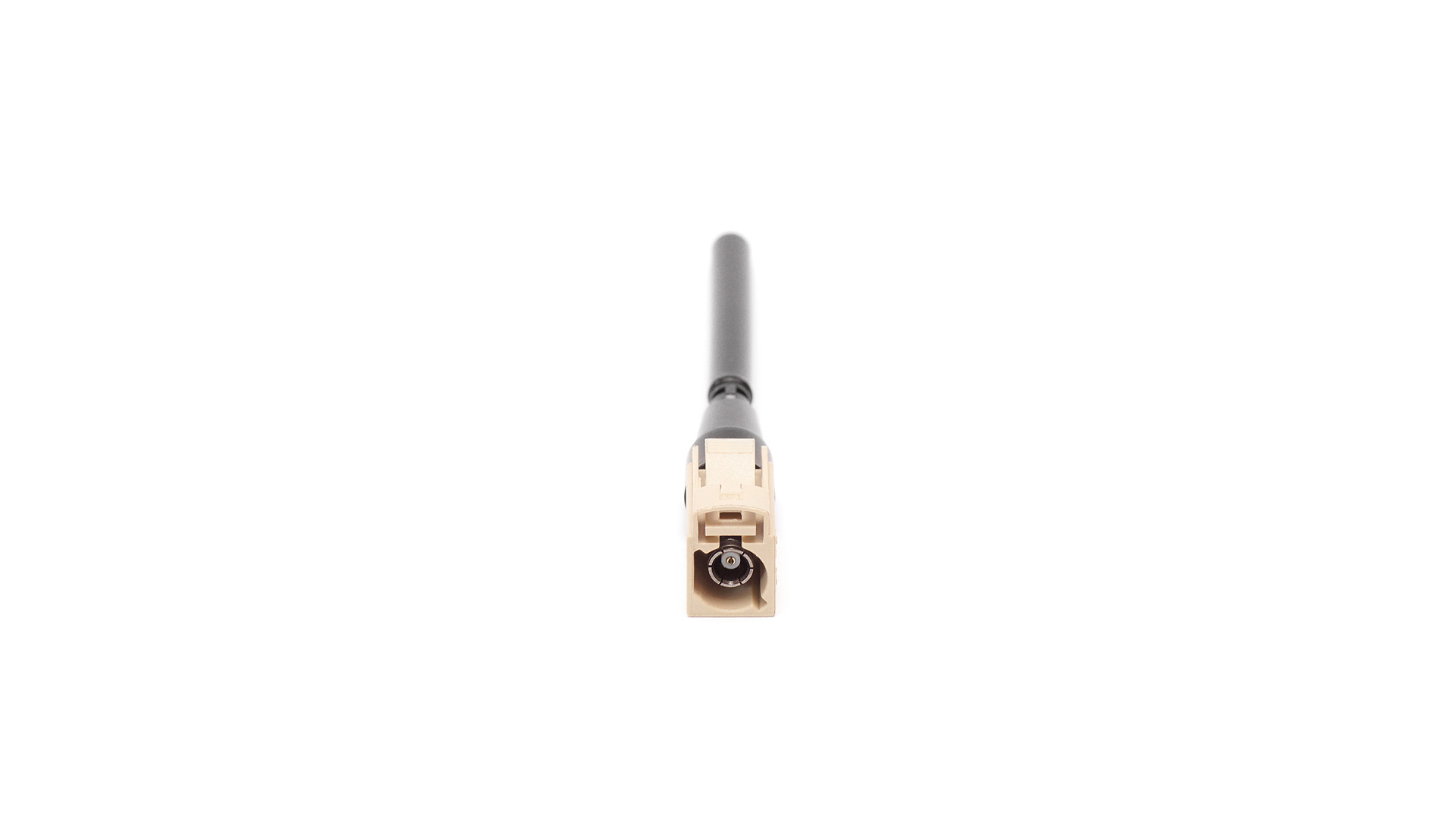

The 2JW1002-FKI is designed with a hinged Fakra-I-Beige-Female connector mount. Fakra connectors are the leading choice for automotive applications due to their resistance to vibration and secure and effortless latch and click mechanism. With a low profile dimension of 81 × 14 × 10 mm, this ground plane-dependent antenna has a super small form factor. This unique rotatable hinge design enables the user to rotate the antenna to a position range of 0-90° tilt angle to optimize signal reception into the desired orientation to avoid other antennas or objects. This mechanism also helps improve isolation when used in MIMO systems or when other antennas are in the vicinity. This further optimizes the antenna to a full omni-directional radiation pattern. This antenna comes with a polyoxymethylene (POM) base, which is 100% recyclable and is designed for high stiffness with a low coefficient of friction, excellent wear resistance, and dimensional stability. Made with stable material that has a strong resistance to corrosive chemicals and/or physical impacts, this antenna is extremely durable in temperatures ranging between -40C and +85C. This antenna is designed without any hazardous materials making it fully REACH and RoHS compliant.
