Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%) ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi) ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%) ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi) ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35

Key Features

2-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
4.0 dBi 5G NR Peak Gain
High Performance
Antenna Bracket included
Waterproof Antenna
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

Unleash the Power of 5GNR with this Sleek & Sturdy Wall-Mount Antenna

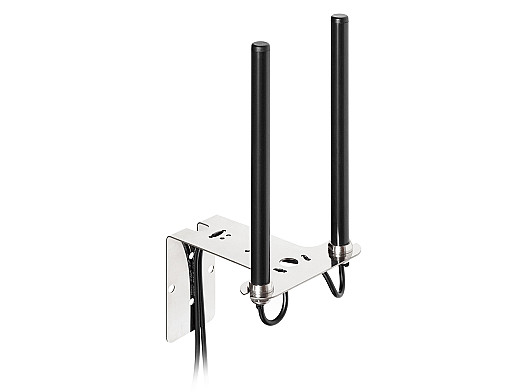

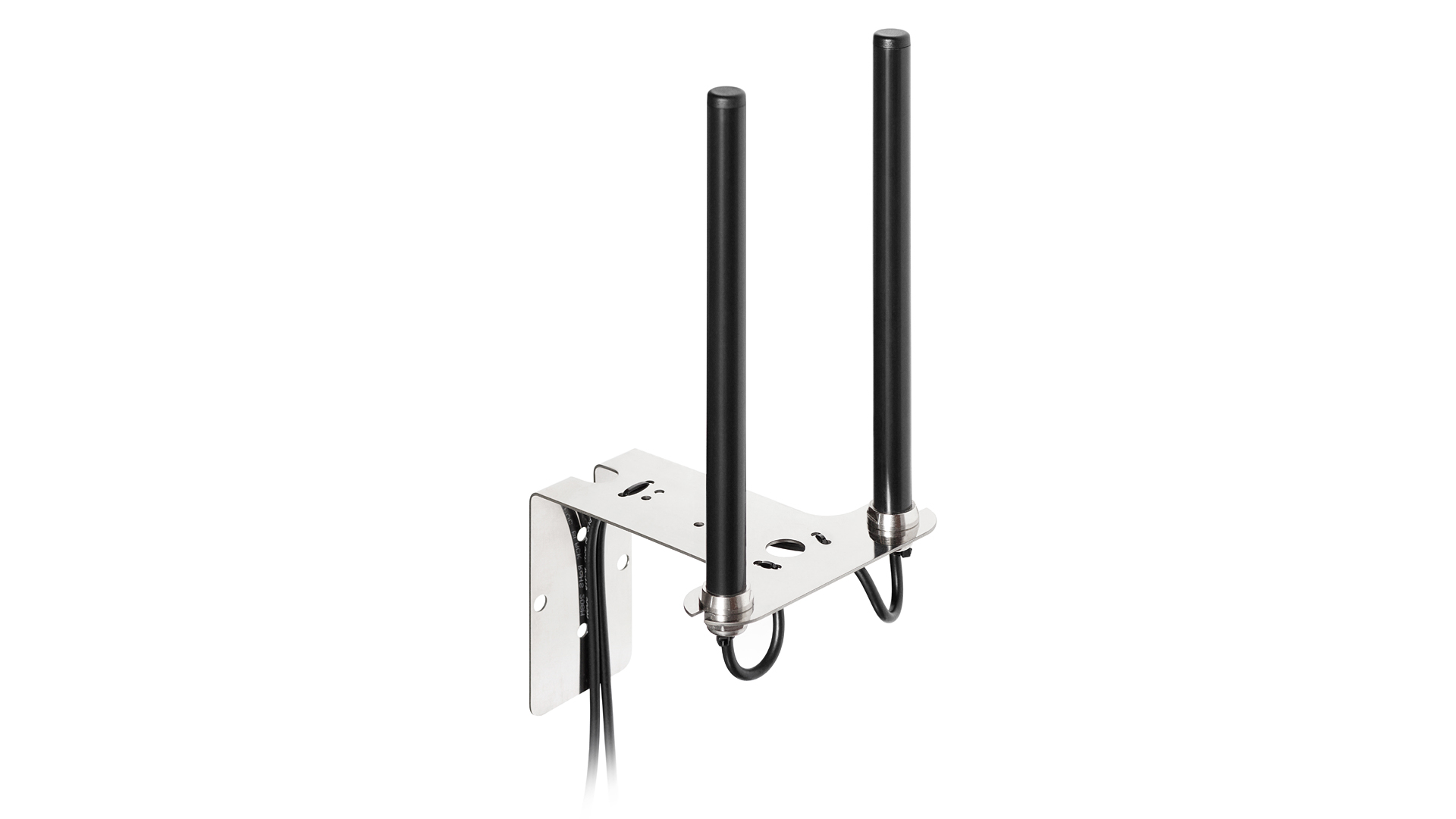

Introducing the 2J2183Ba-B17H, a high-performance wall-mounted antenna designed for 5GNR and 4G LTE bands, as well as 3G and 2G cellular networks. The 2J2183Ba-B17H is a high-performance, wall-mount, ground plane independent antenna, allowing for versatile deployment options in various environments.

Cables 1 and 2 support 5 GNR and cover frequency ranges of 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, and 5150-5925 MHz.

This antenna has a peak gain of up to 4 dBi and it operates on a linear polarization with an omni-directional radiation pattern. It has an efficiency of about 66.6%, ensuring a reliable and consistent signal reception.

Suggested applications include:

The 5GNR antenna is suitable for various applications that require high-speed data transmission, low latency, and reliable connectivity in the 5G network. Some of the common applications of the 5GNR antenna include:

  • Smart Cities: IoT devices, autonomous vehicles, and other applications that require high-speed connectivity.
  • Industrial Automation: real-time monitoring, control, and automation of manufacturing processes.
  • Entertainment: online gaming, virtual reality, and live streaming of high-definition content.
  • Transportation: connected cars, intelligent transportation systems, and smart traffic management.
  • Public Safety: smart surveillance, emergency response, and disaster management, providing reliable and real-time communication for first responders.

Installation / Environmental

The antenna is designed for wall-mounting and features a high-performance, ground plane independent design, making it ideal for applications where space is limited or where a traditional ground plane is not available. Its customized cable and connector options provide flexibility for integration with various devices and systems. Additionally, the antenna is certified to IP67 standards, ensuring its durability and suitability for use in harsh outdoor environments.

The standard cable length is 300 cm, with other lengths available upon request. The standard cable type is LL195, with other cable options also available. The antenna is compatible with most RF connectors, with SMA-Male as the standard connector type.

The 2J2183Ba-B17H antenna measures 325 × 135.5 × 155 mm (220 × Ø 16 mm) and can operate in a temperature range of -40 to +85 degrees Celsius and is RoHS compliant.
