Antenna and electrical specifications

connection 1

915 MHz ISM

Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 902-928
VSWR ~1.9:1
Peak Gain (dBi) ~2.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 1

Key Features

SMT Monopole Embedded Antenna
Ground Plane Dependent
2.0 dBi 915 MHz ISM Peak Gain
Fiberglass Material
Compact Size
Easy to Integrate

Applications

Antenna description

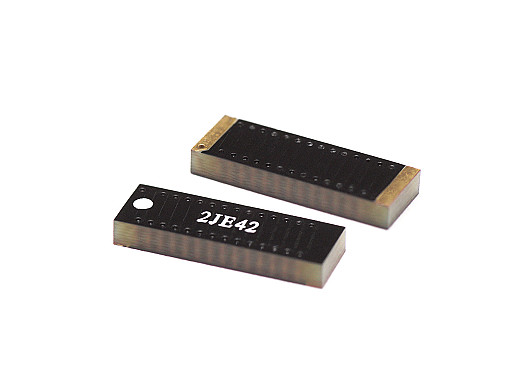

2JE42

915 MHz ISM Surface Mount Compact Fiberglass Antenna

Offering product to product connectivity where high performance, reliability and efficiency is a priority

The 915 MHz ISM Surface Mount Antenna (2JE42) offers reliable, interoperable, uninterrupted wireless connections without compromising performance. This low power and compact 2JE42 is designed with ZigBee, ISM, SigFox and LoRa standards. With omni-directional radiation pattern, the 2JE42 operates within 902 MHz - 928 MHz frequencies suitable for the Americas (ITU Region 2). The high-performance 2JE42 is the perfect choice for short-range wireless transmissions and automation devices found in the home, office, manufacturing, industrial, science and medical (ISM) applications as well as automotive industries where a product to product connection without interruptions is a priority.

Installation / Environmental

The 2JE42 is ground plane dependent with a required minimum integration area of 15mm x 15mm allowing for seamless installation where space is limited. The quality fiberglass design offers the 2JE42 durability and can withstand temperatures between -40C and +85C. The 2JE42 is RoHS compliant and delivered on tape and reel for efficient automated manufacturing.



Typical applications

- Short-range Wireless Audio/ Video
- Remote Controls
- Smart Metering
- Sensing Equipment
- Industrial, Science and Medical (ISM)
- Asset Tracking RFID
- Manufacturing / Distribution
- Home/ Office Automation devices
- Automotive
