Key Features

  • Ground Plane Independent
  • High Gain
  • Thru-Hole Mount
  • GPS/GLONASS/BeiDou/QZSS/Galileo
  • Development Kit for GNSS

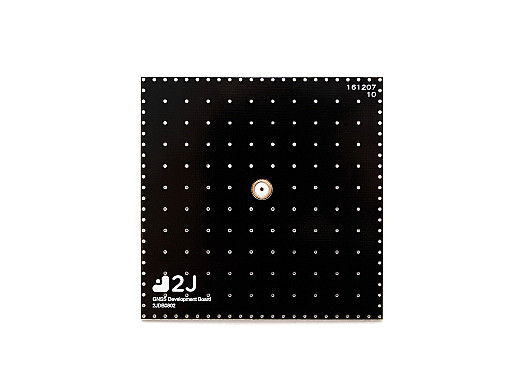

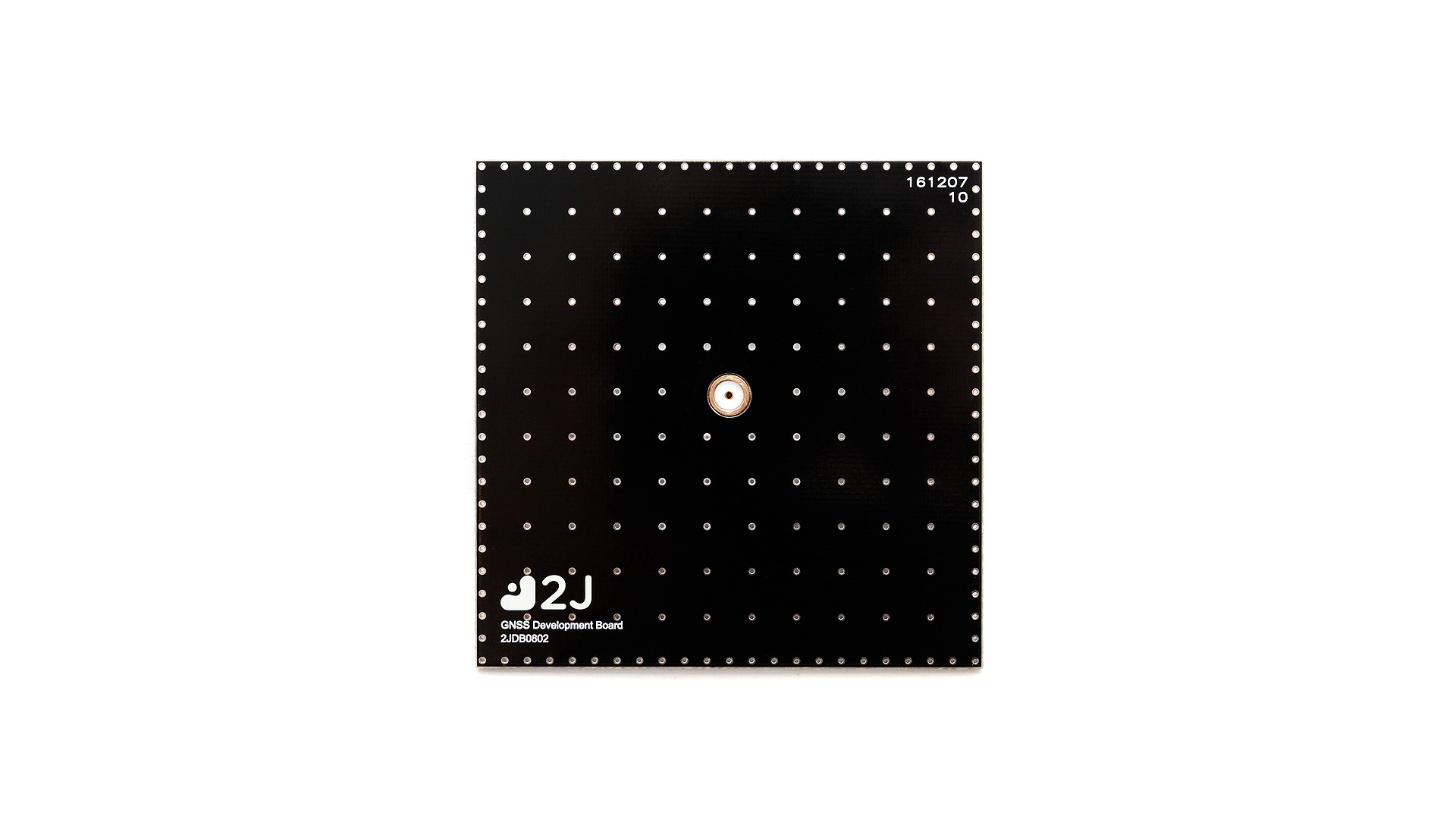

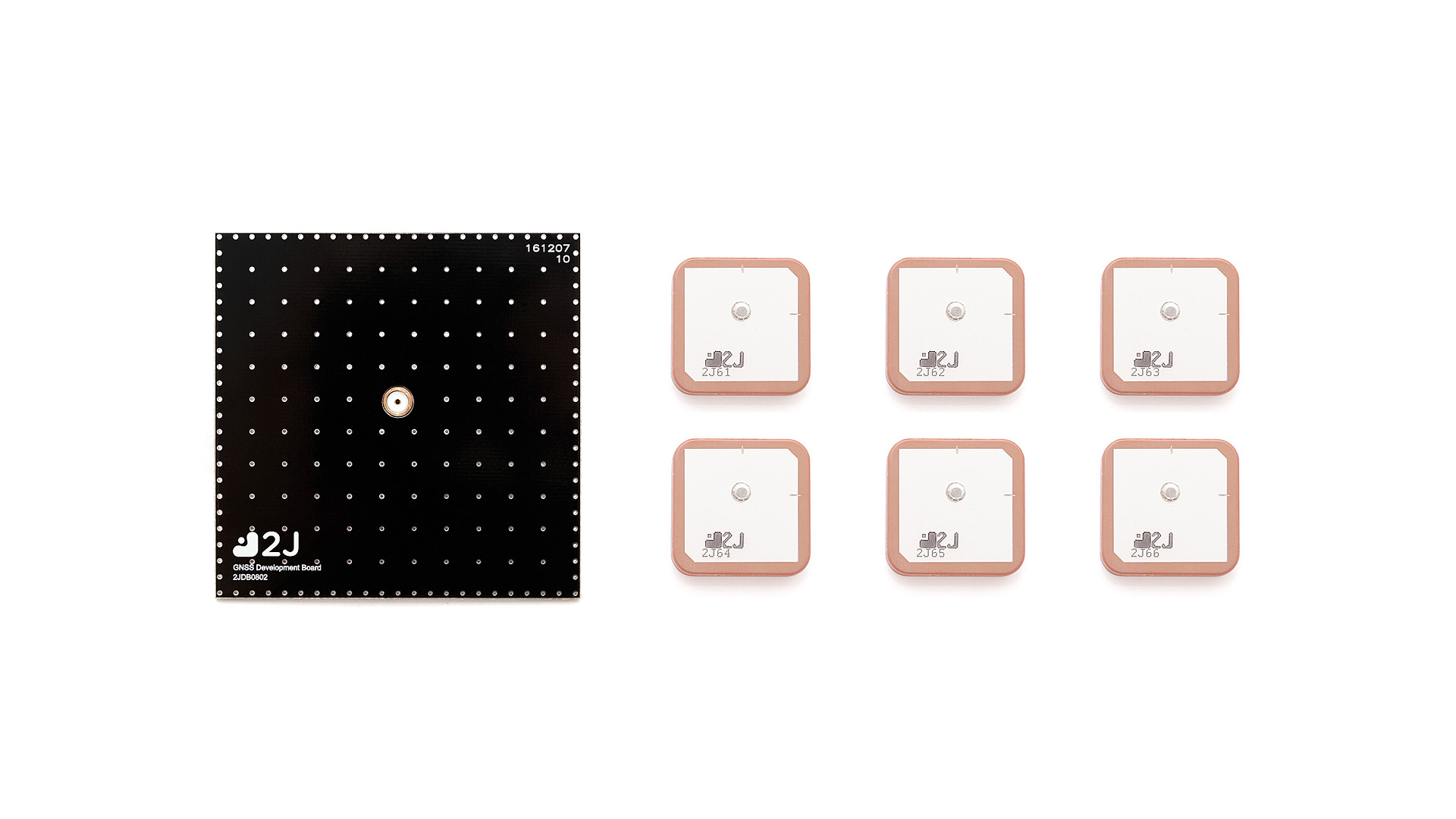

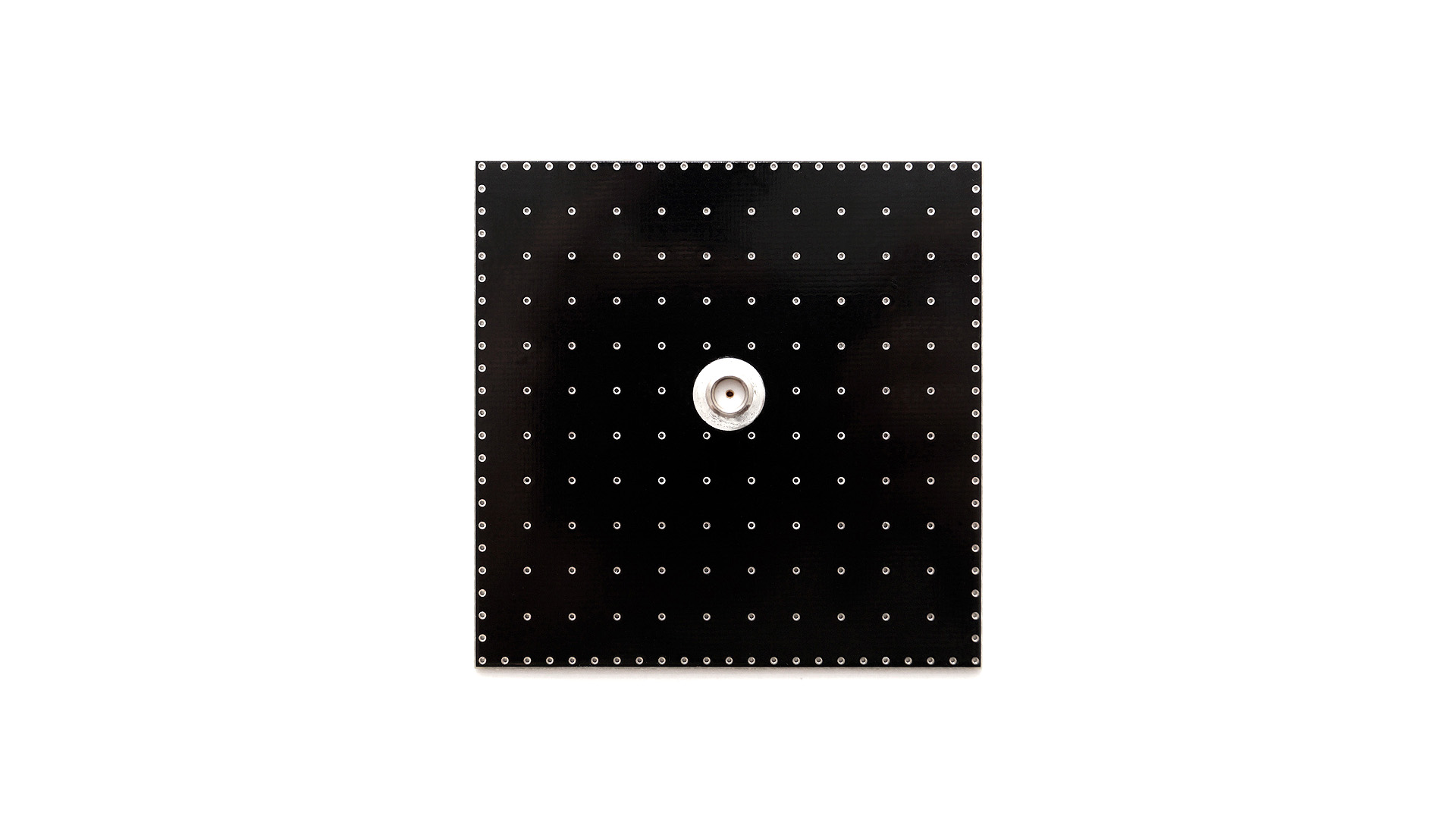

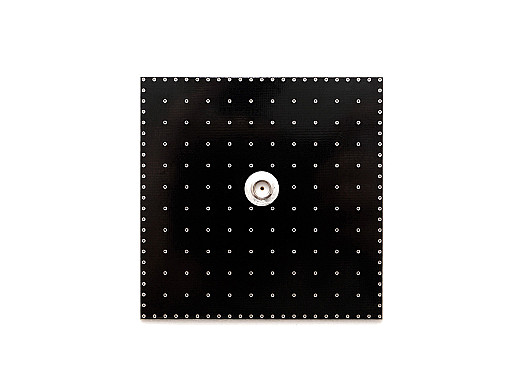

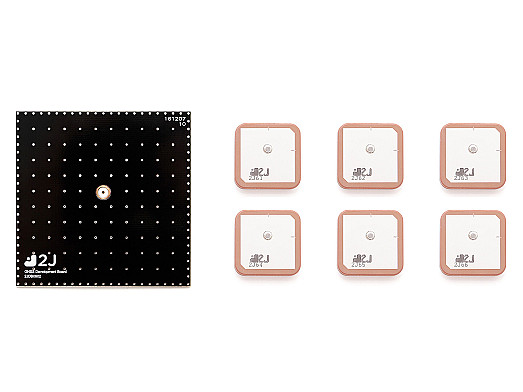

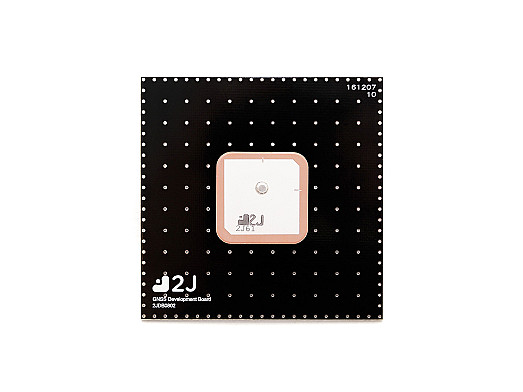

  • Set of 6 patches to try on devices
  • Patches 25 x 25 x 4 mm

Applications

Antenna and electrical specifications

connection 1

GPS/GLONASS/BeiDou - Ceramic Passive Antenna

Standards GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency (MHz) 1561.098, 1575.42, 1598-1606 - Ceramic patch 2JCP2540101Ca (2J 61)
1566.098, 1580.42, 1603-1611 - Ceramic patch 2JCP2540102Ca (2J 62)
1571.098, 1585.42, 1608-1616 - Ceramic patch 2JCP2540103Ca (2J 63)
1576.098, 1590.42, 1613-1621 - Ceramic patch 2JCP2540104Ca (2J 64)
1581.098, 1595.42, 1618-1626 - Ceramic patch 2JCP2540105Ca (2J 65)
1586.098, 1600.42, 1623-1631 - Ceramic patch 2JCP2540106Ca (2J 66)
Passive Gain (dBi) ~4.2, ~4.5, ~5.0
Impendance (Ohm) 50
Radiation Pattern Hemispherical
Polarization RHCP
