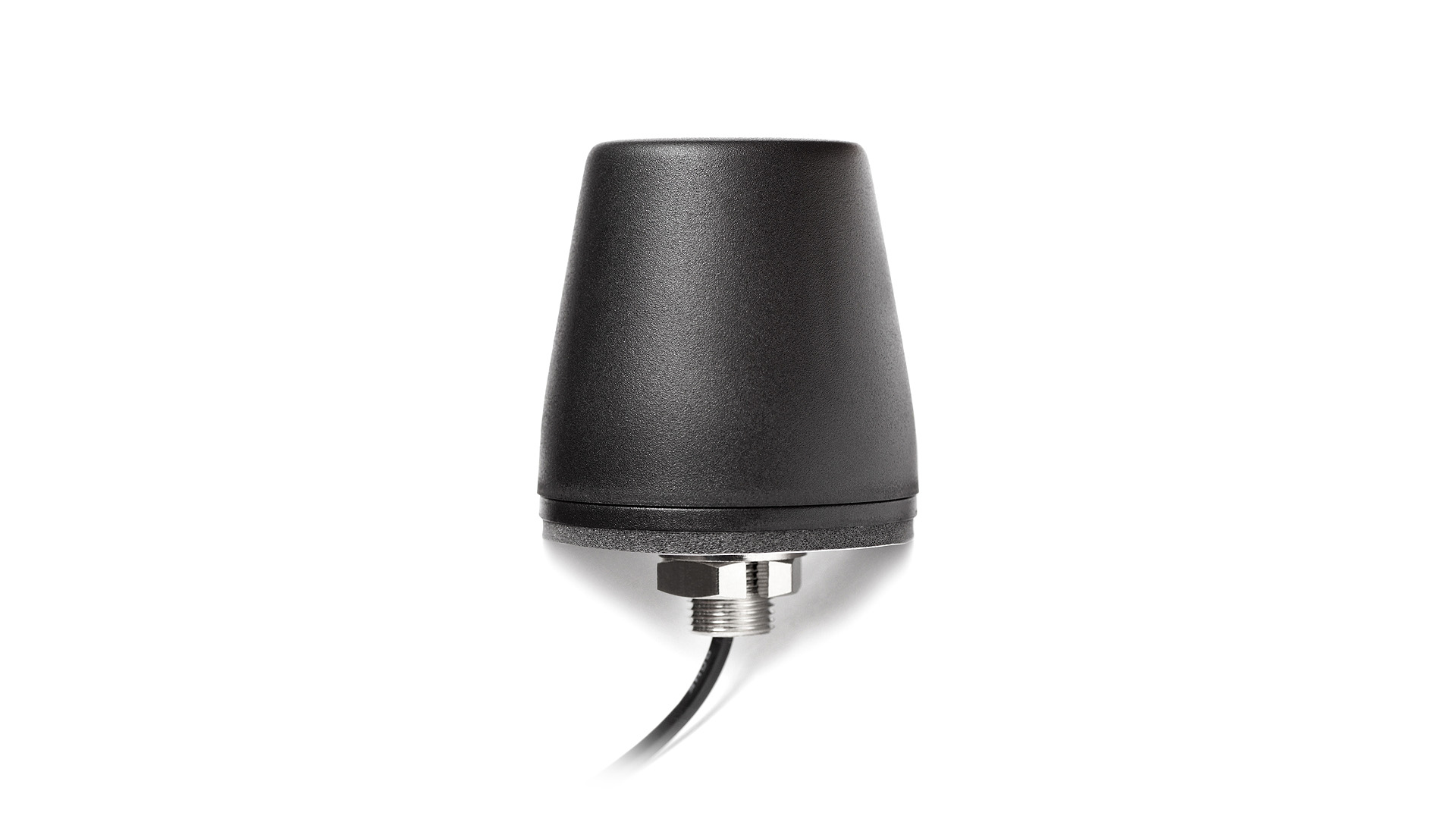

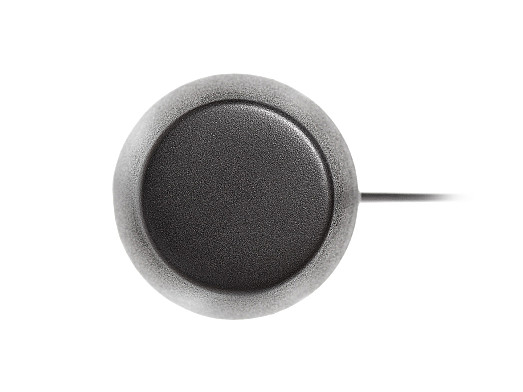

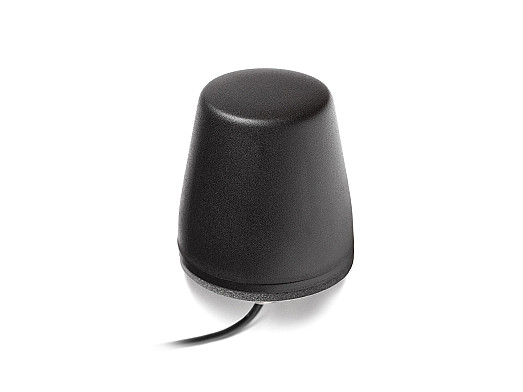

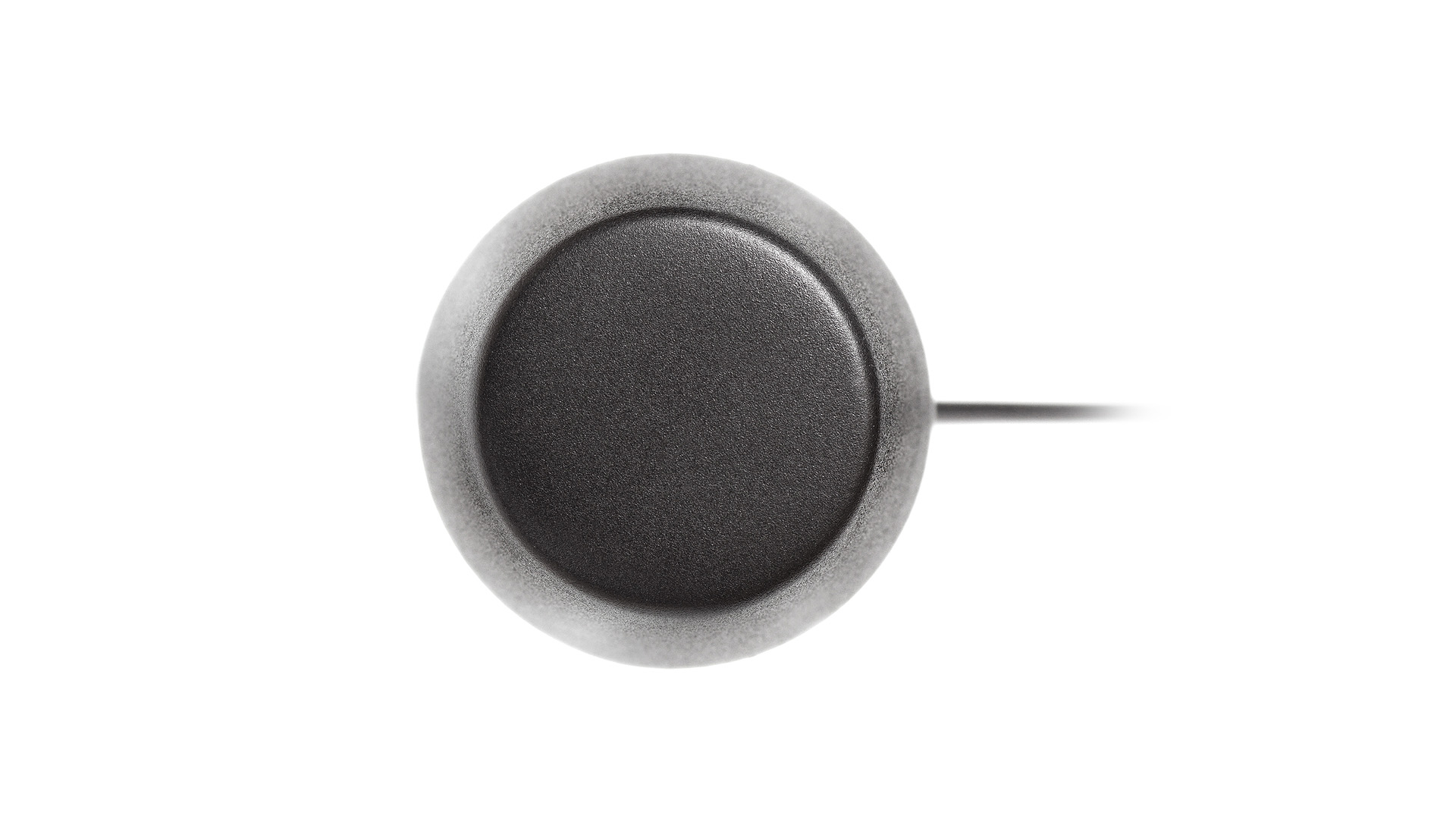

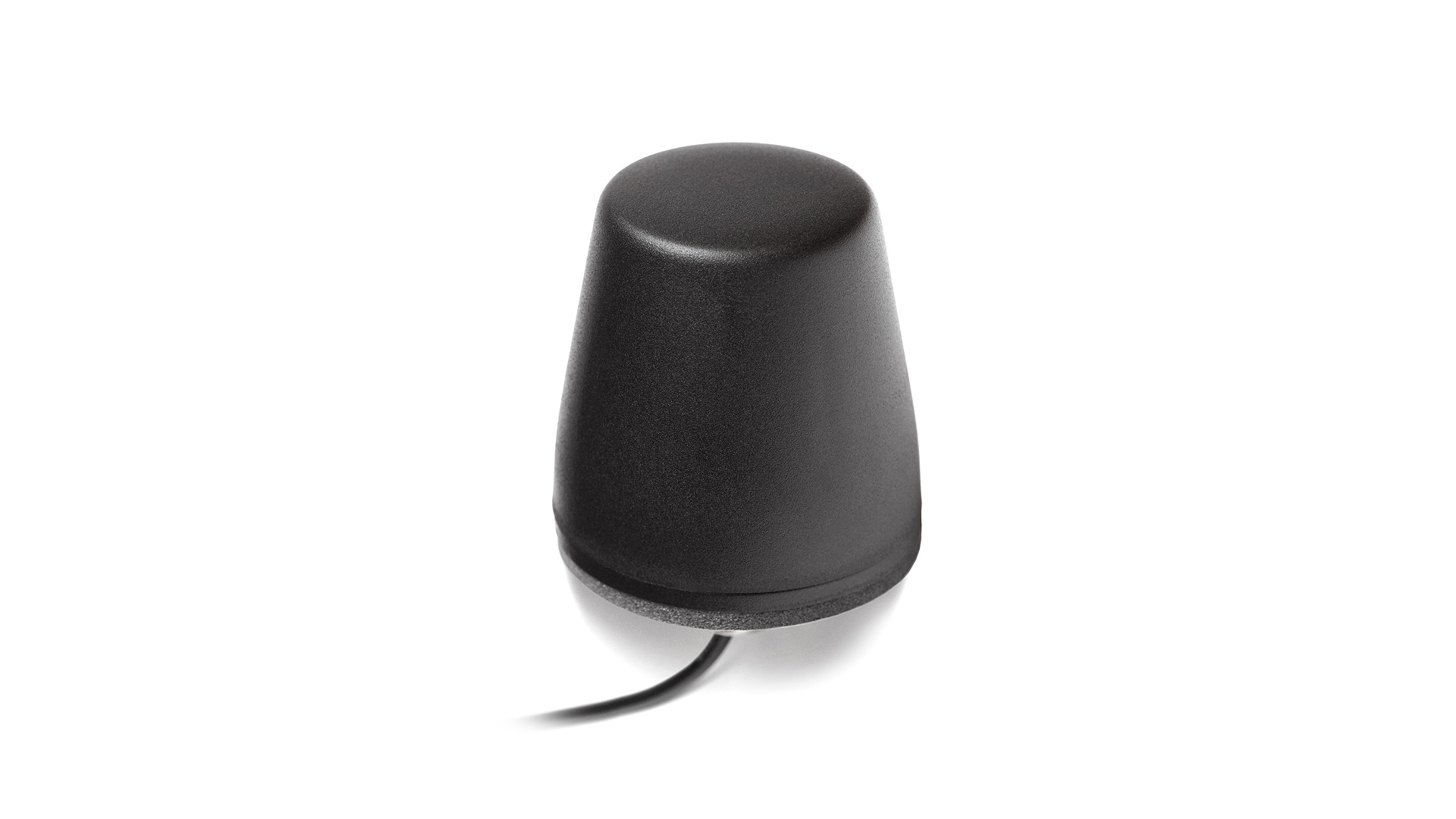

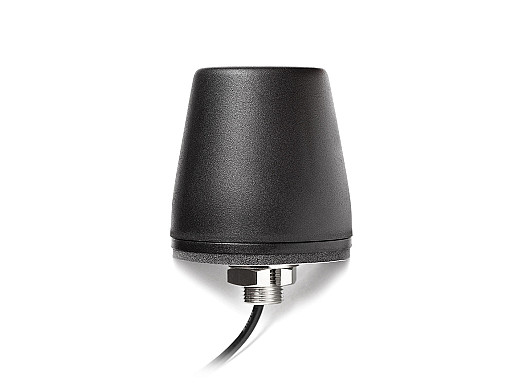

2J7615B-868 Antenna

General specification
Frequency
868 MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

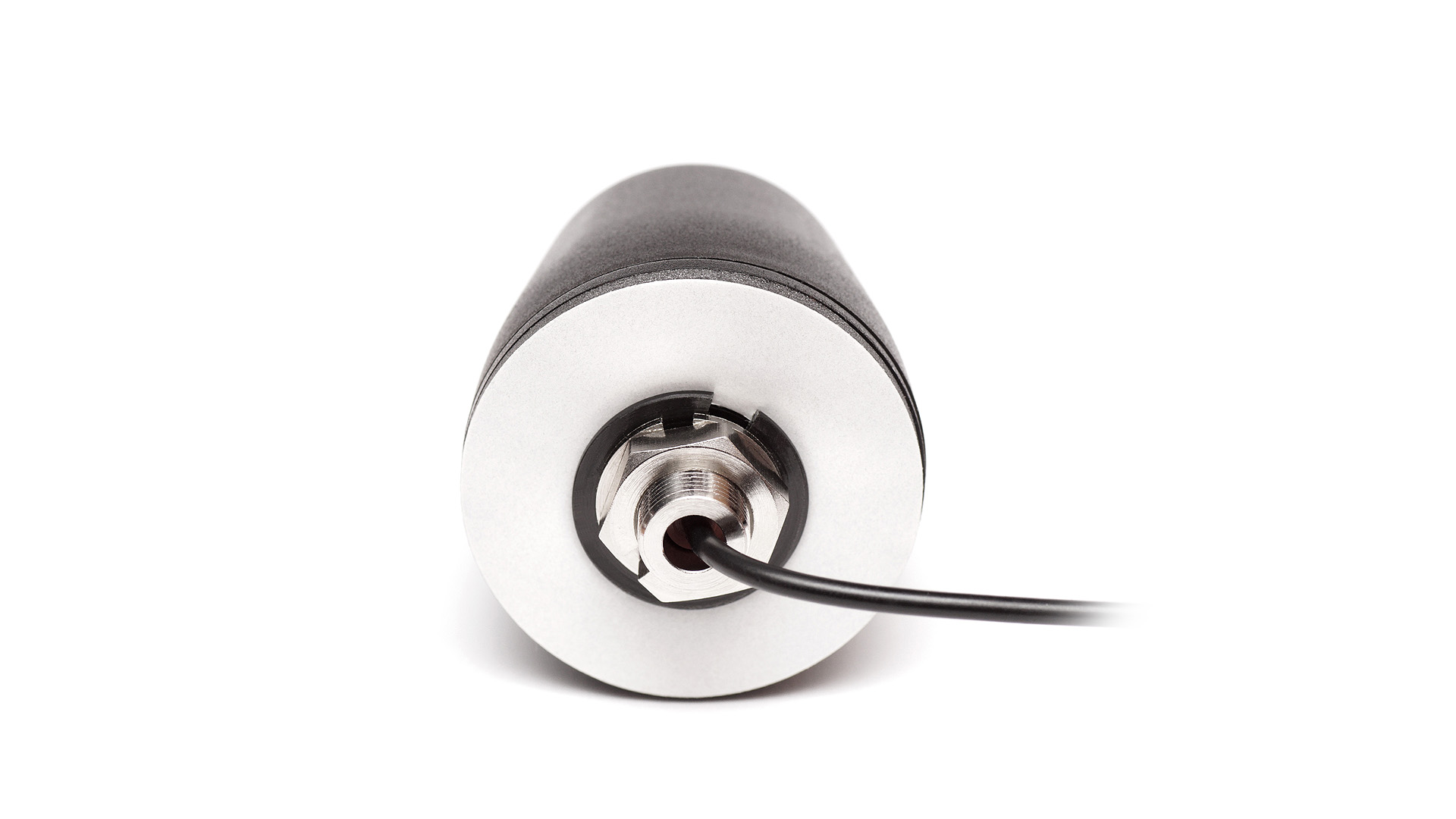

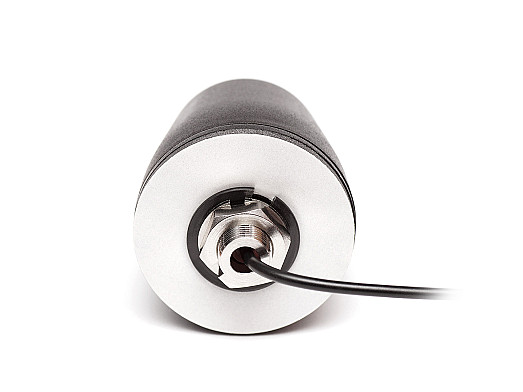

Mounting Screw Mount
Dimensions (mm) Ø 50 x 50.8
Operating temperature -40 °C to +85 °C
Note Antenna requires the minimum of 1.5 m Cable Lenght to provide best possible performance
Certificates IP67, IP69
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Screw Mount
  • Anti-Rotation Mounting
  • Ground Plane Independent
  • Customizable Cable and Connector
  • certificates: IP67, IP69
  • Minimum 1.5 m Cable Lenght
  • Antenna and electrical specifications

    connection 1

    868 MHz ISM

    Standards ZigBee, ISM, SIGFOX, LoRa
    Frequency 863-870
    VSWR ~1.9:1
    Efficiency (%) ~32.7
    Peak Gain (dBi) ~-0.8
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
