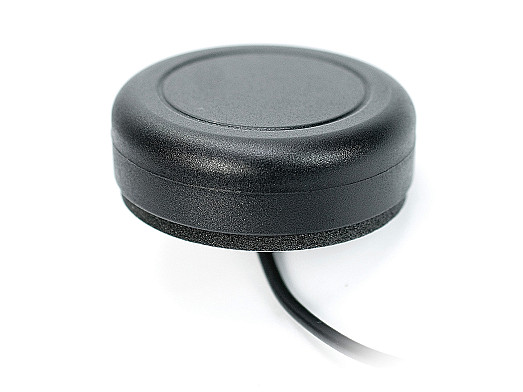

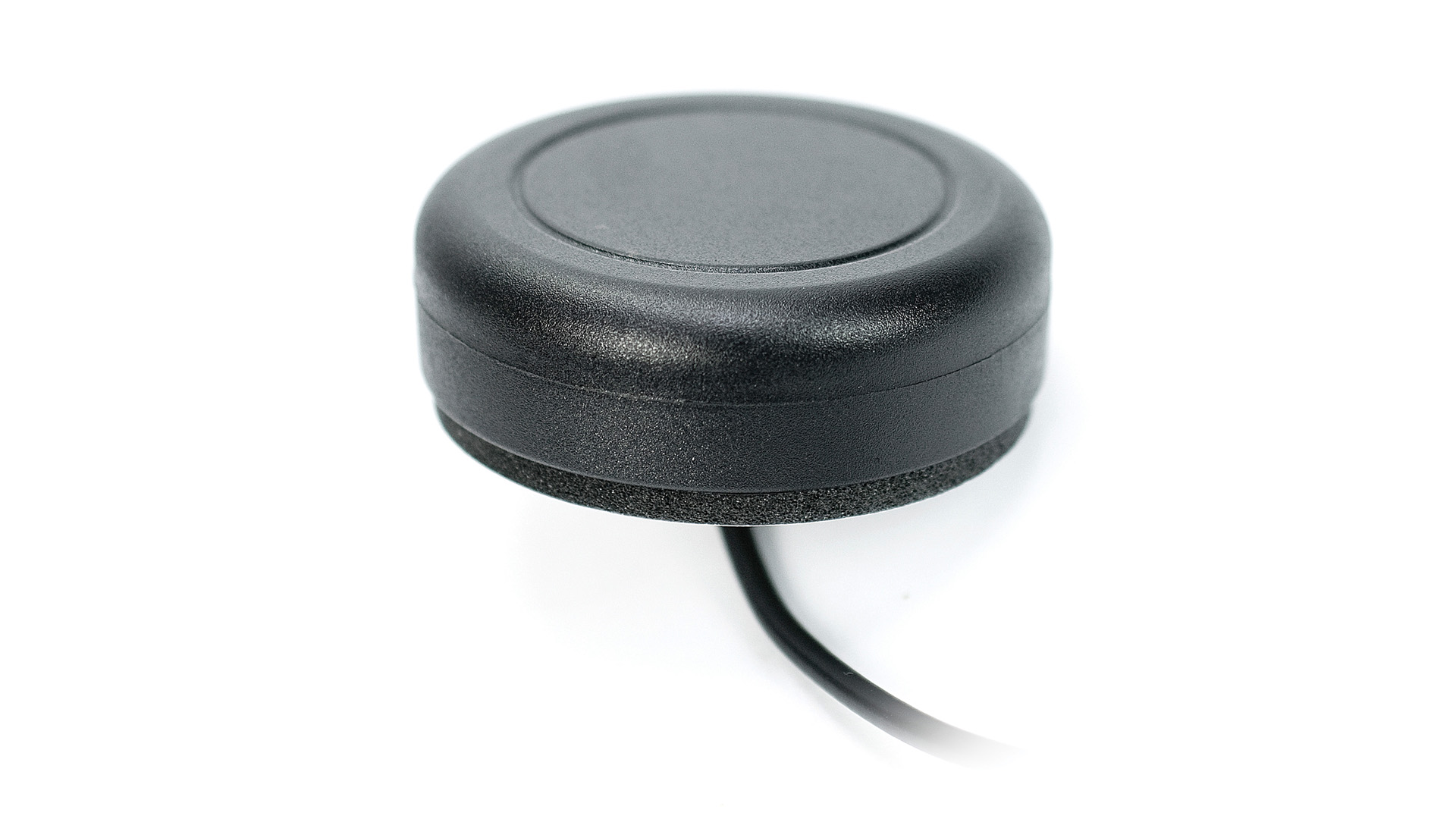

2J4701BGF Antenna

GPS/GLONASS/Galileo 1575-1606 MHz Ground Plane Independent Antenna

General specification
Frequency GPS/GLONASS/Galileo

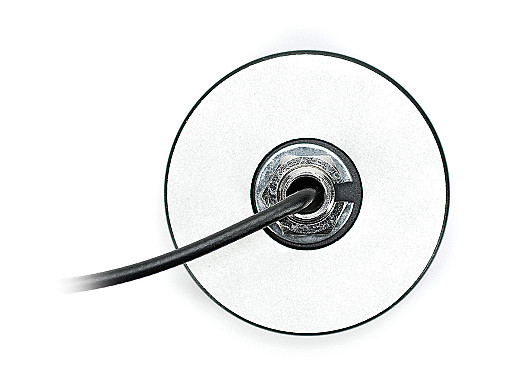

Mounting Screw mount
Dimensions (mm) Ø 52 x 17.5
Operating temperature -40 °C to +85 °C
Note 19mm Thread is Default Option. See Drawing in Datasheet for other Thread Options available.
Certificates IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Screw Mount
  • Ground Plane Independent
  • Pre-Filter
  • Customizable Cable and Connector
  • Certificates: IP69K
  • Antenna and electrical specifications

    connection 1

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1606
    VSWR <=1.2:1, <=1.4:1
    Efficiency (%) ~65, ~68
    Impedance (Ohm) 50
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 – 3.6
    Current (mA) 9 @2.7V
    Out of Band Rejection (dB) ~43
    ESD Protection (kV) 6
