Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Heavy Duty antenna
  • High Performance
  • Post-Filter
  • Anti-Rotation Mounting
  • Certificates: IP67, IP69, IK09
  • 4 × 5G NR MIMO Antenna
  • Applications

    Antenna and electrical specifications

    connection 1

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-5.5, ~-12.2, ~-15.2, ~-14.2
    VSWR ~3.7:1, ~2.0:1, ~1.5:1, ~1.6:1
    Efficiency (%) ~31.0, ~41.6, ~41.6, ~36.9
    Peak Gain (dBi) ~1.3, ~3.4, ~4.7, ~4.0
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 35
    connection 2

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-5.6, ~-12.7, ~-15.3, ~-16.0
    VSWR ~3.7:1, ~1.9:1, ~1.5:1, ~1.5:1
    Efficiency (%) ~31.2, ~41.4, ~42.4, ~33.1
    Peak Gain (dBi) ~1.2, ~3.6, ~4.6, ~3.2
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 35
    connection 3

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-5.4, ~-12.9, ~-16.7, ~-12.4
    VSWR ~3.7:1, ~1.8:1, ~1.4:1, ~1.8:1
    Efficiency (%) ~31.5, ~41.6, ~40.3, ~38.5
    Peak Gain (dBi) ~1.3, ~3.8, ~4.5, ~4.6
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 35
    connection 4

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-5.7, ~-12.8, ~-16.8, ~-15.4
    VSWR ~3.5:1, ~1.8:1, ~1.5:1, ~1.5:1
    Efficiency (%) ~31.2, ~41.8, ~42.5, ~35.0
    Peak Gain (dBi) ~1.6, ~3.4, ~4.6, ~3.9
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 35
    connection 5

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1610
    VSWR <=1.5:1
    Impedance (Ohm) 50
    Polarisation RHCP
    Active Gain (dB) 23 @ 3 V, 24 @ 5 V
    Voltage (V) 2.7 - 5.5
    Noise Figure (dB) 1.2
    Current Consumption (mA) 15 - 25
    Power Consumption (mW) 40.5 - 137.5
    Saw Filter Type Post-Filter
    Out of Band Rejection (dB) 32

    5GNR Antenna Bands list



    Parameters 5GNR Antenna
    Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
    Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
    1900, 2000, 2100, 2300,
    2500, 2600
    3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
    5GNR Bands n5, n8 ,12, n20, n28, n71,
    n81, n82, n83,
    n1, n2, n3, n7, n25, n34,
    n38, n39, n40, n41, n50,
    n51, n66, n70, n74, n75,
    n76, n80, n84, n86
    n77, n78, n79
    4GLTE Bands B5, B6, B8, B12, B13, B14,
    B17, B18, B19, B20, B26,
    B27, B28, B29, B44, B67,
    B68, B71, B85
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B23, B24,
    B25, B30, B32, B33, B34,
    B35, B36, B37, B38, B39,
    B40, B41, B45, B50, B51,
    B65, B66, B69, B70, B74,
    B75, B76
    B22, B42, B43, B48,
    B49, B52
    B46, B47, B252, B255
    3GCELL Bands B5, B6, B8, B12, B13, B14,
    B19, B20, B26
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B25, B32,
    B33, B34, B35, B36, B37,
    B38, B39, B40
    B22
    2GCELL Bands 710, 750, 810T, 850, 900P,
    900E, 900R
    1800DCS, 1900PCS
    CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
    BC10, BC12, BC18, BC19
    BC1, BC4, BC6, BC8,
    BC13, BC14, BC15, BC16,
    BC20, BC21




    2J7184BGFc

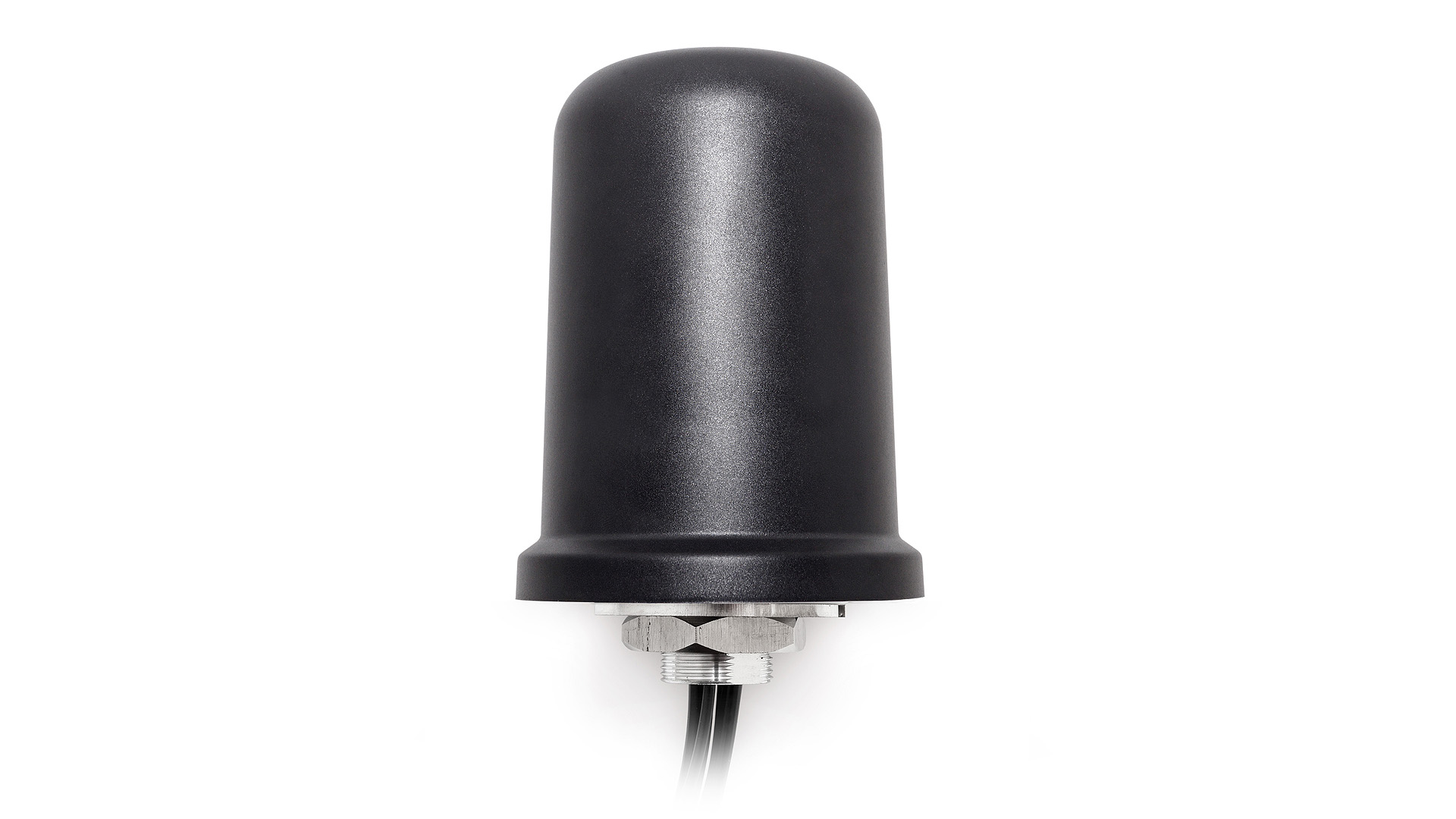

    The Next-Gen Robust 5-in-1 Solution For 5GNR MIMO and GPS/GNSS Applications

    The 5-in-1 antenna combines 4x 5GNR MIMO with 1x GNSS/GPS and delivers faster and more responsive mobile broadband experiences. 2J7184BGFc delivers powerful worldwide connectivity and is compatible with 5GNR/4G LTE MIMO, 3G and 2G bands (617-5925 MHz frequency range). This antenna facilitates communications in MIMO or separate protocols configuration, allowing devices to remain online while moving through different coverage areas.   These features make it a superior candidate for the next generation of terrestrial mobile services including high-end public safety applications such as police, ambulance, fire services, rail vehicles, transportation, critical communications, and other industries. The easy-to-install heavy-duty design and SMA-Male High-Performance antenna integrates durability and efficiency into a permanent solution.

    Suggested Applications:

    - Terminals, Base Stations and Routers
    - Emergency Services
    - MIMO Device Connectivity
    - Industrial, Commercial and Residential IoT / Smart Home
    - Electrical and Environmental Monitoring
    - RFID Asset Tracking
    - Industrial Automation
    - Robotics
    - Real-Time Remote Control
    - Geo-Spatial Asset Tracking (Commercial Trucks, Fleet Management, Public Transportation, etc)
    - GPS-Enabled IoT Applications (Agriculture Equipment)
    - V2V, V2X and Fleet Management
    - Rail Vehicles



    Cables 1-4: 5GNR MIMO Antenna

    Cables 1-4 are designed for 5GNR devices that operate within all  5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617 – 5925 MHz). The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. It comes with standard 300 cm long LL195 Standard cable, a popular choice for in high-frequency applications up to 6 GHz. All cables are designed with omni-directional radiation pattern and linear polarization for maximum 360-degree signal strength.



    Cable 5: GNSS

    Cable 5 is designed for precision navigational applications that operate within GPS and GLONASS standards. Designed with a hemispherical radiation pattern and right-hand circular polarization allows cable 5 to radiate on all planes and maximize connectivity by avoiding conflict with propagating signals, penetrating obstructions, reducing dead spots, boosting throughput and improving resistance to signal degradation caused by inclement weather conditions. Cable 5 can maintain an active gain of 23 dB @ 3V and a noise figure parameter of 1.2 within the receiver system. The SAW post-filter blocks inadequate frequencies with an out of band rejection of ~32 dB across the 1575 – 1602 MHz bands.

    All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.



    Installation / Environmental

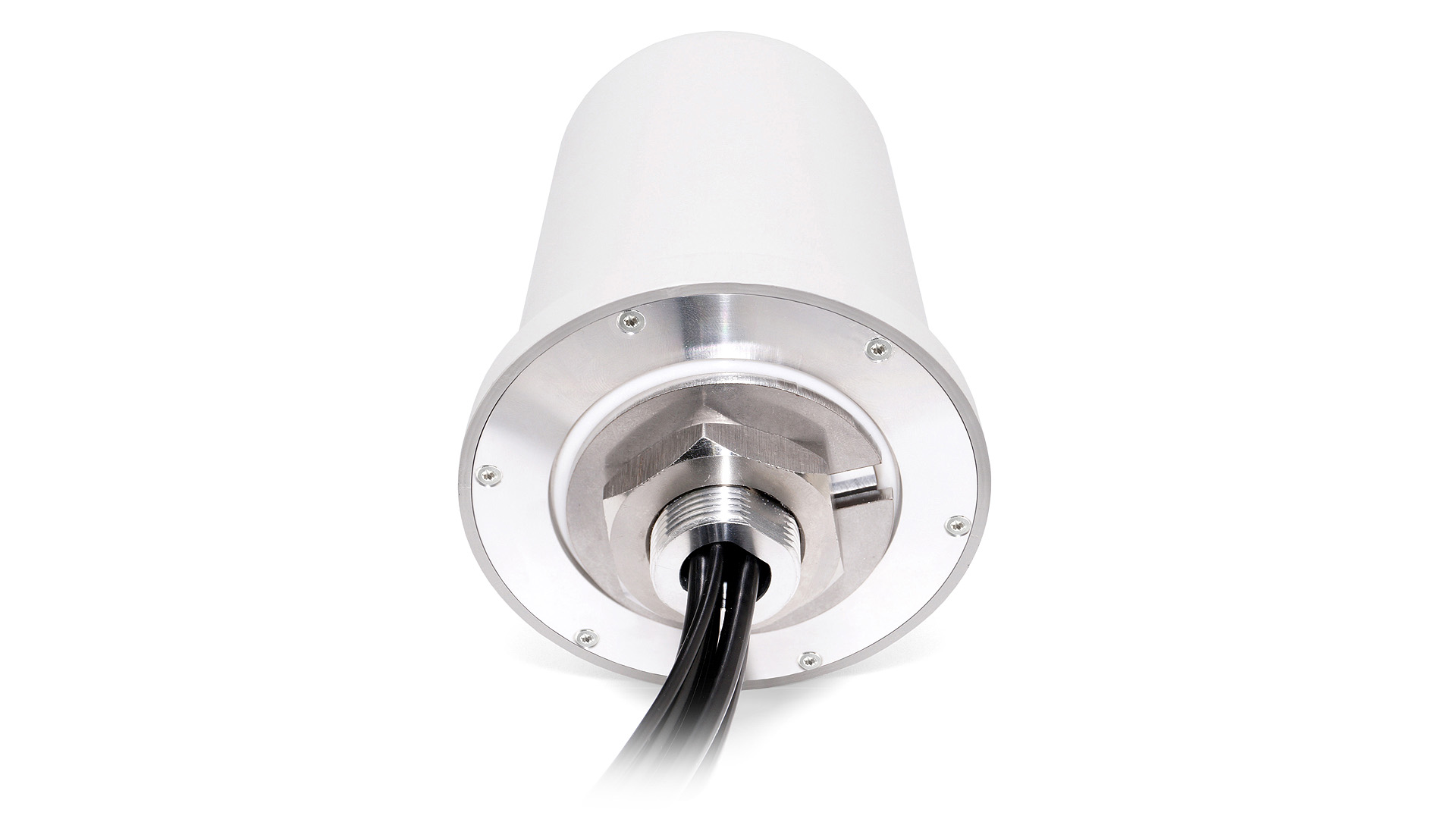

    The 2J7184BGFc is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and an Aluminum Alloy base for maximum durability. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

    2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
