Antenna and electrical specifications

connection 1

CELLULAR

Standards 2G and 3G
Frequency 824-960, 1710-2170
VSWR ~2.8:1, ~1.8:1
Efficiency (%) ~11.8, ~13.9
Peak Gain (dBi) ~-4.9, ~-4.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 100
connection 2

FM (88-108 MHz)

Standards FM
Frequency 88-108
VSWR ~2.2:1
Active Gain (dB) 5-10
Impedance (Ohm) 75
Polarisation Linear
Radiation Pattern Hemispherical
Voltage Range (V) 12-15
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.2:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Pre-Filter
Voltage Range (V) 2.7 - 5.5
Noise Figure (dB) 1.5
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137

Key Features

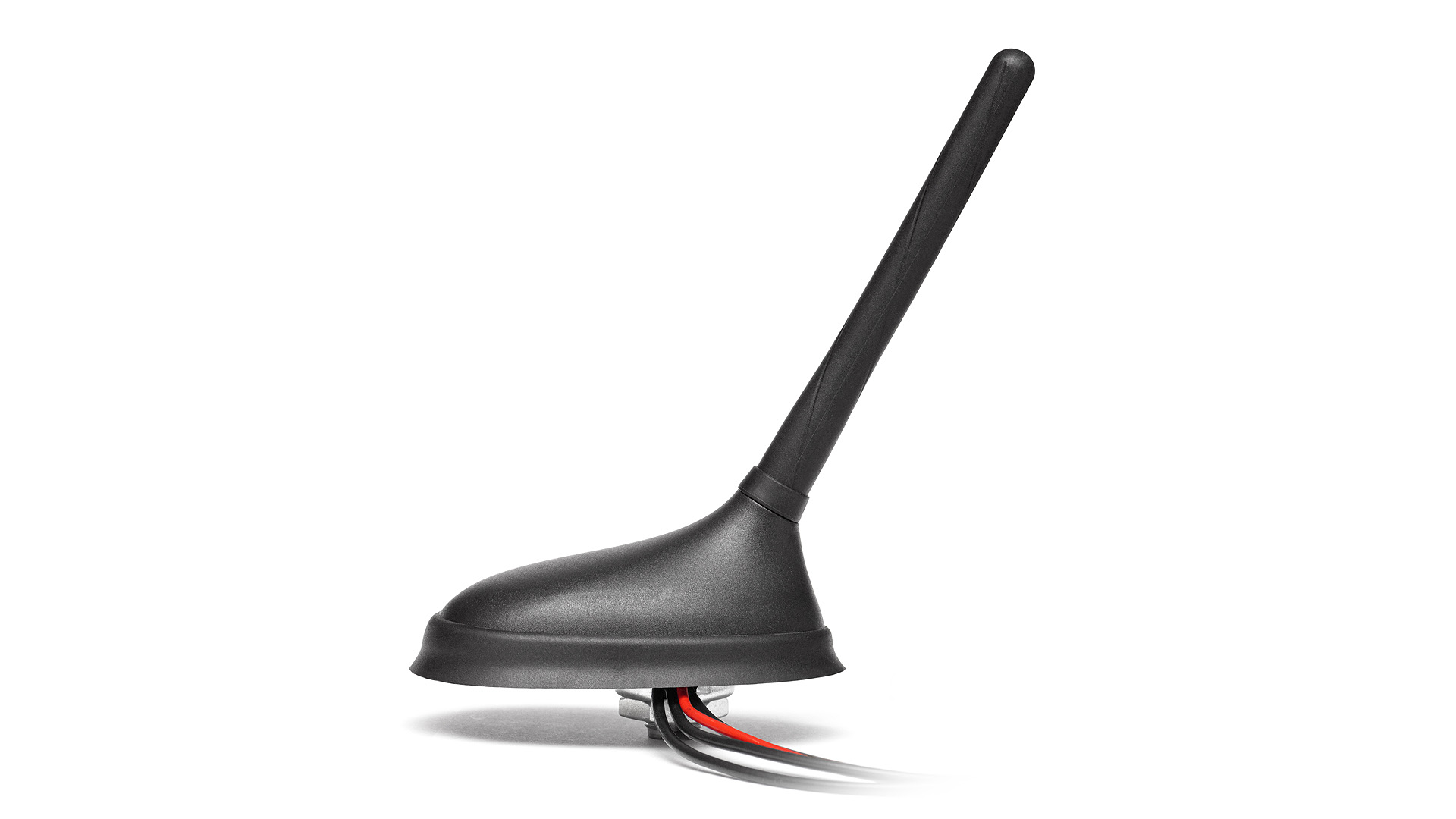

3-in-1 Combination Antenna
Ground Plane Dependent
-4.6 dBi 3G 2G Peak Gain
Active FM Antenna
5-10 dB FM Active Gain
Active GNSS Antenna
24 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Anti-Rotation Mounting
Customizable Cable and Connector
